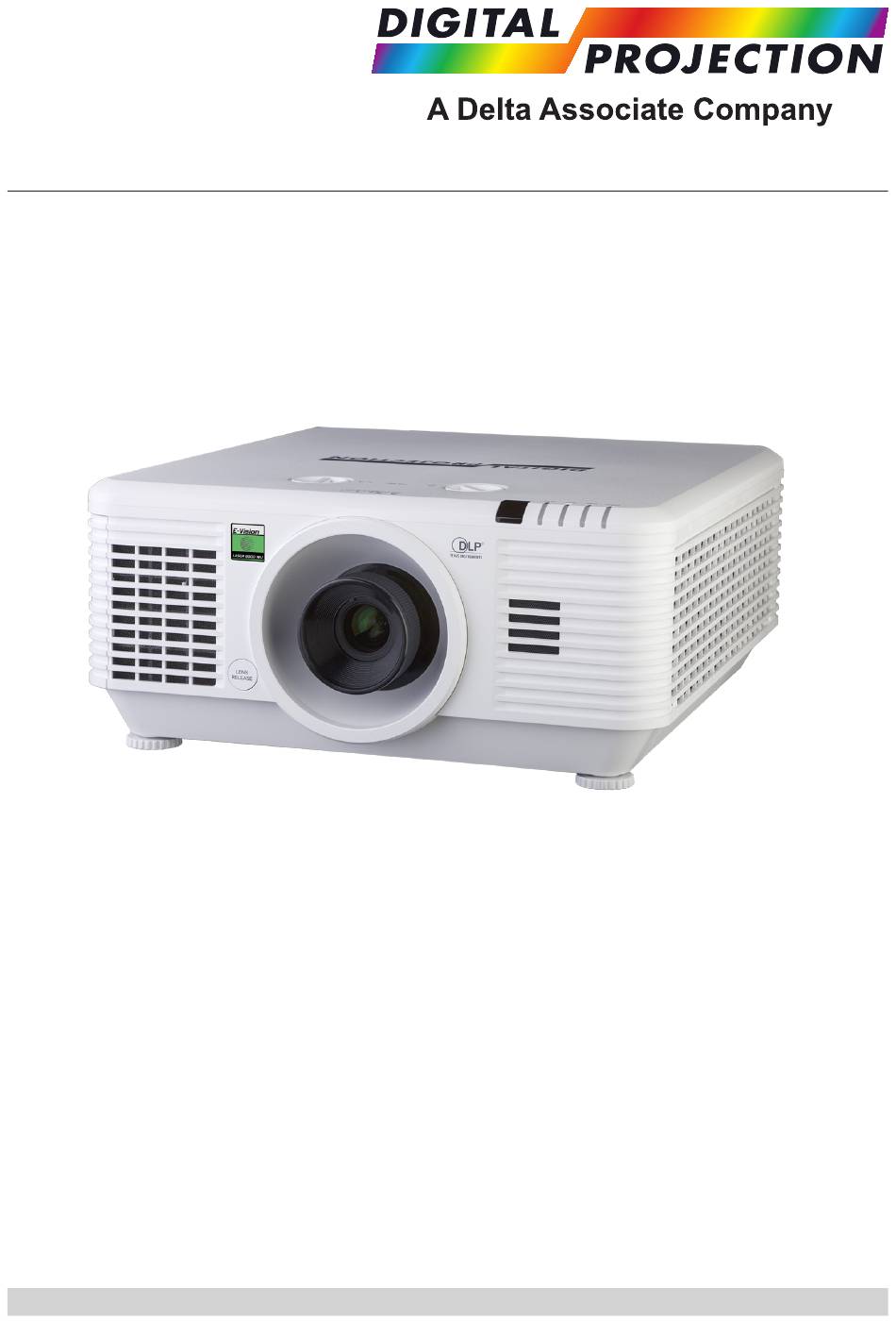

- Page 1 E-Vision Laser 9000 Series Super High Brightness Digital Video Projector Important Information Rev A December 2019 120-255...
-
Page 2: Digital Projection
Important Information Digital Projection E-Vision Laser 9000 Series Digital Projection Digital Projection Limited Digital Projection China Greenside Way, Middleton 中国 北京市 朝阳区 芍药居北里101号 Manchester M24 1XX, UK 世奥国际中心A座2301室(100029) Rm A2301 Registered in England No. 2207264 ShaoYaoJu 101 North Lane Registered Office: as above... -
Page 3: Table Of Contents
Digital Projection E-Vision Laser 9000 Series Important Information Super High Brightness Digital Video Projector Important Information Contents Symbols used in the User Manual ....................4 Electrical and physical specifications ..................5 Laser precautions ..........................5 Product labels ............................6 Location of laser aperture ......................7 Interlock switches ..........................7... -
Page 4: Symbols Used In The User Manual
Important Information Digital Projection E-Vision Laser 9000 Series Symbols used in the User Manual LASER WARNING: this symbol indicates that there is a potential hazard of eye exposure to laser radiation unless the instructions are closely followed. ELECTRICAL WARNING: this symbol indicates that there is a danger of electrical shock unless the instructions are closely followed. -
Page 5: Laser Precautions
Digital Projection E-Vision Laser 9000 Series Important Information Laser precautions Projector CLASS 3R LASER PRODUCT This Laser Product is designated as Class 3R during all procedures of operation. LASER LIGHT - AVOID DIRECT EYE EXPOSURE. Do not point laser or allow laser light to be directed or reflected toward other people or reflective objects. -
Page 6: Product Labels
Important Information Digital Projection E-Vision Laser 9000 Series Product labels Manufacturers ID Label DLP Projector / Projecteur (數 位 投 影機 / 數 字 投 影機) Model Name / Modèle(型號 / 型 號): E-Vision Laser 9000-WU INPUT / Entrée(輸 入 / 輸入):100-240V 50/60Hz 10.0A... -
Page 7: Label Locations
Digital Projection E-Vision Laser 9000 Series Important Information Label Locations Location of Hazard Warning Symbol and Laser Aperture Label on the body of the projector Location of Manufacturer’s ID Label and Explanatory Label with Certification Statement and Risk Statement on the body... -
Page 8: Location Of Laser Aperture
Important Information Digital Projection E-Vision Laser 9000 Series Location of laser aperture The laser aperture is located as indicated below. Be careful not to expose the eye to direct laser light. Laser aperture Interlock switches Interlock switches are installed at the main frame, inside the cover. These will power-off the system individually when activated. -
Page 9: General Precautions
Digital Projection E-Vision Laser 9000 Series Important Information General precautions The unit is never to be operated if the unit is defective or the cover or seal is damaged. No maintenance allowed by end user. Do not open the cabinet. There are no user serviceable parts inside. -
Page 10: Installation Precautions
Important Information Digital Projection E-Vision Laser 9000 Series Installation precautions Connect the LAN cable only to a computer LAN connection. Other similar connectors may have a dangerously high voltage source. The projector must be installed only by suitably qualified personnel, in accordance with local building codes. -
Page 11: Operation And Configuration Precautions
Digital Projection E-Vision Laser 9000 Series Important Information When installing a ceiling mount, make sure the weight limit is not exceed and the projector is firmly secured. Avoid installing near an air conditioner duct or a subwoofer. Avoid installing at high temperature, insufficient cooling and heavy dust locations. -
Page 12: Compliance With International Standards
Important Information Digital Projection E-Vision Laser 9000 Series Compliance with international standards RF Interference The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by Digital Projection in this manual. Failure to comply with this government regulation could void your right to operate this equipment. -
Page 13: Whats In The Box
Digital Projection E-Vision Laser 9000 Series Important Information Whats in the Box? Remote control 2x AAA batteries Projector Important Information Remote cable HDMI cable Power Cable Power Cable Power Cable Power Cable UK/ROW China Rev A December 2019 Page 13... -
Page 14: Basic Operation Instructions
Important Information Digital Projection E-Vision Laser 9000 Series Basic Operation Instructions Positioning the screen and projector Install the screen, ensuring that it is in the best position for viewing by your audience. Mount the projector, ensuring that it is at a suitable distance from the screen for the image to fill the screen. -
Page 15: Connecting The Power Supply
Digital Projection E-Vision Laser 9000 Series Important Information Connecting the power supply Firmly push the mains connector into the AC IN socket. Use only the power cable provided. Ensure that the power outlet includes a ground connection as this equipment MUST be earthed. -
Page 16: Selecting An Input Signal
Important Information Digital Projection E-Vision Laser 9000 Series Selecting an input signal If more than one input source is connected, select the input you want to display. Press the Source button on the control panel and use the ▼ arrow buttons to scroll through the list of UP ▲... -
Page 17: Adjusting The Lens
Digital Projection E-Vision Laser 9000 Series Important Information Adjusting the lens Lens shift The lens shift function can be used to adjust the position of the projected image either horizontally or vertically. Use the vertical and horizontal lens shift knobs to move the image across the width or height of the screen. -
Page 18: Inserting A New Lens
Important Information Digital Projection E-Vision Laser 9000 Series Inserting a new lens Before changing the lens, always make sure the projector is switched off and fully disconnected from its power supply. When changing the lens, avoid using excessive force as this may damage the equipment. -
Page 19: Removing The Lens
Digital Projection E-Vision Laser 9000 Series Important Information Removing the lens Before changing the lens, always make sure the projector is switched off and fully disconnected from its power supply. When changing the lens, avoid using excessive force as this may damage the equipment. -
Page 20: Control Panel Reference
Important Information Digital Projection E-Vision Laser 9000 Series Control Panel Reference MENU Opens and exits OSD menus. Keystone LEFT Navigates and changes settings in the OSD. Adjusts Horizontal Keystone. Keystone UP Navigates and changes settings in the OSD. Adjusts Vertical Keystone. -
Page 21: Remote Control Reference
Digital Projection E-Vision Laser 9000 Series Important Information Remote Control Reference Power ON Displays the PC source selection. HDMI Displays the HDMI 1 / HDMI 2 / DVI source selection (toggle). This button is not used in this configuration. Power OFF Turns the projector off. - Page 22 Important Information Digital Projection E-Vision Laser 9000 Series Remote Control reference continued... Keystone UP Navigates and changes settings in the OSD. Adjusts Vertical Keystone. MENU Opens the OSD. Keystone LEFT Navigates and changes settings in the OSD. Adjusts Horizontal Keystone.
- Page 23 Digital Projection E-Vision Laser 9000 Series Important Information Remote Control reference continued... Auto / ID input 0 Automatically adjusts frequency, phase and position. Use with to set the remote ID to Source / ID Source / ID Selects the next input source.
