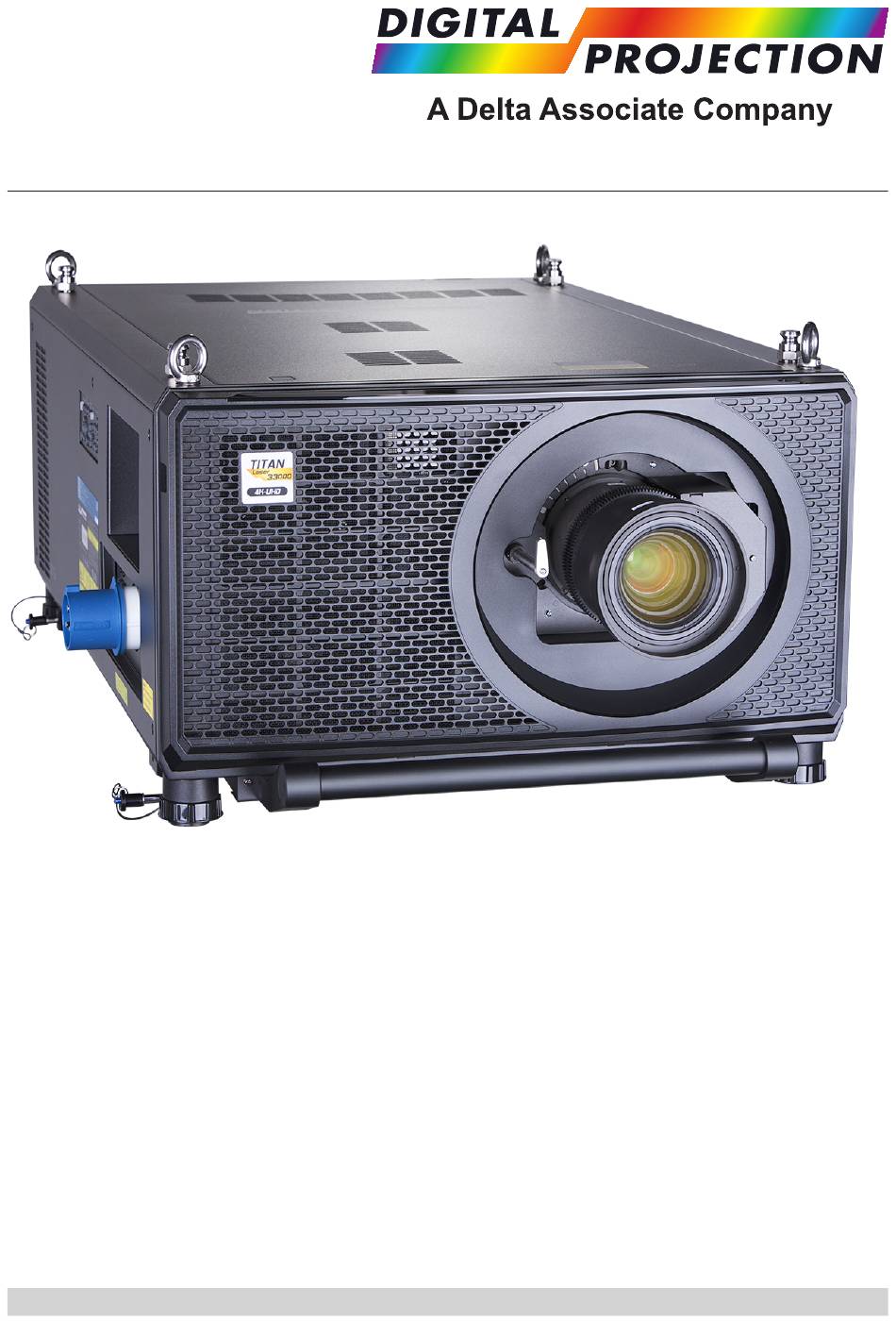

- Page 1 Titan Laser Series 4K-UHD & WUXGA Models Super High Brightness Digital Video Projector Important Information 119-708 Rev B January 2019...
-
Page 2: Digital Projection
Important Information Digital Projection Titan Laser Series Digital Projection Digital Projection Limited Digital Projection China Greenside Way, Middleton 中国 北京市 朝阳区 芍药居北里101号 Manchester M24 1XX, UK 世奥国际中心A座2301室(100029) Rm A2301 Registered in England No. 2207264 ShaoYaoJu 101 North Lane Registered Office: as above... -
Page 3: Table Of Contents
Digital Projection Titan Laser Series Important Information Super High Brightness Digital Video Projector Important Information Contents Symbols used in the User Manual ....................4 Electrical and physical specifications ..................4 Laser precautions ..........................5 Product labels ............................6 Manufacturers ID Label and Explanatory Label ................6 Hazard Warning Symbol and Aperture Label ................8... -
Page 4: Symbols Used In The User Manual
Important Information Digital Projection Titan Laser Series Symbols used in the User Manual LASER WARNING: this symbol indicates that there is a potential hazard of eye exposure to laser radiation unless the instructions are closely followed. ELECTRICAL WARNING: this symbol indicates that there is a danger of electrical shock unless the instructions are closely followed. -
Page 5: Laser Precautions
Digital Projection Titan Laser Series Important Information Laser precautions CLASS 3R LASER PRODUCT This Laser Product is designated as Class 3R during all procedures of operation. LASER LIGHT - AVOID DIRECT EYE EXPOSURE. Do not point laser or allow laser light to be directed or reflected toward other people or reflective objects. -
Page 6: Product Labels
MLUF-xxR Dx xW MLUF-xxR Dx xW Important Information Digital Projection Titan Laser Series Product labels MLUF-33R DA EW (for EU) MLUF-33R DA EW (for EU) Manufacturers ID Label and Explanatory Label Titan User Guides Titan User Guides WJ XXXX WJ XXXX... - Page 7 Projector Documentation Follow link for Projector Documentation Follow link for Projector Documentation USA) Follow link for Projector Documentation deviations pursuant to Digital Projection Titan Laser Series Class 3R Laser product Produit Laser de classe 3R Important Information 3R类激光产品 3R級雷射產品...
-
Page 8: Hazard Warning Symbol And Aperture Label
雷射輻射 and 1040.11 except for Avoid direct eye exposure Èvitez d’exposer directement les yeux 请勿直视光束 請勿直視光線 Important Information Digital Projection Titan Laser Series deviations pursuant to Class 3R Laser product Produit Laser de classe 3R 3R类激光产品 3R級雷射產品 Laser notice No.50, Wave length : 450-460nm Longueur d’onde : 450-460nm... -
Page 9: Label Locations
Digital Projection Titan Laser Series Important Information Label locations Fill in manufacture Fill in Vendor’s code plant code, such as WJ, TW Such as: CM, GG, FS..etc. Titan User Guides Follow link for Projector Documentation WJ XXXX Suivre le lien pour accéder à la documentation du projecteur... -
Page 10: Location Of Laser Aperture
Important Information Digital Projection Titan Laser Series Location of laser aperture The laser aperture is located as indicated below. Interlock switches Interlock switches installed at the main frame, inside the cover, will power-off the system individually when activated. Will be activated when the top cover is removed. -
Page 11: General Precautions
Digital Projection Titan Laser Series Important Information General precautions The unit is never to be operated if the unit is defective or the cover or seal is damaged. No maintenance allowed by end user. Do not open the cabinet. There are no user serviceable parts inside. -
Page 12: Installation Precautions
Important Information Digital Projection Titan Laser Series Installation precautions Connect the LAN cable only to a computer LAN connection. Other similar connectors may have a dangerously high voltage source. The projector must be installed only by suitably qualified personnel, in accordance with local building codes. -
Page 13: Light Hazard Warning
Digital Projection Titan Laser Series Important Information When using projectors in environments with third party high power laser systems avoid direct laser beams pointing towards the projection lens. This may cause incident light to converge into the optical engine and cause damage to the DLP DMD. -
Page 14: Operation And Configuration Precautions
Important Information Digital Projection Titan Laser Series Operation and configuration precautions Do not make changes to the networking configuration unless you understand what you are doing, or have taken advice from your Network Manager. If you make a mistake, it is possible that you will lose contact with the projector. Always double-check your settings before pressing the APPLY button. -
Page 15: Whats In The Box
Digital Projection Titan Laser Series Important Information Whats in the Box? Remote control 2x AAA batteries Projector Important Information HDMI cable Remote cable Lens Adapter Bracket Power Cable UK/ROW Power Cable USA Rev B January 2019 Page 15... -
Page 16: Basic Operation Instructions
Important Information Digital Projection Titan Laser Series Basic Operation Instructions Positioning the screen and projector Install the screen, ensuring that it is in the best position for viewing by your audience. Mount the projector, ensuring that it is at a suitable distance from the screen for the image to fill the screen. Set the adjustable feet so that the projector is level, and perpendicular to the screen. -
Page 17: Stacking And Rigging
Digital Projection Titan Laser Series Important Information Stacking and rigging The top of the projector has pins and the bottom of the projector has cups. The pins and cups can connect together and be locked into place with a locking pin. - Page 18 Important Information Digital Projection Titan Laser Series Four eye-bolts are fitted to the top of the projector to enable the flying of the projector using steel wire or chains. This system should only be used to fly a single projector. Do not stack projectors and fly them together. Point-to point connections Refer to the following guidelines when connecting one end of a suspension cable directly to an eye- bolt and the other to a suspension point.
- Page 19 Digital Projection Titan Laser Series Important Information Threaded suspension cables Refer to the following guidelines when threading the suspension cable through the eye-bolts and connecting both ends to suspension points. 45° 45° 45° 45° • The suspension cable can exit the eye-bolts at an angle of up to 45°...
-
Page 20: Inserting A New Lens
Important Information Digital Projection Titan Laser Series Inserting a new lens Before changing the lens, always make sure the projector is switched off and fully disconnected from its power supply. Always allow the projector to cool for five minutes before disconnecting the power or moving the projector. -
Page 21: Removing The Lens
Digital Projection Titan Laser Series Important Information The lens can now be pushed in further. Push the lens in firmly as far as it will go. Turn the lens release lever fully anti-clockwise so that it is pointing downwards, to close the lock fully. Removing the lens To remove the lens, reverse the procedure described in Inserting a new lens above: Turn the release lever up to the mid-position, then pull the lens out as far as it will go. - Page 22 Important Information Digital Projection Titan Laser Series Place hood over the lens, aligned with the screw holes. Screw in the six screws to secure the hood. Pace the six sponges over the locating pins on the hood. Place the glass and bracket over the hood.
-
Page 23: Connecting The Power Supply
Digital Projection Titan Laser Series Important Information Connecting the power supply Rest of the world: Firmly push the mains connector into the socket. USA only: Firmly push the mains connector into the socket. Rotate the connector 90° clockwise to lock it in place Use only the power cable provided. -
Page 24: Switching The Projector On
Important Information Digital Projection Titan Laser Series Switching the projector on Connect the power cable between the mains supply and the projector. (See Connecting the power supply above.) Switch the breaker switch next to the power connector to on. indicator turns red to signal that the projecter is on and in STANDBY mode. -
Page 25: Selecting An Input Signal
Digital Projection Titan Laser Series Important Information Selecting an input signal Connect one or more image sources to the projector. Select the input you want to display: • Press one of the input buttons on the remote control. • Alternatively, open the On-screen display (OSD) by pressing . -
Page 26: Adjusting The Lens
Important Information Digital Projection Titan Laser Series Adjusting the lens The lens can be adjusted using the menu, or using the lens buttons on the remote control. Lens Lens menu menu provides access to the setting and the command. Lens... -
Page 27: Control Panel Reference
Digital Projection Titan Laser Series Important Information Control Panel Reference POWER Switches the projector on and off (STANDBY). Indicator: Off = the projector is switched off Flashing green = the projector is warming up Flashing blue = the projector is cooling down On, red = STANDBY mode On, green = the projector is switched on INPUT Switches to the next input source. AUTO SYNC Re-synchronises with the current input signal. ASPECT Changes the aspect ratio. CENTER LENS Centers the lens. - Page 28 Important Information Digital Projection Titan Laser Series LIGHT INDICATOR Off = light is switched off Flashing red (cycles of single flashes) = failure to light up during power up Flashing red (cycles of double flashes) = failure to light up On, green = light is switched on TEMP INDICATOR Off = no problem Flashing red = temperature error HOTKEYS User selectable functions. Pre-set functions: HOTKEY 1 Information HOTKEY 2 Test Pattern HOTKEY 3 Lens Memory Load Additional options: Picture Mode Ambient Brightness Correction...
-
Page 29: Remote Control Reference
Digital Projection Titan Laser Series Important Information Remote Control Reference Power ON/OFF Turns the projector on and off. To turn the projector off, press the OFF button twice within five seconds. Pic Mute OPEN / CLOSE Shows and hides the projected image. OSD ON / OFF Pic Mute Enables and disables screen timeout OPEN CLOSE messages and showing the OSD during projection. - Page 30 Important Information Digital Projection Titan Laser Series EXIT INFO LENS adjustment FREEZE RE-SYNC adjust focus. FOCUS IN / OUT: press and hold this button, SHIFT: then use the Navigation arrow buttons to move the lens. LENS FOCUS ZOOM adjust zoom.
- Page 31 SHIFT Digital Projection Titan Laser Series Important Information DisplayPort 1 / R / numeric input 4 USER PRESET Select the DisplayPort 1 input. Use with to toggle the Red channel on and off HDMI1 HDMI2 HD-T / G / numeric input 5 Select the HDBaseT input.
