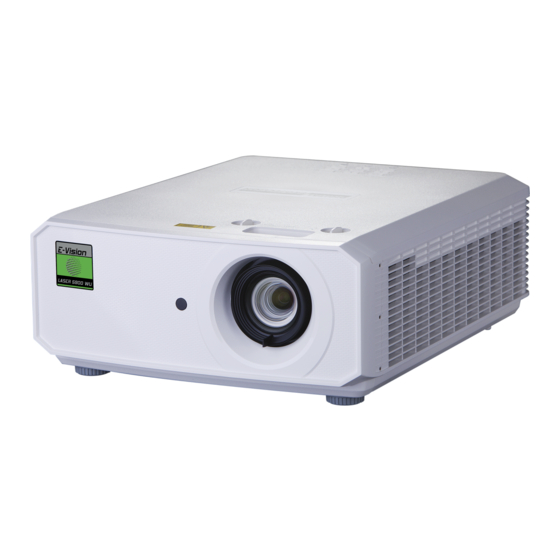

- Page 1 E-Vision Laser 5900 Series High Brightness Digital Video Projector INSTALLATION & QUICK START GUIDE CONNECTION GUIDE OPERATING GUIDE REFERENCE GUIDE Rev A September 2020 121-183A...
-
Page 2: About This Document
Digital Projection E-Vision Laser 5900 Series About this document About this document Notes Follow the instructions in this manual carefully to ensure safe and long-lasting use of the projector. Symbols used in this document Many pages in this document have a dedicated area for notes. The information in that area is accompanied by the following symbols: LASER WARNING: this symbol indicates that there is a potential hazard of eye exposure to laser radiation unless the instructions are closely followed. -
Page 3: Electrical And Physical Specifications
Electrical and Physical Specifications Digital Projection E-Vision Laser 5900 Series Electrical and Physical Specifications Notes Mains Voltage 100-240VAC 50/60Hz 5.3A Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) Operating Humidity 10% to 85% non-condensing... -
Page 4: Optical Radiation Projector
Digital Projection E-Vision Laser 5900 Series Optical radiation Optical radiation Notes Projector CAUTION: Do not look into the lens CLASS 3R LASER PRODUCT This Laser Product is designated as Class 3R during all procedures of operation. LASER LIGHT - AVOID DIRECT EYE EXPOSURE. -
Page 5: Laser Information
Laser information Digital Projection E-Vision Laser 5900 Series Laser information Notes Caution - use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Location of Laser Aperture 1. The laser aperture is located as indicated below. -
Page 6: Laser Parameters
Digital Projection E-Vision Laser 5900 Series Laser information Laser Parameters Notes Wavelength 450-460nm (Blue) Mode of operation Pulsed, due to frame rate Pulse duration 1.34ms Pulse repetition rate 120Hz Maximum pulse energy 0.698mJ Total internal power >100W Apparent source size >10mm, at lens stop... -
Page 7: Product Labels
Product Labels Digital Projection E-Vision Laser 5900 Series Product Labels Notes Projector E-Vision Laser 5900 WUXGA Manufacturers ID Label Explanatory Label E-Vision User Guides Follow link for Projector Documentation Suivre le lien pour accéder à la documentation du projecteur Produktdokumentation nden Sie unter dem Link この二次元バーコードをスキャンしてプロジェクターのデータを取得してください... -
Page 8: Remote Control
Digital Projection E-Vision Laser 5900 Series Product Labels Remote Control Notes LASER RADIATION DO NOT STARE INTO BEAM WAVE LENGTH: 640-660nm MAX OUTPUT: <1mW CLASS II LASER PRODUCT Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50 dated June 24.2007. -
Page 9: Label Locations
Product Labels Digital Projection E-Vision Laser 5900 Series Label Locations Notes 1. Location of Hazard Warning Symbol and Laser Aperture Label on the body of the projector. 2. Location of Manufacturer’s ID Label and Explanatory Label with Certification Statement and Risk Statement on the body of the projector. - Page 10 Digital Projection E-Vision Laser 5900 Series Product Labels 3. Location of Remote Control Label on the back of the remote. Notes Introduction Rev A September 2020 page 10...
-
Page 11: Interlock Switches
InterlockSwitches Digital Projection E-Vision Laser 5900 Series Interlock Switches Notes Interlock switches are installed at the main frame, inside the cover. These will power-off the system individually when activated. 1. Will be activated when the top cover is removed. Introduction... -
Page 12: Introduction
Digital Projection E-Vision Laser 5900 Series Introduction Introduction Notes Congratulations on your purchase of this Digital Projection product. Your projector has the following key features: WUXGA native resolution delivering 5,900 ISO lumens. Up to 20,000:1 contrast ratio. Long life laser light source... -
Page 13: Table Of Contents
Contents Digital Projection E-Vision Laser 5900 Series Contents Notes Switching the projector off About this document Selecting an input signal Symbols used in this document Selecting a test pattern Product revision Adjusting the lens Additional Documentation Adjusting the image Legal notice... - Page 14 Digital Projection E-Vision Laser 5900 Series Contents Notes Settings 1 Menu Appendix C: wiring details Audio Signal inputs and outputs Alignment HDMI Keystone HDBaseT input Keystone settings VGA input Keystone example Control connections 4 Corner Advanced 1 RS232 3D Setting...
- Page 15 E-Vision Laser 5900 Series High Brightness Digital Video Projector INSTALLATION & QUICK START GUIDE Rev A September 2020 121-183A...
-
Page 16: What's In The Box
Digital Projection E-Vision Laser 5900 Series What's in the box? What's in the box? Notes Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Only one remote is supplied with the projector. Save and store the original box and packing materials, in case you ever need to ship your projector. -
Page 17: Connecting The Power Supply
Connecting the power supply Digital Projection E-Vision Laser 5900 Series Connecting the power supply Notes 1. Firmly push the mains connector into the AC In socket Use only the power cable provided. Ensure that the power outlet includes a ground connection as this equipment MUST be earthed. -
Page 18: Projector Overview
Digital Projection E-Vision Laser 5900 Series Projector overview Projector overview Notes 1. Horizontal lens shift control 2. Zoom control 3. Vertical lens shift control 4. Control panel 5. Indicators 6. Front infrared window 7. Focus control 8. Internal Speaker 9. Air inlet 10. -
Page 19: Control Panel
Control panel Digital Projection E-Vision Laser 5900 Series Control panel Notes 1. AUTO Optimizes the image size, position and resolution 2. Arrow buttons & ENTER Navigation buttons used to highlight menu entries in the OSD. Press ENTER to open or execute the highlighted menu entry. -
Page 20: Projector Indicators
Digital Projection E-Vision Laser 5900 Series Control panel Projector indicators Notes POWER On = projector is switched on Flashing = starting up or cooling down LIGHT On = error TEMP. On = error Indicators Installation & QuickStart Guide Rev A September 2020... -
Page 21: Remote Control
Remote control Digital Projection E-Vision Laser 5900 Series Remote control Notes 1. Power ON / OFF Turns power on and off. 2. PC Select the Computer In input. 3. HDMI Select and toggle the HDMI 1, HDMI 2 or DVI-D input. - Page 22 Digital Projection E-Vision Laser 5900 Series Remote control 13. Laser Notes Enables the laser pointer. 14. MHL Play controls Play, pause, stop, rewind and fast forward MHL content. 15. Auto / ID input 0 Do not point the laser pointer Automatically adjust frequency, phase and position.
- Page 23 Remote control Digital Projection E-Vision Laser 5900 Series 24. Blank / ID input 6 Notes Shows and hides the projected image. When blanking is enabled, the light source is completely switched off and the screen is blank. Use with Source / ID to set the remote ID to 6.
-
Page 24: Infrared Reception
Digital Projection E-Vision Laser 5900 Series Remote control Infrared reception Notes The projector has infrared sensors at the front and rear. Avoid using the projector with bright The remote control uses infrared transmission to control the projector. It is not necessary to point fluorescent lighting turned on. -
Page 25: Positioning The Screen And Projector
Positioning the screen and projector Digital Projection E-Vision Laser 5900 Series Positioning the screen and projector Notes 1. Install the screen, ensuring that it is in the best position for viewing by your audience. 2. Mount the projector, ensuring that it is at a suitable distance from the screen for the image to fill the screen. Set the adjustable feet so that the projector is... -
Page 26: Roll And Pitch
Digital Projection E-Vision Laser 5900 Series Positioning the screen and projector Roll and pitch Notes The projector can be operated in numerous positions. 360˚ 360˚ Roll Pitch Installation & QuickStart Guide Rev A September 2020 page 26... -
Page 27: Operating The Projector Switching The Projector On
Operating the projector Digital Projection E-Vision Laser 5900 Series Operating the projector Notes Switching the projector on The first time you use the projector, 1. Connect the power cable between the mains supply and the projector. you can set OSD language from the quick menu. -
Page 28: Adjusting The Lens
Digital Projection E-Vision Laser 5900 Series Operating the projector Adjusting the lens Notes The lens can be adjusted using the controls on the lens and the controls on the body of the projector: Use the zoom control on the lens to zoom in or out. -
Page 29: Adjusting The Audio
Operating the projector Digital Projection E-Vision Laser 5900 Series Adjusting the audio Notes The audio output can be adjusted using the remote control or OSD: Use the Volume button on the remote to open the volume bar. Use the LEFT and RIGHT arrow buttons to adjust the volume level. - Page 30 Digital Projection E-Vision Laser 5900 Series This page is intentionally left blank Rev A September 2020...
- Page 31 E-Vision Laser 5900 Series High Brightness Digital Video Projector CONNECTION GUIDE Rev A September 2020 121-183A...
-
Page 32: Signal Inputs
Digital Projection E-Vision Laser 5900 Series Signal inputs Signal inputs Notes Digital inputs and outputs 1. HDMI 1 / HDMI 2 HDMI 1.4a input. Connect an HDMI cable to the For simultaneous HDBaseT and connector. LAN connectivity, a third-party distribution product can be utilised 2. -
Page 33: Edid On The Hdmi, And Hdbaset Inputs
Signal inputs Digital Projection E-Vision Laser 5900 Series EDID on the HDMI, and HDbaseT inputs Notes If you are using a computer graphics card or another source that obeys the EDID protocol, the source will automatically configure itself to suit the capability of the projector. -
Page 34: Analog Inputs And Outputs
Digital Projection E-Vision Laser 5900 Series Signal inputs Analog inputs and outputs Notes 1. Monitor Out Connect an analog monitor (VGA) cable to the 15-pin D-type to output the signal received on the Computer In input. 2. Computer In This input receives analog signals from a computer. -
Page 35: 3D Connections
3D connections Digital Projection E-Vision Laser 5900 Series 3D connections Notes 1. HDMI 1 / HDMI 2 HDMI 1.4a inputs supporting Frame Sequential, Top and Bottom, Side By Side and Frame packing 3D formats. See supported signal input modes on page 74. -
Page 36: 3D Sync
Digital Projection E-Vision Laser 5900 Series 3D connections 3D Sync Notes 1. 3D Sync In 2. IR emitter or Zscreen Connection Guide Rev A September 2020 page 36... -
Page 37: Control Connections
Control connections Digital Projection E-Vision Laser 5900 Series Control connections Notes 1. RS232 All of the projector’s features can be controlled via a For a list of all commands used to serial connection, using commands described in the control the projector via LAN, see the Protocol Guide (available Protocol Guide.Use a straight-through cable to... -
Page 38: Lan Connection Examples
Digital Projection E-Vision Laser 5900 Series Control connections LAN connection examples Notes The projector’s features can be controlled via a LAN connection, using Digital Projection’s Projector Controller application or a terminal emulation program. With a LAN connection the projector can serve a web page offering basic projector controls. -
Page 39: Rs232 Connection Example
Control connections Digital Projection E-Vision Laser 5900 Series RS232 connection example Notes All of the projector’s features can be controlled via a serial connection, using commands described in the Protocol Guide. The Protocol Guide is available separately Crossover cable Computer to Projector... - Page 40 Digital Projection E-Vision Laser 5900 Series This page is intentionally left blank Rev A September 2020...
- Page 41 E-Vision Laser 5900 Series High Brightness Digital Video Projector OPERATING GUIDE Rev A September 2020 121-183A...
-
Page 42: Using The Menus
Digital Projection E-Vision Laser 5900 Series Using the menus Using the menus Notes Opening the Menu Access the various menus using either the projector control panel or the remote control. On either device: 1. Press the MENU button. The on-screen display... -
Page 43: Exiting Menus And Closing The Osd
Using the menus Digital Projection E-Vision Laser 5900 Series Exiting menus and closing the OSD Notes To go back to the previous page: 1. Press EXIT. Image Settings 1 Settings 2 To close the OSD: 1. Press MENU. Display Mode... -
Page 44: Inside The Menu
Digital Projection E-Vision Laser 5900 Series Using the menus Inside the Menu Notes When you open the OSD, a menu is displayed. There are three main menus: Open Main Menu Available Main Menu Available Main Menu Image Path (Main Menu ► Submenu) -
Page 45: Editing Projector Settings
Using the menus Digital Projection E-Vision Laser 5900 Series Editing projector settings Notes If the highlighted menu item contains a list of values to choose from, you can Menu Menu Menu change the value by doing the following: Some menu items may be unavailable due to settings in other 1. -
Page 46: Editing Numeric Values
Digital Projection E-Vision Laser 5900 Series Using the menus Editing numeric values Notes Some parameters take numeric values without using sliders - for example IP Menu Menu Menu addresses. 1. Use the UP and DOWN arrow buttons to highlight the row containing the numeric field you wish to edit. -
Page 47: Using The Projector
Using the projector Digital Projection E-Vision Laser 5900 Series Using the projector Notes Image Menu Display Mode Choose from Presentation, Bright, Game, Movie, Vivid, TV, sRGB, DICOM DICOM is a simulation mode and SIM, User, and User 2. Image Settings 1... -
Page 48: Computer
Digital Projection E-Vision Laser 5900 Series Using the projector Computer Notes Horizontal Position, Vertical Position Adjusts the horizontal and vertical display position. Use the slider to set the Some of the settings within the level as required. Position and Phase sub-menu,... -
Page 49: White Balance
Using the projector Digital Projection E-Vision Laser 5900 Series White Balance Notes R Gain, G Gain, B Gain Adjust the bright part of the scale for red, green and blue colors. Image Settings 1 Settings 2 R Offset, G Offset, B Offset Adjust the black levels for red, green and blue colors. -
Page 50: Color Manager Parameters Explained
Digital Projection E-Vision Laser 5900 Series Using the projector Color manager parameters explained Notes The levels of hue, saturation and gain in the Color Manager menu change the color values in the following ways: 1. Hue Specifies the position of each color (red, yellow, green, cyan, blue and magenta) relative to its neighboring colors. -
Page 51: Settings 1 Menu
Using the projector Digital Projection E-Vision Laser 5900 Series Settings 1 Menu Notes Source Access the submenu to edit the settings. Choose from HDMI 1, HDMI 2, HDMI 3, MHL, VGA (Computer In), Composite Video and HDBaseT. Image Settings 1... -
Page 52: Alignment
Digital Projection E-Vision Laser 5900 Series Using the projector Alignment Notes Aspect Ratio Set the aspect ratio for the projected image. Choose from Fill, 4:3, 16:9, Letter Box, Native, 2.35:1. Image Settings 1 Settings 2 Digital Zoom Settings 1 ► Alignment Adjust to zoom into the center of the image. -
Page 53: Keystone Settings
Using the projector Digital Projection E-Vision Laser 5900 Series Keystone settings Notes 1. Projector to the left The projector is positioned to the left of the screen. To correct, apply a positive Horizontal Keystone value using the RIGHT arrow button. -
Page 54: Corner
Digital Projection E-Vision Laser 5900 Series Using the projector The projector is positioned at an angle The resulting image is distorted The image is corrected when Keystone is Notes applied 4 Corner For each corner, apply horizontal and / or vertical correction as necessary to restore the rectangular shape of the image. -
Page 55: Advanced
Using the projector Digital Projection E-Vision Laser 5900 Series Advanced 1 Notes Language Choose a language for the OSD from a choice of 27 available OSD languages. Image Settings 1 Settings 2 Security Lock Settings 1 ►Advanced 1 Switches the security lock On or Off... -
Page 56: Setting
Digital Projection E-Vision Laser 5900 Series Using the projector 3D Setting Notes Choose DLP-Link when using 3D shutter glasses. Choose IR when using You must connect an Infrared infrared 3D glasses. Image Settings 1 Settings 2 emitter when using 3D IR (utilising... -
Page 57: 3D Types
Using the projector Digital Projection E-Vision Laser 5900 Series 3D types Notes To display a 3D image it is first necessary to select the 3D format of the source. These formats are described below: Frame Sequential For sequential 3D, an external sync is required to identify left and right frames. If no sync is available from the sequential source, the projector will generate an output sync, but it may then be necessary to manually set the Eye Swap each time the player is started. -
Page 58: Settings 2 Menu
Digital Projection E-Vision Laser 5900 Series Using the projector Settings 2 Menu Notes Auto Source If this setting is On, the projector will automatically search for an active input source. Image Settings 1 Settings 2 No Signal Power Off (min) -
Page 59: Status
Using the projector Digital Projection E-Vision Laser 5900 Series Status Notes This menu gives information about software and hardware configuration, input source and laser operating times. Image Settings 1 Settings 2 Settings 2 ► Status Active Source Analog RGB Video Information... -
Page 60: Advanced 2
Digital Projection E-Vision Laser 5900 Series Using the projector Advanced 2 Notes Sleep Timer (min) Turns the projector off after a period of time. Set the number of minutes for the timer. Image Settings 1 Settings 2 Source Filter Settings 2 ► Advanced 2 Allows you to enable or disable individual input source connections. -
Page 61: Served Web Pages
Served web pages Digital Projection E-Vision Laser 5900 Series Served web pages Notes The served web pages allow you to control the projector remotely via LAN. The default IP address is 10.10.10.10. Operating Guide Rev A September 2020 page 61... - Page 62 Digital Projection E-Vision Laser 5900 Series Served web pages Notes Operating Guide Rev A September 2020 page 62...
- Page 63 Served web pages Digital Projection E-Vision Laser 5900 Series Notes Operating Guide Rev A September 2020 page 63...
- Page 64 Digital Projection E-Vision Laser 5900 Series Served web pages Notes Operating Guide Rev A September 2020 page 64...
- Page 65 E-Vision Laser 5900 Series High Brightness Digital Video Projector REFERENCE GUIDE Rev A September 2020 121-183A...
-
Page 66: Screen Requirements
Digital Projection E-Vision Laser 5900 Series Screen requirements Screen requirements Notes Fitting the image to the display If the source image supplied to the projector is smaller than the WUXGA resolution, the image will not fill the display. The following examples show how a number of common formats may be displayed, depending on your DMD™... -
Page 67: Wuxga Images Displayed Full Height
Screen requirements Digital Projection E-Vision Laser 5900 Series WUXGA images displayed full height Notes 4:3 = 1.33:1 = 1596 pixels WUXGA = 16:10 = 1.6:1 = 1920 pixels Diagonal screen sizes Screen sizes are sometimes specified by their diagonal size (D). When dealing with large screens... -
Page 68: Positioning The Image
Digital Projection E-Vision Laser 5900 Series Positioning the image Positioning the image Notes The normal position for the projector is at the centre of the screen. However, you can set the projector above or below the centre, or to one side, and adjust the image using the Lens shift feature (known as rising and falling front) to maintain a geometrically correct image. -
Page 69: Aspect Ratios Explained
Aspect ratios explained Digital Projection E-Vision Laser 5900 Series Aspect ratios explained Notes The appearance of a projected image on the screen depends on a combination of the following: The display resolution is WUXGA with a 1920 x 1200 resolution, corresponding to an aspect ratio of 16:10... -
Page 70: Source: 16:9
Digital Projection E-Vision Laser 5900 Series Aspect ratios explained Source: 16:9 Notes Aspect Ratio 16:10 Aspect Ratio: Source / 16:9 Source: 16:10 (native) Aspect Ratio: Source / 16:10 Reference Guide Rev A September 2020 page 70... -
Page 71: Aspect Ratio Example: Theatrescope
Aspect ratios explained Digital Projection E-Vision Laser 5900 Series Aspect ratio example: TheatreScope Notes The TheaterScope setting is used in combination with an anamorphic lens to restore 2.35:1 images packed into a 16:9 frame. Such images are projected with black lines at the top and bottom of the 16:9 screen to make up for the difference in aspect ratios. -
Page 72: Appendix A: Projector Indicator Messages
Digital Projection E-Vision Laser 5900 Series Appendix A: projector indicator messages Appendix A: projector indicator messages Notes Power LED Light LED Temperature LED Message In the event of an error, please On Continuously Light Source Ready disconnect the AC power cord and... -
Page 73: Vertical Offset
Vertical offset Digital Projection E-Vision Laser 5900 Series Vertical offset Notes The image projected by this projector is at vertical offset relative to the distance between the lens and the screen. Please refer to the table below to account for the vertical offset when installing the projector. -
Page 74: Appendix B: Supported Signal Input Modes
Digital Projection E-Vision Laser 5900 Series Appendix B: supported signal input modes Appendix B: supported signal input modes Notes 2D formats H-Sync V-Sync Composite RGB/BNC HDMI HDBase-T Signal Format Resolution Component (KHz) (Hz) S Video (Analog) (Digital) (Digital) NTSC 15.734 60.0 ü... - Page 75 Appendix B: supported signal input modes Digital Projection E-Vision Laser 5900 Series H-Sync V-Sync Composite RGB/BNC HDMI HDBase-T Notes Signal Format Resolution Component (KHz) (Hz) S Video (Analog) (Digital) (Digital) 1280 x 800 71.6 84.9 ü ü ü 1280 x 800 101.6 119.9...
-
Page 76: Formats
Digital Projection E-Vision Laser 5900 Series Appendix B: supported signal input modes 3D formats Notes HDBase-T Resolution Freq (Hz) HDMI 1/2 Remarks (Digital) ü ü 1280 x 720 Top - and - Bottom 1280 x 720 ü ü Top - and - Bottom ü... -
Page 77: Appendix C: Wiring Details Signal Inputs And Outputs Hdmi
Appendix C: wiring details Digital Projection E-Vision Laser 5900 Series Appendix C: wiring details Notes Signal inputs and outputs HDMI 19 way type A connector 1. TMDS Data 2+ 2. TMDS Data 2 Shield (Ground) 3. TMDS Data 2- 4. TMDS Data 1+ 5. -
Page 78: Vga Input
Digital Projection E-Vision Laser 5900 Series Appendix C: wiring details VGA input Notes 1. Red input 2. Green input 3. Blue input 4. not connected 5. not connected 6. Ground 7. Ground VGA: pin view of panel connector 8. Ground 9. -
Page 79: Rs232
Appendix C: wiring details Digital Projection E-Vision Laser 5900 Series RS232 Notes 9 way D-type connector 1. not connected 2. Received Data (RX) 3. Transmitted Data (TX) 4. not connected 5. Ground 6. not connected RS232: pin view of panel male connector 7. -
Page 80: Appendix D: Glossary Of Terms
Digital Projection E-Vision Laser 5900 Series Appendix D: glossary of terms Appendix D: glossary of terms Notes 1080p An HDTV resolution which corresponds to 1920 x 1080 pixels (a widescreen aspect ratio of 16:9). 3D active glasses Wireless battery-powered glasses with LCD shutters. Synchronization information is communicated to the glasses by means of an infrared (IR) or radio frequency (RF) emitter which is connected to the Sync Out terminal on the projector. - Page 81 Appendix D: glossary of terms Digital Projection E-Vision Laser 5900 Series Aspect ratio Notes The proportional relationship between the width and the height of the projected image. It is represented by two numbers separated by a colon, indicating the ratio of image width and height respectively: for example, 16:9 or 2.35:1. Not to be confused with resolution.
- Page 82 Digital Projection E-Vision Laser 5900 Series Appendix D: glossary of terms Component video Notes A three-wire or four-wire video interface that carries the signal split into its basic RGB components or luminance (brightness) and two-color difference signals (YUV) and synchronization signals.
- Page 83 Appendix D: glossary of terms Digital Projection E-Vision Laser 5900 Series Notes Edge blend A method of creating a combined image by blending the adjoining edges of two or more individual images. Edge tear An artifact observed in interlaced video where the screen appears to be split horizontally. Edge tears appear when the video feed is out of sync with the refresh rate of the display device.
- Page 84 Digital Projection E-Vision Laser 5900 Series Appendix D: glossary of terms Notes HDCP (High-bandwidth Digital Content Protection) An encryption scheme used to protect video content. HDTV (High Definition Television) A television system with a higher resolution than SDTV and EDTV. It can be transmitted in various formats, notably 1080p and 720p.
- Page 85 Appendix D: glossary of terms Digital Projection E-Vision Laser 5900 Series Lumen Notes A photometric unit of radiant power. For projectors, it is normally used to specify the total amount of emitted visible light. Luminance Also known as ‘Y’, this is the part of a Component Video signal which affects the brightness, i.e. the black and white part.
- Page 86 Digital Projection E-Vision Laser 5900 Series Appendix D: glossary of terms Pr, Pb Notes Color difference signals used with ‘Y’ for analog Component Video inputs. They provide information about the signal color. Not to be confused with Cr, Primary colors Three colors any two of which cannot be mixed to produce the third.
- Page 87 Appendix D: glossary of terms Digital Projection E-Vision Laser 5900 Series Synchronization Notes A timing signal used to coordinate an action. Test pattern A still image specially prepared for testing a projection system. It may contain various combinations of colors, lines and geometric shapes.
- Page 88 Digital Projection E-Vision Laser 5900 Series Appendix D: glossary of terms Notes WUXGA A display resolution of 1920 x 1200 pixels with a 16:10 screen aspect ratio. (Stands for Widescreen Ultra Extended Graphics Array.) This is the luminance input (brightness) from a Component Video signal.
- Page 89 Contact Information: Dubai China North America Europe Digital Projection FZE Digital Projection China Digital Projection Inc. Digital Projection Limited Unit B4, Light Industrial Units 4, 中 国 北 京 市 朝 阳 区 芍 药 居 北 55 Chastain Road, Suite 115, Greenside Way, Middleton, Silicon Oasis, Dubai, UAE 里...
