valid for:

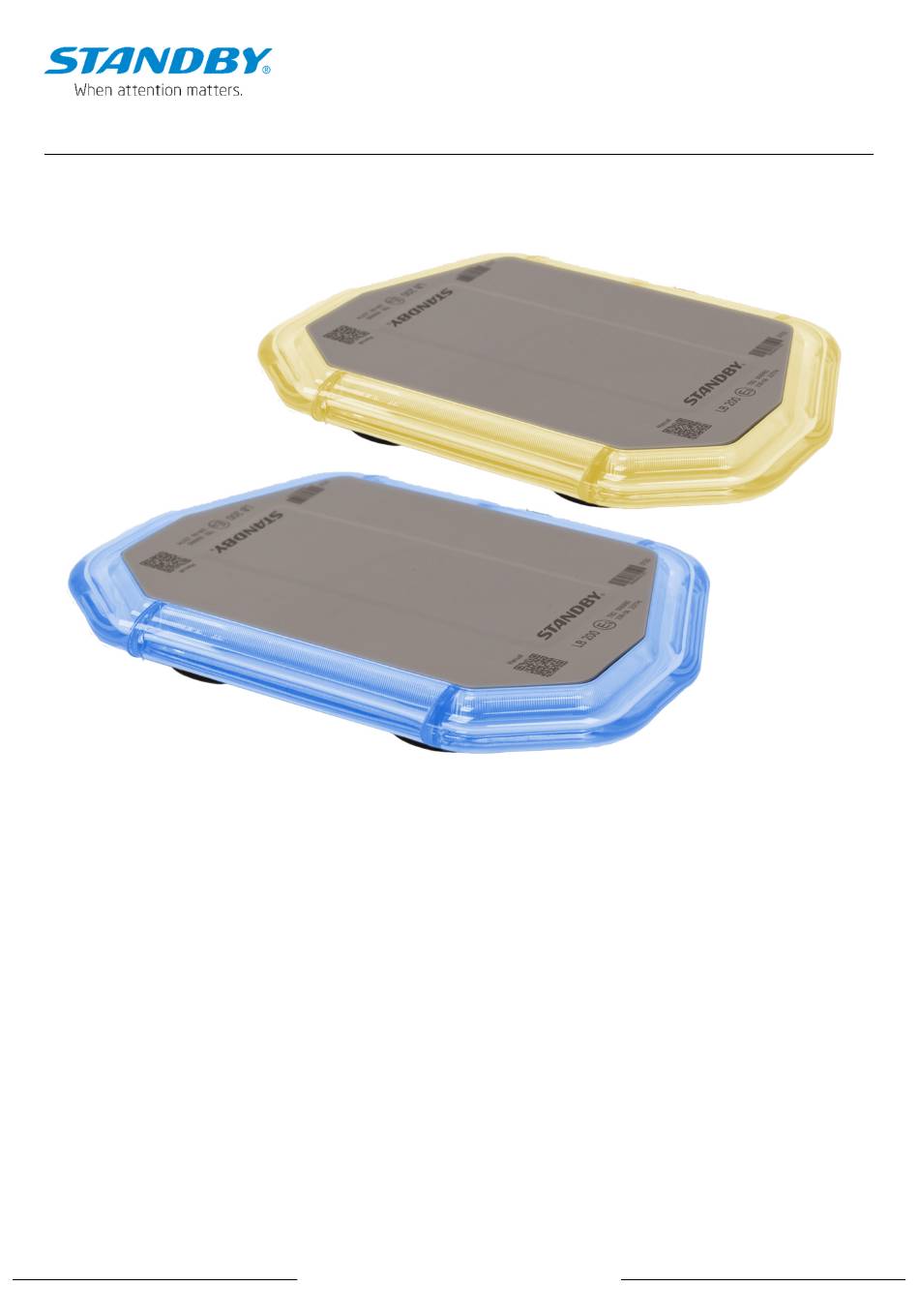

50658484031001 – LB200 - 300mm, blue, 1 Module, magnetic
50658484032001 – LB200 - 300mm, amber, 1 Module, magnetic
Document:
50658400002980 (A)
Language:
english
Issue date:
08/2024
© Standby GmbH, all rights reserved
If you have any technical questions, please contact your responsible sales representative or central customer service
The copyright of this document remains with Standby GmbH. The documentation contains technical information that may not be changed, copied, reproduced, rented,
supplemented or otherwise used without the prior written consent of Standby GmbH.
Technical changes reserved.
phone: (UK)+44 1543 438800 - (SE)+46 520 494440 • email: info@standbyrsg.co.uk / info-se@standbygroup.com
standbyrsg.co.uk / standbygroup.se
Operating Manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Standby LB200
Summary of Contents for Standby LB200
- Page 1 If you have any technical questions, please contact your responsible sales representative or central customer service The copyright of this document remains with Standby GmbH. The documentation contains technical information that may not be changed, copied, reproduced, rented, supplemented or otherwise used without the prior written consent of Standby GmbH.
-
Page 2: Liability Notice
The body builder must define the means and materials required to assemble the equipment in order to deliver the vehicle equipped according to the regulations. Standby is not responsible for errors resulting from a wrong definition of the type of mounting system, the reinforcements, the holes in the roof panel, the condition and quality of the mounting system, the use of anchoring points by the vehicle manufacturer and the definition of the power supply and protection of the system according to the energy source of the vehicle. -
Page 3: Safety Instructions
Safety Instructions WARNING ABOUT OPTICAL RADIATION All optical components are classified as low risk in accordance with DIN EN 62471. Only look into the light beam of the components for a short time (max. 4 minutes) with the paint cap on! Minimum distance from light source to eye 0.2 m. 0,2 m Each lightbar is equipped with 4 magnetic pads for easy mounting on the vehicle and a 3 m long connection cable with a cigarette lighter plug. -
Page 4: Mounting Instructions
Mounting Instructions Before mounting the LB200 on the vehicle roof, ensure that the surface on which the magnetic pads will be attached is suitable and in good condition. The chosen surface must be flat, ice-free and clean in order to optimize the magnetic contact between the vehicle roof and the magnetic pads. -
Page 5: Operation
Operation Insert the cigarette lighter plug into the vehicle's cigarette lighter socket. 1. Light bar connection cable 2. Cigarette lighter plug 3. Blue/amber light ON/OFF switch 4. Switch (I-O-II) to select the operating mode 5. Cigarette lighter socket in the vehicle ... - Page 6 Dimensions standbyrsg.co.uk / standbygroup.se page 6 phone: (UK)+44 1543 438800 - (SE)+46 520 494440 • email: info@standbyrsg.co.uk / info-se@standbygroup.com...
-
Page 7: Technical Data
Technical Data TECHNICAL DATA Operating VolDaye 12/24 VDC (10 … 30 VDC) Current Consumption LED-Colour blue, amber Dome Colour clear Flash pattern Triple Flash in day- and night-mode, cruise light Mounting magnetic mount Protection Class IP67 Weight approx. 2.5 kg Ambient Temperature -40°C - +65°C Connection Cable... - Page 8 standbyrsg.co.uk / standbygroup.se page 8 phone: (UK)+44 1543 438800 - (SE)+46 520 494440 • email: info@standbyrsg.co.uk / info-se@standbygroup.com...
