Related Manuals for Vermont Castings INTREPID I
Summary of Contents for Vermont Castings INTREPID I

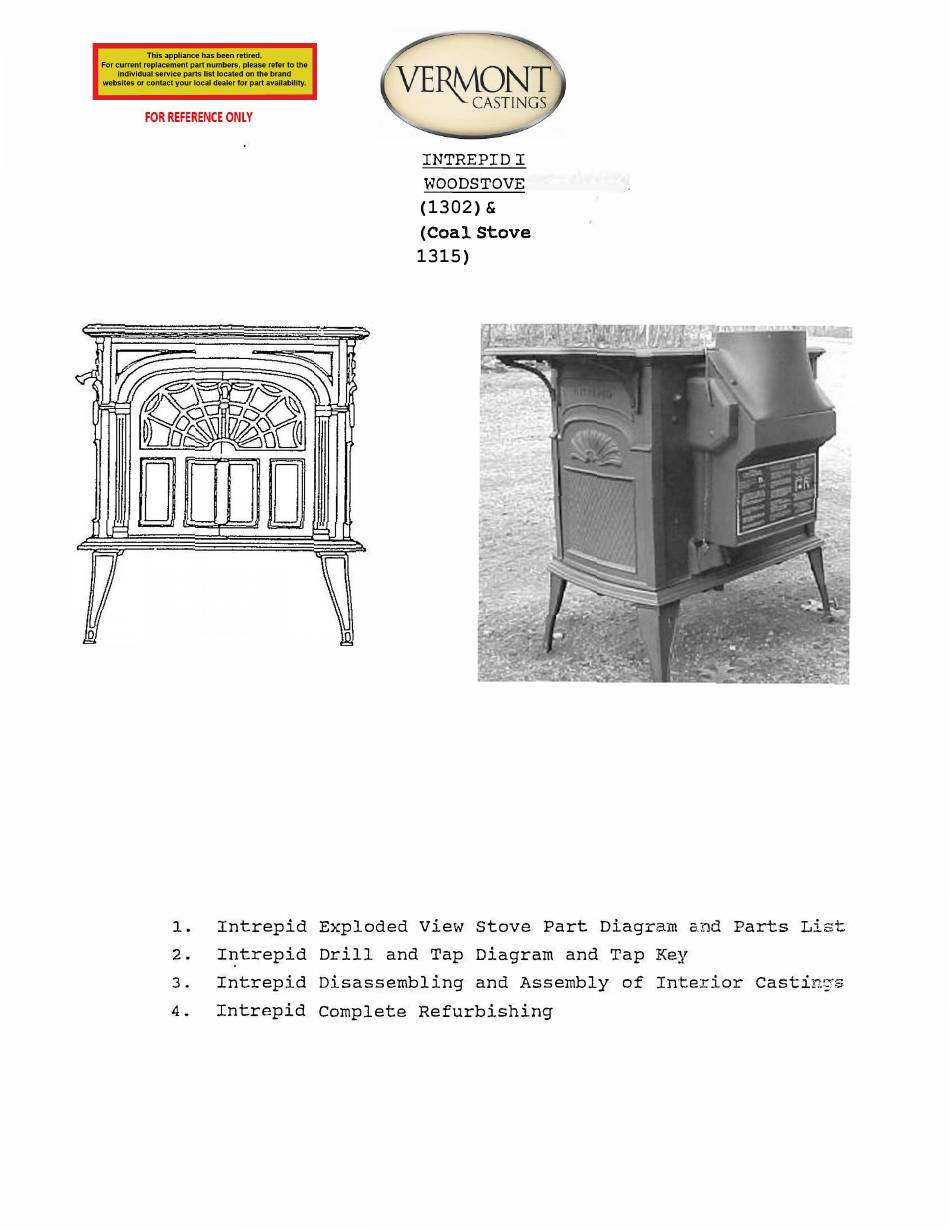

- Page 1 Intrepid I 1302 & 1315 Service Manual V2 9-21...
- Page 2 INTREPID I MODEL 1302 � --- a · · • • ·, • • Optional Bottom Grate System Intrepid I 1302 & 1315 Service Manual V2 9-21...
- Page 3 120-1294 Ceramic handle Screw Only 500-7499 Tie Rod Set c/w Nuts 52-54 000-4342 Nickel Fallaway Handle Complete (52-54) 160-0535 Door Hinge Pin 120-0998 10-24 x ½" Phillips Trs Hd Heat Shield Screw Intrepid I 1302 & 1315 Service Manual V2 9-21...
- Page 4 INTREPID COAL STOVE MODEL 1315 & COAL KIT ' . � - - - a � � I I � .. � ✓, . / � J Intrepid I 1302 & 1315 Service Manual V2 9-21...
- Page 5 120-3290 Nut, Jam Large Hex 160-0876 Shaker Handle Stub 160-0620 Ceramic Handle Only 120-1294 ¼-20 x 3⅜” Slot Oval Head Handle Screw 120-1159* ⅜ -16 x ¾" Round Head Slot Screw Intrepid I 1302 & 1315 Service Manual V2 9-21...
- Page 6 ENAMEL SHELF PARTS IN GRAY, CHOCOLATE BROWN, ANTIQUE GREEN & ANTIQUE BROWN ARE NO LONGER AVAILABLE 160-1705 Mittenrack 30000967 Hardware Package Part Name Classic Sand Blue Midnt Shelf 1302254 1322254 1332254 1342254 Shelf Bracket 1302272 1322272 1332272 1342272 Intrepid I 1302 & 1315 Service Manual V2 9-21...
- Page 7 Leg Bolt Holes (4) 5/i 6" Shaker Handle Hole deep 1/4 ·20 Ouadrant Screw Hole (2) 13/6l.x16/32 10·24 #22xl4/32 deep Class Clip Screw Hole (2 ) 10·21, #22x14/32" deep Air Guide Screw Hole Intrepid I 1302 & 1315 Service Manual V2 9-21...
- Page 8 Remove the remaining horizontal firebrick (24). THIS COMPLETES THE DISASSEMBLY OF THE INTERIOR CASTINGS. Clean the stove body and interior castings of soot and ashes prior to reassembling the stove. Intrepid I 1302 & 1315 Service Manual V2 9-21...
- Page 9 Replace the three grate bars: they sit almost flat, held in place by the tie rods. Replace the ash pan. BRICK RETA INER FIG. 4 POSITION OF Ul'PER FIREBACK Intrepid I 1302 & 1315 Service Manual V2 9-21...
- Page 10 Then wash the seams with a sponge and warm water and dry with a cloth. * Let the cement dry for 24 hours before lighting any fires. Intrepid I 1302 & 1315 Service Manual V2 9-21...
- Page 11 Set the top plate in place using the rubber mallet or hammer and block of wood to tap around the top edge. Make sure that all plates are set securely into the channels in the top plate. Intrepid I 1302 & 1315 Service Manual V2 9-21...
- Page 12 Assembly of the Interior Castings. Finishing Replace the legs. Replace the front doors. Paint the stove, if necessary, after covering all handles and the front door glass. Intrepid I 1302 & 1315 Service Manual V2 9-21...
