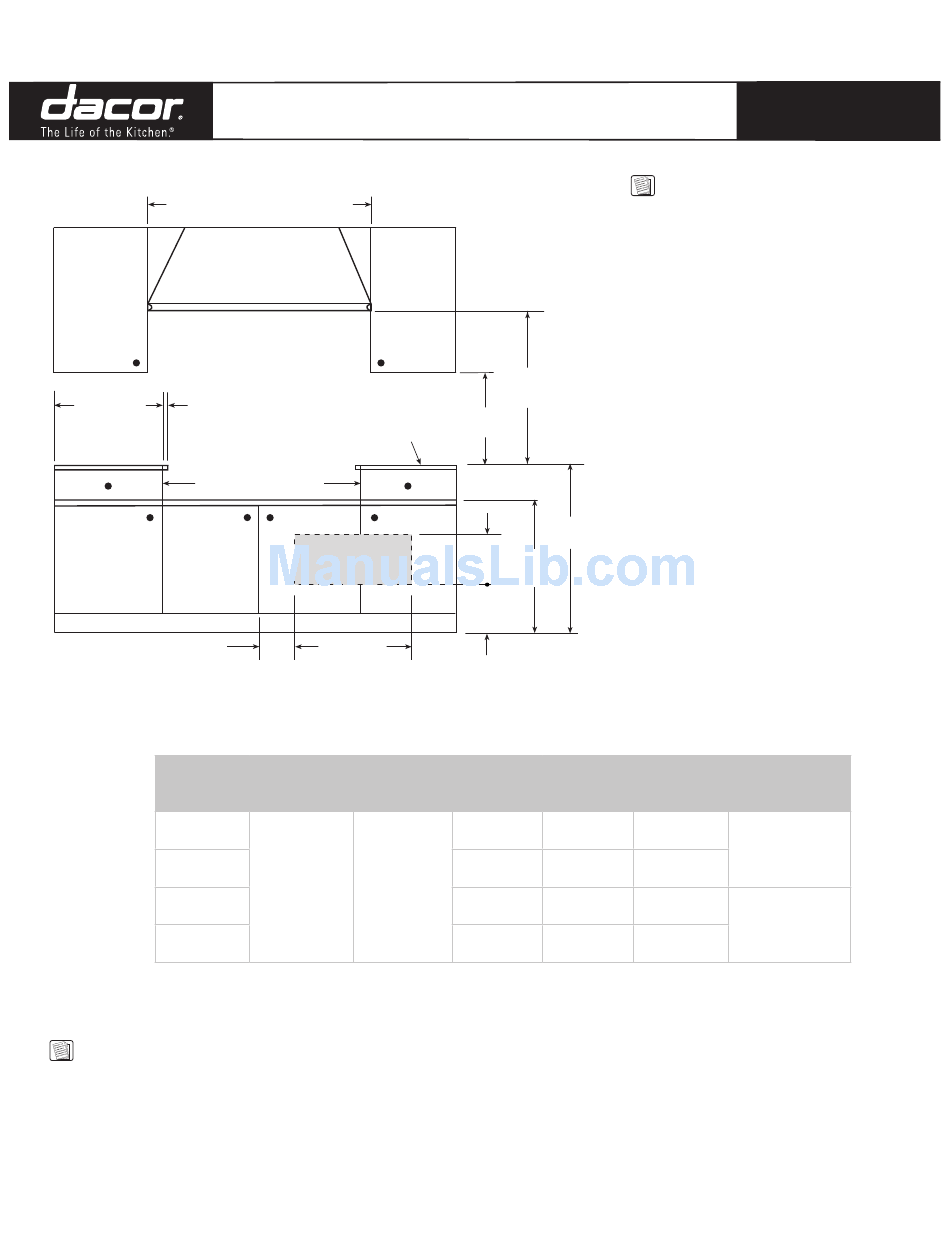

Dacor Epicure ESG366LP Planning Manual

Revised
02/29/08
ESG366: 42" (1067mm) Recommended
36" (914mm) Minimum
ESG486: 54" (1372mm) Recommended
48" (1219mm) Minimum
10" (254mm)
See Page 4
Min. to
combustible side
wall, both sides
6"
(152mm)
Model No.
ESG366
ESG366LP
ESG486
ESG486LP
NOTES:
1. Factory installed liquid propane (LP) special
ordered.
2. Cooktop is supplied with a 48" (1219mm) power
cord, with a three prong grounded plug.
3. Utilities are located in the right rear corner of the
cooktop.
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
ESG366, ESG486
36", 48" Wide,
Epicure™ Gas Cooktops
Hood
1 1/2" (38mm)
Typical Countertop
See Page 4
Utilities
Location
ESG366:
24" (610mm)
ESG486: 30" (762mm)
C
L
CAbINEt DImENSIoNS
Electrical Total
Circuit Connected
Required Load
120 Vac, 0.25 Amps
60 Hz,15 Amp (0.03 Kw)
Gas and Electrical Requirements
1.
2.
30" (762mm)
Minimum
18"
(457mm)
7 3/4"
(197mm)
Plan the installation so that the electrical
connection, gas shut-off valve, and pressure
36"
(914mm)
regulator are accessible from the front of the
15 1/2"
cabinet, and that all of the minimum dimensions
28 1/4"
(393mm)
are provided. Dimensions apply to all models
(717mm)
unless otherwise noted. Locate the electrical
10"
supply box within reach of the included 48 inch
(254mm)
(1219mm) long flexible cord so the connection
is accessible when the cooktop is in place.
Manifold
Gas Type Pressure
4" Water
Natural
Column
Liquid 10" Water
Propane Column
4" Water
Natural
Column
Liquid 10" Water
Propane Column
4. Utlities may be located in the right rear corner of
the cabinet below the cooktop. (Recommended)
5. See the Combination Installation (CI) Section if
installing with a downdraft, or warming oven.
Specifications are subject to change without notice.
See installation instructions for additional details.
PLANNING
GUIDE
1/2
NOTES:
If cabinet storage space is to
be provided directly above the
cooktop, the risk of personal injury
may be reduced by installing a
ventilating hood that projects
horizontally a minimum of 5 inches
(127mm) beyond the face of the
cabinets.
Access to the underside of the
cooktop, the electrical connection,
the gas shut-off valve and the
pressure regulator must be
provided for inspection and
service.
Min. Gas Approximate
Supply Shipping
pressure Weight
5" Water
Column
128 lbs.
11" Water
Column
5" Water
Column
149 lbs.
11" Water
Column
4.1
