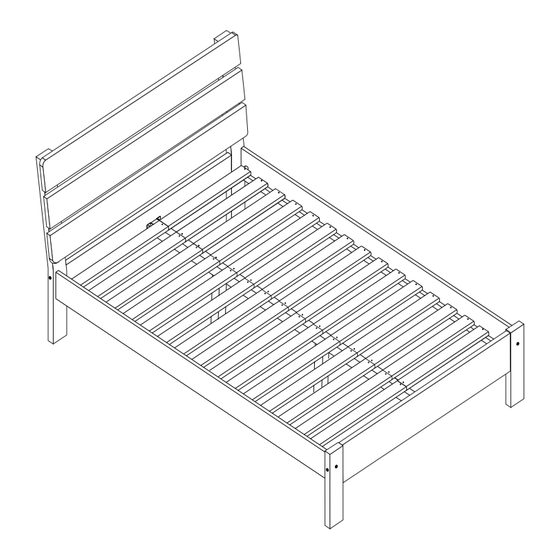

- Page 1 SEC/SH/01/24/PJ1 RONAN 5' BED 56360 WAXED PINE ASSEMBLY INSTRUCTIONS 220KG MAX BED WEIGHT Page 01...
-
Page 2: Parts List

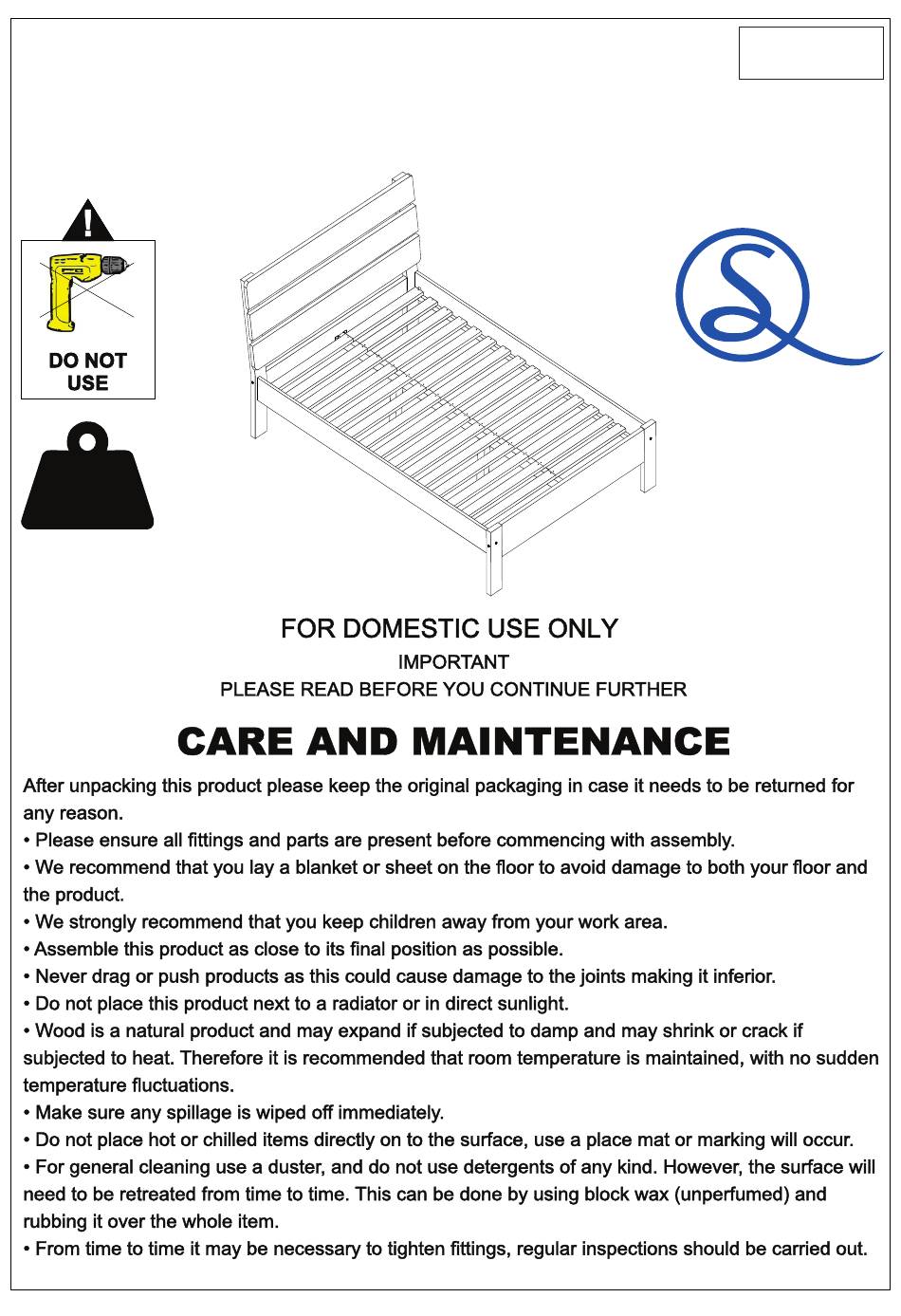

SEC/SH/01/24/PJ1 X X X * Use of power tools to assemble this product will invalidate * Please check contents and read the instructions before commencing assembly. any claim and damage this product making it unsafe !!! * Assemble this product following the enclosed instructions carefully. * Please assemble on a clean soft surface to avoid damage. -
Page 3: Tools Required
SEC/SH/01/24/PJ1 FITTINGS Ø8 x 50mm Ø8 x 30mm 4,0x50mm 17mm 1/4 x 90mm SPACER Ø3,5 x 25mm 17mm Ø7 x 100mm Ø 4,0 x Ø 4,0 x 20 mm Ø4,0 x 30mm Ø10 x 50mm 17mm Ø7 x 80mm Ø4,0 x 16mm TOOLS REQUIRED CENTRE SUPPORT LEG ASSEMBLY Centre Support Rail... - Page 4 SEC/SH/01/24/PJ1 STEP 1 STEP 1 Ø10 x 50mm PARTS REQUIRED PARTS REQUIRED PLEASE NOTE HEADBOARD CROSSBEAM HEADBOARD Ø8 x 50mm PRE-DRILLED HOLES. FOOTBOARD PANEL FOOTBOARD PANEL Ø8 x 30mm HARDWARE REQUIRED HARDWARE REQUIRED Ø8 x 50mm Ø8 x 50mm TOOLS REQUIRED TOOLS REQUIRED Please assemble on Please assemble on...
- Page 5 SEC/SH/01/24/PJ1 STEP 3 Ø10 x 50mm PARTS REQUIRED HEADBOARD RIGHT POST Ø8 x 50mm HEADBOARD LEFT POST(BLUE) Ø8 x 30mm HARDWARE REQUIRED Blue Ø8 x 30mm TOOLS REQUIRED Please assemble on a clean soft surface to avoid damage. STEP 3 STEP 4 Ø7 x 100mm PARTS REQUIRED...
- Page 6 SEC/SH/01/24/PJ1 STEP 5 PARTS REQUIRED LOWER HEADBOARD PANEL 10 - CENTRE HEADBOARD PANEL 11 - TOP HEADBOARD PANEL HARDWARE REQUIRED Ø4,0 x 50mm Blue TOOLS REQUIRED STEP 4 STEP 6 Ø7 x 100mm PARTS REQUIRED PARTS REQUIRED Ø7 x 80mm FOOTBOARD PANEL FOOTBOARD PANEL FOOTBOARD RIGHT POST...
- Page 7 SEC/SH/01/24/PJ1 STEP 7 Ø7 x 100mm PARTS REQUIRED Ø7 x 80mm SIDERAIL Ø1/4 x 90mm XX XX X X X HARDWARE REQUIRED Ø1/4 x 90mm Blue TOOLS REQUIRED Green STEP 8 PARTS REQUIRED XX XX HARDWARE REQUIRED Ø4,0 x 16mm X X X TOOLS REQUIRED Page 07...
- Page 8 SEC/SH/01/24/PJ1 STEP 9 Ø7 x 100mm PARTS REQUIRED 12 - CENTRE RAIL Ø7 x 80mm 13 - CENTRE SUPPORT LEG Ø1/4 x 90mm HARDWARE REQUIRED 17mm Ø7 x 80mm TOOLS REQUIRED STEP 10 PLEASE SEE PAGE 3 FOR CORRECT ASSEMBLY OF THE CENTRE SUPPORT LEG. PARTS REQUIRED X X X HARDWARE REQUIRED...
- Page 9 SEC/SH/01/24/PJ1 STEP 11 PARTS REQUIRED SLATS XX XX HARDWARE REQUIRED Ø4,0 x 30mm SPACER TOOLS REQUIRED STEP 12 PARTS REQUIRED 14 - SUPPORT HEADBOARD 220KG MAX WEIGHT HARDWARE REQUIRED Ø3,5 x 25mm TOOLS REQUIRED Page 09...
