DO NOT
USE
PLEASE READ BEFORE YOU CONTINUE FURTHER
THE PRODUCT YOU HAVE PURCHASED WILL GIVE YOU MANY YEARS OF
SERVICE IF YOU FOLLOW THE GUIDELINES FOR ITS SAFE ASSEMBLY AND
PERIODIC MAINTENANCE AND CLEANING.
ASSEMBLE ON A SOFT CLEAN SURFACE.
DO NOT USE ANY TOOLS OTHER THAN THOSE SHOWN.
ANY SPANNERS OR ALLEN KEYS REQUIRED ARE INCLUDED WITH THE
FITTINGS KIT.
DO NOT FOR ANY REASON USE A POWER TOOL TO ASSEMBLE THIS
PRODUCT. ITS USE WILL INVALIDATE ANY CLAIM YOU MAY HAVE AND
COULD MAKE THIS PRODUCT UNSAFE.
DEPENDING ON THE AMOUNT OF USE THIS PRODUCT RECEIVES IT MAY BE
NECESSARY TO TIGHTEN UP THE FIXINGS FROM TIME TO TIME. THIS IS
COMPLETELY NORMAL FOR ANY FLAT PACK FURNITURE.
DO NOT OVERTIGHTEN FIXING.
FOR CLEANING, YOU MAY USE A DAMP CLOTH (NOT WET)
DO NOT USE POLISH, DETERGENT OR CHEMICAL CLEANERS.
THE SURFACE OF THIS ITEM IS NOT HEAT RESISTANT. ALWAYS USE A
PLACE MAT UNDER HOT OR COLD ITEMS TO PREVENT MARKING.
LISBON SHOE CABINET
ASSEMBLY INSTRUCTIONS
FOR DOMESTIC USE ONLY
IMPORTANT
SEC/SH/10/18/EU1
PAGE 1
Advertisement

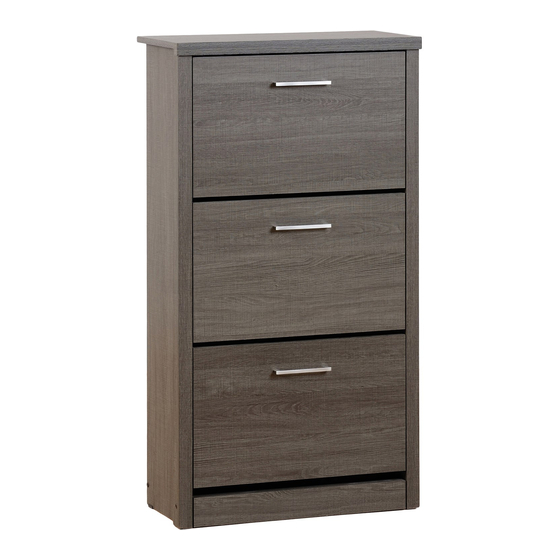

Related Manuals for Seconique Lisbon Shoe Cabinet
Summary of Contents for Seconique Lisbon Shoe Cabinet
- Page 1 SEC/SH/10/18/EU1 LISBON SHOE CABINET ASSEMBLY INSTRUCTIONS DO NOT FOR DOMESTIC USE ONLY IMPORTANT PLEASE READ BEFORE YOU CONTINUE FURTHER THE PRODUCT YOU HAVE PURCHASED WILL GIVE YOU MANY YEARS OF SERVICE IF YOU FOLLOW THE GUIDELINES FOR ITS SAFE ASSEMBLY AND PERIODIC MAINTENANCE AND CLEANING.
- Page 2 SEC/SH/10/18/EU1 (SCREWDRIVER NOT PROVIDED) USE A FLAT HEAD SCREWDRIVER TO TIGHTEN THE CAM NUTS. A QUARTER TURN CLOCKWISE IS ALL THAT IS NEEDED. STEP 1 - PUSH CAM BOLT INTO INSERT STEP 2 - ALIGN THE CAM BOLT WITH THE HOLE AND PUSH TOGETHER UNTIL FLUSH. ( MAKE SURE THE ARROW ON THE CAM LOCK IS POINTING TOWARD THE HOLE ON THE EDGE OF THE PANEL.) STEP 3 - THE HEAD OF THE BOLT GOES INTO THE WIDE MOUTH OF THE CAM LOCK.
-
Page 3: Parts List
SEC/SH/10/18/EU1 PARTS LIST PLEASE CHECK THAT YOU HAVE ALL THE PARTS LISTED BEFORE YOU START ASSEMBLING. IF YOU DO FIND THAT SOMETHING IS MISSING, DO NOT CONTINUE ASSEMBLY, PLEASE CONTACT LEFT SIDE PANEL YOUR SUPPLIER IMMEDIATELY. FRONT CROSSBAR BACK CROSSBAR RIGHT SIDE PANEL TOP PANEL 2PCS... -
Page 4: Hardware List
SEC/SH/10/18/EU1 HARDWARE LIST TAKE OUT THE THREE PARTS SHOWN DOWEL 6x30MM 8 PCS BELOW FROM EACH SHOE RACK (K) BOLT M7x60MM 2 PCS SCREW M3.5x12MM 32 PCS BOLT M6x50MM 2 PCS PVC FOOT CENTRE 4 PCS HANDLE 3 PCS ALLEN KEY 1 PC CAM BOLT+CAM NUT 4 SETS... - Page 5 SEC/SH/10/18/EU1 STEP 1 STEP 2 MAKE SURE THE ARROW ON HARDWARE NEEDED: HARDWARE NEEDED: THE CAM LOCK IS POINTING TOWARD THE HOLE ON THE 4PCS 4PCS EDGE OF THE PANEL. 4PCS 4PCS 6PCS FINISHED FRONT EDGE 6PCS STEP 1.1 STEP 2.1 MAKE SURE THE ARROW ON THE CAM LOCK IS POINTING...
- Page 6 SEC/SH/10/18/EU1 STEP 3 STEP 4 HARDWARE NEEDED: HARDWARE NEEDED: BACK 2PCS 2PCS 2PCS BACK STEP 3.1 STEP 4.1 FINISHED FRONT EDGE THE USE OF POWER TOOLS TO ASSEMBLE THIS PRODUCT WILL INVALIDATE CAUTION : ANY CLAIM AND MAY DAMAGE THIS PRODUCT MAKING IT UNSAFE. PAGE 6...
- Page 7 SEC/SH/10/18/EU1 STEP 5 STEP 6 HARDWARE NEEDED: HARDWARE NEEDED: 4PCS 32PCS 4PCS STEP 5.1 STEP 6.1 THE USE OF POWER TOOLS TO ASSEMBLE THIS PRODUCT WILL INVALIDATE CAUTION : ANY CLAIM AND MAY DAMAGE THIS PRODUCT MAKING IT UNSAFE. PAGE 7...
- Page 8 SEC/SH/10/18/EU1 STEP 7 STEP 8 HARDWARE NEEDED: HARDWARE NEEDED: 6PCS 6PCS 6PCS FINISHED FRONT EDGE STEP 7.1 STEP 8.1 FINISHED FRONT EDGE THE USE OF POWER TOOLS TO ASSEMBLE THIS PRODUCT WILL INVALIDATE CAUTION : ANY CLAIM AND MAY DAMAGE THIS PRODUCT MAKING IT UNSAFE. PAGE 8...
- Page 9 SEC/SH/10/18/EU1 STEP 9 STEP 10 HARDWARE NEEDED: HARDWARE NEEDED: 3PCS 6PCS 6PCS 6PCS 12PCS STEP 9.1 STEP 10.1 THE USE OF POWER TOOLS TO ASSEMBLE THIS PRODUCT WILL INVALIDATE CAUTION : ANY CLAIM AND MAY DAMAGE THIS PRODUCT MAKING IT UNSAFE. PAGE 9...
- Page 10 SEC/SH/10/18/EU1 STEP 11 HARDWARE NEEDED: 12PCS Wall Wall HARDWARE LIST (O) Anti-Tip Strap - 2pcs (P) M4 X 16MM - 2pcs WARNING SERIOUS OR FATAL INJURIES CAN OCCUR FROM FURNITURE TIPPING OVER. TO PREVENT THE FURNITURE FROM TIPPING OVER WE RECOMMEND THAT IT IS PERMANENTLY FIXED TO THE WALL.
