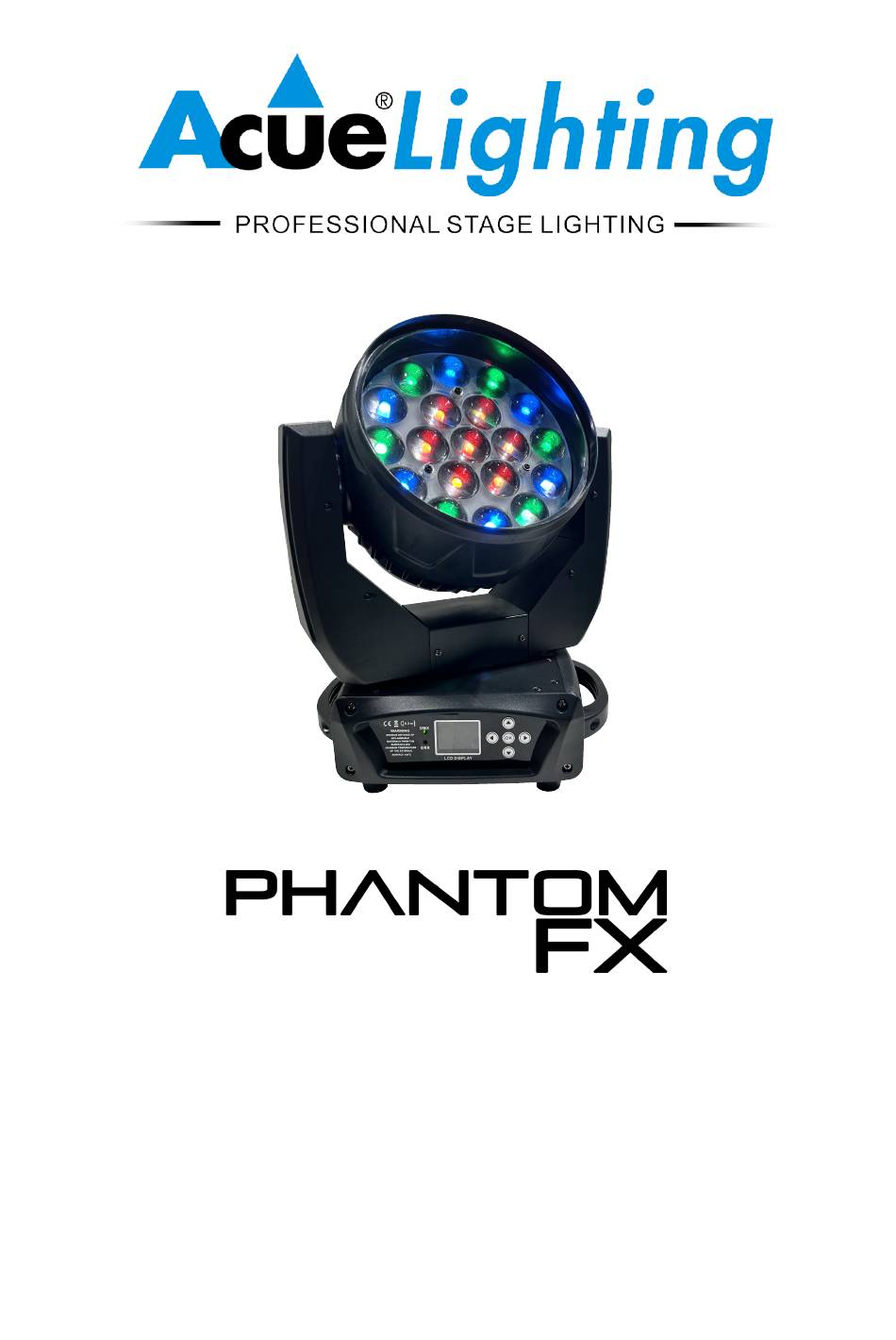

  • Page 1 USER MANUAL...

  • Page 2: Security Tips

    *Please read over this manual before operation* 1. SECURITY TIPS WARNING!!! To reduce the risk of fire, electric shock, or injury to operator and others, follow these important safety instructions: Do not open fixture. Warranty will be void if opened or disassembled by anyone other that authorized Acue Lighting Technicians.
  • Page 3 3.2 Run Mode Setting This function is used to set working mode. Press “Enter” to get into the setting window and press “UP” or “DOWN” to select the working modes as “DMX512”, “Slow” and “Fast”, "Sound" and "Manual", select one of them and pressing "Enter" to save and exit. DMX512: Controller operation mode.
  • Page 4 Group 2 white dimmer DIM_W1 DIM_R2 Group 3 red dimmer Group 3 green dimmer DIM_R2 DIM_B2 Group 3 blue dimmer Group 3 white dimmer DIM_W2 LIGHT_CH Built-in light show SHOW_SP Light show speed MACRO_CH Macro control 3.6 Sound Scenes This function is used to adjust the sensitivity of sound active mode. Press “Enter” to get into setting window;...

  • Page 5: Dmx Channel Modes

    4. DMX Channel Modes 24 Channel Mode 24CH Function Value Description 0-255 0~540° X fine 0-255 16-bit Adjustment 0-255 0~270° Y fine 0-255 16-bit Adjustment XY speed 0-255 Speed from fast to slow Zoom 0-255 0-255 Adjust near to far Master Dimmer 0-255 Linear dimmer from dark to bright...

  • Page 6: 16 Channel Mode

    225-255 Built-in effect 10 Effect speed 0-255 From fast to slow 0-49 None function 50-99 Effect display (built-in effect of CH21) Macro function 100-149 Auto run 1 150-199 Auto run 2 200-255 Sound control 0-250 None function Reset 251-255 Reset after 3s 16 Channel Mode 16CH Function...

  • Page 7: Maintenance

    Effect speed 0-255 From fast to slow 0-49 None function 5. Maintenance 50-99 Effect display (built-in effect of 13CH) 1. Acue Lighting Macro function 100-149 Auto run 1 150-199 Auto run 2 offers direct 200-255 Sound control technical support 0-250 None function to customers.
  • Page 8 For more information please contact Acue Lighting Inc by email at Info@AcueLighting.com or call our service center at (818) 646-7526.
