Summary of Contents for AcueLighting Extreme 150 Hybrid

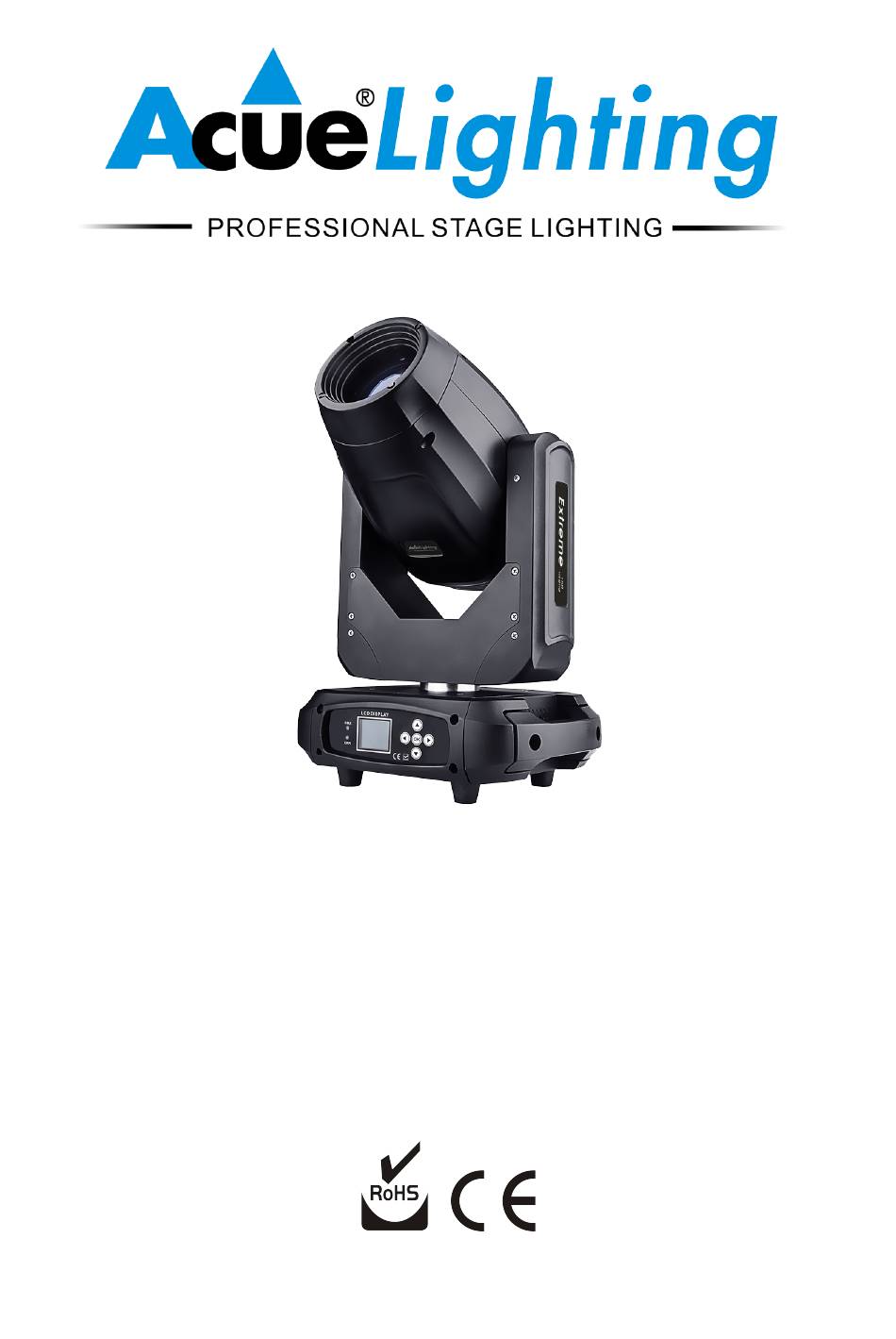

- Page 1 Extreme 150 Hybrid Instruction Manual...
-
Page 2: Table Of Contents
Table Of Contents 1. Instructions -------------------------------------------------------------------------------------------2 ------------------------------------------------------------------2 Application According to Purpose ------------------------------------------------------------------------------------------2 Indoor use only ----------------------------------------------------------------------------------------2 Safety operation 2. LED Lamp ---------------------------------------------------------------------------------------------3 3. Power Connections ---------------------------------------------------------------------------3 4. Housing ------------------------------------------------------------------------------------------------4 5. Operating Requirements -----------------------------------------------------------------4 6. Installation ------------------------------------------------------------------------------------------ 5 7. Operation ------------------------------------------------------------------------------------------- 6 -------------------------------------------------------------------------------------------------- 6 Controls ----------------------------------------------------------------------------------------- 6... -
Page 3: Instructions
Thank you for choosing Acue Lighting Products For your safety and the safety of others, do not modify this product in any way. Please note that damage caused by improper use, regular wear and tare, and misconduct with the product is beyond the scope of our warranty. -
Page 4: Housing
2. LED Diodes ATTENTION: DANGER OF LIFE! RISK OF BURNS! RISK OF FIRE! During operation, the lamps will reach temperatures of up to 75° C. Touching the lamps may cause serious burns! Objects coming into contact with the lamps during and shortly after operation may catch fire! Supply Voltages, Mains Cord and Connection to Mains ATTENTION: DANGER OF LIFE! RISK OF BURNS! -
Page 5: Installation
Fluids must not enter the housing as this could reduce the protective insulation and may trigger short circuits, which may lead to a fatal electronic shock! If fluids have entered, disconnect the mains plug immediately and secure the product against unintentional operation and contact your dealer for further instructions. Damage caused as a result of fluids entering the housing is exempt from warranty. -
Page 6: Operation
It must be ensured that an expert inspects the mechanical and safety-relevant installation prior to the initial operation and following major modifications, prior to the renewed operation. It must be ensured that an expert inspects the mechanical and safety-relevant installation at least once a year. It must be ensured that an expert inspects the mechanical installation and the installation of relevance to safety within the framework of an acceptance test at least every four years. - Page 7 DMX Address 1~512 System setup System setup Autorun 1 Autorun 2 Sound Fixture ID 0~255 Chanel mode 18CH Invert Pan Invert Tilt Swap XY temperture Encoder D M X Keep Run mode No Signal clean Screen saver Chinese Language English Load default Manual Drive Chanel...
-
Page 8: Channel
7.3 DMX Channels Channel Function Value Description Dimmer 0-255 From dark to bright 0-10 No effect Strobe 11-255 Strobe from slow to fast 0-255 0-255 Pan 16 bit Pan fine Tilt 0-255 Tilt 0-255 Tilt fine Tilt 16 bit Pan/tilt speed 0-255 Speed from fast to slow white... - Page 9 60-64 Gobo 3 shake Fixed gobo 65-69 Gobo 4 shake 70-74 Gobo 5 shake 75-79 Gobo 6 shake 80-84 Gobo 7 shake 85-89 Gobo 8 shake 90-94 Gobo 9 shake 95-99 Gobo 10 shake 100-177 Anti-clockwise rotation from fast to slow 178-255 Clockwise rotation from slow to fast Open...
-
Page 10: Maintenance Instructions
191-192 Stop 193-255 Clockwise rotation from slow to fast No effect 6-55 Mode 1 56-105 Mode 2 Macro function 106-155 Mode 3 156-205 Mode 4 206-255 Random mode 0-25 No effect 26-76 Small motor reset after 5 seconds delay Reset 77-127 XY reset after 5 seconds delay 128-255... - Page 11 Shutter：Variable from 1-25 flashes or random strobe Dimmer：0~100% linear dimming Frost：Fine wash effect LCD display N.W.：10KG G.W.：12KG Packing size：385*325*475MM...
