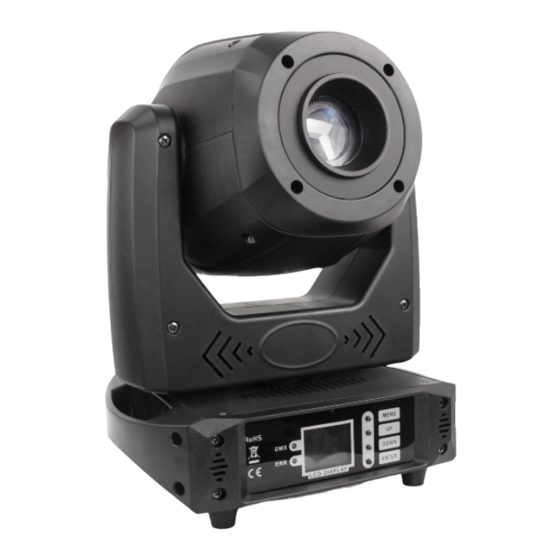

AcueLighting HALO Sport 100 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
（RDM!"#$#%&'()*$+,!-#."/&#*0%+1(#23
User4s Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the HALO Sport 100 and is the answer not in the manual?

Questions and answers

Related Manuals for AcueLighting HALO Sport 100

Summary of Contents for AcueLighting HALO Sport 100

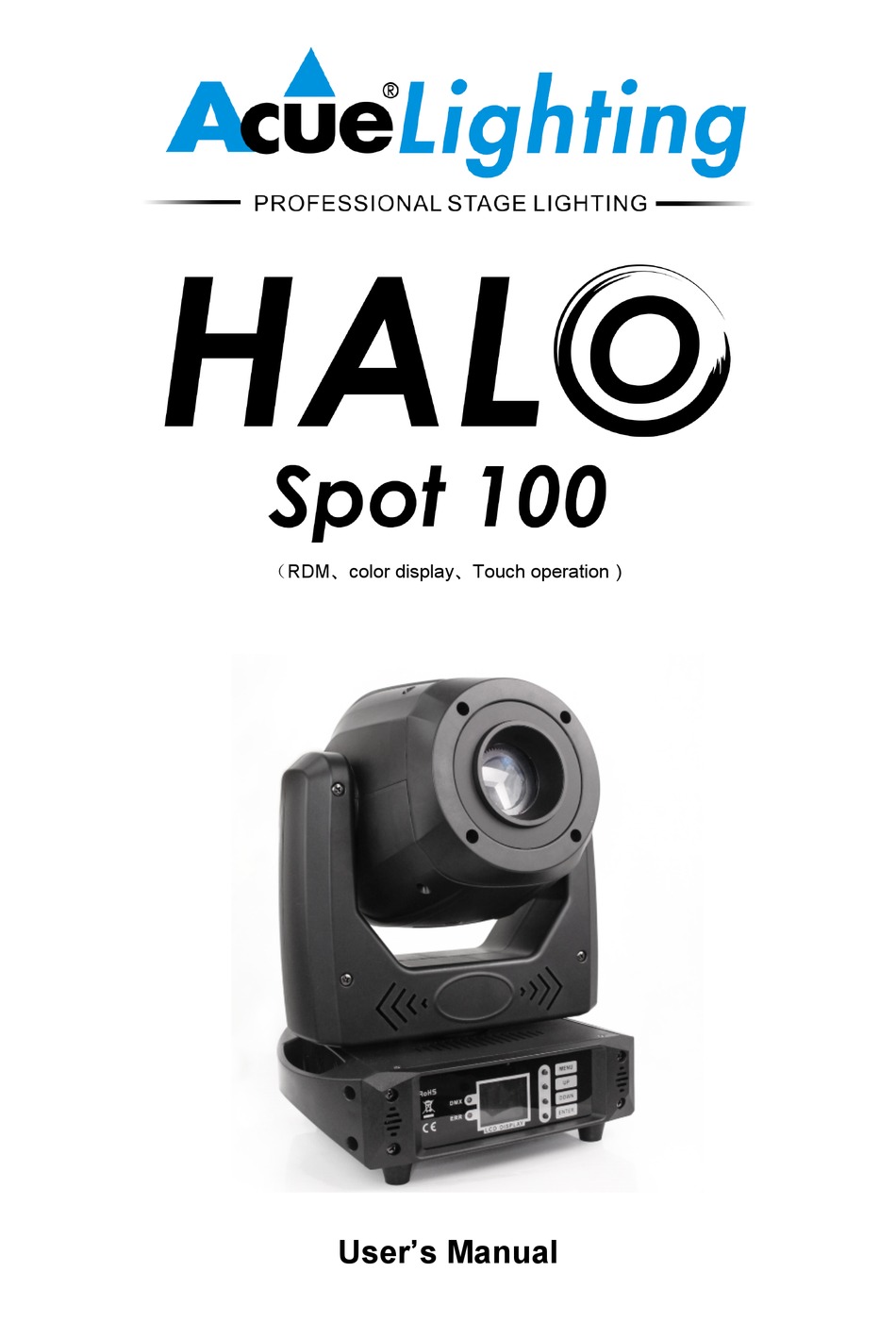

  • Page 1 （RDM!"#$#%&'()*$+,!-#."/&#*0%+1(#23 User4s Manual...

  • Page 3: Chapter 1: Installation, Safety, Maintenance

    Chapter 1: Installation, Safety, Maintenance 1.1 Maintenance To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture. Intermittent usage will extend this fixtures service life. Please clean the fan, fan cover, and optical lens in order to keep in good working condition. Do not use alcohol or any other solvent to clean the shell.

  • Page 4: Rigging (Optional)

    Prism: 3 prism 0-100% mechanical dimming, mechanical dimming and free dimming available. Power Input: 100-240V，50/60Hz Max Power Consumption: 200W IP level: IP20 1.5 Cable connection (DMX) Use a cable compliant to the specifications o f EIA RS-485: 2-pole twisted, shielded, 120 Ohm characteristic impedance, 22-24 AWG.

  • Page 5: Chapter 2. Menu Operation

    Mounting screws on the clamp/mounting solution must be tightened firmly. Make sure to install safety cable. Keep a distance of more than 1M between fixture and any flammable material or lighting source. Chapter 2. Menu Operation Within the main menu you can enter 6 sub menus, shown in Error! Reference source not found.. Sub menus include class of parameter and status: ADDR：Set light DMX address.

  • Page 7: Chapter 3 Dmx Channel Chart

    Chapter 3 DMX Channel Chart Channel table CHANNEL NAME VALUE DESCRIPTION Shutter Closed 4-127 Slow strobe to fast strobe Strobe 128-191 Slow strobe to fast strobe(mode 2) 192-251 Slow strobe to fast strobe 252-255 Shutter Open Dimmer 0-255 0-100% Dimmer 0-255 0-540 TITL...
  • Page 8 80-87 Color5 88-95 Color5 + Color6 96-103 Color6 104-111 Color6 + Color7 112-119 Color7 120-127 Color7 + White 128-190 Rotate forward (fast to slow) 191-192 Stop 193-255 Rotate reverse (slow to fast) White 10-19 GOBO1 20-29 GOBO2 30-39 GOBO3 40-49 GOBO4 50-59 GOBO5...
  • Page 9 110-127 Shake slow to fast GOBO7 128-190 Rotate forward (fast to slow) 191-192 Stop 193-255 Rotate reverse (slow to fast) White 10-19 GOBO1 20-29 GOBO2 30-39 GOBO3 40-49 GOBO4 50-59 GOBO5 60-69 GOBO6 70-79 Shake slow to fast GOBO1 Rotating Gobo 80-89 Shake slow to fast GOBO2...
  • Page 10 193-255 Rotate reverse (slow to fast) 0-19 None CH10 Prism 20-63 Insert prism 64-255 Rotate reverse (slow to fast) CH11 Focus 0-255 Near to far adjust CH12 PAN Fine 0-255 0-255 Fine pan adjust CH13 TILT Fine 0-255 0-255 Fine tilt adjust 0-10 Halo light CH14...
  • Page 11 200-255 Slow to fast transition color 0-25 None 26-76 Reset for more than 3 seconds XY CH16 RESET 77-127 Reset effect motor for more than 4 seconds 128-255 Reset all over 5 seconds NOTES:________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________...
