Summary of Contents for AcueLighting Legend 380

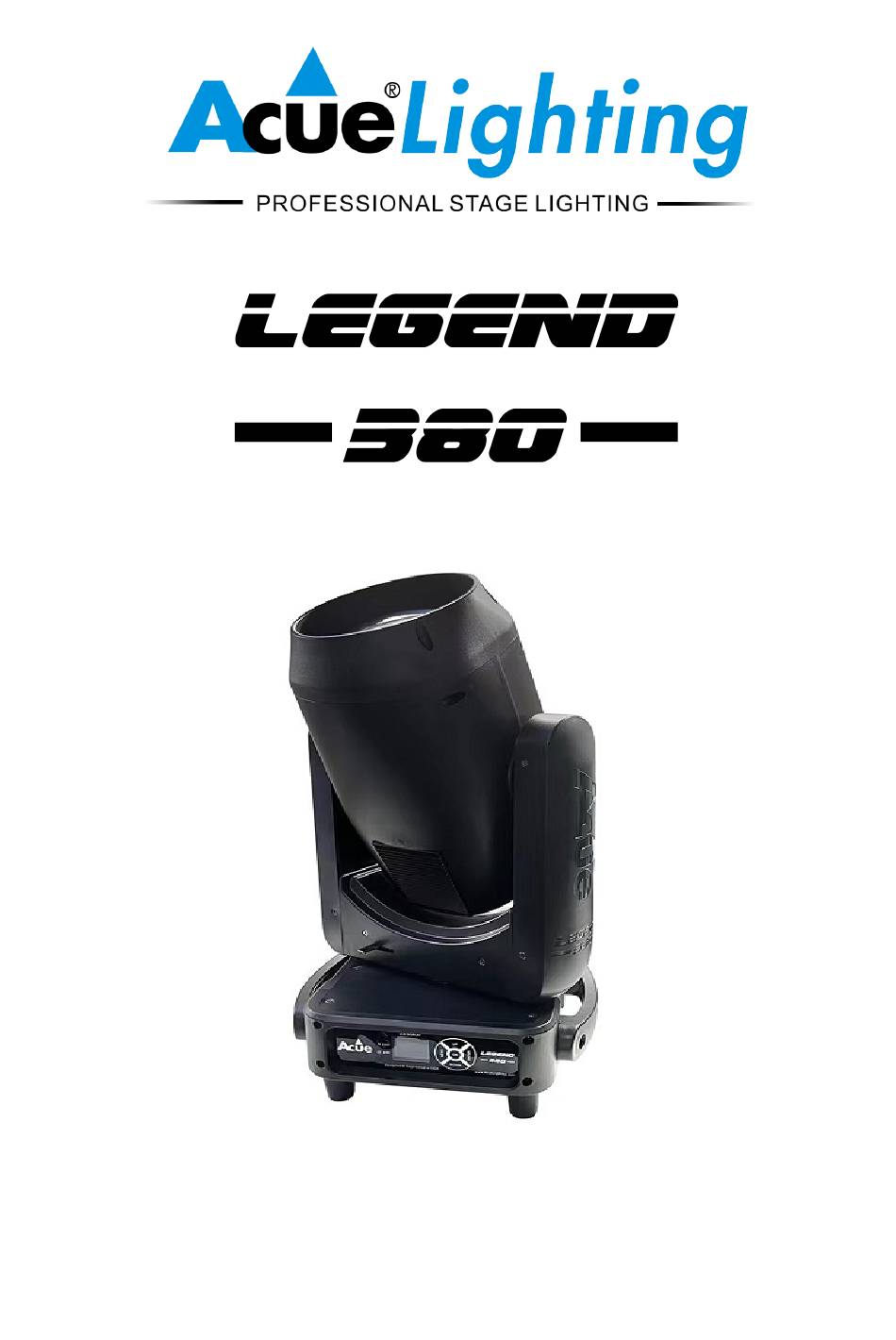

- Page 1 User Manual...
-
Page 2: Table Of Contents
The Control Panel ........................14 Control Panel Menu Structure ....................15 DMX Mode ..........................16 Run Mode ..........................17 5. APPENDIX ..........................17 Keeping Your Legend 380 As Good As New ................. 17 Shipping Issues ........................17 Tech Specs ..........................18... -
Page 3: Getting Started
Getting It Out Of the Box Congratulations on purchasing the Legend 380, an ultra-bright and durable, beam moving head fixture. Now that you’ve got your Legend 380, you should carefully unpack the box/case and check the contents to ensure that all parts are present and in good condition. -
Page 4: Safety Instructions
Safety Instructions Please read the instructions carefully. They include important information about the installation, usage and maintenance of this product. •Please keep this User manual for future use. Make sure all users of this product have read the user manual thoroughly. •... -
Page 5: Meet The Legend 380
2. MEET THE LEGEND 380 Main Features Channel mode: 16 DMX Channels Pan scan: 540°(16bit) w/ Electric correction Tilt scan: 270° (16bit) w/ Electric correction Color wheel: 14 colors + white, with one rainbow color wheel Gobo: 17 gobos + white 2x Rotating prisms, effect move, &... - Page 6 Tilt 0-255 0-270° Pan 16bit 0-255 0-2° Tilt 16bit 0-255 0-1° Pan/Tilt Speed 0-255 Fast à Slow Pan/Tilt Time Frost/rainbow 0-127 Insert 7 colorful 128-255 Insert frost Strobe close 4-103 Strobe from slow to fast 104-107 open 108-207 Strobe from slow to fast 208-212 open 213-251...
- Page 7 130-134 Color 13 135-139 Color 13+ Color 14 140-144 Color 14 145-149 Color 14+ White 150-200 Rotate forward (fast to slow) 201-255 Rotate forward (slow to fast) Color wheel White Gobo 1 10-14 Gobo 2 15-19 Gobo 3 20-24 Gobo 4 25-29 Gobo 5 30-34...
- Page 8 251-255 Gobo 17 shake, from slow to fast Prism 1 0-127 Prism off 128-255 Insert prism 1 Prism 1 rotation 0-127 0-400° 128-187 Rotation Clockwise (fast to slow) 188-195 Stop 196-255 Rotation Clockwise (slow to fast) Prism 2 0-127 Prism off 128-255 Insert prism 2 Prism 2 rotation...
-
Page 9: Legend 380 Pin-Up Picture
Legend 380 Pin-Up Picture Pan:540° Bulbs 380 Tilt:2703 Cast Aluminum ABS Enclosure 5 buttons LCD display... -
Page 10: The Rear Connections
ALWAYS replace with the same type and rating of fuse. Fuse Replacement The Legend 380 utilizes a high-output automatic switching power supply with an internal fuse. Under normal operating conditions, the fuse should not require replacement. The fuse is field replaceable, however it is an advanced procedure suited for qualified technicians. -
Page 11: Data/Dmx Cabling
serial data link without the use of a DMX optically - isolated splitter may result in deterioration of the digital DMX signal. The maximum recommended cable-run distance is 500 meters (1640 ft). The maximum recommended number of fixtures on a single serial data link is 8 fixtures. Data/DMX Cabling To link fixtures together you will need DMX data cables. -
Page 12: Fixture Linking (M/S Mode)
male connector (input). Note: It doesn’t matter which fixture address is the first one connected. We recommend connecting the fixtures in terms of their proximity to the controller, rather than connecting the lowest fixture number first, and so on. Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. -
Page 13: Mounting & Rigging
This fixture may be mounted in any SAFE position provided there is enough room for ventilation and rotation clearance. The fan or vents pathway must never be obstructed. The Legend 380 can be placed horizontally, diagonally or upside down. Pay attention to the installation method when slanted and upside down. -
Page 14: Operating Adjustments
4. OPERATING ADJUSTMENTS The Control Panel All of the features and modes possible with the Legend 380 can be accessed through the control panel on the front of the fixture. There are 4 control buttons next to the LED display, which allow you to navigate through the various control panel menus. -
Page 15: Control Panel Menu Structure
Pressing any button from the home screen will show the selectable menu items from the menu map on page #15. When a menu function is selected, the display will immediately show the first available option for the selected menu function. To select a menu item, press <MENU>. Use the <UP>... -
Page 16: Dmx Mode
14. Prism2 R 000-255 15. Focus 000-255 16. Reset 000-255 Return Pan Invert ON/OFF Tilt Invert ON/OFF P/T Rectify ON/OFF Pan Offset 000-150 Tilt Offset 000-048 ADVA Data Hold ON/OFF Scene Time 001-255 Lamp When RSTDONE/Power ON manual1 Reset Factory Setting Return Stepper Info Error logging... -
Page 17: Run Mode
Highlight Slave, and press <OK>. 5. APPENDIX Keeping Your Legend 380 As Good As New The fixture you have purchased is a rugged, tough piece of pro lighting equipment, and as long as you take care of it, it will take care of you. That said, you would need to take care of it if you want it to operate as designed. -
Page 18: Tech Specs
Tech Specs Power Operating Voltage 100-240V 50/60Hz Power Consumption 400w Light Source Osram Sirius HRI 371W lamp Optical Beam Angle 0~4° Main Feature Color Wheel 14 color +white Gobos Wheel 17 gobos + white Frost/Rainbow effect 0-100% linear frost + Rainbow effect Focus 0-100% Motorized focus Prism... - Page 19 (7) Damage caused by unauthorized control methods Note: All content in this manual is subject to change without prior written notice. For more information about this product as well as other products please visit www.AcueExpress.com Or contact us directly: Email: Info@AcueLighting.com Phone: (818) 646-7526/ (818) 672-6822...
