AGI GGF-803 E5 Series Installation, Operation, And Parts Manual

3-15 hp high speed centrifugal (ce version) aeration fan
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

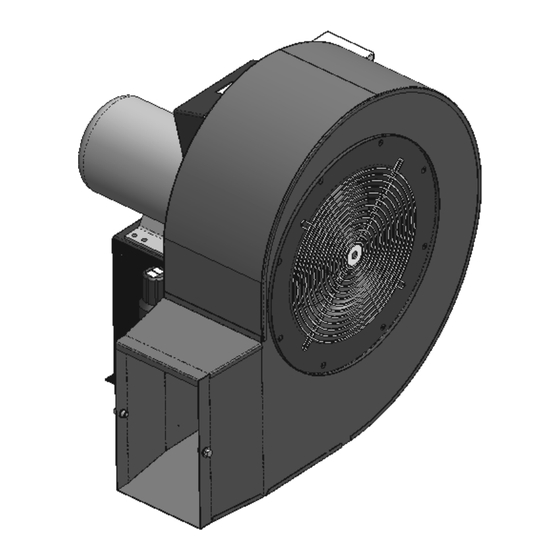

3-15 HP High Speed Centrifugal
(CE version) Aeration Fan
Aeration Fan
Installation, Operation, and Parts Manual
This manual applies to:
GGF-803XXE5, GGF-805XXE5, GGF-807XXE5, GGF-810XXE5
Read this manual before using product. Failure to
follow instructions and safety precautions can
result in serious injury, death, or property
damage. Keep manual for future reference.
INSTALLATION AND WIRING MUST
BE IN ACCORDANCE TO THE LOCAL
ELECTRICAL CODE OR THE
AUTHORITY HAVING JURISDICTION
Part Number: CNA-2667 R1
Revised: July 2024
Original Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GGF-803 E5 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGI GGF-803 E5 Series

Summary of Contents for AGI GGF-803 E5 Series

  • Page 1 3-15 HP High Speed Centrifugal (CE version) Aeration Fan Aeration Fan Installation, Operation, and Parts Manual This manual applies to: GGF-803XXE5, GGF-805XXE5, GGF-807XXE5, GGF-810XXE5 INSTALLATION AND WIRING MUST BE IN ACCORDANCE TO THE LOCAL ELECTRICAL CODE OR THE AUTHORITY HAVING JURISDICTION Read this manual before using product.
  • Page 2 This product has been designed and manufactured to meet general engineering standards. Other local regulations may apply and must be followed by the operator. All personnel must be trained in the correct operational and safety procedures for this product. Use the sign-off sheet below to record initial and periodic reviews of this manual with all personnel.
  • Page 3 New in this Manual The information below summarizes the changes to this manual since the last revision in February 2016. Description Section Updated Electrical Schematics Section 7.1 – Electrical Schematics on page 29 Section 7.2 – Parts List on page 30 Updated Parts List...
  • Page 4 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN CNA-2667 R1...

  • Page 5: Table Of Contents

    3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN CONTENTS 1. Introduction ............................7 1.1 General Description........................7 1.2 Serial Number Location......................7 1.3 Intended Use ..........................8 2. Safety............................... 9 2.1 Safety Alert Symbol and Signal Words..................9 2.2 General Safety Information.......................
  • Page 6 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 7.2 Parts List ..........................30 7.2.1 AGI Aeration Fan — (GGF)-Replacement Parts ............30 7.3 Grain Drying and Aeration Tips....................31 7.4 Efficiencies of Fan Models....................... 34 7.5 Declaration of Conformity....................... 34 7.6 End-of-Life Disposal and Recycling ..................

  • Page 7: Introduction

    1.1. General Description The AGI 3-15 HP High Speed Centrifugal (CE version) Aeration Fan is an excellent addition to any new or existing bin. It can allow you to harvest in damp conditions, maintain stored grain in peak condition, and reduce the likelihood of mould growth and insect infestations.

  • Page 8: Intended Use

    1. INTRODUCTION 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 1.3. Intended Use The aeration fan is intended for use as listed below and described throughout this manual. Use in any other way is considered contrary to the intended use and is not covered by the warranty. Intended use for the aeration fan •...

  • Page 9: Safety

    2. SAFETY 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 2. Safety 2.1. Safety Alert Symbol and Signal Words This safety alert symbol indicates important safety messages in this manual. When you see this symbol, be alert to the possibility of injury or death, carefully read the message that follows, and inform others.

  • Page 10: Fan Safety

    2. SAFETY 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 2.3. Fan Safety • Keep away from fan impeller/blade; high suction can pull a person toward the inlet. Contact with an unguarded impeller/blade will cause severe injury. •...

  • Page 11: Electric Motor Safety

    2. SAFETY 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 2.6. Electric Motor Safety Power Source • Electric motors and controls shall be installed and serviced by a qualified electrician and must meet all local codes and standards.

  • Page 12: Safety Equipment

    2. SAFETY 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN Work Gloves • Wear work gloves to protect your hands from sharp and rough edges. Steel-Toe Boots • Wear steel-toe boots to protect feet from falling debris. Coveralls •...

  • Page 13: Safety Decal Locations And Details

    2. SAFETY 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 2.9.2 Safety Decal Locations and Details Replicas of the safety decals that are attached to the aeration fan and their messages are shown in the figure(s) that follow.
  • Page 14 2. SAFETY 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN Table 1. Safety Decals Part Number Description 601-1992 NOTICE To prevent possible roof damage, ensure that all roof vents are open and unobstructed. Do not operate aeration fan if it is possible that the roof vents could ice up.
  • Page 15 2. SAFETY 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN Table 1 Safety Decals (continued) Part Number Description CNA-1399 WARNING ELECTROCUTION HAZARD Disconnect electrical power at service box before removing cover. 601-1995 WARNING ELECTROCUTION HAZARD To prevent serious injury or death: •...
  • Page 16 2. SAFETY 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN Table 1 Safety Decals (continued) Part Number Description 601-4878 1PH WIRING 1PH 50HZ SUPPLY FROM FUSED CIRCUIT BREAKER GREEN SIDE NO 3 POLE MOTOR SWITCH CONTACTOR RED SIDE NC OVERCURRENT PROTECTION...

  • Page 17: Installation

    • Verify that the supply voltage is correct. Report missing or damaged parts immediately to ensure that proper credit is received from AGI or your distributor/dealer, and to ensure that any missing parts can be shipped quickly to avoid holding up the installation.

  • Page 18: Installing With A Supplemental Heater

    3. INSTALLATION 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 3.5. Installing with a Supplemental Heater Any type of supplemental heater intended for use with this fan must be installed downstream and may be added if extra conditioning or drying is required. Heating incoming air will damage the fan and its components and is not covered by the warranty.
  • Page 19 3. INSTALLATION 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN Figure 2. Slab Mounted Fan (Inline Fan) Figure 3. Slab Mounted Fan (Centrifugal Fan) Item Description Transition (Not Load Bearing) Concrete Slab Concrete Anchor Adaptor CNA-2667 R1...

  • Page 20: Mounting The Fan On A Hopper Bottom Bin

    3. INSTALLATION 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 3.8. Mounting the Fan on a Hopper Bottom Bin To install the aeration fan on a hopper bottom bin: • Mount the aeration fan on a fan stand that is designed by the manufacturer for this application. Damage will occur to the fan if not properly supported.

  • Page 21: Operation

    4. OPERATION 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 4. Operation For optimal operation, follow these safety precautions, checklists, and instructions. 4.1. Operation Safety • Ensure appropriate safety accessories are installed. Selection and use of safety accessories for the specific installation is the responsibility of the customer.

  • Page 22: Roof Vents

    4. OPERATION 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 4.3. Roof Vents Roof vents should be sized at 1 ft for every 1000 ft /min of air to minimize condensation. Roof vents may become partially or fully blocked with ice in temperatures below freezing with high humidity conditions.

  • Page 23: Emergency Stop

    4. OPERATION 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 4.5. Emergency Stop Foreign Object Obstruction 1. Immediately shut down the aeration fan and lock out the power source. 2. Remove the obstruction. 3. Inspect the inlet screen and fan wheel assembly for damage. Repair or replace as required. Excessive Fan Vibration or Noise 1.

  • Page 24: Shutdown

    4. OPERATION 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 4.6. Shutdown 1. Press the red STOP button. 2. When shutting down the fan for extended periods of time, shut off the power at the disconnect/source to prevent any inadvertent start-up of the fan.

  • Page 25: Maintenance

    • After maintenance is complete, replace all guards, service doors, and/or covers. • Use only genuine AGI replacement parts or equivalent. Use of unauthorized parts will void warranty. If in doubt, contact AGI or your local dealer. 5.2. Maintenance Schedule Follow the Maintenance Schedule below.

  • Page 26: Visually Inspect The Aeration Fan

    5. MAINTENANCE 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 5.3. Visually Inspect the Aeration Fan Check the following during a visual inspection: 1. Ensure all guards are in place and in good working order. 2. Examine the aeration fan for damage or unusual wear. Make sure the impeller is clean, undamaged, and rotates freely.

  • Page 27: Troubleshooting

    If you encounter a problem that is difficult to solve, even after having read through this section, please contact your local dealer or distributor or, go online at https://www.aggrowth.com for additional troubleshooting tips. You may also contact an AGI product specialist at 1–800–565–2840. Before you contact them, please have this manual and the serial number available.
  • Page 28 Replace or have the impeller rebalanced. Loose motor mounting bolts. Tighten the bolts. Torque to 30 ft/lb. Motor out of balance. Call your dealer/AGI for assistance. Transformer Faulty. Check for voltage (HOV) on outlet side of No power ( 110V) at Monitor terminal transformer, if no power then replace.

  • Page 29: Appendix

    7. APPENDIX 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 7. Appendix 7.1. Electrical Schematics 1PH WIRING 1PH 50HZ SUPPLY FROM FUSED CIRCUIT BREAKER GREEN SIDE NO 3 POLE MOTOR SWITCH CONTACTOR RED SIDE NC OVERCURRENT PROTECTION WIRES TO BE SUPPLIED MOTOR...

  • Page 30: Parts List

    7. APPENDIX 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 7.2. Parts List 7.2.1 AGI Aeration Fan — (GGF)-Replacement Parts Table 2. High Speed Centrifugal Fan (GGF) Replacement Parts Item Description Part Numbers by Fan HP/Voltage/Phase 7.5 HP...

  • Page 31: Grain Drying And Aeration Tips

    7. APPENDIX 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 7.3. Grain Drying and Aeration Tips • WHAT IS THE DIFFERENCE BETWEEN AERATION, NATURAL AIR DRYING? Aeration is used to control and provide uniform temperature for a grain mass. Natural air drying is generally used for farm bins and is a method of drying grain with or without supplemental heat and is recommended at 1 cfm (13.4 L/s) per bushel of grain.
  • Page 32 7. APPENDIX 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN • IF I ADD SUPPLEMENTAL HEAT, CAN I DRY IN HIGH HUMIDITY CONDITIONS? Adding supplemental heat (when available) to the natural air drying process will reduce relative humidity and increase the rate of moisture movement.
  • Page 33 7. APPENDIX 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 2. You can wait until the outside air temperature falls to 23 to 14°F (-5 to -10°C) and then run the fan for 24– 48 hours to cool the entire grain mass to a storage state (see charts that follow). Once spring conditions return, you can resume the natural air drying process.

  • Page 34: Efficiencies Of Fan Models

    AUTHORIZED REPRESENTATIVE: Managing Director, AGI-PTM, Via Mario Tognato 10-35042 Este (PD), Italy Phone: +39 0429 600973 Authorized Representative: Contact in the European Community for information about AGI product compliance. PRODUCT DESCRIPTION: Axial, Centrifugal, and Inline Fans APPLICABLE EUROPEAN DIRECTIVES AND STANDARDS:...

  • Page 35: End-Of-Life Disposal And Recycling

    7. APPENDIX 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 7.6. End-of-Life Disposal and Recycling After the equipment has surpassed its lifetime of operational usefulness, it should be disassembled into its base materials and properly disposed. Disassembly should be performed with adequate tools and in accordance with safe work practices that are consistent with the assembly procedure for this product (including safe lifting practices for heavy components).

  • Page 36: Warranty

    3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN 8. Warranty Except as expressly provided in this agreement, AGI Nobleford (hereinafter called the Manufacturer) excludes all express or implied warranties, conditions, and obligations of the Manufacturer, whether statutory or otherwise, concerning the quality of the units or their fitness for any purpose.
  • Page 37 8. WARRANTY 3-15 HP HIGH SPEED CENTRIFUGAL (CE VERSION) AERATION FAN – AERATION FAN CNA-2667 R1...
  • Page 38 AGI is a leading provider of equipment solutions for agriculture bulk commodities including seed, fertilizer, grain, and feed systems with a growing platform in providing equipment and solutions for food processing facilities. AGI has manufacturing facilities in Canada, the United States, the United Kingdom, Brazil, South Africa, India and Italy and distributes its products globally.

This manual is also suitable for:

Ggf-805 e5 seriesGgf-807 e5 seriesGgf-810 e5 series
