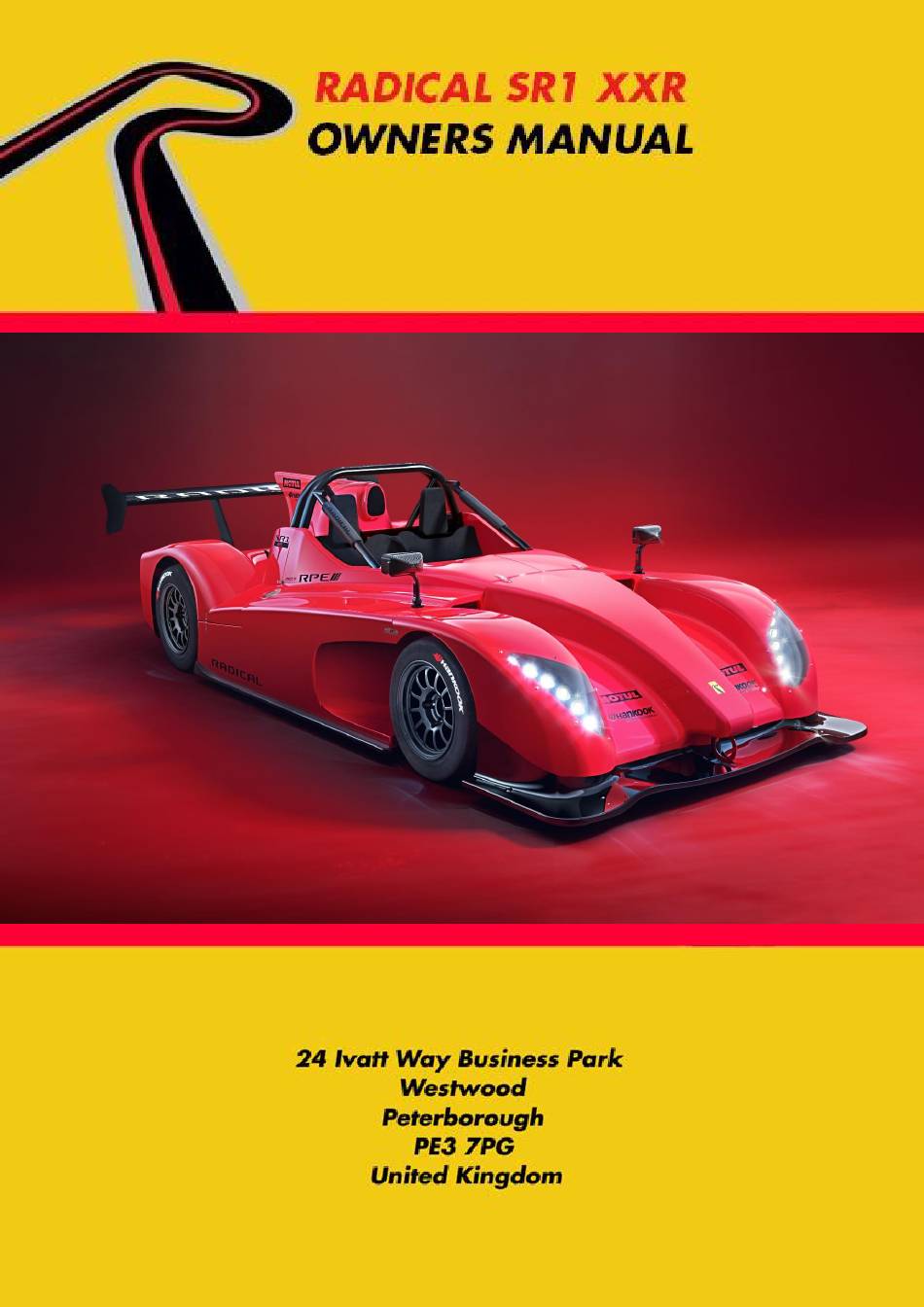

- Page 1 V 1.2 QD153-03...
-
Page 2: Table Of Contents
CONTENTS Introduction ............................. 6 1. Introduction To Your Car ............................7 1.1 Dashboard Layout ........................7 1.2 Dash Configurations ........................8 Alarms ............................8 1.3 Engine Bay Layout ........................9 1.4 Front Suspension Layout ......................9 1.5 Rear Suspension Layout ......................10 1.6 ECU Location .......................... - Page 3 Jacking Points ................................ 20 Lifting Points ................................20 6. Setting Up The Car ..............................21 6.1 How To Set Up The Car ......................21 6.2 Corner Weights ........................21 6.3 Setup Sheet ..........................22 6.6 Wet Weather Set-up ........................ 23 6.9 Drop Heights ...........................
- Page 4 9.11 Service Schedule ........................50 9.12 Repacking Driveshaft Grease ....................50 9.13 Replacing Caliper Seals ......................51 9.14 Standard Pre-Race/Test Check Sheet ..................52 SR1 XXR Preparation sheet ......................54 SR1 XXR Setup Sheet ........................56 10. Version History................................57 QD153-03...
- Page 5 QD153-03...
-
Page 6: Introduction
INTRODUCTION Dear Radical Owner, Thank you for purchasing your Radical SR1 Since its initial launch as an SR4 in 2004 we have continually developed, refined, and improved the design Generation 3 SR1 XXR has been substantially revised with the latest powertrain, enhanced suspension, and improved aerodynamics. -
Page 7: Introduction To Your Car
1. INTRODUCTION TO YOUR CAR Dash Master Switch Neutral Button Fire Extinguisher Up Paddle Life Data Port Lights AIM Data Port Down Paddle Brake Bias adjuster 1.1 DASHBOARD LAYOUT Coolant Temperature Current Gear Engine Speed (RPM) Oil Temperature Water Temp Alarm Oil Temp Warning Fuel Pressure Alarm Oil Pressure Warning... -
Page 8: Dash Configurations
1.2 DASH CONFIGURATIONS Page 1 General Running Page Page 2 ECU Data Page Page 3 Telemetry Page ALARMS Da s h Ala r m s Ala r m Con d it ion Wa r n in g L igh t s High Water Temp Alarm Flashing + Warning Light Cont. -
Page 9: Engine Bay Layout
1.3 ENGINE BAY LAYOUT Air Box/Filter Water Tank 12V Fuel Drain Out Plug Light Plug Compressor Fuel Rail Oil Tank Catch Tank Fuel Drain Out 1.4 FRONT SUSPENSION LAYOUT Rocker Top Wishbone Upright Track Rod Spring/Damper Pushrod Lower Wishbone Anti-roll Bar QD153-03... -
Page 10: Rear Suspension Layout
1.5 REAR SUSPENSION LAYOUT Roll Bar Rocker Spring/Damper Top Wishbone Pushrod Driveshaft Lower Wishbone Upright QD153-03... -
Page 11: Ecu Location
1.6 ECU LOCATION The ECU is located on the right-hand side of the cockpit. The ECU has been made accessible so that it can be easily removed when the engine is rebuilt for example. To remove the ECU, pull the silver clip away and fold to an upright position, then the ECU should rotate around on the inside edge until it releases on the opposing side. -
Page 12: Running Your Car
2. RUNNING YOUR CAR Upon delivery of your new car it is recommended you check the following items: If the car has been shipped, be sure to check the toe geometric setup of the front and rear wheels, it is possible that the securing straps may have been overtightened and pulled the car out of alignment. Make sure the master switch was not Check that the driver is comfortable in the car. -
Page 13: Pre-Session Checks
2.1 PRE-SESSION CHECKS Despite all the thorough checks which are carried out on all our cars before they leave the factory, it is important you also do some basic checks before you take the car to the track every time. Torque the wheels to 80ft/lb. -
Page 14: Driver Controls
2.2 DRIVER CONTROLS S T A R T I N G T H E CA R To start the car, turn on the master switch and wait for the dash to load. Switch down the ignition toggle. You can now press the starter button to turn over the starter motor. I M P OR T A N T N OT E As with any race car, it is important to put the car in neutral and release the clutch when stationary. -
Page 15: Stopping The Car
S T OP P I N G T H E CA R Upon stopping leave the engine running for at least 15 seconds if possible, to prevent it from heat soaking. In hot climate, keep checking the temperatures once engine was turned off and re-start if necessary to circulate the coolant. -
Page 16: Pedal Adjustment
P ED A L A D J U S T M EN T B r a k e An d Clu t ch P ed a l: The Brake and Clutch pedals can be adjusted by either loosening the locknuts on the pedal pad, or by loosening the locknuts on the m a s t er cy lin d er pu s h r od s , then turning the rods to move the pedal. -
Page 17: New Car Shakedown
3. NEW CAR SHAKEDOWN At Radical, we pride ourselves on our quality control and rigorous testing procedures that we have in place for every new car. All new cars are subject to a 100 point post production inspection and track simulation on our rolling road dynamometer prior to delivery. -
Page 18: Run 3 (5 Lap Run)
RUN 3 (5 LAP RUN) Driver: o During this run build up to full brake pressure, and use the full rev range before shifting (9,250rpm). Technician: up sufficiently. o Check the tyre pressures o Check for play in the wheel bearings o Re-check wheel nut torque for a final time (80ft/lbs) RUN 4 (NORMAL SESSION) The car can now be run as normal. -
Page 19: Tyre Management
4. TYRE MANAGEMENT The table below shows the suggested running pressures and pressures for race tyres: Cold Starting Treaded Wets Treaded Wets Please note that the starting pressures are to only be used as a guide; conditions on the day will alter where you should start your pressures. -
Page 20: Workshop Car Maintenance
5. WORKSHOP CAR MAINTENANCE After every day the car has run the car should be inspected thoroughly in a workshop environment. J A CK I N G P OI N T S The front jacking point is in the centre of the front diffuser, just under the front chassis rail. As shown in the picture. -
Page 21: Setting Up The Car
6.1 HOW TO SET UP THE CAR Setting up the Radical may seem a daunting task at first; however, adjustments are incredibly simple with everything being of easy access allowing for fast setup changes whenever you feel the need to adjust certain areas. -
Page 22: Setup Sheet
6.3 SETUP SHEET QD153-03... -
Page 23: Wet Weather Set-Up
6.6 WET WEATHER SET-UP When you venture into the wet conditions, the car setup can be altered in order to give the driver the best chance of staying on the circuit. Shown below is a guide to the changes to make to the car in the wet. Camber ½°... -
Page 24: Drop Heights
6.9 DROP HEIGHTS The drop heights are measured with a 2 on the front, as shown in the picture. The rear will need to be Fr on t R id e Heigh t R ea r R id e Heigh t Dr op Ch a s s is Dr op... -
Page 25: Intrax Damper
6.10 INTRAX DAMPER D A M P I N G A D J U S T M EN T P R OCED U R E Please read and make sure to understand the manual for damping first before changing the damping. Changing the damping will change the handling and road holding characteristics of your car. - Page 26 ANTI-CLOCKWISE = LESS DAMPING STEP 2: SET THE DAMP ING TO THE COR R ECT L EV EL Open the right amount of clicks to reduce The damper is now at its maximum damping force. Turn the adjuster anti- damping to clockwise to the right reduce the damping force.
-
Page 27: Car Servicing
7. CAR SERVICING 7.1 FILTER SERVICING Oil Ch an ge - We recommend changing engine oil every 10 hours. To do this remove the large oil pipe from the bottom of the oil tank, located in the right-side pod, underneath the engine cover. There will be a small amount of oil left in the engine, to drain the last bit of oil remove the 17mm sump bung on the side of the sump pan. -
Page 28: Important Maintenance Tips
7.2 IMPORTANT MAINTENANCE TIPS Below are some additional tips in order to help with the general running of the vehicle to ensure reliability. o It is VITAL to check the chain tension after every run. The chain can sometimes slacken off during extensive running and will therefore require a small amount of tension to be applied by tightening the rear lower differential mounting nuts. -
Page 29: Adjusting The Chain Tension
7.3 ADJUSTING THE CHAIN TENSION 1. To adjust the chain the top differential bolts must be loosened on both sides. 2. Next loosen the large 24mm nuts on both sides. to increase or reduce the slack in the chain. 4. When tightening the bolts ensure the differential is pushed all the way forward 24mm nuts on both sides. -
Page 30: Changing The Front Sprocket
7.5 CHANGING THE FRONT SPROCKET In order to change the front sprocket, first remove the M8 countersunk bolt inside the nut on the sprocket. (It is important to be careful when removing this bolt due to the thread containing Loctite; it is recommended to heat up the area slightly in order to make removal easier. -
Page 31: Wheel Speed Sensor Setup
This is shown in the image below: 7.8 THROTTLE BODIES The SR1 XXR uses (DBW) throttle. This means that no adjustments to TPS or throttle body motor are required. QD153-03... -
Page 32: Ignition Coil Removal And Installation
7.9 IGNITION COIL REMOVAL AND INSTALLATION – 1. Turn the Master switch OFF. 2. Remove ignition coil retaining plate. 3. Disconnect the ignition coil connectors from the ignition coils. 4. Turn the ignition coil counter clockwise about 45° 5. Pull out the ignition coil. 6. -
Page 33: Checking The Starter Motor After A Spin
7.10 CHECKING THE STARTER MOTOR AFTER A SPIN In the event of a spin, if the clutch is not depressed and the engine spins backwards, there is a chance that the starter and opposing gears can get damaged. If there are any doubts over whether the engine is damaged after a spin, it should not be started again prior to inspecting the starter motor. -
Page 34: Troubleshooting
8. TROUBLESHOOTING 8.1 NON STARTING QD153-03... -
Page 35: Charging Issues
8.2 CHARGING ISSUES The SR1 should be charging between 13.5-14.5 V when running on circuit. If you see it running below this, harging voltage in this section. Follow the below guide on how to diagnose the problem and deciding on the solution. When checking the car is charging, hold the RPM above 3000rpm. -
Page 36: Gearshift Issues
Is it shifting through all gears? Or just having trouble with one specific gear? If one specific gear this suggests it may be a mechanical issue and it is strongly advised to contact an authorised Radical engine shop for more advice on what to do. If you have carried out the first two steps and are still having issues shifting through all gears, take a look below for more help. -
Page 37: Gear Position Sensor
GEA R P OS I T I ON S EN S OR A faulty or damaged gear position sensor could also cause shifting issues. The gear position sensor is mounted on the outside of the engine below the drive coupling. The sensor is not adjustable but has to be fitted as per the attached images. -
Page 38: Fuel Pressure
8.5 FUEL PRESSURE N O F U EL P R ES S U R E QD153-03... -
Page 39: Fuel Pressure Low
F U EL P R ES S U R E L OW QD153-03... -
Page 40: Reference Material
9. REFERENCE MATERIAL 9.1 OILING SYSTEM (DRY SUMP) Engine Breather Pot Catch Tank Oil Tank Oil Screen Sump Bung Main Oil Feed Oil Screen Oil Cooler Scavenge Pump QD153-03... -
Page 41: Wet Sump Layout
9.2 WET SUMP LAYOUT QD153-03... -
Page 42: Engine Control Parameters
9.3 ENGINE CONTROL PARAMETERS Fea t u r e P a r a m et er Coolant Fan On Coolant Fan Off High Coolant Temperature Trip Low Fuel Pressure Trip 2.5bar Low Oil Pressure Trip 46.8psi @ 9000rpm @ 80°C (RPM Dependant) Rev Limit 9725rpm Fuel Pressure Target... -
Page 43: Common Parts
9.4 COMMON PARTS P a r t Des cr ip t ion P a r t Nu m b er Brake Disc Pair BD0024 Front Master Cylinder 7/10 BM0095 Rear Master Cylinder BM0096 Clutch Master Cylinder BM0094 Chain TC0013 Rear Sprocket TC0013 Front Sprocket TC0027... -
Page 44: Fluids
9.5 FLUIDS Below is a list of all the fluids that you will need to run your SR1, including part numbers and quantities required: Radical recommends the use of Motul engine oil. Type Part Number Capacity Brand Viscosity/Type Required Engine Oil... -
Page 45: Torque Guide
9.7 TORQUE GUIDE D R I V E S Y S T EM S To be used as a guide only, nuts and bolts should be checked often and tightened as necessary. SR 1: Driveshaft Nuts Roll Pin 180 Ft/Lbs Rear Sprocket Loctite/Locking Tab 50 Ft/Lbs... - Page 46 Advisory generalized bolt torques: B olt s ize/Th r ea d p it ch Gr a d e 2 Gr a d e 5 Gr a d e 8 1/4-20 1/4-28 5/16-18 5/16-24 3/8-16 3/8-24 7/16-14 7/16-20 1/2-13 1/2-20 9/16-12 9/16-18 5/8-11 5/8-18...
-
Page 47: Gear Ratios
9.8 GEAR RATIOS Gea r R a t io P a r t Nu m b er Final Drive Sprocket 43T TC0053 Final Drive Sprocket 44T TC0054 Final Drive Sprocket 45T TC0033 Final Drive Sprocket 46T TC0034 Final Drive Sprocket 47T TC0035 Final Drive Sprocket 48T TC0036... -
Page 48: Roll Bar Sizes
9.9 ROLL BAR SIZES Fr o n t Soft Gold SN0012 Medium Gold SN0011 Hard Gold SN0010 R ea r Soft Gold SN0021 Medium Gold SN0020 Hard Gold SN0019 QD153-03... -
Page 49: Component Lifing
The recommended life expectancies in no way represent a parts warranty, due to the unpredictable and uncontrolled use of these racing car components Radical will not be held responsible or accountable for any parts failure. This information is provided solely as a guide to increase the safety of the cars. -
Page 50: Service Schedule
9.11 SERVICE SCHEDULE The below intervals are intended as a guide to assist in components achieving full life and reliability of your engine and gearbox. These intervals are based on Radicals recommended oils which can be found in the fluid specifications section (9.4) of this manual. Com p on en t Act ion In t er v a l t r a ck (h ou r s ) -
Page 51: Replacing Caliper Seals
9.13 REPLACING CALIPER SEALS The following guide is the recommendation for replacing the seals in their calipers: Extend pistons for easy removal unbolt callipers, take out brake pads and place a block in the caliper to prevent pistons from falling out. Then pump the pedal until all pistons are extended 10- 15mm (or carefully use an airline in the fluid inlet if the callipers are off the vehicle). -
Page 52: Standard Pre-Race/Test Check Sheet
9.14 STANDARD PRE-RACE/TEST CHECK SHEET The below checklist is intended as a guide only. This checklist is an expansion of the prep sheet which is on page 47. 1. Bodywork Check all bodywork for damage Check all the lights function Check the underside of the sidepods, diffuser and front splitter skid blocks Put the car on a stand Disarm the fire extinguisher... - Page 53 Check the PPS resting position and full sweep on PTmon Check all coolant pipes 11. Wiring Check wiring in the engine bay for chaffing and signs of heat Check wiring to ignition coil sticks Check the condition of all connectors Check the wheel speed sensor wiring for signs of chafing, check the gap and (all four lights) Check wiring behind the dash Check all wiring is away and shielded from the exhaust...
-
Page 54: Sr1 Xxr Preparation Sheet
SR1 XXR PREPARATION SHEET QD153-03... - Page 55 QD153-03...
-
Page 56: Sr1 Xxr Setup Sheet
SR1 XXR SETUP SHEET QD153-03... -
Page 57: Version History
10. VERSION HISTORY 2023-08-03 V1.0 Initial public release. 2024-04-22 V1.1 Troubleshooting flow charts added 2024-08-22 V1.2 Torque guide update QD153-03... - Page 58 QD153-03...
