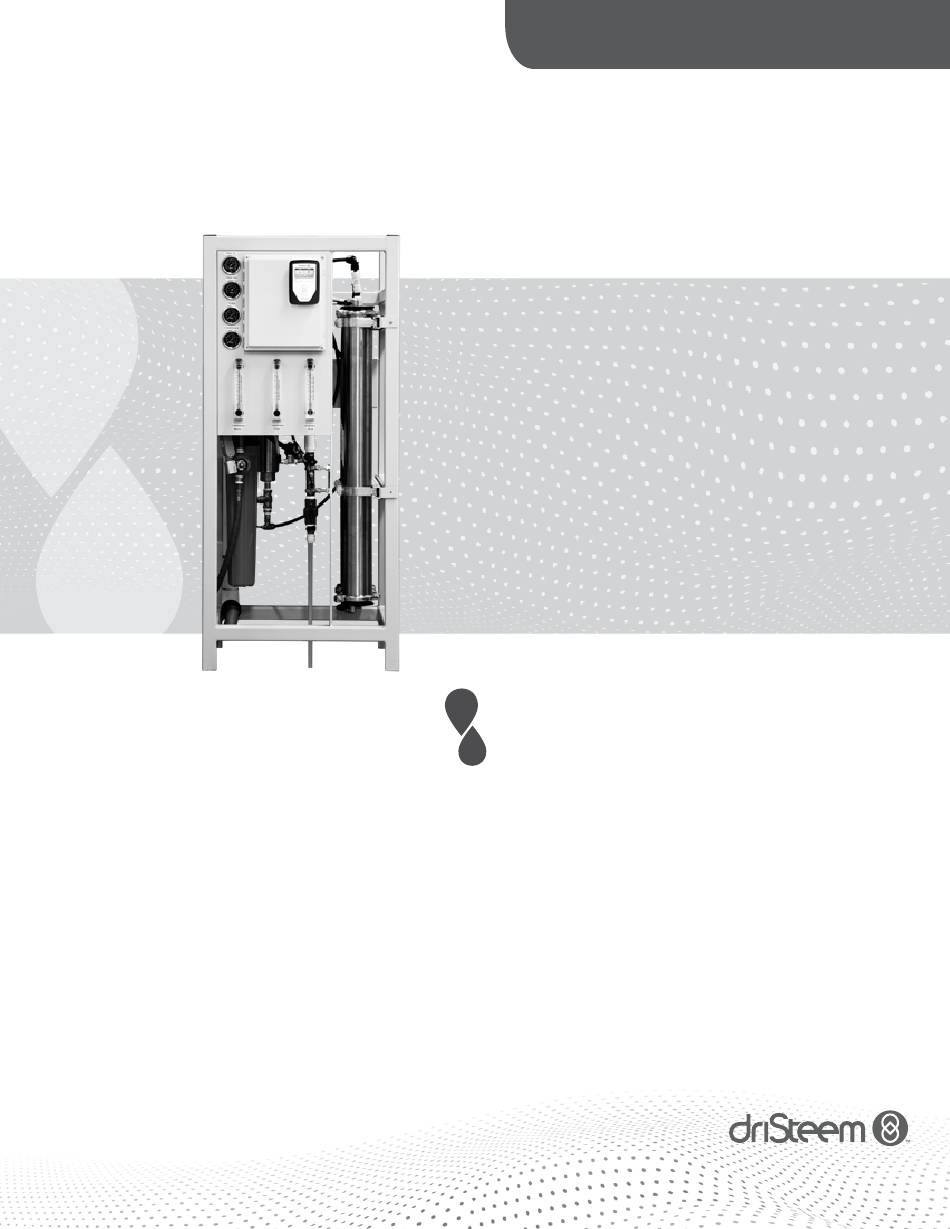

- Page 1 HYDROTRUE WATER TREATMENT SYSTEMS ® 400 SERIES Reverse-osmosis water treatment system Installation, Operation, and Maintenance Manual Read and save these instructions...
- Page 2 There is an associated risk with all water sources and the potential for bio growth, including bacterium that causes Legionnaires disease. DriSteem high-pressure systems, products, and components are designed, with consideration, to reduce the risk of Legionnaires disease and other similar situations. The water treatment and high-pressure system design take into account lower operating temperatures, minimization of stagnant water through mechanical design and flush cycles, and provides an option for UV disinfection of the RO storage water.
- Page 3 Warnings and cautions CAUTION Operate system at above-freezing temperatures. Operating the system at temperatures below freezing can damage the system or cause other property damage. Maintain pumping and water treatment equipment. Inadequately maintained pumping and water treatment equipment can cause the system to fail. Refer to the maintenance section of this IOM for recommended maintenance.
-
Page 4: Table Of Contents
Table of contents WARNINGS ............. TABLE OF CONENTS . - Page 5 Refer to it for information about using the keypad/display and Web interface, and for troubleshooting information. Download DriSteem literature Most DriSteem product manuals are available our website: www.dristeem.com Learn More WATER TREATMENT SYSTEM MODEL 400 INSTALLATION, OPERATION, AND MAINTENANCE MANUAL...
-
Page 6: Overview
System dimensions FIGURE 6-1: DRISTEEM 400 SERIES REVERSE-OSMOSIS SYSTEM OVERVIEW (SEE TABLES 6-1 AND 7-1) L (DIA) 56" (1422 mm) Drain 63" (1600 mm) OM-7816 Note: System components and configuration may vary to meet application requirements. Table 6-1: DriSteem 400 series RO system dimensions... -
Page 7: System Clearances
System clearances FIGURE 7-1: DRISTEEM 400 SERIES REVERSE-OSMOSIS SYSTEM CLEARANCES 48" (1220 mm) 8" (203 mm) 8" (203 mm) 36" (915 mm) OM-7817 8" (203 mm) Table 7-1: Atmospheric RO holding tank specifications Weight RO station Description Connections model Shipping Operating 1"... -
Page 8: Water Quality And Component Overview
Supply water must be softened and dechlorinated before being supplied to the reverse-osmosis system. If water is not properly dechlorinated or softened, it can damage reverse osmosis membranes. If you are not installing DriSteem water pretreatment components, verify that your water has had chlorine removed and is softened. - Page 9 (SDI): 3 maximum. If exceeded, Do not close the valve. Do not operate pretreatment with media filter recommended. All the pump below minimum combined pretreatment equipment are available from DriSteem. flow rate (permeate + concentrate + • Capacity Basis: 24 hrs/day recirculating).
-
Page 10: Components Overview
Components overview REVERSE OSMOSIS STATION The reverse-osmosis (RO) station is floor-mounted and removes approximately 98% of total dissolved solids. Table 10-1: 400 series RO station specifications Model 401* 402* 403** 404** 406** 408** 412** Permeate flow rate, lbs/hr (kg/hr) or 250 (115) 500 (230) 1,000 (455) - Page 11 Components overview Table 10-1: 400 series RO station specifications (Continued) Model 401* 402* 403** 404** 406** 408** 412** RO system permeate water outlet connection ¾" female NPT ¾" female NPT ¾" female NPT ¾" female NPT ¾" female NPT ¾" female NPT ¾"...
-
Page 12: System Operation Temperature
System operation temperature DriSteem rates reverse-osmosis systems at 50°F (10°C). This is lower than the industry standard of 77°F (25°C). To find the membrane permeate rate at a different temperature, follow these steps: 1. Find the temperature correction factor (TCF) from the below table. -
Page 13: Pressurized Ro Holding Tank
Components overview PRESSURIZED RO HOLDING TANK FIGURE 13-1: PRESSURIZED RO HOLDING TANK The pressurized RO holding tank holds RO water in reserve to be available for high-pressure pumping when there is a demand. Table 13-1: Pressurized RO holding tank specifications Dimensions Weight Model... -
Page 14: Atmospheric Ro Holding Tank
Components overview ATMOSPHERIC RO HOLDING TANK FIGURE 14-1: ATMOSPHERIC RO HOLDING TANK The atmospheric RO hold tank holds a large amount of RO water for large jobs or when additional runtime needs to be guaranteed. System includes a recirculation/booster pump and an UV sterilization system to ensure water purity and supply 30-50 psi (207-345 kPa) water to downstream equipment. -
Page 15: Placing Components
• Maximum ambient temperature is 104°F (40°C). Minimum ambient temperature is 40°F (4.4°C) WARNING • Clearance recommendations (see Figure 7-1). All DriSteem RO-400 series reverse- • Electrical connections: Power, control, and safety circuits osmosis systems must be bolted to the floor or permanently attached to the •... -
Page 16: Piping And Instrumentation Arrangement
Piping and instrumentation arrangement FIGURE 16-1: FLOW SCHEMATIC WITH A TANK DECHLORINATOR OM-7828c WATER TREATMENT SYSTEM MODEL 400 INSTALLATION, OPERATION, AND MAINTENANCE MANUAL... - Page 17 Piping and instrumentation arrangement FIGURE 17-1: FLOW SCHEMATIC WITH A CARTRIDGE DECHLORINATOR OM-7829c WATER TREATMENT SYSTEM MODEL 400 INSTALLATION, OPERATION, AND MAINTENANCE MANUAL...
-
Page 18: Interconnecting Tubing Requirements
Interconnecting tubing requirements Table 18-1: Maximum length of interconnecting tubing between pump station and RO holding tank Volume Minimum tube I.D. Maximum developed length* Tubing nominal RO station model diameter 1/2" 0.375 >100 >30 0.55 3/4" 0.625 >100 >30 1" 0.875 >100 >30... -
Page 19: Components And Tools Needed
Components and tools needed System configuration may not include all components. TYPICAL TOOLS/SUPPLIES NEEDED • PTFE-tape • Adjustable wrench for water fittings • Screwdrivers for power connections and cabinet access • Precision screwdrivers for signal connections • Air compressor (for precharging RO tank) TYPICAL FIELD-SUPPLIED COMPONENTS •... -
Page 20: System Piping
1. Connect water supply and bypass piping to inlet to duplex water softener. 2. Connect brine tank to water softener control system using plastic hose supplied. 3. Add salt to brine tank. DriSteem recommends using pulverized salt because it dissolves easily. 4. Plumb drain outlet from water softener to nearby drain. -
Page 21: Ro Station And Pressurized Ro Holding Tank
System piping RO STATION AND PRESSURIZED RO HOLDING TANK FIGURE 21-1: HOSE FROM RO WATER OUTLET CONNECTED TO PRESSURIZED Refer to Figure 16-1 for arrangement of piping and instrumentation. RO HOLDING TANK Minimum inlet dynamic (while running) pressure is 40 psi (275 kPa). 1. - Page 22 System piping PLUMBING CAUTION Plumbing materials can significantly contribute to the contamination of the water. Care must be exercised over the choice of thread sealants. PTFE tape This unit produces high quality water which could cause corrosion or is suitable for all threaded connections in this system. Pipe dope can leach leaching of the plumbing following objectionable impurities into the water and must be avoided.
-
Page 23: Wiring
SERVICE DISCONNECT or failure, and void your DriSteem A service disconnect must be installed per NEC requirements and governing warranty. codes. PREVENTING ELECTRICAL NOISE... -
Page 24: Grounding Requirements
RO pump to run Ground wire should be the same AWG (mm ) size as the power wiring or backwards and void your DriSteem sized per NEC requirements (in Europe, IEC 60364 requirements). warranty. When the control cabinet is mounted remotely from the unit, a ground wire is necessary from the machine ground lug on the unit to the machine ground lug in the control cabinet. -
Page 25: Start-Up Checklist
☐ If you experience difficulties, have the keypad/display information available along with the serial number and unit Model, and call DriSteem Technical Support at 800-328-4447. Note: Instructions on how to properly care for the freeze protect chemical that is shipped with the system is available on the MSDS sheet at www.dristeem.com. -
Page 26: Start-Up
Start-up START-UP PROCEDURE Important If the system is not in operation within six Check component installation per the layout shown in Figure 16-1 months of shipment, it is strongly recommended (depending on your model). After all components are installed and connected to use an organic cleaning cartridge prior properly: to performing the start-up checklist to ensure... - Page 27 Start-up 11. Put the system back into 'Auto' mode. CAUTION 12. Adjust the throttle valve to get the specified permeate flow within the range listed in their individual flow columns to equal the combined flow Do not operate the system with the listed.
-
Page 28: System Operation
System operation SHUTDOWN FIGURE 28-1: CONTROL VALVES 1. Put the system in 'Standby' mode or remove power. Close the isolation valve if it is installed on the feed line. 2. If the unit is to be shut down for more than one week, a membrane preservative should be used. -
Page 29: Permeate Tank Pressure Loss
Permeate tank pressure loss: 0.5" Polyethylene Table 29-1: Permeate tank pressure loss (psig) (0.5" Polyethylene) Maximum humidification load (lbs/hr) Developed length of tubing (ft) NOTE: • Shaded cells indicates pressure loss is too great (<25 psig at end user, based on pressurized or AT RO tank options) •... -
Page 30: Stainless Steel Tube
Permeate tank pressure loss: 0.5" Stainless Steel Tube Table 30-1: Permeate tank pressure loss (psig) (0.5" Stainless Steel Tube) Maximum humidification load (lbs/hr) Developed length of tubing (ft) 1000 1500 NOTE: • Shaded cells indicates pressure loss is too great (<25 psig at end user, based on pressurized or AT RO tank options). •... -
Page 31: Stainless Steel Tube
Permeate tank pressure loss: 0.5" Stainless Steel Tube Table 31-1: Permeate tank pressure loss (psig) (0.5" Stainless Steel Tube) Maximum humidification load (lbs/hr) Developed length of tubing (ft) 1000 1500 NOTE: • Shaded cells indicates pressure loss is too great (<25 psig at end user, based on pressurized or AT RO tank options). •... -
Page 32: Polyvinyl Chloride (Pvc) Pipe
Permeate tank pressure loss: 0.5" Polyvinyl Chloride (PVC) Pipe Table 32-1: Permeate tank pressure loss (psig) (0.5" Polyvinyl chloride pipe) Maximum humidification load (lbs/hr) Developed length of tubing (ft) 1000 1500 NOTE: • Shaded cells indicates pressure loss is too great (<25 psig at end user, based on pressurized or AT RO tank options). •... -
Page 33: Stainless Steel Tube
Permeate tank pressure loss: 0.75 Stainless Steel Tube Table 33-1: Permeate tank pressure loss (psig) (0.75" Stainless Steel Tube) Developed Maximum humidification load (lbs/hr) length of 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 tubing (ft) NOTE: • Shaded cells indicates pressure loss is too great (<25 psig at end user, based on pressurized or AT RO tank options). •... -
Page 34: Polyvinyl Chloride (Pvc) Pipe
Permeate tank pressure loss: 0.75" Polyvinyl Chloride (PVC) Pipe Table 34-1: Permeate tank pressure loss (psig) (0.75" Polyvinyl chloride pipe) Developed Maximum humidification load (lbs/hr) length of 1000 1500 2000 2500 3000 3500 4000 4500 5000 5500 tubing (ft) NOTES: •... -
Page 35: Stainless Steel Tube
Permeate tank pressure loss: 1.0 Stainless Steel Tube Table 35-1: Permeate tank pressure loss (psig) (1.0 Stainless Steel Tube) Developed Maximum humidification load (lbs/hr) length of 2500 3000 3500 4000 4500 5000 5500 6000 7000 8000 9000 tubing (ft) NOTES: •... -
Page 36: Vapor-Logic Keypad/Display
Vapor-logic keypad/display FIGURE 36-1: USING THE VAPOR-LOGIC KEYPAD/DISPLAY Typical Home screen Total dissolved solids (TDS) Tank pressure/status Change Mode from the Home screen by pressing the Up or Down arrow keys until Mode is highlighted, press Enter, press Up or Down arrow keys to change, press Enter to confirm Status... - Page 37 Keypad/display Home screens,Test outputs, Test run Vapor-logic returns to the Home screen on the keypad/display FIGURE 37-1: RO STATION KEYPAD/ DISPLAY HOME SCREEN after a user-defined period of idleness. The Home screen displays the items most frequently viewed. CHANGING MODE Mode can be changed from the Home screen.
-
Page 38: Status Screen
Status screen Table 38-1: Status screen Note: Your system might not have all of the items listed in this table. Menu Default Minimum Maximum Units Notes item value value value Operating mode of unit. Choose from Auto, Standby, or Drain. •... -
Page 39: Diagnostics And Alarms
Diagnostics and Alarms Table 39-1: Diagnostics menu Note: Your system might not have all of the items listed in this table. Message Description Auto-clear? Pretreat lockout Softener or other pretreatment is preventing the RO station from operation. No master enable Master enable for the system is open. -
Page 40: Modbus, Bacnet, Lontalk Interoperability
Modbus, BACnet, LonTalk interoperability Table 40-1: Interoperability vaiable and object names Variable name and Read Only Modbus BACnet LonTalk variable Description Units Range BACnet object name (RO) or register Object names** I-P units SI units I-P units SI units Read Write number* Type and (RW) - Page 41 Modbus, BACnet, LonTalk interoperability Table 41-1: Interoperability vaiable and object names Variable name and Read Only Modbus BACnet LonTalk variable Description Units Range BACnet object name (RO) or register Object names** I-P units SI units I-P units SI units Read Write number* Type and (RW)
- Page 42 WHEN TO CHANGE SEDIMENT FILTERS Sediment filters should be changed regularly to maintain proper pressure and flow. DriSteem replacement part Change the filters when the difference between filter pressure gauge increases • 2½" x 20" - Model 401-404 (part number: 550026-002) by 10 psi over the initial pressure difference.
-
Page 43: When To Change Sediment Prefilter Cartridge
Maintenance continued SEDIMENT PRE-FILTER CARTRIDGE WHEN TO CHANGE SEDIMENT PREFILTER CARTRIDGE Sediment filters should be changed regularly to maintain proper pump pressure and flow. If the pressure drop across the cartridge filter (as indicated by the differential between the filter inlet and filter outlet pressure gauges) increases by 10 psi, the sediment filters should be changed. - Page 44 1. Exchange the system's sediment filter with a cleaning cartridge. 2. Follow the instructions. 3. Restart the system. 4. Repeat the process if required. DriSteem replacement part • 2½" x 20" - Model 401-404 SCALE CLEANING CARTRIDGE (part number: 550045-001) The scale cleaning cartridge is for removal of mineral scale and build-up.
- Page 45 Run the system until the pH of the concentrate is almost the same as the cleaning solution (pH=10-12) b. Permeate rate for the system drops to a very low value. DriSteem replacement part • 2½" x 20" - Model 401-404 6. Let the membrane(s) soak in the cleaning solution overnight.
-
Page 46: Preserving Procedure
5. Turn the system ON. After 30-40 seconds, shut down the system. DriSteem replacement part 6. Drain the system of the permeate solution as much as possible by opening • 2½" x 20" - Model 401-404 a valve/fitting at a low point in the system. -
Page 47: Tools
Failure to hands thoroughly after replacing membranes. do so may damage the system or result Note: Keep all plumbing routed the same as shipped from DriSteem. Any in injury. different orientation will destroy the RO membranes. -
Page 48: Gauges And Valves
WATER SOFTENER 1. Check brine tank salt level at least weekly. Maintain salt level above the half-full mark at all times. Note: DriSteem recommends using pulverized salt because it dissolves easily. 2. Visually inspect all components for leaks or breakage. -
Page 49: Troubleshooting
Troubleshooting The following troubleshooting instructions are specific to the DriSteem Reverse-Osmosis System. For additional information, including messages and alarms, see the Vapor-logic section of this manual and the main Vapor-logic controller installation, operation, and maintenance manual. Table 49-1: Troubleshooting Issue... - Page 50 Table 50-1: Troubleshooting Issue Action Permeate flow low Adjust water temperature. Adjust concentrate control valve to prevent low system pressure. Clean membranes. Adjust pump throttling valve. Pump noisy Correct low inlet pressure. Permeate quality poor Adjust concentrate control valve to prevent low inlet flow. Correct low inlet pressure.
- Page 51 System operating log SYSTEM MONITORING AND RECORD KEEPING The system should be monitored and all pertinent data recorded on a daily basis. This includes cartridge filter pressure in/out, system pressure in/out, flow and water quality (TDS) in/out. Data is needed to determine operating efficiency and for performing system maintenance.
-
Page 52: Water Quality Test Strips
For best results, test water chlorine every two weeks. To order more Water Quality Test Strips, contact your local DriSteem rep, or call 1-800-328-4447. DIRECTIONS: Total Chlorine ppm - end pad 1. -
Page 53: Water Quality Test Log
Water quality test log Total Chlorine Free Chlorine Date tested Total Hardness Total Alkalinity Week 1 _________ Week 3 _________ Week 5 _________ Week 7 _________ Week 9 _________ Week 11 _________ Week 13 _________ Week 15 _________ Week 17 _________ Week 19 _________ WATER TREATMENT SYSTEM MODEL 400 INSTALLATION, OPERATION, AND MAINTENANCE MANUAL... -
Page 54: Subpanel
Subpanel FIGURE 54-1: CONTROL CABINET ASSY RO-400 OM-7938 Table 54-1: Control cabinet assembly RO-400 Description Qty. Part No. Description Qty. Part No. Main controller VL6 408496-006 10 Lug wire 409250-003 Module LON protocol 408642 11 Terminal DIN rail end cap 408252-005 (LON option only) Resistor 1.2K OHM through hole... -
Page 55: Ro System
RO system FIGURE 55-1: RO 400 SYSTEM REPLACEMENT PARTS OM-7937 WATER TREATMENT SYSTEM MODEL 400 INSTALLATION, OPERATION, AND MAINTENANCE MANUAL... - Page 56 RO system Table 56-1: RO system replacements parts Description Qty. Part No. PUMP RO 10 GPM 1 HP 208-230/460V 3PH 400290-010 PUMP RO 20 GPM 3 HP 208-230/460V 3PH 400290-020 PUMP RO 10 GPM 1 HP 115/230V 1PH 400290-110 PUMP RO 20 GPM 3 HP 208/230V 1PH 400290-120 GAUGE LIQUID FILLED 100 PSI PNL MNT KIT 260004-100...
-
Page 57: Atmospheric Tank
Atmospheric tank FIGURE 57-1: ATMOSPHERIC STORAGE TANK OM-7820-300 Table 57-1: Atmospheric Tank Description Qty. Part No. PUMP, ATMOSPHERIC STORAGE, SCALA 2 601060 ATMOSPHERIC STORAGE 165 GALLON TANK 550137-165 ATMOSPHERIC STORAGE 300 GALLON TANK 550137-300 LAMP REPLACEMENT UV STERILIGHT 17.5W 406605-101 LAMP UV STERILIZE 17.5W STERILIGHT 406605-001 LAMP UV STERILIZE 17.5W STERILIGHT 230V... - Page 58 Notes WATER TREATMENT SYSTEM MODEL 400 INSTALLATION, OPERATION, AND MAINTENANCE MANUAL...
- Page 59 Notes WATER TREATMENT SYSTEM MODEL 400 INSTALLATION, OPERATION, AND MAINTENANCE MANUAL...
-
Page 60: Warranty
PROPERTY IN ANY WAY RELATED TO THE MANUFACTURE OR THE USE OF ITS PRODUCTS. The exclusion applies regardless of whether such damages are sought based on breach of warranty, breach of contract, negligence, strict liability in tort, or any other legal theory, even if DriSteem has notice of the possibility of such damages.
