Technical Data
Opus - Single Fan
Wall & Ceiling Extract Single Fan
Fan Code:
Installation Manual Links:
Motor Efficiency:
Nominal Fan Speed:
Electrical Supply:
Motor Rating:
Motor Current:
Motor Current:
Max. Operating Temp.:
Weight:
Sound Data
Acoustic perfomance to ISO 13347 and AMCA 300.
Sound Power Levels re 1 pWatts (Hz):
63 125 250 500
Open Inlet 45
dBA is hemi-spherical at 3 metres. For spherical deduct 3 dBA.
Please note that the noise data stated on this data sheet for the unit
and/or silencer is tested in accordance with UK, European and
International industry laboratory standards. However onsite conditions
may vary and we would recommend that this information is verified by
an acoustic specialist in order to ensure its suitability for the intended
application.
Performance Curve
125
100
75
50
25
0
0 0.01
Volume Flow Rate (m³/s)
S U M M A R Y F A N D A T A S H E E T
OPUS40S-ESPF
671398
0 %
2 Pole 1,800 RPM
230 V 1 Phase 50 Hz
0.014 kW
flc: 0.1 A
sc: 0.1 A
55°C
3.2 kg
1k 2k 4k
47 53 49 47 48 43
0.02 0.03 0.04
email:info@nuaire.co.uk
Project Details
Tel Enquiry
.
Location: EF01-18 -
Selected Ancillaries
1 x [ES]
1 x [P]
1 x [F]
Specification

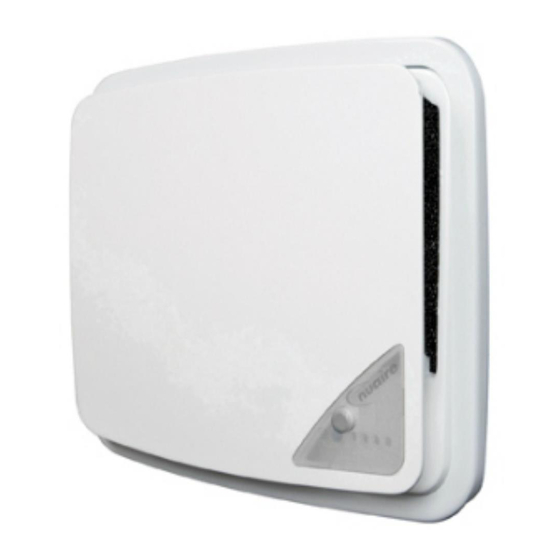

Single fan with low energy 24V DC fan & motor unit designed for
surface and recessed mounting. Casing manufactured from ABS. Unit
has power and fan failure indication behind visible front cover. Has an
on/off control with facility for continuous background ventilation.
Capable of air discharge via rear or side spigots suitable for 100mm
diameter ductwork. Fan and control modules are fitted with a miniature
control panel. Optional control functions can include trickle and boost
and run on timer for ease of commissioning. .Has Ecosmart control
8k dBA
offering integrated speed control, integral background ventilation,
33
adjustable run on timer and boost commissioning facility. Multiple fans
can be interconnected and run from one or more sensor or enabler.
Extract fan shall automatically vary its speed upon receipt of signals
from interconnected sensors being sited in rooms being ventilated.
Has passive infrared (PIR) detection to trigger the unit to boost. Run
on timer included. Inlet filter made from 5mm fire retardant foam.

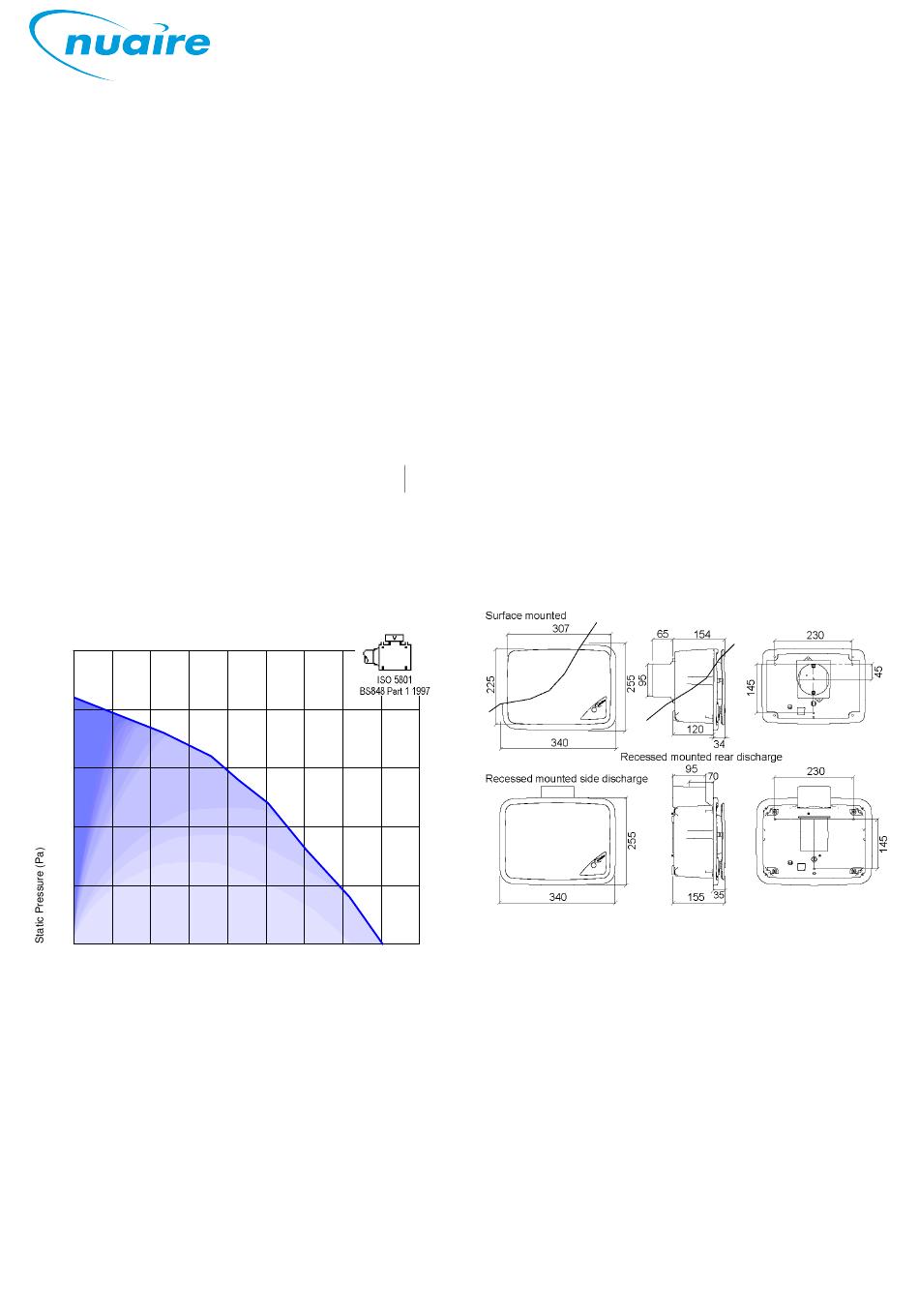

Fan Dimensions
The drawing is for dimensional purposes only. Dimensions in mm.
Ecosmart
PIR
Foam filter
