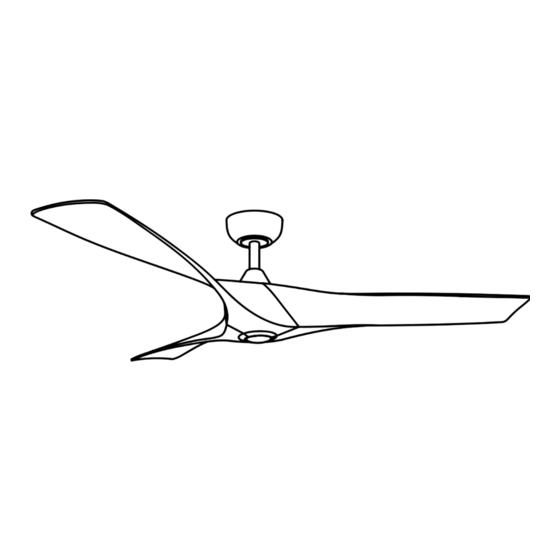

- Page 1 V20240222 Ceiling Fan Instruction Manual Make A House Home C F N - 1 3 9 4...
- Page 2 Preface Vonluce is a team of dedicated home enthusiasts with a mission to offer you high- quality products at affordable prices, all from the comfort of your own home. Our goal is to transform your house into a place you truly call home.
-
Page 3: Table Of Contents
Contents Introduction ....................1 Parts Diagram ....................2 Safety Information ..................3 Preparation....................4 Installation ....................5 Mounting Bracket..................5 Fan Blades ....................6 Downrod and Motor .................8 Wiring ....................11 Canopy ....................12 Remote Control Operation ................13 Troubleshooting ..................14 Disposal......................15 Customer Support and Policies ...............16... -
Page 4: Introduction
Introduction Before beginning installation of this product, refer to Parts Diagram on Page 2 and ensure all parts are present and display no defects. If any part is missing or damaged, contact customer service and do not attempt to install the product. Read all of the safety information on Page 3 before installation or use. -
Page 5: Parts Diagram
Parts Diagram Wire Nuts (×7) Main Power Plug Receiver Mounting Bracket Motor Plug Mounting Bolts (×2) M4 Spring Washers (×2) M4 Flat Washers (×2) 5″ Downrod Locking Pin Retaining Clip 10″ Downrod Mounting Screws (×4) Canopy M5 Spring Washers (×4) M5 Flat Washers (×4) Grommet Coupling Cover... -
Page 6: Safety Information
Safety Information • Read ALL these instructions carefully before installation and use. ONLY install and use this fan in accordance with these instructions. Keep these instructions for future reference and provide them to anyone who will use or service this fan. •... -
Page 7: Preparation
Preparation Turn off Your Power Begin installation by removing fuses or turning off circuit breakers to the wiring you will be using. Use your compatible UL listed junction box if you already have one installed. Failure to disconnect the power supply prior to installation may result in serious injury or death. -
Page 8: Installation
Installation Mounting Bracket 1. Pass your building’s supply wires through the central hole of the mounting bracket. 2. Secure the mounting bracket to your junction box with appropriate fasteners. • For wood or other thinner and weaker ceilings: a. Partially fasten the bracket with the mounting bolts and M4 spring & flat washers. b. -
Page 9: Fan Blades
Installation Fan Blades 1. Fit a blade on the fan motor assembly, aligning their holes. 2. Making sure the blade is straight, attach two blade bolts to secure it to the assembly’s upper part. Blade Bolt Blade Fan Motor Assembly 3. - Page 10 Installation Fan Blades 6. Install the other blades using the remaining blade and plate bolts in the same fashion. 7. Mount the decorative cover onto the locking plate, screwing it into place as shown. Blade Bolt Fan Motor Assembly Bottom Locking Plate Decorative Cover...
-
Page 11: Downrod And Motor
Installation Downrod and Motor Selecting the 10″ Downrod (Optional) If necessary, disassemble the 5″ downrod kit and assemble the 10″ downrod kit to match the height of your ceiling. 1. Remove the retaining clip and locking pin from the lower part of the 5″ downrod. 2. - Page 12 Installation Downrod and Motor Attaching the Downrod to the Motor 1. Ensure that the retaining clip and locking pin have been removed from the downrod as described above. 2. Pass the downrod through the canopy, grommet, and coupling cover as shown. Coupling Cover Downrod Retaining...
- Page 13 Installation Downrod and Motor Hanging the Downrod and Motor 1. Place the downrod's mount onto the mounting bracket. 2. Rotate the entire assembly until the tab has dropped into the mount's slot and locks itself in place. The fan motor assembly should no longer rotate if seated properly. Failure to properly seat the downrod can cause the fan to fall from the ceiling during operation.
-
Page 14: Wiring
Installation Wiring • Again, ensure that the power has been cut before working with the wiring. • Use the wire nuts provided with your fan. • Secure each connection with electrical tape. • Be sure that there are no loose wires or connections. 1. -
Page 15: Canopy
Installation Canopy 1. Slide the canopy up to the mounting bracket. 2. Place the key holes over the bolts preinstalled on the bracket. 3. Rotate the canopy until the bolts’ heads lock in place at the narrow sections of the key holes. 4. -
Page 16: Remote Control Operation
Remote Control Operation This remote operates within a range of 30 feet (10 m) using two 1.5V AAA batteries (not included). If the remote will not be used for a prolonged period, it is recommended to remove the batteries for better service life. If needed, install the remote control holder onto a wall or any other suitable flat surface using appropriate fasteners. -
Page 17: Troubleshooting
Troubleshooting DO NOT bend the blades when addressing any issues. Potential Problems Usual Solutions Reconnect the fan to power. Within 10 seconds, hold until you hear 3 consecutive beeps to successfully pair the remote control with your fan. Replace the remote control’s batteries with new identical ones. Non-Rotation of the Check that all parts are correctly installed and no fasteners interfere with Fan Blades... -
Page 18: Disposal
Disposal Electrical products should not be disposed of with household products. In the EU and UK, according to the European Directive 2012/19/EU for the disposal of electrical and electronic equipment and its implementation in national laws, used electrical products must be collected separately and disposed of at the collection points provided for this purpose. -
Page 19: Customer Support And Policies
Guaranteed Response Within 24 Hours We are dedicated to ensuring your satisfaction. At Vonluce, no inquiries are left unanswered for more than 24 hours. We treat each inquiry with the utmost seriousness, going above and beyond to provide a satisfactory response. - Page 20 Contact Us Thank you for choosing our products! If you have any questions or comments, contact us at contact@b2ccspro.com and we'll resolve your issue ASAP! For a .pdf copy of the latest version of these instructions, use the appropriate app on your smartphone to scan the QR code to the right.
