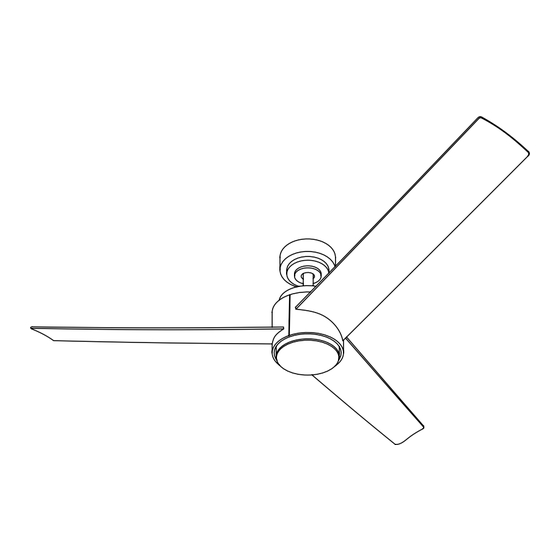

- Page 1 V20231211 Ceiling Fan and Light Instruction Manual Make A House Home C F N - 1 3 1 6 - G B C F N - 1 3 1 6 - G W...
- Page 2 Preface Vonluce is a team of dedicated home enthusiasts with a mission to offer you high-quality products at affordable prices, all from the comfort of your own home. Our goal is to transform your house into a place you truly call home.
-
Page 3: Table Of Contents
Contents Introduction ......................1 Package List......................2 Safety Information ....................3 Preparation......................4 Installation ......................5 Mounting Bracket.................... 6 Fan Blades ..................... 6 Downrod and Motor ..................6 Wiring ......................10 Canopy ......................11 Light ......................12 Remote Control Operation ................13 Troubleshooting .................... -
Page 4: Introduction
Introduction Before beginning installation of this product, read the package list on Page 2 and ensure all parts are present and display no defects. If any part is missing or damaged, contact customer service and do not attempt to install the product. Read all of the safety information on Page 3 before installation or use. -
Page 5: Package List
Package List Mounting Bracket Canopy Coupling Cover Grommet Fan Blades (×3) Fan Motor Assembly 5″ Downrod 10″ Downrod Shade LED Light Kit Receiver Remote Control Steel Screws (×2) Spring Washers (×4) Flat Washers (×4) Mounting Screws (×4) Mounting Bolts (×2) Star Washers (×2) Wire Nuts (×4) Plastic Anchors (×2) -
Page 6: Safety Information
Safety Information Warning! 1. To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker or fuse box before beginning. 2. All wiring MUST be in accordance with national and local electrical codes. Electrical installation should be performed by a qualified licensed electrician. -
Page 7: Preparation
Preparation 1. Turn off Your Power Begin installation by removing fuses or turning off circuit breakers to the wiring you will be using. Use your compatible UL listed junction box if you already have one installed. Failure to disconnect the power supply prior to installation may result in serious injury or death. -
Page 8: Installation
Installation Mounting Bracket 1. Pass the supply wires through the central hole of the mounting bracket. 2. Secure the mounting bracket to your junction box with appropriate fasteners. For wood or other thinner and weaker ceilings, partially fasten the bracket using the mounting bolts and star washers. -
Page 9: Fan Blades
Fan Blades 1. Fit the blades on the fan motor assembly, aligning their holes. 2. Making sure the blades are straight, attach the blade bolts to secure them to the assembly’s bottom. 3. Use the blade screws to secure the blades to the assembly’s top side as shown. Fan Motor Assembly Blade Blade Screw... - Page 10 Attaching a Downrod to the Motor 1. Select either the 5″ or the 10″ downrod to match the height of your ceiling. Then, pass the downrod through the coupling cover as shown. 2. Feed the lead wires and safety cable loop from the fan motor assembly through the downrod. 3.
- Page 11 Reassembling the Downrod Kit 1. Slide down the coupling cover. Place the grommet and canopy onto the downrod’s top and then slide them to the coupling cover as shown. 2. Replace the downrod’s mount, passing the lead wires and safety cable loop through it. 3.
- Page 12 Hanging the Downrod and Motor 1. Release the cable lock by loosening its Phillips bolt. Unwind the safety cable loop, wrap the cable around the mounting bracket, and thread it back through the lock. Retighten the bolt to re-secure the lock. 2.
-
Page 13: Wiring
Wiring Again, ensure that the power has been cut before working with the wiring. Use the wire nuts provided with your fan. Ensure there are no loose wires or connections and secure connectors with electrical tape. 1. Connect the plugs of the receiver to those Junction Box from the fan motor assembly as shown. -
Page 14: Canopy
Canopy 1. Slide the canopy up to the mounting bracket and place the key holes over the bolts preinstalled on the bracket. Rotate the canopy until the bolts’ heads lock in place at the narrow sections of the key holes. Tighten these bolts as needed. Key Hole Canopy Bolt... -
Page 15: Light
Light 1. Remove the bolts from the bottom of the fan motor assembly. 2. Feed the wire plug of the fan motor assembly through the middle of the LED light kit. 3. Connect the wire plug to the socket on the LED light kit. Socket 4. -
Page 16: Remote Control Operation
Remote Control Operation If needed, install the remote control holder onto a wall or any other suitable flat surface using appropriate fasteners. For wood or other thinner and weaker surfaces, use the provided steel screws and plastic anchors. For reinforced concrete or similar surfaces, use anchor bolts for best results. -
Page 17: Troubleshooting
Troubleshooting DO NOT bend the blade during ANY of the following procedures. Potential Problems Common Solutions Reconnect the fan to power. Within 10 seconds, hold until you hear 3 consecutive beeps to successfully pair the remote control. Check fuses and/or circuit breakers and reset if needed. Cut off power to the fan and check its internal electrical connections. -
Page 18: Disposal
Disposal Electrical products should not be disposed of with household products. In the EU and UK, according to the European Directive 2012/19/EU for the disposal of electrical and electronic equipment and its implementation in national laws, used electrical products must be collected separately and disposed of at the collection points provided for this purpose. -
Page 19: Customer Support And Policies
Guaranteed Response Within 24 Hours We are dedicated to ensuring your satisfaction. At Vonluce, no inquiries are left unanswered for more than 24 hours. We treat each inquiry with the utmost seriousness, going above and beyond to provide a satisfactory response. - Page 20 Contact Us Thank you for choosing our products! If you have any questions or comments, contact us at contact@b2ccspro.com and we'll resolve your issue ASAP! For a .pdf copy of the latest version of these instructions, use the appropriate app on your smartphone to scan the QR code to the right. C F N - 1 3 1 6 - G B C F N - 1 3 1 6 - G W Rev.
