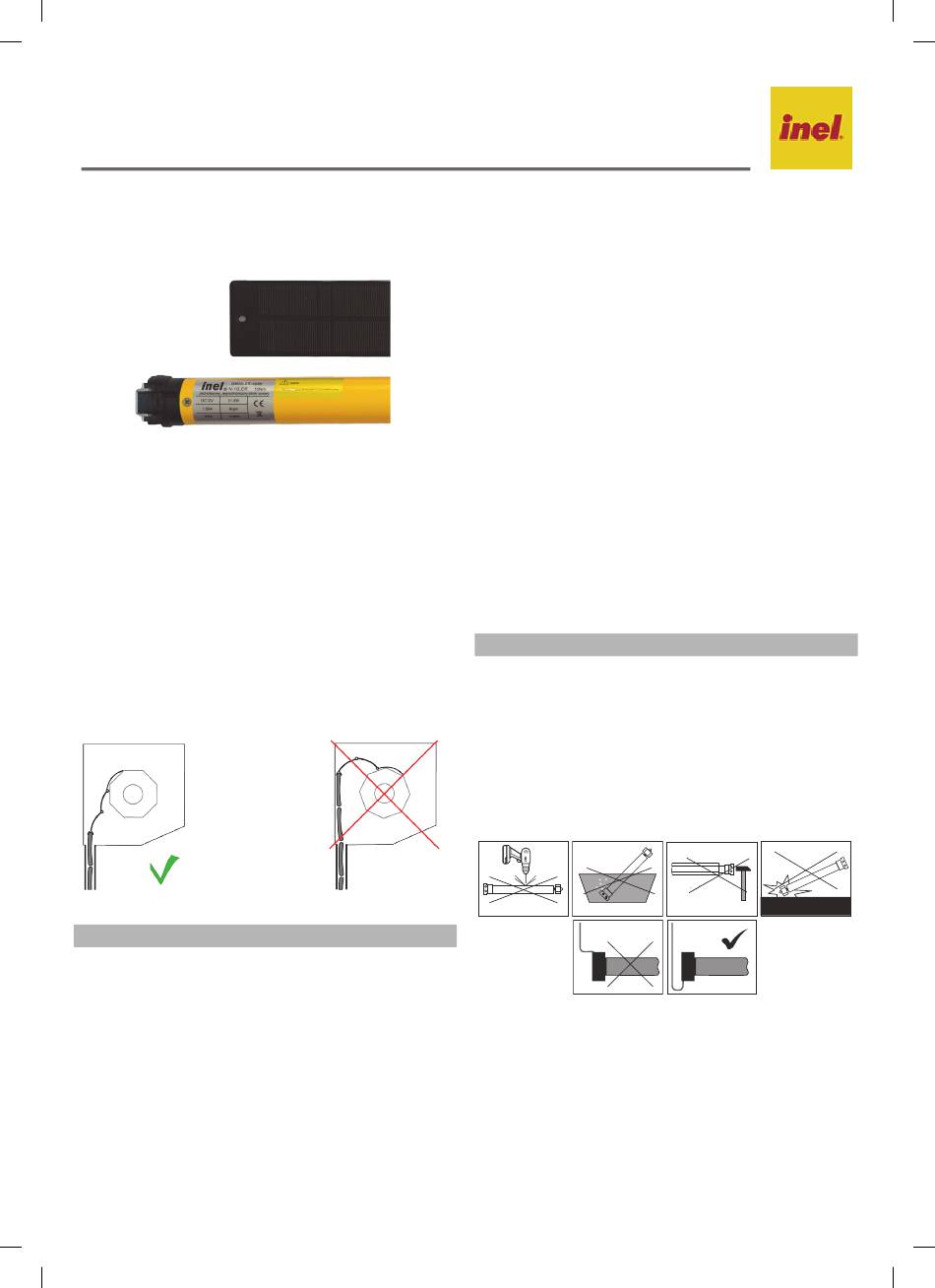

Inel WM35DS-10/14 Original Instructions

Instructions for the assembly and operation of the drive type: WM
A DC drive with overload detection function, with integrated radio and
battery recharged with energy from a solar panel.
The drive is made in two versions:
• WM35DS-10/14 (N-10LER)
• WM45DS-20/10 (N-20LER)
The drive is designed for wireless control of covers.
For correct motor and roller blind interaction, lock hangers on
winding tube and stoppers in the bottom slat must be used. In order
to improve the comfort of use, stoppers should be located as close to
the guides as possible. There must be a sill in the window and the
length of the armouring must be adapted to the length of the guides.
Before mounting, the drive should be connected to a charger
and fully charged. The LED on the charger will change from
red to green.
Lock hanger assembly instructions
The roller blind height should be selected so that with the roller blind
closed, the top slat of the armouring protrudes from the guide to a
maximum of half its height. When a roller blind is too high, its operation
may be incorrect or it may even get damaged. The length of the hanger
and the height of the roller blind must be selected so that the hanger
presses the first slat of the armouring down the guide.
1 Safety instructions
1.1 Basic instructions
The drive is put into operation in a condition enabling its safe assembly
and operation, provided that all instructions contained in the operation
manual are observed.
No conversions or modifications of the drive are permitted. Guarantee
repairs may be carried out only by the producer. Only original spare parts
and accessories should be used for post-guarantee repairs. The
operational safety of the delivered drive is guaranteed only when used
according to the producer's guidelines. The threshold values given in our
technical overview must in no case be exceeded.
Original instructions EN
Models:
WM35DS-10/14, WM45DS-20/10
1.2 Supplementary safety provisions
Applicable safety and accident prevention regulations must be observed
with regard to the assembly, start-up or maintenance of the drive. Special
attention should be paid to:
1. Fire safety regulations.
2. Accident prevention regulations.
1.3 General notes on hazards and safety measures
The notes in bold are general instructions applicable to the use of INEL
devices in combination with other devices. These indications must be
strictly observed when assembling and operating these devices.
• Before assembling the drive and setting limit positions, check the fixing
of all screw connections.
• Applicable safety and accident prevention regulations must be observed.
• Conductors and cables should be regularly controlled in terms of
damaged insulation and wire continuity.
• If conductor damage is found, power supply must be immediately
disconnected and damaged conductors replaced.
1.4 Warning
• Don't let children play with the control devices.
• Keep remote control devices out of the reach of children.
• Observe the moving roller blind and keep people away from it until it
fully opens or closes.
• Users of the roller blind should be trained in and instructed on how to
operate it and informed about hazards connected with its use. Users can
be considered trained if the employer, administrator or owner permitted
them to start the roller blind and instructed them on how to use it.
2 Assembly instructions
2.1 Safety rules
§ § The drive may be assembled only by persons with appropriate
qualifications.
§ § The weight of the roller blind may not exceed the drive load capacity
specified in the selection table (available at www.inel.gda.pl).
§ § An appropriate way of routing the cable (loop directed downwards)
additionally protects the drive against possible water damage.
§ § Do not drill holes in the motor housing.
§ § Protect the motor against contact with any liquids.
§ § Avoid crushing and impacting the motor and protect it from falling
down.
Figure 1.
2.2 Drive assembly
Correct drive assembly:
• Fix the mounting bracket (A) to a side of the roller blind box, connect
the adapter (D) to the drive ring of the motor.
• Place the pick-up (E) delivered with the motor on the motor axis and
secure it with a pin (F), then insert the entire motor to the winding tube
(G).
• Connect the winding tube and the drive pick-up with screws or rivets
(H).
