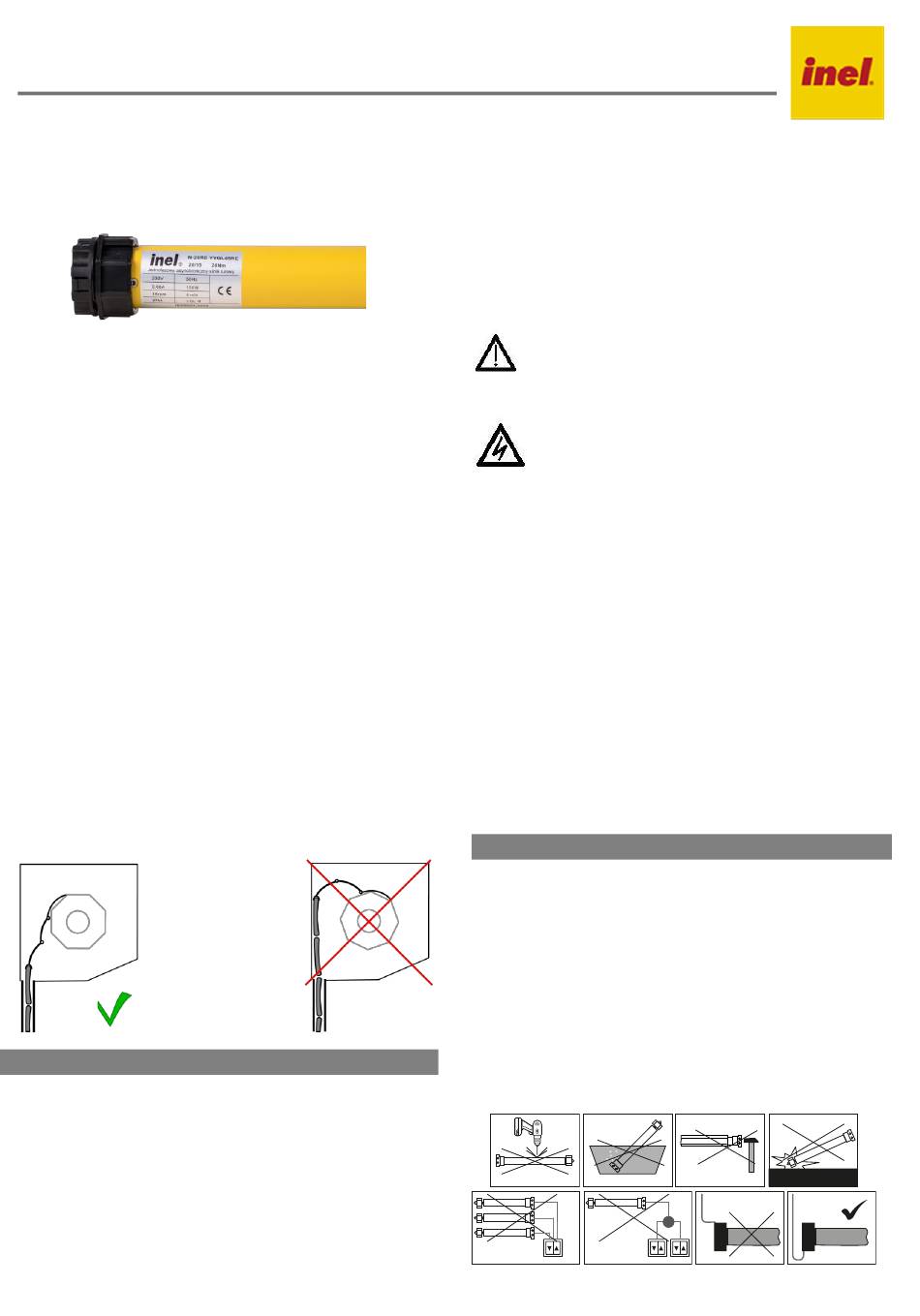

Inel YYGL Installation And Use Instruction

Installation and use instructions for drive types: YYGL

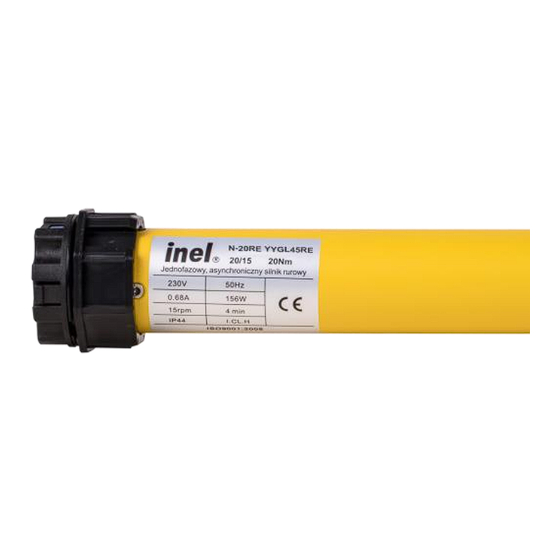

The drive unit with integrated radio receiver and obstacle detection is
available in three versions:
•
YYGL35RE-10/17, (N-10RE)
•
YYGL35RE-13/14 (N-13RE)
•
YYGL45RE-20/15, (N-20RE)
The RE drive allows for the use of 2 types of hangers:
- hanger-blocks
- soft hangers.
During the upward movement of the roller blind, the drive detects an
overload of the motor, i.e. a drop in its rotation. During the downward
movement of the roller shutter, the drive detects any obstructions that
disable its bottom bar. The setting of the end positions of the roller shutter
is carried out as follows:
Upper end position:
- on a stopwatch - stopping as a result of detecting a drop in motor speed
( automatic mode)
- at the desired point (semi-automatic mode)
Lower end position:
- on hanger-block - stop as a result of detecting a drop in motor speed (
automatic mode)
- at the desired point (semi-automatic mode).
Guidelines for mounting the roller blind hanger-blocks
The height of the roller blind should be selected so that, when the blind is
closed, the highest slat of the armouring protrudes from the guide to a
maximum of half of its height. If the roller blind is too high, it may
malfunction or even be damaged. The length of the hanger and the height
of the roller blind must be selected so that the hanger presses the first
armouring strip down the guide.
1. Safety guidelines
1.1 Basic guidelines
The obstacle detection motor is delivered in a condition allowing for safe
installation and operation, provided that all guidelines herein as well as
relevant safety and accident prevention regulations are observed.
Only qualified and licenced personnel is allowed to install and repair
electrical devices. It is prohibited to make any changes or modifications
to the drive. Warranty repairs may be conducted only by the
manufacturer. Use only original spare parts and accessories during post-
warranty repairs. Operational safety of the drive can only be ensured if
it is used for its intended purpose. Do not exceed limit values given in
technical information.
Original instructions EN
Models:
YGL35RE, YYGL35RE, YYGL45RE
1.2 Additional safety regulations
Observe relevant safety and accident prevention regulations when
installing, commissioning and maintaining the drive. The following must
be given special consideration:
1. Fire safety regulations.
2. Accident prevention regulations.
1.3 General notes on risks and safety measures
These notes are general guidelines for the use of INEL devices in
combination with other devices. These guidelines must be strictly
observed when installing and operating the devices.
Warning - against possible damage to the drive, roller blind,
roller blind cassette, elevation etc. if no relevant safety
measures are taken:
• Check if all screw connections are secure before installing the
drive and setting limit switches
Danger - means that there is a threat to life and limb of the
user if no relevant safety measures are taken:
•
Check the compatibility of the permissible voltage of the device
with the local power supply before connecting.
•
Observe applicable safety and accident prevention regulations.
•
Use an isolation switch allowing for safe power supply
disconnection (e.g. fuse cut-off switch) installed in such a way that
all connections can easily be cut out.
•
Inspect wires and cables regularly for damaged insulation and
conductor continuity.
•
If any damage is identified, cut off power immediately and replace
the damaged wiring.
1.4 Warning
•
Do not allow children to play with control devices.
•
Keep the remote control out of reach of children.
•
Observe the moving roller blind and keep people away until it fully
opens or closes.
•
The users of the roller blind must be instructed in its operation and
existing risks related to its usage. Persons are deemed to have been
trained if the employer, administrator or owner allowed them to
use the roller blind and instructed them in its operation.
2. Installation instructions
2.1 Safety regulations
•
Only persons with appropriate authorisation may install the drive.
•
The weight of the roller blind may not exceed the maximum load
of the drive specified in the selection table (see the end of the
instructions)
•
Routing the cable properly (loop aimed downwards) will protect
the drive against any water damage.
•
Do not drill holes in motor housing.
•
Protect the motor against contact with any liquids.
•
Avoid crushing and impacting the motor, protect the motor
against shock.
•
Do not connect more than one on/off switch to a single motor.
•
Do not connect more than one motor to a single on/off switch.
YES
NO
Figure 1
