Danfoss AK-SM 820A Installation Manual

Installation Guide

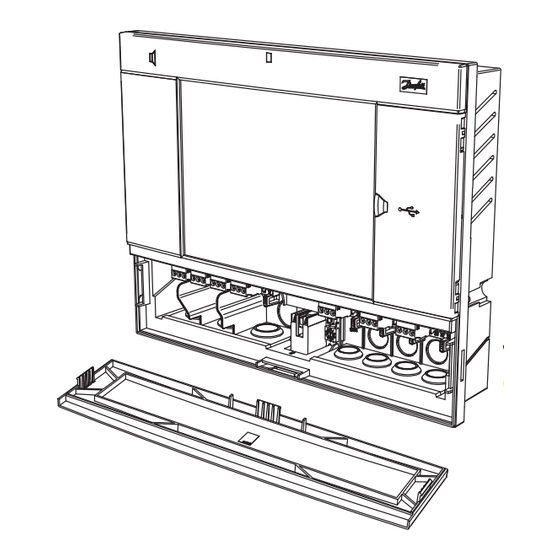

System Manager
AK-SM 800A series
Panel mount
Front side
Wall mount
mm
Supply
100 – 240 V AC
Canbus
CAN bus
© Danfoss | DCS (vt) | 2020.06
-10 °C< t
14 °F < t
0 – 95% RH, non condensing
IP20
Relay 1 Relay 2
(for future use)
< 50 °C
amb
< 120 °F
amb
T10
LON-version
MODBUS 1 MODBUS 2
(for future use)
TP 78-version
MODBUS 1 MODBUS 2 TP 78
(Danfoss) (RS485) LON 1
(for future use)
080R9342
AN307930531782en-000102
Listed
UL file: E31024
61B5
Class 2 or LPS in accordance with NEC.
For supply connections, use 16 AWG or
larger wires rated for at least 75 °C (167 °F).
Use copper conducters only.
Enclosure rating type 1
FCC ID: X02SPB209A
IC ID: 8713A-SPB209A
43
mm
T 8
100 - 240 V AC
Relay 1/2
Canbus
Ethernet 0
MODBUS 1/2
LON / TP78
LON
TP 78 TP 78
LON 2 LON 3
AN307930531782en-000102 | 1
TP 78
LON 4
