- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. Kenmore 79651022900 Owner's Manual Shop genuine replacement parts for Kenmore 79651022900 Find Your Kenmore Washer Parts - Select From 132 Models -------- Manual continues below --------...

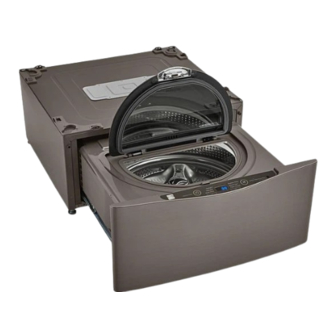

- Page 2 SERVICE MANUAL PEDESTAL For washer and Dryer Kenmore " CAUTION : READ THIS MANUAL CAREFULLY TO DIAGNOSE CORRECTLY BEFORE SERVICING THE UNIT. MODEL : 796.5102#9##...
-
Page 3: Pedestal Installation
INSTALLATION Level the pedestal on the clean area by adjusting the NOTICE feet. The installer must have electrical and mechanical training and acceptable knowledge in the required work. Safety is foremost---both your own and that of other people. Many important safety instructions are provided in this instruction and your appliance. -
Page 4: Washer Installation
INSTALLATION WASHER INSTALLATION (See page 4 for dryer instructions.) Level the washer on the pedestal by adjusting the Move the washer to the desired place. feet. NOTE: The appliance and pedestal assembly must be placed on a solid and level floor for proper operation. Adjust the legs of the appliance and pedestal by turning with a wrench. -
Page 5: Dryer Installation
INSTALLATION DRYER INSTALLATION (See page 3 for washer instructions.) Insert the T-clip of the 4 retainers into the dryer base Move the dryer to the desired location. as shown. Press up on the back of the clip and pull NOTE: The appliance and pedestal assembly must be outward to lock into place. - Page 6 DISASSEMBLY INSTRUCTIONS Protect the floor with a large piece of cardboard. Remove three (3) screws on the drawer. Lay the appliance on the cardboard. Be sure the cardboard is under the entire lower back of the appliance. Remove two (2) screws on the either side of the drawer.
- Page 7 DISASSEMBLY INSTRUCTIONS Loosen the leg using the wrench.(supplied) Remove four (4) screws (two on each side) on both side of slide. Remove twelve (12) screws on the bottom of the pedestal.
- Page 8 EXPLODED VIEW A140 A150 A160 A102 A100 A101 A120 A190 A110...
- Page 9 P/NO:MFL30599150...
