OPERATION, PERFORMANCE,
AND SPECIFICATIONS

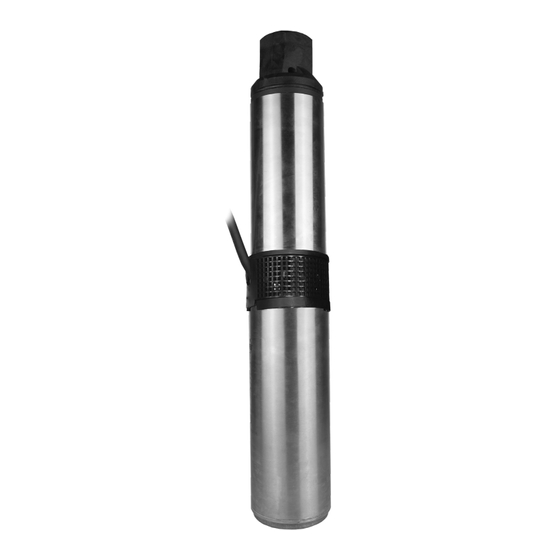

4" Submersible
High Head Filtered
Effluent Pump
• Thank you for purchasing this pump. Take the time to
read the instructions carefully before using this
product. We strongly recommend that you keep this
instruction manual in a safe place for future reference.
• Please refer to our website and the Products Center for
additional installation and operation instructions.
MARKS AND MEANING:
DANGER
which, if not avoided, WILL result in death or
serious injury.
WARNING
which, if not avoided, MAY result in death or
serious injury.
CAUTION
which, if not avoided, MAY result in minor or
moderate injury.
PERFORMANCE
Model
HP
EPMS5-20-10
1/2
"Danger" indicates an
imminent hazardous situation
"Warning" indicates an
imminent hazardous situation
"Caution" indicates a
potentially hazardous situation
GPM at Total Feet of Head
40'
60'
80'
30
27
25
120'
140'
160'
20
15
10
1
Max. Head
(Feet)
180'
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ashland Pump EPMS5-20-10
Summary of Contents for Ashland Pump EPMS5-20-10
- Page 1 MAY result in death or serious injury. “Caution” indicates a CAUTION potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. PERFORMANCE GPM at Total Feet of Head Max. Head Model 40’ 60’ 80’ 120’ 140’ 160’ (Feet) EPMS5-20-10 180’...
- Page 2 Each Ashland Pump is individually factory tested to ensure proper performance. Closely following these Do not lift, carry or hang pump by...
-
Page 3: Installation
4” Submersible High-Head Filtered Effluent Pump Installation 4. These pumps are intended for permanent Risk of electrical shock. Do connection only. Provide strain relief at control not remove or alter cord. Do not connect conduit panel for power supply cord connection to box. to pump. - Page 4 Standard/ Part Number Phase Ohms Amps Amps Dual Element EPMS5-20-10 115/60/1 2.0 - 2.5 30/15 25.0 Table 2: Power Supply Wire (Cable) Length in Feet 1 Phase, 2 Wire Cable, 60 Hz (Copper Wire Size - Service to motor) Model...
- Page 5 4” Submersible High-Head Filtered Effluent Pump Troubleshooting Important Electrical Grounding Information Hazardous voltage. Can shock, pump housing, or an equipment-grounding lead. The WARNING burn, or kill. To reduce the risk equipmentgrounding lead, when provided, will be the of electrical shock during pump operation, ground conductor having green insulation;...
- Page 6 4” Submersible High-Head Filtered Effluent Pump Troubleshooting PROBLEM CHECK CORRECTIVE ACTION Little or no water delivered Check valve stuck. Examine valve. If stuck, free valve. Low voltage. Check voltage at circuit breaker with pump Install larger wire from meter to circuit breaker. Install running.
- Page 7 4” Submersible High-Head Filtered Effluent Pump Warranty This pump is warranted to be free from defects in material and workmanship and to perform within applicable specifications for a period of one year from date of installation or 18 months from date of manufacture, which ever comes first.
