OPERATION, PERFORMANCE AND
PRE-PLUMBED SEWAGE
BASIN SYSTEM
SW40WB2424/
SW50WB2424
• Thank you for purchasing this pump system. Take the time to read the instructions
carefully before using this product. We strongly recommend that you keep this
instruction manual in a safe place for future reference.
Please contact 1-855-281-6830 for further assistance
SPECIFICATIONS MANUAL
SW40WB1830/
SW50WB1830
ashlandpump.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ashland Pump SW40WB2424
Summary of Contents for Ashland Pump SW40WB2424

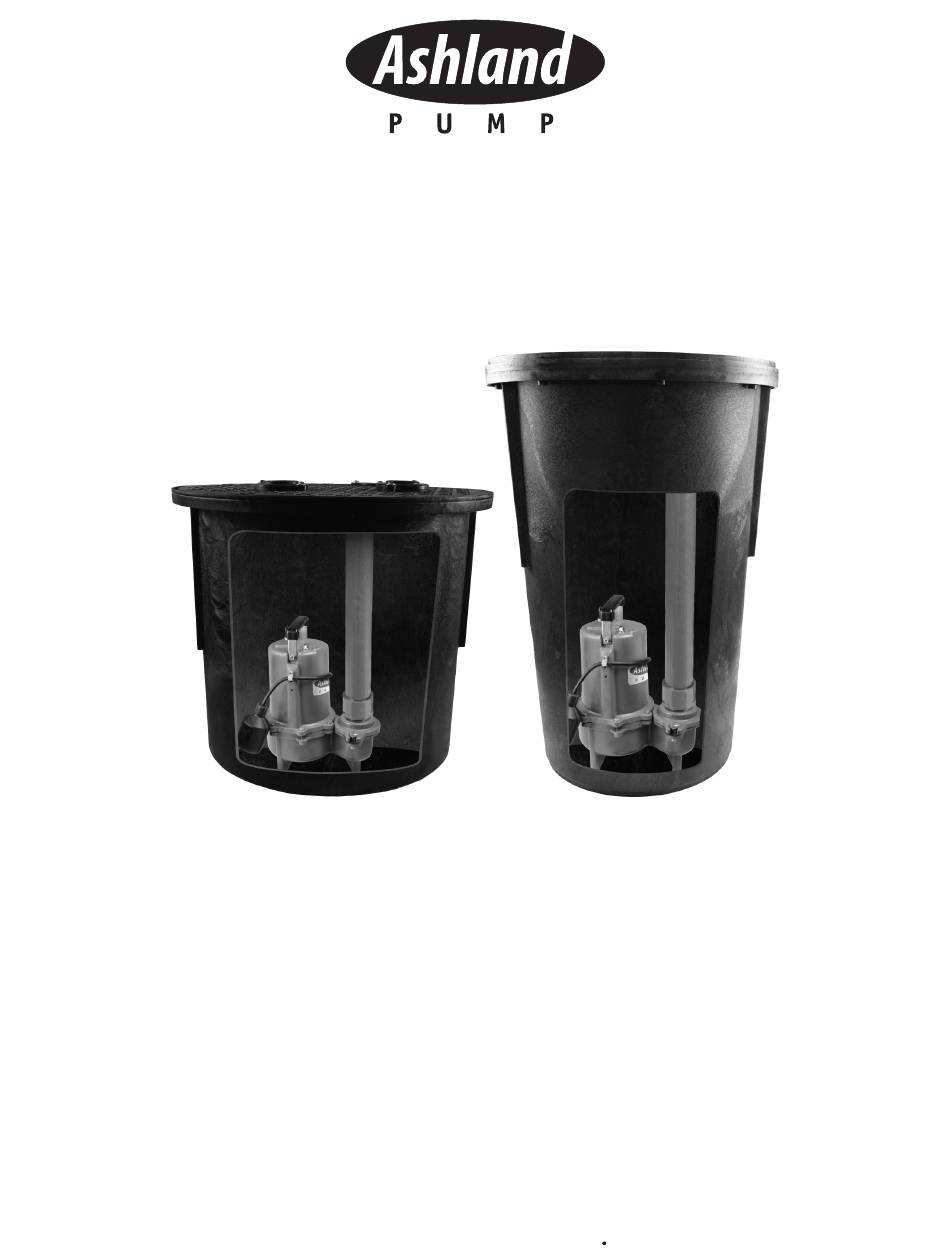

- Page 1 OPERATION, PERFORMANCE AND SPECIFICATIONS MANUAL PRE-PLUMBED SEWAGE BASIN SYSTEM SW40WB2424/ SW40WB1830/ SW50WB2424 SW50WB1830 • Thank you for purchasing this pump system. Take the time to read the instructions carefully before using this product. We strongly recommend that you keep this instruction manual in a safe place for future reference.

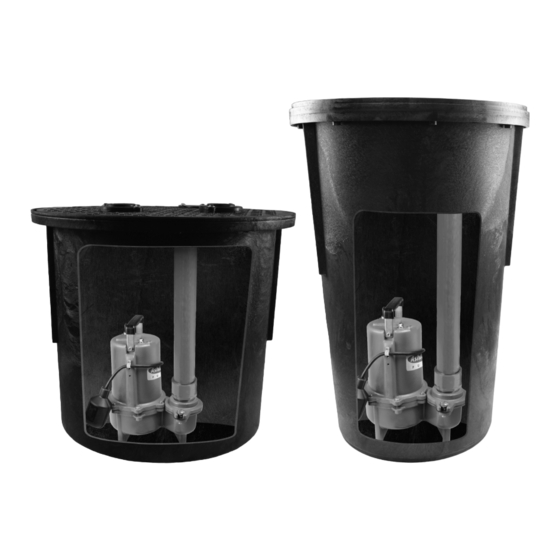

- Page 2 Features Features and Benefits • Features an 18 in. x 30 in., 30 Gal.; or 24 in. x 24 in., 45 Gal., heavy duty sewage basin with a water-tight snap-in molded inlet hub • Ultra strong cover comes with 2 in. threaded discharge and vent flanges, a molded cord grommet, a molded reusable cover seal and eight stainless screws and washers to secure the cover to the basin • Automatic, all cast-iron sewage pump passes 2 in. solids and features 20 ft. power and piggyback float switch cords •...
- Page 3 Features Features and Benefits Components Pre-Plumbed Sewage System • 30 and 45 U.S. gallon capacity options • Heavy duty structural foam injection molded construction • Pre-drilled inlet hole at 10-1/2” cL depth • Gas and odor tight • 100% tested with its own performance curve •...
- Page 4 Installation 1. Preparing the Basin for Installation • Remove the basin cover by removing the basin cover fasteners. Remove the package containing the inlet hub (D), check valve (C) and cord grommet (B). • Remove the pump power cord and float switch cord (if necessary) from the inside of the basin, removing all slack from the cord(s).
- Page 5 Installation 4.Connecting the discharge piping • Install a 2 in. PVC Schedule 40 threaded male adapter (1) (not included) into the discharge flange (2) as shown. Use Teflon tape, silicon sealant, or plumber’s pipe dope to seal the threads. Ensure that you are connecting to the sewage pump discharge and not the vent port. • Connect discharge pipe (3) (not included) to the 2 in. PVC Schedule 40 threaded male adapter (1) (not included) using PVC primer and solvent cement to properly seal the connection.
- Page 6 Safety Information PRECAUTIONS 1. This document serves only as an installation guide. WARNING: Extension cords may not deliver sufficient Refer to your state and/or local plumbing or onsite voltage to the pump motor. Extension cords present wastewater treatment and disposal regulations for de a life threatening safety hazard if the insulation be tails pertaining to your systems design, installation comes damaged or the connection ends fall into and maintenance requirements.
- Page 7 Safety Information ELECTRICAL SAFETY WARNING: Do not splice the CAUTION: Know the pump and its applications, electrical power cord. limitations, and potential hazards. CAUTION: Periodically inspect the pump and system WARNING: Do not allow the electrical cord plug to be components to ensure the pump intake is free of mud, submerged.
- Page 8 Ashland Pump shall not be liable for any loss, damage, or expenses resulting from the installation or use of its products other than as expressly set forth in this Limited Warranty. Ashland Pump shall in no event be responsible or liable for the cost of field labor or other charges incurred by any purchaser or user in removing and/or reaffixing any Ashland Pump product, part or component or any temporary pumping or other equipment.
