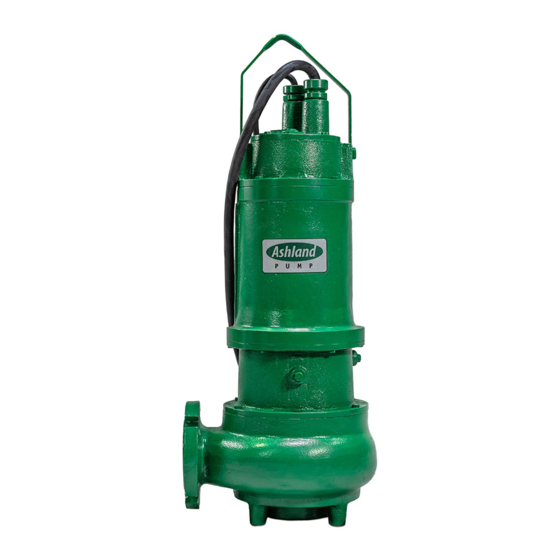

Ashland Pump 3ANC300 Operation, Performance, Specifications And Parts Manual
Solids handling pumps
Hide thumbs
Also See for 3ANC300:
Advertisement
Quick Links
OPERATION, PERFORMANCE, SPECIFICATIONS and PARTS MANUAL
3ANC300, 3ANC500, 3ANC750, 4ANC2500, 4ANC3000,
4ANC4000, 6ANC1000, 6ANC1500, 6ANC2000,
6ANC3000, 6ANC4000, ANC5000, 6ANC6000,
• Thank you for purchasing this pump. Take the time to
read the instructions carefully before using this
product. We strongly recommend that you keep this
instruction manual in a safe place for future reference.
• Please refer to our website and the Products Center
for additional installation and operation instructions
and replacement parts information.
8ANC5000, and 8ANC6000
Heavy Duty
Solids Handling Pumps
MARKS AND MEANING:
"Danger" indicates an
DANGER
imminent hazardous situation
which, if not avoided, WILL result in death or
serious injury.
"Warning" indicates an
WARNING
imminent hazardous situation
which, if not avoided, MAY result in death or seri-
ous injury.
"Caution" indicates a
CAUTION
potentially hazardous situation
which, if not avoided, MAY result in minor or
moderate injury.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ashland Pump 3ANC300
Summary of Contents for Ashland Pump 3ANC300
- Page 1 OPERATION, PERFORMANCE, SPECIFICATIONS and PARTS MANUAL 3ANC300, 3ANC500, 3ANC750, 4ANC2500, 4ANC3000, 4ANC4000, 6ANC1000, 6ANC1500, 6ANC2000, 6ANC3000, 6ANC4000, ANC5000, 6ANC6000, 8ANC5000, and 8ANC6000 Heavy Duty Solids Handling Pumps • Thank you for purchasing this pump. Take the time to MARKS AND MEANING: read the instructions carefully before using this “Danger”...
- Page 2 Each Ashland Pump is individually factory tested to ensure proper performance. Closely following these instructions Make sure lifting handles are securely...
- Page 3 Solids Handling Pumps Models: 3ANC300/500/750, 4ANC2500/3000/4000/5000/6000, 6ANC1000/1500/2000/3000/4000/5000/6000, 8ANC5000/6000 Specifications IMPORTANT Model Number: 1 Phase Models Prior to installation, record Model Number, Amps: Volts: MFG Date: MFG Date, Amps, Voltage, Phase and HP, 3 Phase Models Phase: from pump nameplate for future reference. Amps L1-2: Volts L1-2: Also record the voltage and current readings at...
-
Page 4: Physical Data
Solids Handling Pumps Models: 3ANC300/500/750, 4ANC2500/3000/4000/5000/6000 6ANC1000/1500/2000/3000/4000/5000/6000 8ANC5000/6000 Specifications PHYSICAL DATA: Discharge Size 3”, 4”, 6”, 8” Impeller Type Single Vane Enclosed, (3ANC), 2 VANE ENCLOSED (4ANC, 6ANC, 8ANC) Cable Length 35’ LIQUID HANDLING: MAXIMUM LIQUID TEMP. 140°F – Intermittent 104°F – Continuous Acceptable PH range TEMPERATURE: Maximum Stator 155°C TECHNICAL DATA:... - Page 5 Solids Handling Pumps Models: 3ANC300/500/750 & 4ANC2500/3000/4000 Performance...
- Page 6 Solids Handling Pumps Models: 4ANC500/6000 and 6ANC1000/1500/2000 Performance GALLONS PER MINUTE FLOW...
- Page 7 Solids Handling Pumps Models: 6ANC3000/4000/5000/6000 Performance...
- Page 8 Solids Handling Pumps Models: 8ANC5000/6000 Performance...
-
Page 9: Installation
Solids Handling Pumps Models: 3ANC300/500/750, 4ANC2500/3000/4000/5000/6000 6ANC1000/1500/2000/3000/4000/5000/6000 8ANC5000/6000 Receiving and Installation Receiving Inspection Installation Upon receiving the pump, it should be inspected for The sump or basin shall be sealed and vented in accor- damage or shortages. If damage has occurred, file a claim dance with local plumbing codes. This pump is designed to immediately with the company that delivered the pump. -
Page 10: Check Pump Rotation
Solids Handling Pumps Models: 3ANC300/500/750, 4ANC2500/3000/4000/5000/6000 6ANC1000/1500/2000/3000/4000/5000/6000 8ANC5000/6000 Installation Discharge Piping The reading should be 100,000 ohms or greater. If the Install discharge piping or hose assembly to the pump. Dis- measured values are below those indicated above, then charge piping should be as short as possible and sized no the pump may have a lower seal failure and require ser- smaller than the pump discharge. - Page 11 Solids Handling Pumps Models: 3ANC300/500/750, 4ANC2500/3000/4000/5000/6000 6ANC1000/1500/2000/3000/4000/5000/6000 8ANC5000/6000 Installation and Service Electrical Connections Turn circuit breaker off before wiring he pump to the control panel. Cooling Oil Recommended Supplier/Grade Always rely upon a Certified Electrician for installation. Enerpar SE100 Conoco Pale Paraffin 22 Level Control It is recommended that the level control float should be Mobile D.T.E. Oil Light...
-
Page 12: Pump Model
Solids Handling Pumps Models: 3ANC300/500/750, 4ANC2500/3000/4000/5000/6000 6ANC1000/1500/2000/3000/4000/5000/6000 8ANC5000/6000 Installation and Service Seal Housing Motor Housing Pump Model Oil Level (Qt.) Oil Level (Qt.) 3ANC300M3 1.69 4.76 3ANC300M4 1.69 4.76 3ANC500M3 5.28 3ANC500M4 5.28 3ANC750M3 5.28 3ANC750M4 5.25 4ANC2500M4 10.57 31.91 4ANC3000M4 10.57... - Page 13 Solids Handling Pumps Models: 3ANC300/500/750, 4ANC2500/3000/4000/5000/6000 6ANC1000/1500/2000/3000/4000/5000/6000 8ANC5000/6000 Installation and Service MOUNTING BRACKET SERVICE POLE OPTION FLASHING ALARM LIGHT WEATHERPROOF CONTROL BOX CORD SEAL CONNECTIONS FOR POWER AND CONTROL CORDS (NOT SHOWN) HINGED ACCESS DOOR ALUM.OR STEEL TOP RAIL SUPPORT...
-
Page 14: Wiring Connections
Solids Handling Pumps Models: 3ANC300/500/750, 4ANC2500/3000/4000/5000/6000 6ANC1000/1500/2000/3000/4000/5000/6000 8ANC5000/6000 Wiring WIRING CONNECTIONS 1. All electrical wiring must be in accordance with local 3. All wires should be checked for shorts to ground with code and only qualified electricians should make the an ohmmeter or megger after the connections are installations. - Page 15 Solids Handling Pumps Models: 3ANC300/500/750, 4ANC2500/3000/4000/5000/6000 6ANC1000/1500/2000/3000/4000/5000/6000 8ANC5000/6000 Troubleshooting Always discount the pump from the electrical power source before handling. If the system fails WARNING to operate pproperly, carefully read instructions and perform maintenance recommendations. If operating problems persist, the following chart may be of assistance in identifying and correcting them.
- Page 16 Solids Handling Pumps Models: 3ANC300M3-35, 3ANC500M3-35 and Repair Parts 3ANC750M3-35 32 41 33 42 P13 18 19 26 34 P15 24...
- Page 17 Solids Handling Pumps Models: 3ANC300M3-35, 3ANC500M3-35 and 3ANC750M3-35 Repair Parts List Part No. for pump models Model No. Part Description 3ANC300M3 3ANC500M3-35 3ANC750M3-35 P1 CABLE COVER DISK 3DTFL02008 3DTFL05108 3DTFL05109 1 P2 CABLE COVER 3TAFL02005 3TAFL05106 3TAFL05106 1 P3 SLEEVE 3CMFL02GP0 3CMFL03GP0 3CMFL05GP0 CRACK CASE 3CAFL02000...
- Page 18 Solids Handling Pumps Models: 4ANC2500M4-35 & 4ANC3000M4-35 Repair Parts...
- Page 19 Solids Handling Pumps Models: 4ANC2500M4-35 & 4ANC3000M4-35 Repair Parts List MODEL No. QTY. PART No. DESCRIPTION 3TAFL75630 CORD CAP 35’ 3CAFL30AP0 BEARING HOUSING 3TCFL10007 SEAL PLATE 3IMFL30AP0 IMPELLER 3CCFL30AP6 VOLUTE CASE 3FR0L003W1 SHAFT W/ROTOR 3ADB401266 WEAR RING 3MA4L30AP8 HANDLE 3CMFL20GP0 MOTOR HOUSING P14 3TBFL30200 BEARING COVER 17...
- Page 20 Solids Handling Pumps Models: 4ANC4000M4-35 Repair Parts...
- Page 21 Solids Handling Pumps Models: 4ANC4000M4-35 Repair Parts List MODEL No. QUANTITY PART NO. DESCRIPTION P1 3TAFL40224 CORD CAP 35’ 3CAFL10401 BEARING HOUSING 3TCFL40001 SEAL PLATE 3IMFL40AP6 IMPELLER P5 3CCFL10407 VOLUTE CASE 3FR0L204W0 SHAFT W/ROTOR 3ADBL40AP2 WEAR RING 3MA4022693 HANDLE 3CMFL60202 MOTOR HOUSING P13 3TBFL40008 BEARING COVER 1ACL38KVD5...
- Page 22 Solids Handling Pumps Models: 4ANC5000M4-35 & 4ANC6000M4-35 Repair Parts...
- Page 23 Solids Handling Pumps Models: 4ANC5000M4-35 & 4ANC6000M4-35 Repair Parts List MODEL PART NUMBER PART NUMBER DESCRIPTION P1 3TAFL40224 3TAFL40224 CORD CAP 35’ 3TMFL40001 3TMFL40001 UPPER BEARING PLATE 3CMFL206W0 3CMFL206W0 MOTOR HOUSING 3CAFL105A0 3CAFL105A0 BEARING HOUSING P5 3TBFL40008 3TBFL40008 BEARING COVER 3TCFL40001 3TCFL40001 SEAL PLATE 3IMFL50AP0 3IMFL60AP0 IMPELLER...
- Page 24 Solids Handling Pumps Models: 6ANC1000M3-35, 6ANC1500M3-35 and 6ANC2000M4-35 6ANC1000M3-35 & 6ANC1500M3-35 6ANC2000M3-35 MODEL No. QTY. PART No. QTY. PART No. DESCRIPTION 3DTFL10004 3DTFL20005 CORD CAP 35’ 3TAFL10001 3TAFL20002 INTERMEDIATE CORD CAP 3CMFL10GP0 3CMFL15GP0 MOTOR HOUSING 3CAFL10005 3CAFL20153 BEARING HOUSING 3TCFL10007 3TCFL10007 SEAL PLATE 3IMFL10157...
- Page 25 Solids Handling Pumps Models: 6ANC1000M3-35, 6ANC1500M3-35 and 6ANC2000M4-35 6ANC1000M3-35 & 6ANC1500M3-35 6ANC2000M3-35 MODEL No. QTY. PART No. QTY. PART No. DESCRIPTION 3FR0L101W1 3FR0L105D1 SHAFT W/ROTOR 3FR0L101D1 3FR0L102W1 3FR0L101W1 3MA43M1759 3MA4022078 HANDLE 3ADB404603 3ADB404603 WEAR RING P15 3SP1L100G8 3SP1L100G8 SUPPORT (PORTABLE EQUIPMENT) 3SSF024003 3SSF024003 UPPER SUPPORT P17...
- Page 26 Solids Handling Pumps Models: 6ANC3000M4-35 Repair Parts...
- Page 27 Solids Handling Pumps Models: 6ANC3000M4-35 Repair Parts List MODEL# QTY. PART No. DESCRIPTION MODEL# QTY. PART No. DESCRIPTION 1COCA416A1 THREADED CONNECTOR P1 3DFL20005 CORD CAD 35’ 3TAFL20002 NTERMEDIATE CORD CAP 3CU8039844 3CMFL20GP0 MOTOR HOUSING 3CU4031772 1EPN000176 WIRE-PASS PACKING 3CAFL30201 BEARING HOUSING 1ESE200404 STATOR 3TCFL10007 SEAL PLATE...
- Page 28 Solids Handling Pumps Models: 6ANC4000M4-35, 6ANC5000M4-35 and 6ANC6000M4-35 Repair Parts...
- Page 29 Solids Handling Pumps Models: 6ANC4000M4-35, 6ANC5000M4-35 and 6ANC6000M4-35 Repair Parts List 6ANC4000M4-35 & 6ANC5000M4-35 & 6ANC6000M4-35 MODELS QTY. PART No. QTY. PART No. QTY. PART No. DESCRIPTION 3TMFL40001 3TMFL40001 3TMFL40001 UPPER BEARING PLATE 3TAFL40240 3TAFL40240 3TAFL40240 CORD CAP 35’ 1 3CMFL40209 3CMFL206W0 3CMFL206W0 MOTOR HOUSING...
- Page 30 Solids Handling Pumps Models: 8ANC5000M4-35 and 8ANC6000M4-35 Repair Parts...
- Page 31 Solids Handling Pumps Models: 8ANC5000M4-35 and 8ANC6000M4-35 Repair Parts Lists MODEL35 QTY. PART No. DESCRIPTION MODEL QTY. PART No. DESCRIPTION LOWER SEAL 3TAFL40224 CORD CAP 35’ 9BD1643226 CONNECTION BLOCK 3CMFL206W0 MOTOR HOUSING 1TMB02NP00 PIPE PLUG 3CAFL206W0 BEARING HOUSING 1TMB02NP00 PIPE PLUG 3TCFL40001 SEAL PLATE 1TMB02NP00 PIPE PLUG...
- Page 32 Solids Handling Pumps Oil Fill and Wiring Charts Seal Housing Motor Housing Pump Model Oil Level (Qt.) Oil Level (Qt.) 3ANC300M3 1.69 4.76 3ANC300M4 1.69 4.76 3ANC500M3 5.28 3ANC500M4 5.28 3ANC750M3 5.28 3ANC750M4 5.25 4ANC2500M4 10.57 31.91 4ANC3000M4 10.57 31.91 4ANC4000M4 10.57 31.91...
- Page 33 8ANC5000/6000 Warranty For a period of time no greater than one (1) year after the original purchase of the subject product, and subject to the conditions of this Limited Warranty, Ashland Pump will repair or replace for the original purchaser only, any portion of your new Ashland Pump product that proves to contain defective materials or defective workmanship, provided the product is properly installed, serviced and operated under normal conditions and according to the manufacturer’s instructions.
