HP StorageWorks MSA1000 Series Replacement Instructions

hp StorageWorks
Disk Drive
Modular Smart Array
These instructions specifically pertain to the
MSA1000 product family. The part may also be
used in other HP products. Please refer to
documentation for your specific product for
detailed replacement instructions.
If the product in which this part is being replaced is still under HP
warranty, then the replacement part(s) referred to in these Replacement
Instructions is provided under the terms and conditions of the
Hewlett-Packard Company Limited Warranty for that product. A copy of
this Limited Warranty may be viewed at:
http://h18006.www1.hp.com/products/storageworks/warranty.html
If this is a trade sale part (product out of warranty), then the replacement
part(s) referred to in these Replacement Instructions is provided under HP's
express limited warranty statement, which may be viewed at:
http://customerops.corp.hp.com/1sw/pdm_om/warranty_support/policies/
2330100.doc
The replacement part takes on either the Limited Warranty Period of the
part being replaced or a ninety-day period that begins upon installation
of the replacement part, whichever is greater.
The information contained on these replacement instructions is subject to
change without notice. The only warranty for this replacement product is
as noted above. Nothing in these replacement instructions should be
construed as constituting an additional warranty. The information
provided in these replacement instructions is provided "AS IS" and HP is
not liable for technical or editorial errors or omissions contained herein.
Copyright 2004 Hewlett-Packard Development Company, L.P.
©
Please note that this document is protected by federal copyright law and
that no part of this document may be copied, reproduced or translated
without the prior written consent of Hewlett-Packard Development
Company, L.P.
Printed in the USA.
Disk Drive Replacement Instructions
First Edition (April 2004)
Part Number: 370557-001
Replacement
Instructions
370557- 001
About this document
This document describes the procedure for replacing the SCSI
disk drive used in the Modular Smart Array (MSA) products.
Getting help
If you need assistance replacing the disk drive, go to the HP
support web site:
http://www.hp.com/cgi-bin/hpsupport/index.pl
Before you begin
Make sure you have a replacement part available before
removing the failed component. Removing a component
impacts cooling within the enclosure.
If you would like to have a copy of the MSA User Guide
available for reference, you can download it from the
following web page:
http://h18006.www1.hp.com/storage/arraysystems.html
Caution: Parts can be damaged by electrostatic discharge.
Use proper anti-static protection. Refer to the
documentation that shipped with your system for additional
information.
Verifying disk drive failure
Before replacing a disk drive, use the following methods to
verify the component failure:
Check any enclosure status displays for an indication of
disk failure.
Check the disk drive status indicators for the following:
— Activity - Off
— Online - Off
— Fault - Off, On, or flashing
Note: If the status indicators are in a state other than those listed,
refer to the product User Guide for more details on interpreting the
disk drive status, or contact HP for assistance.

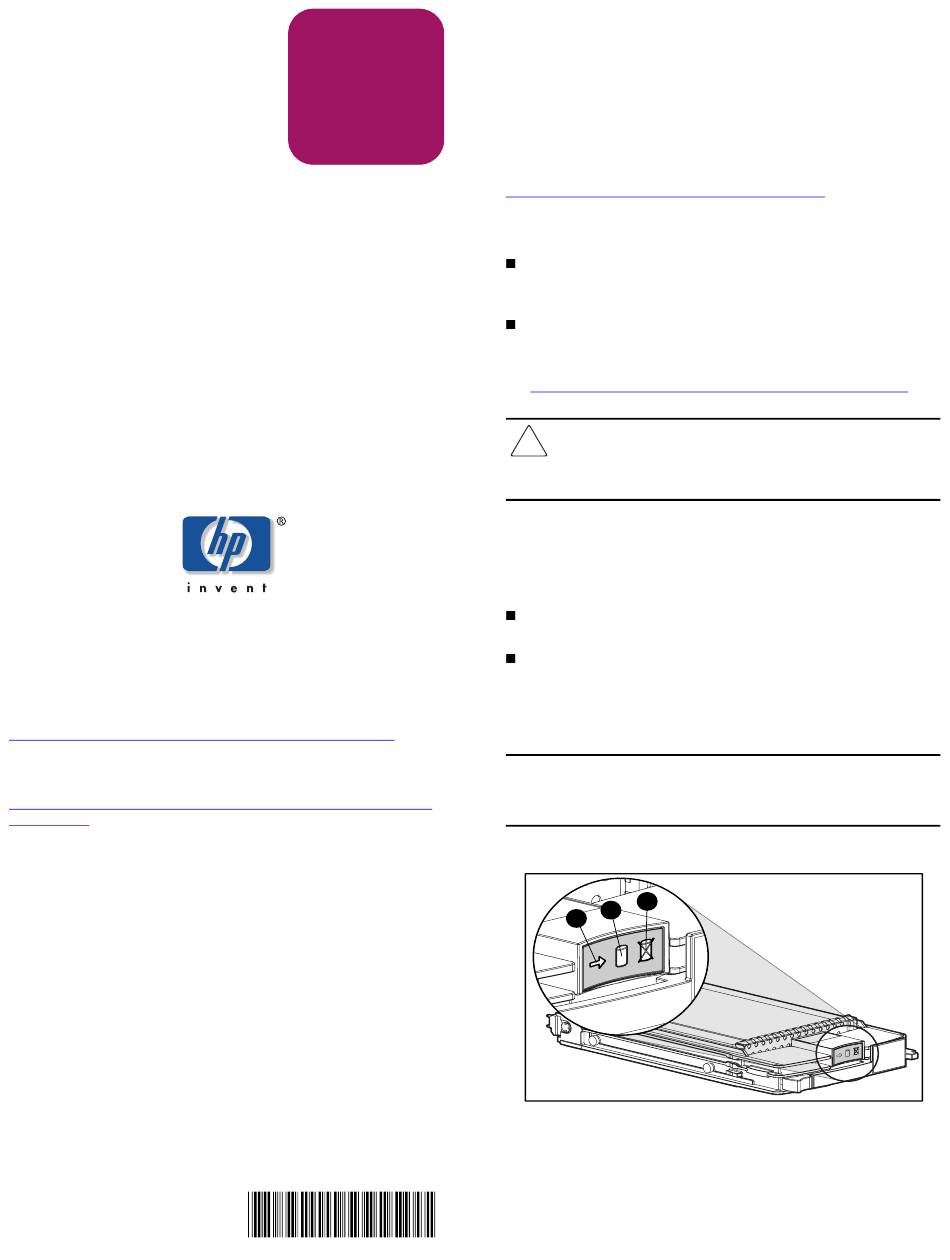

Figure 1: Disk drive status indicators
3
2
1
Activity
1 2
Online Fault
3
