Kohler EVOK 18343A-0 Installation Instructions

BEFORE YOU BEGIN
Please read these instructions carefully to
familiarize yourself with the required tools, materials,
and installation sequences. Follow the sections that
pertain to your particular installation. This will help
you avoid costly mistakes. In addition to proper
installation, read all operating and safety instructions.
All information is based on the latest product
information available at the time of publication.
Kohler NZ Ltd. reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
These instructions contain important care, cleaning,
and warranty information-
������������ ��� ��� ���������
Please provide adequate available space for the
bath unit in accordance with rough-in. Arrange the
location of drain in advance.
PRODUCT REQUIREMENTS
A. Summary Of Key Requirements
Observe all local plumbing codes.
Install the unit to a level subfloor.
B. Plumbing Specifications
If using a rim-mounted bath faucet, flexible connections between the valves and spout may be required.
Confirm adequate mounting, connection space of specified faucet for your installation.
C. Product Inspection
Uncrate and inspect bath for damage. All Kohler s baths have been manufactured with sophisticated craftsmanship.
However, please inspect for any possible damage that may have occurred in transit. Leave all materials in the crate
during construction to prevent damage.
NOTE: Damage occurred during transit shall not be
covered by warranty.
D. New or Replacement Installation
Requirements
This bath can be installed in new or existing bathrooms.
For replacement: Remove the old bath, and remove enough old wall material and floor covering from the
area to allow for installation. Remove any old plumbing that does not conform to the rough-in requirements.
For new installation: Position the plumbing according to the rough-in dimensions. Cap the suppliers, and check
for leaks.
������ ����� �����
'
INSTALLATION INSTRUCTIONS

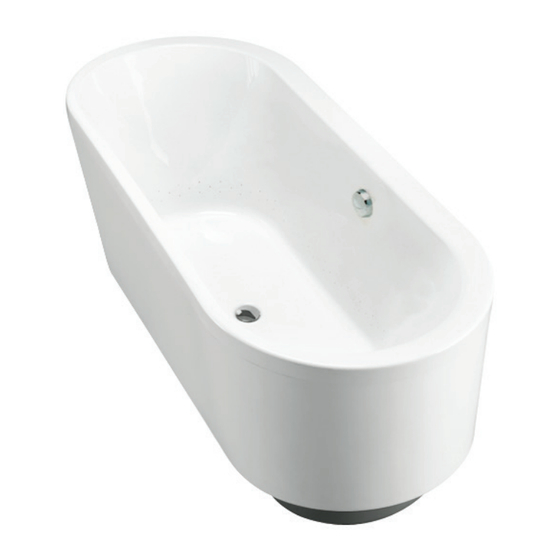

FREESTANDING ACRYLIC BATH
IMPORTANT:
All installations must comply with council and local
authority by-laws. It is the responsibility of the installer
to ensure that the waste is made watertight by means
of silicone sealant or caulking compound.
NOTE: Bath can be installed after the wall is completed.
Bath drain supplies should be arranged preliminarily
according to the selected bath.
1 PN: 1151298-A01 Ver: A Date: 29/04/10
EVOK
18343A-0 , 18347A-0
