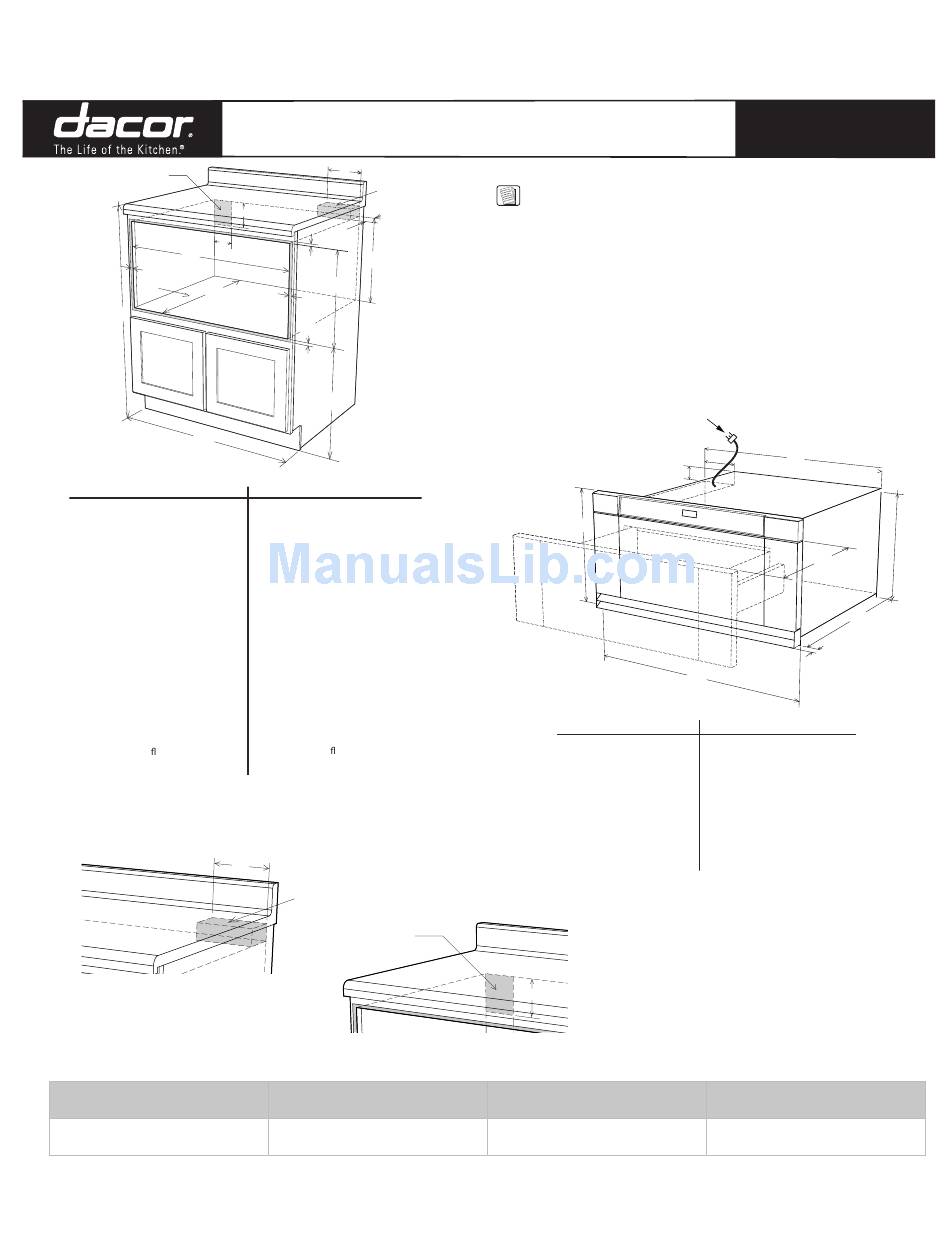

Dacor MMDV30 Planning Manual

B
G
I
N
J
L
P
MMD24
A. 6"
B. Electrical outlet location
C. Anti-Tip block
D. 5"
E. 3 1/2"
F. 4"
G. 22 1/4" opening
K. Allow 3/16" minimum overlap
H. 14 3/16" to bottom of Anti-Tip
block
I. Allow 7/8" minimum overlap
J. 23 1/2" minimum depth
Q. 15 3/16" ± 1/16" opening
L. 36" nominal countertop height
M. Allow 7/16" minimum overlap
N. Floor must support 100 lbs.
minimum
O. 19" to top of oor (recommended)
P. 30" cabinet minimum
NOTE: Open Top Cabinet illustrated
CUTOUT DIMENsIONs
5"
4"
ANTI-TIP BLOCK LOCATION
Model No.
All Models
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
MMD24, MMD30 & MMDV30
24", 30" Microwave In-A-Drawer
Revised
06/19/08
A
C
E
D
F
H
K
Q
I
M
O
MMD30, MMDV30
A. 6"
B. Electrical outlet location
C. Anti-Tip block
D. 5"
E. 3 1/2"
F. 4"
G. 28 1/2" opening
K. Allow 1/4" minimum overlap
H. 14 3/4" to bottom of Anti-Tip
block
I. Allow 3/4" minimum overlap
J. 23 1/2" minimum depth
Q. 15 3/16" ± 1/16" opening
L. 36" countertop height
M. Allow 7/16" minimum overlap
N. Floor must support 100 lbs.
minimum
O. 19" to top of oor (recommended)
P. 30" cabinet minimum
(6")
Anti-Tip
block
electrical outlet location
ELECTRICAL UTILITY LOCATION
Dedicated Circuit Required
120 Vac, 60 Hz, 15 Amp
(Breaker)
ELECTRICAL sPECIfICATIONs
NOTES:
1. All tolerances: +1/16", -0, (+1.6mm, -0), unless
otherwise stated.
2. Spacing between appliances and doors/drawers
is minimum required to allow for ventilation and
to prevent scrapping. Additional space may be
required for appearance.
48" (1219mm)
3-prong
120 Vac power cord
F
MMD24
A. 21 19/32"
B. 4 11/16"
C. 1 23/32"
D. 23 3/8"
E. 23 13/16"
F. 15 5/8"
G. 15 1/16"
H. 1" door thickness
I. 15" auto drawer opening
Power cord length: 48"
OVERALL DIMENsIONs
5"
4"
Total Connected Load
1.56 kW (13 Amp)
Specifications are subject to change without notice.
See installation instructions for additional details.
PLANNING
™
GUIDE
1/1
A
B
C
I
D
H
E
MMD30, MMDV30
A. 28 5/16"
B. 4 11/16"
C. 2"
D. 23 3/8"
E. 30"
F. 15 5/8"
G. 15 1/16"
H. 1 1/4" door thickness
I. 15 1/4" auto drawer opening
(6")
2x4 Anti-
Tip block
Approximate
Shipping Weight
128 lbs.
G
12.7
