User Manual
Modernist Built-In Microwave Combi Oven
DOC30M977D
Part No. 112188 Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DOC30M977D and is the answer not in the manual?

Questions and answers

Sal
March 17, 2025

How can i keep clock on all the time? Stays on for 15 minutes then goes out. Tried adjusting settings still goes out after a certain time. How can i set it so it stay on all time

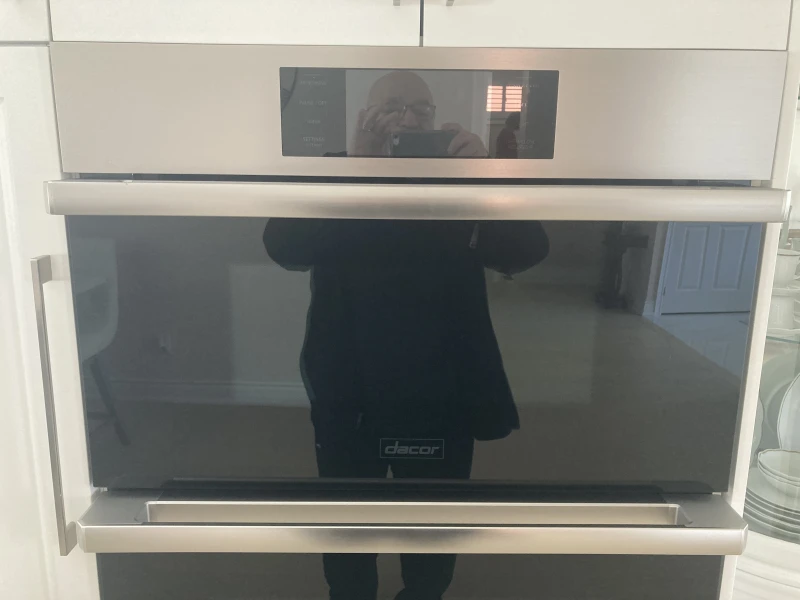

User image 67d85e42b693f
0
1 comments:
Mr. Anderson
May 14, 2025

To keep the clock on your Dacor DOC30M977D oven on all the time, slide the current setting under the "Clock theme" menu to select a theme. This setting controls how the clock is displayed.

This answer is automatically generated

0
Leslie
May 20, 2025

My Optitray broke into three pieces while in Comvection Sear mode, 350 degrees. Can this be replaced?

0
Leslie
May 9, 2025

Where can I purchase a dacor optitray? Mine broke…

0
