1

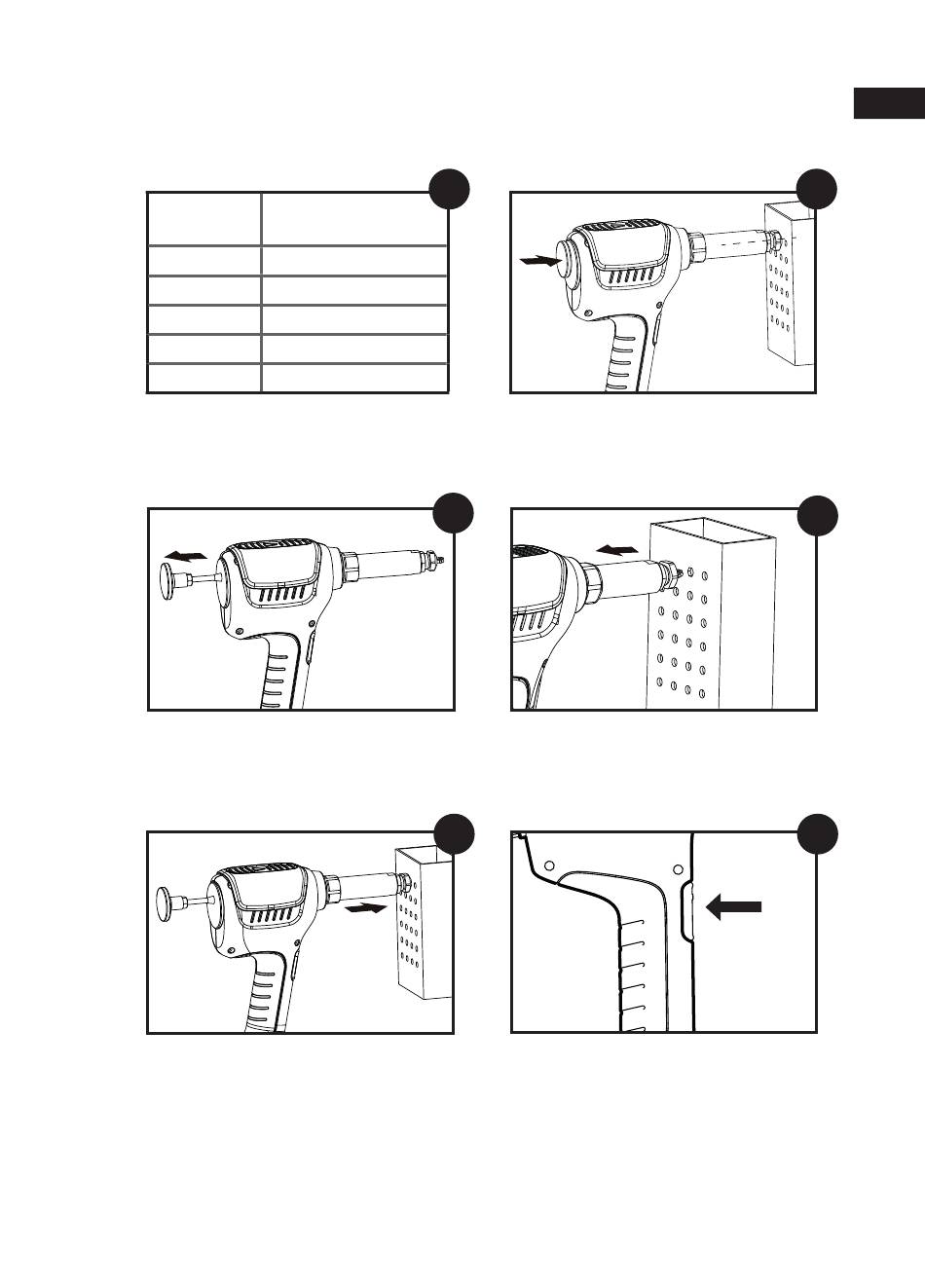

OPERATING INSTRUCTIONS
Ø Circle drilling
Cutter sets
(+0,10/-0)
M4 Ø 6,2 - 6,3 mm
M5 Ø 7,2 - 7,3 mm
M6 Ø 9,2 - 9,3 mm
M8 Ø 11,5 - 11,6 mm
M10 Ø 13,5 - 13,6 mm
Pre-drill the metal sheet with a round hole,
according to the table.
Pull the puller to the rear end.
Insert the cutter tip into the pre-drilled hole.
To be sure that the cutter is horizontal to the
workpiece, check that the surface of anvil is
fully in contact with the workpiece surface.
1
Push the puller to the front against the cutter.
2
Press the button of the tool to cut the hex-
hole.
3
After setting, push once more the trigger if
necessary in order to get rid of metal chips
remained on cutter.
4
ELEMENT HEX CUT - User Manual
EN
FR
PL
CZ
IT
5
6
• 5
