Scell-it E-312NP-2 User Manual

Pneumatic rivnut setting tool

Advertisement

Quick Links

E-312NP-2
Pneumatic Rivnut Setting Tool
FOR RIVNUTS
M3 TO M12
E-312NP-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-312NP-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Scell-it E-312NP-2

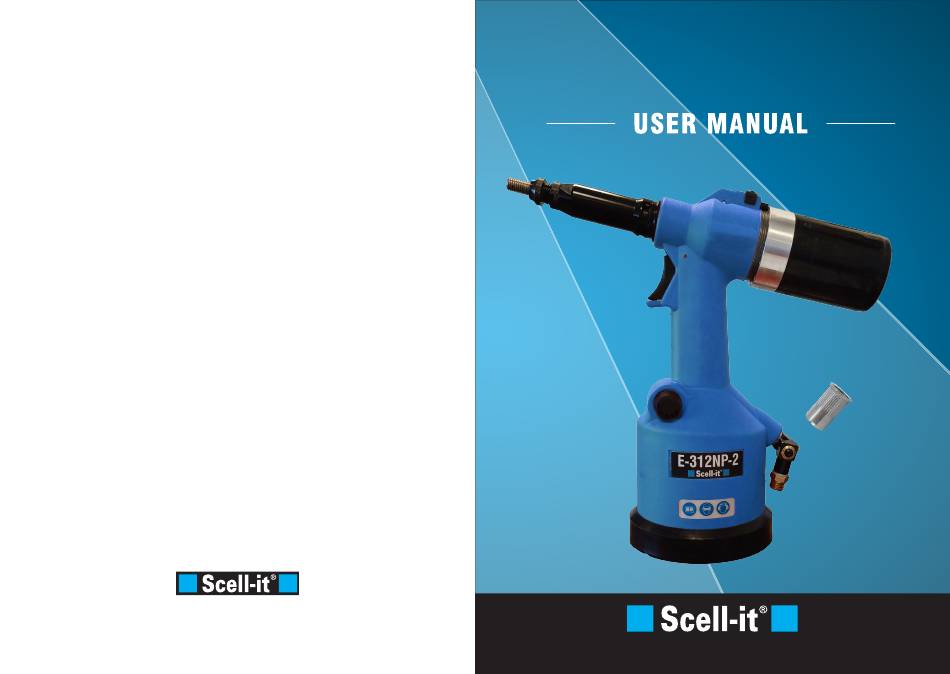

  • Page 1 E-312NP-2 Pneumatic Rivnut Setting Tool FOR RIVNUTS M3 TO M12 E-312NP-2...
  • Page 2: Table Of Contents

    SAFETY RULES CONTENTS This instruction manual must be read with particular attention to the following safety rules, by any person installing, operating, or servicing this tool. Safety Rules ..................2 1 Do not use outside the design intent. Specifications Tool Specification ............4 2 Do not use equipment with this tool/machine other than that recommended.
  • Page 3: Tool Specification

    MAIN SPECIFICATIONS PUTTING INTO SERVICE 1/2 Intent of use Air supply The hydro-pneumatic tool is designed to place TOOL threaded inserts at high speed - making it ideal for batch or flow-line assembly in a wide variety of applications throughout all industries. All tools are operated with compressed air at an optimum pressure of 5.5 bar.
  • Page 4: Stroke Adjustment

    PUTTING INTO SERVICE 2/2 NOSE ASSEMBLIES Stroke adjustment It is essential that the correct nose assembly is fitted prior to operating the tool. By knowing the details of the fastener to be placed, you will be able to order a new complete nose assembly if required. This adjustment is necessary to ensure optimum insert deformation.
  • Page 5: Molykote® 55M Lithium Grease Safety Data

    SERVICING THE TOOL MAINTENANCE Every 500,000 cycles the tool should be completely dismantled and components replaced where worn, Regular servicing should be carried out and a comprehensive inspection performed annually or every damaged or when recommended. All 'O' rings and seals should be replaced with new ones and lubricated 500,000 cycles, whichever is sooner.
  • Page 6: Trigger

    MAINTENANCE MAINTENANCE Hydraulic Piston and Air Motor Assembly Trigger • Wrap adhesive tape around Hydraulic Piston 54 thread and move assembly backwards slowly and firmly. • With tool held in vice, remove Pin 26 using a pin punch*. Using circlip pliers* remove Circlip 52 and Front Seal 51. •...
  • Page 7: General Assembly Of Base Tool

    GENERAL ASSEMBLY OF BASE TOOL...
  • Page 8: Service Kit

    SERVICE KIT PRIMING For all servicing we recommend the use of the service kit (part number 74200-99990) supplied in its own Priming is ALWAYS necessary after the tool has been dismantled and prior to operating. It may also be plastic case. necessary to restore the full stroke after considerable use, when the stroke may have been reduced and fasteners are not now being fully placed by one operation of the trigger.
  • Page 9 FAULT DIAGNOSIS Symptom Possible Cause Remedy Page Symptom Possible Cause Remedy Page Pneumatic motor Air leak from motor Check for worn seals. Replace Tool does not Screw adaptor nut loose Tighten runs slowly Low air pressure Increase spin on No air supply Connect Air way blockage Clear restriction in air supply...
  • Page 10 NOTES...
