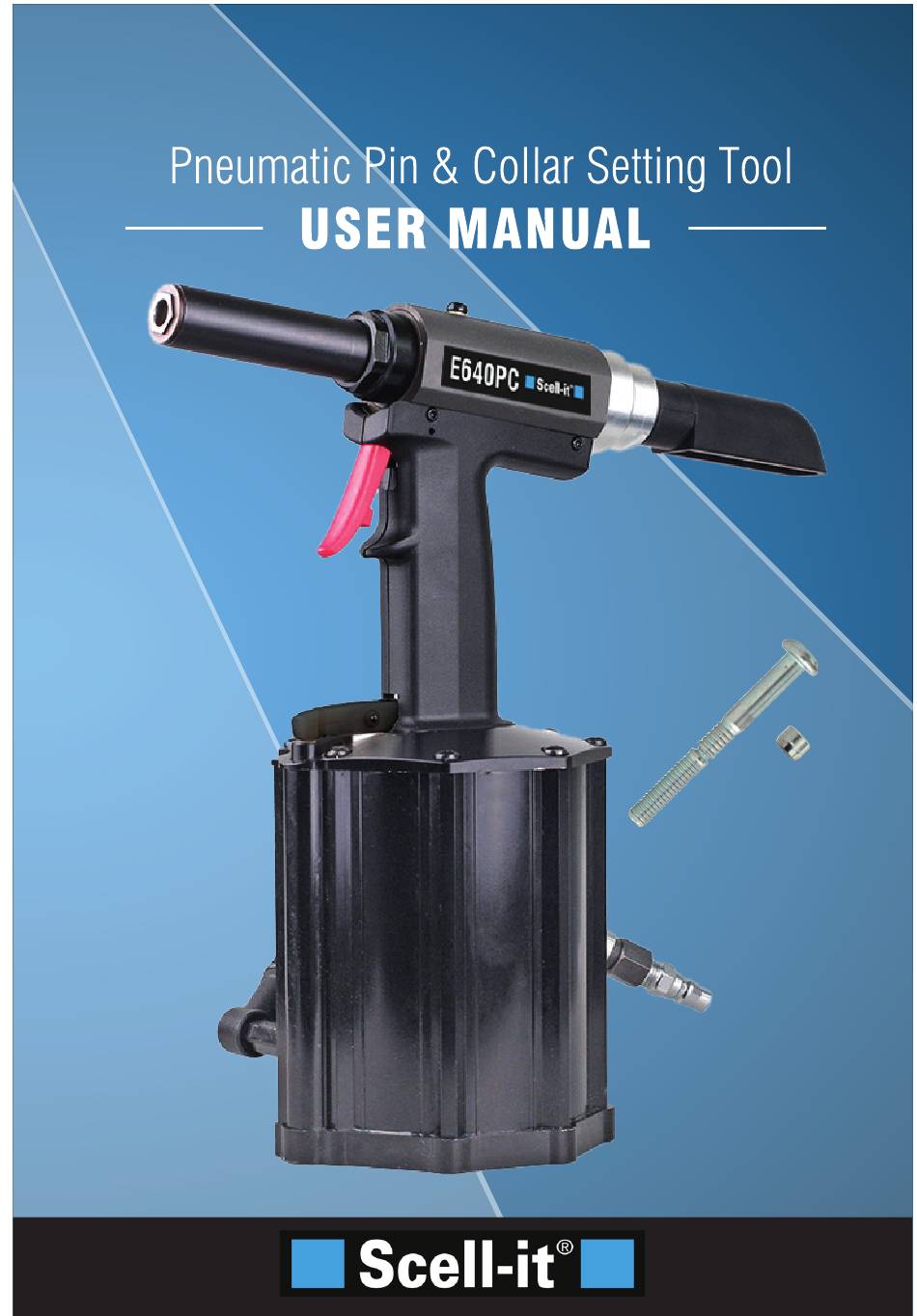

- Page 1 E640PC FOR PIN & COLLARS 3/16”(4.8mm) - 1/4”(6.4mm)
-
Page 2: Safety Operation Instructions
SAFETY OPERATING INSTRUCTIONS Please read this user manual carefully before operating the tool! This tool should be used exclusively to apply rivetnuts within specified tool capacity. DO NOT use for other purposes (e.g. as a replacement hammer). This tool should be always operated with compressed air supply within the air pressure range 5 bar ~ 7 bar. -
Page 3: Table Of Contents
A3 - Nose set A02164-00 ..........12-14 Maintenance of the E640PC ..........Appendix A: E640PC exploded diagram ........Rights and Disclaimers The company provides lifelong after-sales service for its products, guaranteeing their quality. The warranty covers issues related to product quality. However, damage to tools resulting from misuse, failure to follow tool use and maintenance instructions, the use of non-original parts, and other forms of man-made damage are not covered by the warranty. -
Page 4: Main Specifications
MAIN SPECIFICATIONS FOR PIN & COLLARS 3/16”(4.8mm) - 1/4”(6.4mm) Main Specifications: Air Supply: 5 bar ~ 7 bar 345mm Traction Power: 28,000 N ~ 39,200 N Stroke: 17mm Net Weight: 2.90kg (without nose set) *Note: Tool is supplied with only one adaptor size which must be specified at time of 140mm ordering. -
Page 5: Setting Up The Tool/Setting A Rivet
SETTING UP THE TOOL 1) This pneumatic powered tool should be worked with compressed air supply. It is recommended to use the air hose with diameter bigger than 8 mm; 2) To check the compressed air pressure within the specified range between 5 bar and 7 bar, and to connect the air hose adaptor onto the tool air adaptor (#48). -
Page 6: A1 - Installing The Adaptor A02046-00
HOW TO INSTAL ADAPTOR A02046-00 ON TOOL To install the adaptor on tool: Put O-ring (#5) onto the groove of threads end of inner sleeve (#2), then install it on the assembly piston shaft (tool no. #17) of the tool; Install outer sleeve (#4) onto the oil cylinder (tool no. -
Page 7: A02049-00/A02050-00
HOW TO INSTAL NOSE SETS A02047-00 / A02048-00 / A02049-00 / A02050-00 ON THE ADAPTOR A02046-00 To install noses: Put jaw set (#3) into jaw case (#2), be sure the correct direction as shown as above illustration, and jaws seated fit; Insert pusher spring (#5) into the pusher (#4), and put the spring seat into the pusher spring (#5);... -
Page 10: A3 - Nose Set A02164-00
HOW TO INSTAL NOSE SET A02164-00 ON THE TOOL To install the nose: Put the jaw set (#4) into jaw case (#3), be sure the jaw set (#4) seated fit inside; Put the pusher spring (#6) into pusher (#5), and spring seat (#7) into pusher spring (#6), then put them into the jaw case (#3) next to the jaw set (#4) inside, then install it on the assembly piston shaft (tool no. -
Page 12: Maintenance Of The E640Pc
MAINTENANCE OF THE E640PC Normally after several weeks of working, for better performance of the tool, add a few drops of hydraulic oil on the inlet of the air adaptor (#48) of the tool in order to reduce the fictions of the tool parts since the oil will be blown inside the tool when tool operates. - Page 13 3) Screw the oil inject adaptor (on oil injector set in the accessories pack) into the hole where screw (#11) was removed: 4) To use the oil injector (in the accessories pack) inject the oil slowly until not able to refill (approx.
- Page 14 5) Test the tool stroke. If the stroke still not enough, it means there could be some air in the oil cylinder (#13) when you refilled the oil. The excess air needs to be released from the tool. Connect the tool with air supply, pull the tool trigger (#44) 6 or 7 times, then loosen the screw (#11), let the extra air leaking out, then screw on the screw (#11) tight again: After a certain period of use, it is possible that the metal chips from fasteners setting remains in the nose assembly of the tool and the tool efficiency will be reduced, therefore it is...
-
Page 15: Appendix A: E640Pc Exploded Diagram
APPENDIX A: E640PC EXPLODED DIAGRAM Basic Tool HK640G explosive illustration... - Page 16 E640PC...
