Summary of Contents for JUNO JKG7490

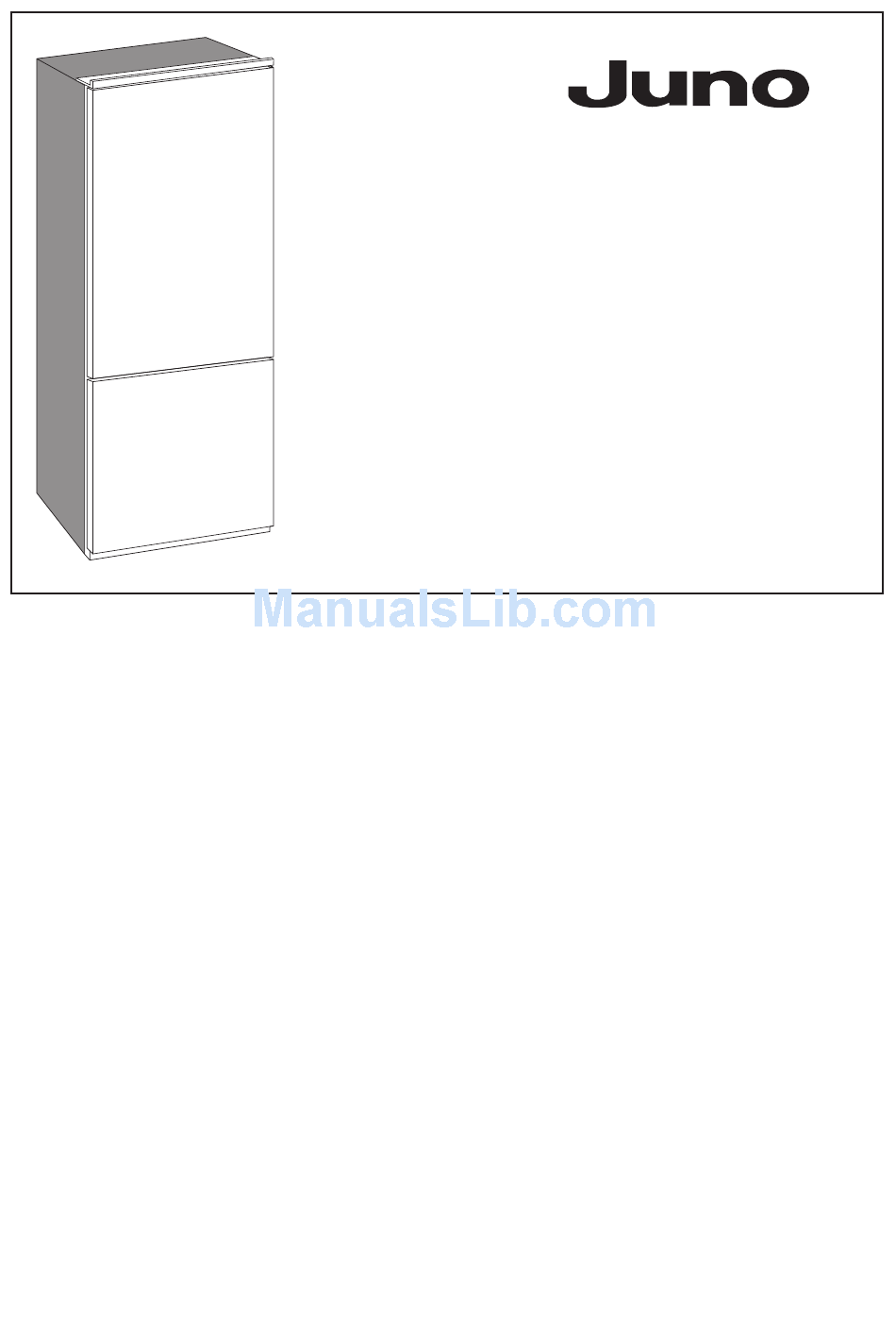

- Page 1 JKG 7490 GEBRAUCHSANWEISUNG OPERATING INSTRUCTIONS 2222 249-22...
-
Page 2: General Safety
If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death-trap for a child. -
Page 3: Environment Protection
- Storage of frozen food - Thawing - Ice-cube production ..........15 Use - Movable shelves - Positioning the door shelves - Hints - Hints for refrigeration - Hints for freezing .16 Use - Hints for storage of frozen food - Maintenance - Periods of no operation - Periodic cleaning .. - Page 4 In this case the dial must be set to a higher temperature to allow automatic defrosting and therefore reduced energy consumption.
- Page 5 For safety, store in this way only one or two days ¥ only freeze top quality, fresh and thoroughly at the most.
-
Page 6: Maintenance
- unscrew the light cover securing screw. - unhook the moving part as shown in the figure. If the light does not come on when the door is open, check that it is screwed into place properly. If it still does not light up, change the bulb. -
Page 7: Customer Service And Spare Parts
D037 compartment proceed as follows: 1. pull out the plug from the wall socket or turn the thermostat knob to the ÇOÈ setting; 2. remove any stored food, wrap it in several layers of newspaper and put it in a cool place;... - Page 8 Left opening Remove (P) from both sides and the door. Remove the pins (P) and (P1) Remove the middle hinge (A) and refit it on the opposite side. Refit the door and (P) on the left side. Remove (P1) from the right side.
- Page 9 D567 For safety reasons, minimum ventilation must be as shown in Fig. Attention: keep ventilation openings clear of obstruction. It is necessary that the niche is provided with a conduct of ventilation having the following dimensions: Depth 50 mm Width...
- Page 10 Apply covers (B) on joint cover lugs and into hinge holes. D726 Separate parts A, B, C, D as shown in the figure PR266 Place guide (A) on the inside part of the furniture door, up and down as shown in the figure and mark the position of external holes.
- Page 11 Fix cover (D) on guide (B) until it clips into place. PR167/1 If the appliance is fixed to the side of the kitchen unit, simply slacken the screws in the fixing brackets (D), move the brackets as shown in the figure and re- tighten the screws.
