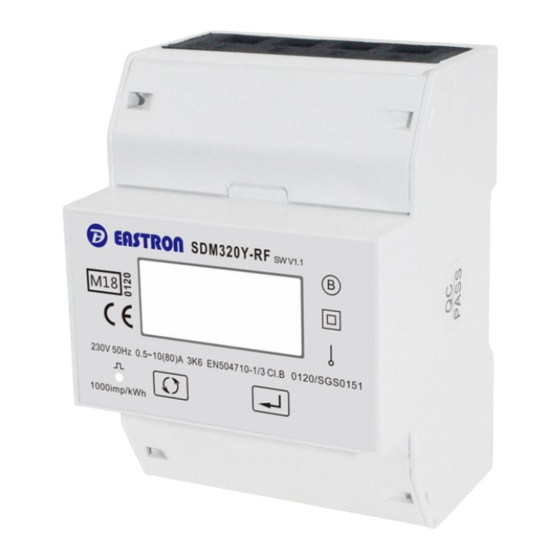

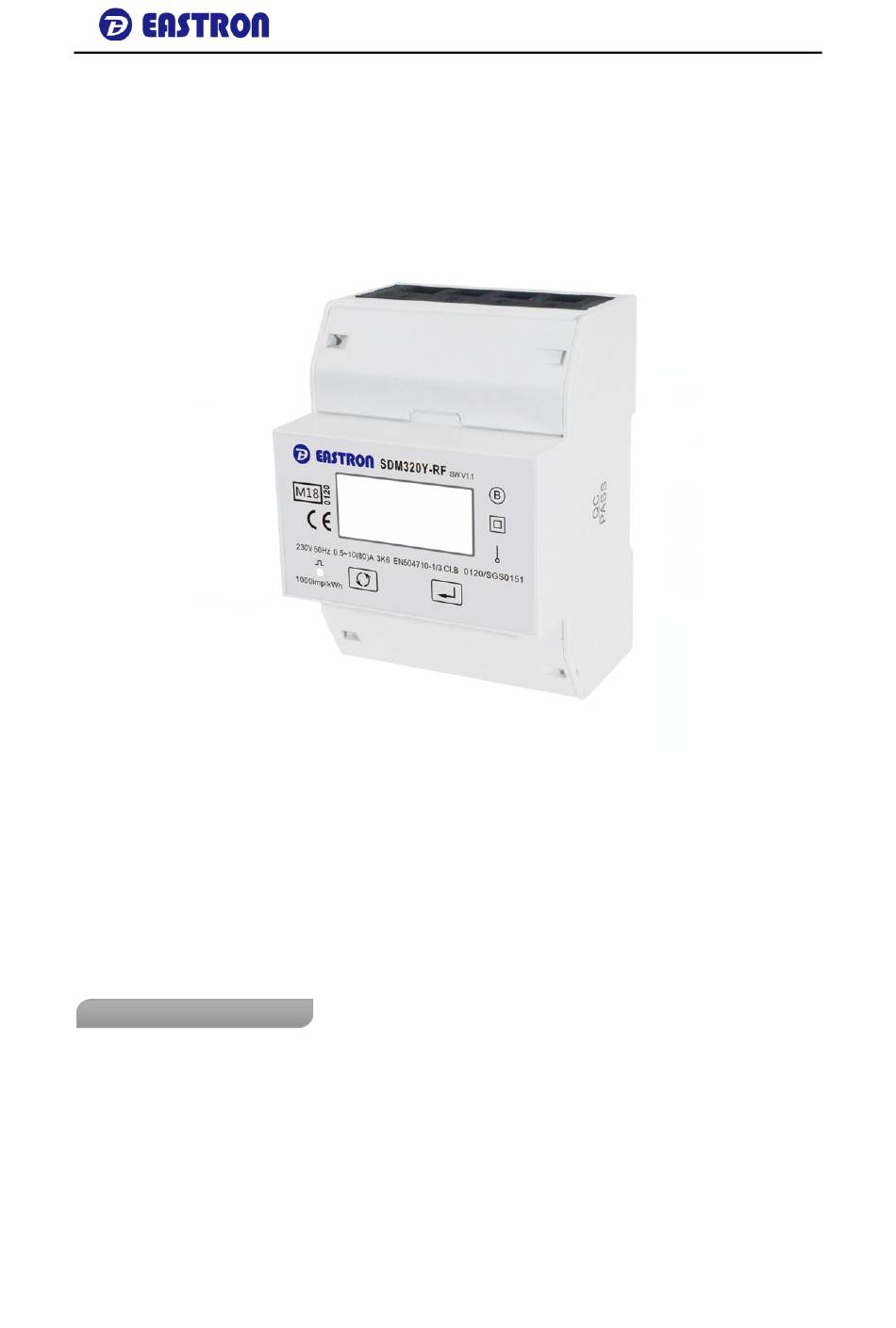

Eastron SDM320Y-RF User Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
General Specifications
Voltage AC (Un)
Voltage Range
Base Current (Ib)
Max. Current (Imax)
Mini Current (Imin)
Starting current
Power consumption
Frequency
AC voltage withstand
2018 EASTRON Electronic. All Rights Reserved.
230V
176~276V AC
10A
80A
0.5A
0.4% of Ib
<2W/10VA
50Hz(±10%)
4KV for 1 minute
EASTRON SDM320Y-RF User Manual
06-2018 V1.0
www.eastron.com.cn

Advertisement

loading
Need help?

Need help?

Do you have a question about the SDM320Y-RF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eastron SDM320Y-RF

Summary of Contents for Eastron SDM320Y-RF

  • Page 1 Voltage AC (Un) 230V Voltage Range 176~276V AC Base Current (Ib) Max. Current (Imax) Mini Current (Imin) 0.5A Starting current 0.4% of Ib Power consumption <2W/10VA Frequency 50Hz(±10%) AC voltage withstand 4KV for 1 minute 2018 EASTRON Electronic. All Rights Reserved. www.eastron.com.cn...
  • Page 2 The meter provides a RS485 port for remote communication. Modbus RTU is the protocol applied. For Modbus RTU, the following RS485 communication parameters can be configured from the Set-up menu. Baud rate: 9600 Parity: NONE Stop bits: Modbus Address: 1 Dimensions: 2018 EASTRON Electronic. All Rights Reserved. www.eastron.com.cn...
  • Page 3 EASTRON SDM320Y-RF User Manual 06-2018 V1.0 2018 EASTRON Electronic. All Rights Reserved. www.eastron.com.cn...

  • Page 4: Wiring Diagram

    EASTRON SDM320Y-RF User Manual 06-2018 V1.0 Wiring Diagram 2018 EASTRON Electronic. All Rights Reserved. www.eastron.com.cn...
  • Page 5 Make sure the protection cover is placed after installation.  Installation, maintenance and reparation should only be done by qualified personnel.  Never break the seals and open the front cover as this might influence the function of the  2018 EASTRON Electronic. All Rights Reserved. www.eastron.com.cn...
  • Page 6 The buttons operate as follows: >Scroll the display for data checking. >Changing option at Set-up mode >Exit the Set-up mode >Set-up mode entry >Confirmation Page Display Descriptions Remaining credit 1000£ T1 is working 2018 EASTRON Electronic. All Rights Reserved. www.eastron.com.cn...

  • Page 7: Declaration Of Conformity

    Date and time Unit price per kWh Declaration of Conformity We Zhejiang Eastron Electronic Co., Ltd. Declare under our sole responsibility as the manufacturer that the single phase prepay energy meter SDM320Y-RF correspond to the 2018 EASTRON Electronic. All Rights Reserved.
  • Page 8 EASTRON SDM320Y-RF User Manual 06-2018 V1.0 production model described in the EU-type examination certificates and to the requirements of the Directive 2014/32/EU EU type examination certificate number 0120/SGS0391. Identification number of the Notified Body is NB0120. 2018 EASTRON Electronic. All Rights Reserved. www.eastron.com.cn...
