Summary of Contents for Gill WindMaster HS

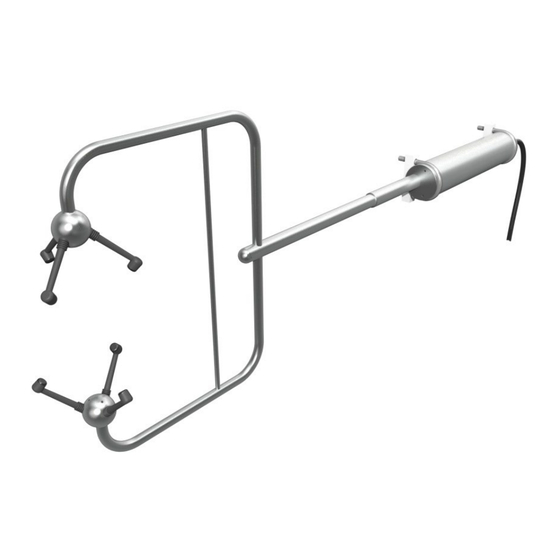

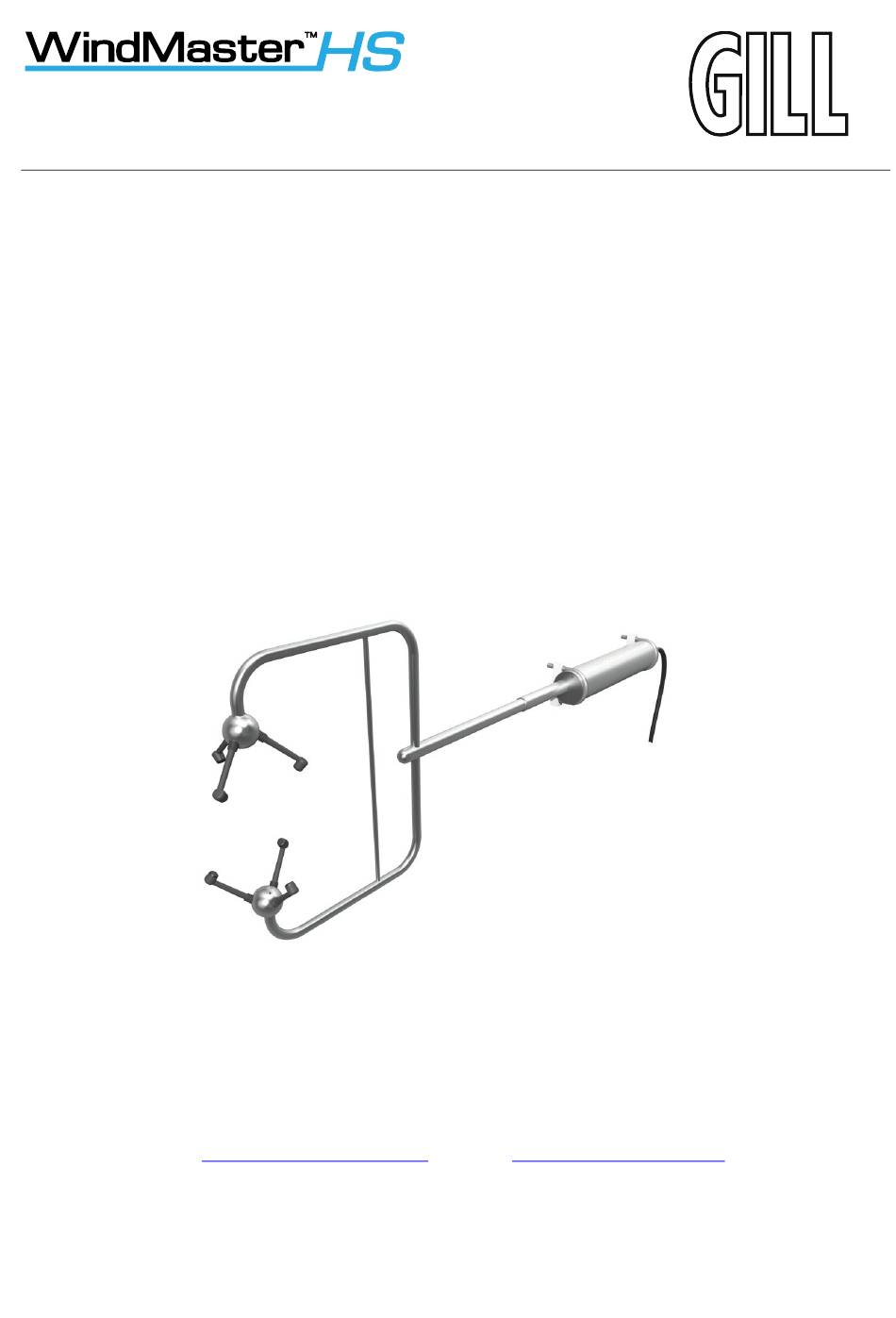

  • Page 1 User Manual Ultrasonic Anemometer Part 1951-PK-020) Doc No: 1951-PS-001 Issue 4 Gill Instruments Limited Saltmarsh Park, 67 Gosport Street, Lymington, Hampshire, SO41 9EG, UK Tel: +44 1590 613500, Fax: +44 1590 613555 Email: anem@gillinstruments.com Website: www.gillinstruments.com...
  • Page 2: Table Of Contents

    Installation Guidelines 6.2. Bench system test 6.3. Cable type 6.4. Cable length Grounding (Earthing) Optional WindMaster HS Cable Interface box (Part 1951-PK-021) 6.5. Connections 6.6. Connection to a PC using RS 232 6.7. Connection to a PC using RS 422 6.8.
  • Page 3 Setting up Entering Configuration mode Returning to Measurement mode Checking the configuration Changing settings Command List 10.3. Viewing and logging WindMaster Data using Gill WindView Software. 11. MAINTENANCE & FAULT-FINDING 11.1. Cleaning 11.2. Servicing 11.3. Fault-finding 11.4. Status (error) codes 11.5.
  • Page 4: Foreword

    ________________________________________________________________________________________________________________________ 1. FOREWORD Thank you for purchasing a WindMaster HS manufactured by Gill Instruments Ltd. The unit has no customer serviceable parts and require no calibration or maintenance. To achieve optimum performance we recommend that you read the whole of this manual before proceeding with use.
  • Page 5: Principle Of Operation

    Figure 1 Time of Flight details The WindMaster HS measures the times taken for an ultrasonic pulse of sound to travel from an upper transducer to the opposite lower transducer, and compares it with the time for a pulse to travel from lower to upper transducer.
  • Page 6: Polar Definition

    WindMaster HS 1951-PS-001. Issue 4 August 2021 ________________________________________________________________________________________________________________________ Figure 2 shows the direction and polarity of the U, V and W axes. Polar definition The wind speed in the UV plane, with direction in degrees from 0 to 359 °, with respect to the line of the Frame (which is normally aligned to North).
  • Page 7: Effects Of Temperature, Barometric Pressure, Rainfall And Humidity

    The on-board calibration (providing compensation for spar and transducer shadowing), can be disabled, returning the unit to raw, uncorrected operation Selection of the above parameters is via using Gill Wind software package or using a Terminal Program to set the FX or Px command.
  • Page 8: Specification

    WindMaster HS 1951-PS-001. Issue 4 August 2021 ________________________________________________________________________________________________________________________ 4. SPECIFICATION Outputs WindMaster HS Output rate 0.25, 0.5, 1, 2, 4, 5, 8, 10, 16, 20, 32 Hz Sample rate (automatically selected) 20 or 32 Hz Units of measure m/s, mph, KPH, knots, ft/min...
  • Page 9: Pre-Installation

    5.5. Packaging Whilst the WindMaster HS is being moved to its installation site, the unit should be kept in its supplied Travelling Case. This should be retained for use if the unit has to be returned at any time. 5.6.
  • Page 10: Connection

    There are restrictions on the maximum cable lengths for correct operation. See 6.3 for cable specification. Power supply The WindMaster HS requires a DC supply of between 9 – 30 V DC. Typical current drain 55 mA @ 12 V (excluding analogue outputs)
  • Page 11: Installation

    Installation Guidelines As with any sophisticated electronics, good engineering practice should be followed to ensure correct operation. Always check the installation to ensure the WindMaster HS is not affected by other equipment operating locally,  which may not conform to current standards, e.g. radio/radar transmitters, boat engines, generators etc.
  • Page 12: Cable Type

    6.4. Cable length The WindMaster HS is supplied with an integral 3 Metre, 9 pair, Belden 8774, 22awg, type cable fitted. The maximum cable length is dependent on the chosen communication format (RS232, RS422 or RS485), the baud rate, and, to a lesser extent, on the cable type and the local electrical ‘noise’ level.
  • Page 13: Optional Windmaster Hs Cable Interface Box (Part 1951-Pk-021)

    Optional WindMaster HS Cable Interface box (Part 1951-PK-021) An optional interface box may be purchased to extend the integral WindMaster HS 9 pair, 3 metre long lead. The Interface Box centre positioned M20 gland is suitable for the WindMaster HS cable (cables 8-13mm outer diameter) and the other two M16 glands for an Analogue Input/Output cable or Digital Output and Power cable (5-10mm outer diameter).
  • Page 14: Connections

    Analogue Input 1 Brown Analogue Input 2 Black Analogue Input 3 Orange Analogue Input 4 Black Analogue Output 1 White Analogue Output 2 Analogue Output 3 Green Analogue Output 4 Twisted Pair Screens Are connected internally to the WindMaster HS chassis...
  • Page 15: Connection To A Pc Using Rs 232

    See 6.4 Using RS232, the cable length for reliable operation is limited to 6.5m (20ft) @ 9600 Baud. For longer cable runs, we recommend using the WindMaster HS configured with RS422 output, and a RS422/232 converter at the PC. See Section 10 Configuring.
  • Page 16: Rs422 Connection To A Pc Via A Power And Communications Interface (1189-Pk-021)

    When the PCI box is powered the Power LED will illuminate. When a WindMaster HS is connected as above to the PCI box and is set to output continuous data the PCI box RX LED will flash on/off at the WindMaster HS output rate thus giving a good indication that the WindMaster HS output is wired to the PCI box correctly and outputting RS422 data correctly.
  • Page 17: Connector Pin And Cable Assignments For Pci

    PCIA Box (1189-PK-020) WindMaster HS Analogue Output Connections. If a PCIA box is available then a WindMaster HS with Analogue Output option connections can be routed from the 15 Way D type Input connector directly to the Auxiliary 9 way D type Output connector. (Note: The PCIA box does not convert the digital output from the WindMaster HS to analogue outputs).
  • Page 19: Using Rs485 2 Wire Point To Point Only

    Analogue Outputs are also simultaneously available. The maximum poll rate is 10Hz in default SyncPoll 0 mode. The WindMaster HS can only be used in 2-wire mode in a Point-to-Point configuration; it cannot be networked with other devices on the 2-wire connection.
  • Page 20: Mechanical Installation

    Select a position so that the unit is clear of any structure, which may obstruct the airflow or induce turbulence. Do NOT mount the WindMaster HS in close proximity of high-powered radar or radio transmitters. A site survey may be required if there is any doubt about the strength of external electrical noise.
  • Page 21: Grounding (Earthing) See Previous Illustration

    Issue 4 August 2021 ________________________________________________________________________________________________________________________ Grounding (Earthing) See previous illustration For protection against lightning the WindMaster HS MUST be earthed via its mountings. An M4x8mm Pozi Pan Screw and associated crinkle washer is provided together with a M4 Terminal Tag. The screw is inserted into the thread provided adjacent to the cable gland outlet.
  • Page 22: Message Formats

    Issue 4 August 2021 ________________________________________________________________________________________________________________________ 7. MESSAGE FORMATS On applying power to the WindMaster HS, it will automatically operate in the Measurement Mode and provide wind measurements in one of the following formats:  Mode 1 – ASCII, UVW, Continuous ...
  • Page 23: Windmaster Hs Identification Node Address

    Output rate not displayed) The WindMaster HS delivers wind information at rates from 1 (default setting) to 32 outputs / second. [The sample rate (20 or 32 Hz) is chosen automatically to be an appropriate multiple of the output rate.]...
  • Page 24: Mode 2 - Ascii, Polar, Continuous (Default)

    WindMaster HS 1951-PS-001. Issue 4 August 2021 ________________________________________________________________________________________________________________________ (b) Mode 1 (High Resolution (J2)) ASCII, UVW, Continuous, Speed of Sound On, Sonic Temp On, [Optional Analogue inputs On] <STX><ID>,±UUU.UUU,±VVV.VVV,±WWW.WWW,U,±CCC.CC,±TTT.TT, SS,[±1.1111,±2.2222,±3.3333,±4.4444],<ETX>CC<CR><LF> Where: <STX> Start of string character (ASCII value 2) <ID>...
  • Page 25: Horizontal Wind Direction

    Horizontal wind direction Indicated in degrees, from 0 to 359°, with respect to the WindMaster HS North marker. In fixed field mode and when the wind speed is below 0.05 metres/sec, the direction will not be calculated, but the last calculated direction above 0.05 m/s will be output (the threshold of 0.05 m/s is the default setting;...
  • Page 26: Polled Mode Notes General

    Polled mode is only applicable to a single point to point system. When in the Polled mode, an output is only generated when the host system sends a Poll signal to the WindMaster HS consisting of the WindMaster HS Unit Identifier – that is, the relevant letter A – Z.
  • Page 27: Mode 4 -Ascii, Polar, Polled

    Data is 2 byte signed two’s complement (except unsigned for SOS; 1 byte for checksum). Velocities are normal resolution (0.01m/s). Outputs that are disabled are padded with zero to give fixed size records. Gill WinConvert now includes decode for WM binary data in addition to R3. 7.6. Mode 8 –Binary, UVW, Short <B2><B2>STATUS,U,V,W,SOS,CHECKSUM...
  • Page 28: Mode 9 -Binary, Polar, Long

    WindMaster HS 1951-PS-001. Issue 4 August 2021 ________________________________________________________________________________________________________________________ 7.7. Mode 9 –Binary, Polar, Long <B3><B3>STATUS,DIR,MAG,W,SOS,A1,A2,A3,A4,CHECKSUM <B3> <B3> STATUS - Status data (Codes 00 to 0B) Wind Direction Wind Speed W axis velocity Speed of Sound in 0.01ms -1 Analogue input 1...
  • Page 29: Analogue Inputs

    6.5 Connections. For pin connections The WindMaster HS can be configured for 4 single analogue inputs or 2 differential analogue inputs ((Pair 6 Brown and Pair 6 Black) and (Pair 7 Orange and Pair 7 Black)). Notes: The Analogue inputs must be enabled if they are to be used, (See Section 10, Configuring).
  • Page 30: Current Outputs

    WindMaster HS 1951-PS-001. Issue 4 August 2021 ________________________________________________________________________________________________________________________ 9.4. Current outputs Important When using the current outputs, the load resistance between the Output and Ground must be <= 300 ohms, including cable resistance. This is to ensure that the voltage levels on the Analogue outputs do not exceed 5V.
  • Page 31: Polar Wind Direction Wraparound

    WindMaster HS 1951-PS-001. Issue 4 August 2021 ________________________________________________________________________________________________________________________ 9.5. Polar wind direction wraparound The wind direction in Polar mode can be configured for either 360° or 540° Wraparound. If the 360° mode is used with a chart recorder, large swings of the recorder pen will be experienced each time the wind direction passes between 0 and 359°.
  • Page 32: Configuring

    Gill website http://www.gill.co.uk/main/software.html Assuming the WindMaster HS has been correctly connected to the PC and a Power Supply, the opening menu will show the WindMaster HS in Measurement mode. A short Start message will be displayed, followed by continuous wind information displayed - the default setting being Polar, with the unit of measure Metres per second (m/s).
  • Page 33 ________________________________________________________________________________________________________________________ The unit is set to factory default 1 Hz output and in Polar mode. A typical message format after Synchronising Comms is shown below: WindMaster Pro 32Hz (SS) (HS) Gill Instruments Ltd 2329-504-01 RS232 (AUTO) CHECKSUM ROM:978B 978B *PASS*...
  • Page 34 Issue 4 August 2021 ________________________________________________________________________________________________________________________ To change the WindMaster HS configuration click Tools and Wizard in the tool bar Typical screens are shown below. The Customer is able to adjust all the settings as required taking into account the options selected at time of order (e.g. Analogue inputs and outputs).
  • Page 35 WindMaster HS 1951-PS-001. Issue 4 August 2021 ________________________________________________________________________________________________________________________...
  • Page 36 When the changes are complete the Wizard will display a confirmation of the changes with all changes shown in red, this may be printed as a hard copy if required. Click next and the WindMaster HS will be re-configured and will return to...
  • Page 37: Configuring Using Hyperterminal

    Stop bits 1 Flow Control (Handshaking) None Assuming the WindMaster HS has been correctly connected to the PC and a Power Supply; the opening menu will show the WindMaster HS in Measurement mode and scroll continuous wind information data. Entering Configuration mode...
  • Page 38: Changing Settings

    ENTER . If successful, the new setting will be sent back as a message by the WindMaster HS. For example, to change the message format to UVW, Continuous, enter M 1 ENTER The WindMaster HS will reply M1. When the unit is returned to the Measurement mode, it will be in UVW, Continuous format.
  • Page 39 WindMaster HS 1951-PS-001. Issue 4 August 2021 ________________________________________________________________________________________________________________________ Ax – Select SOS/Sonic Temp output Neither Sonic Temp Both The SOS and/or Sonic Temp are displayed after the UNITS and before the status byte, the SOS is always in m/s and the Sonic Temp is always in deg C.
  • Page 40 WindMaster HS 1951-PS-001. Issue 4 August 2021 ________________________________________________________________________________________________________________________ Request Current Configuration M2,U1,O1,L1,P1,B4,H1,NQ,E1,T1,S1,C2,A1,I1,J1,V1,X1,G0,K50 Report DAC Channel Configuration. DAC CHAN 01, MODE 05, CONFIG 02 DAC CHAN 02, MODE 09, CONFIG 01 DAC CHAN 03, MODE 04, CONFIG 01 DAC CHAN 04, MODE 08, CONFIG 01 Where:- Mode 01 = DAC Channel Off.
  • Page 41 If the power up message is On, then a message similar to that below is output, whenever the unit goes into Measurement mode (i.e. when power is first applied to the unit, or the unit returns to Measurement mode from Configuration mode). WindMaster HS Pro 32Hz (SS) Gill Instruments Ltd 2329-504-01 RS232 (AUTO)
  • Page 42 Example string for Fixed Field data changing to an error status code condition. Px – Set output rate Note: the P9 setting is an option on the WindMaster HS unit, which must be specified at the time of ordering. Rate is 1 Hz (20Hz Sampling)
  • Page 43 Full range is 50m/s Full range is 60m/s Full range is 120m/s Tx – Set analogue output type Use Gill Wind Software to set required ranges 0V to 5V range –2.5V to 2.5V range 4mA to 20mA range –5V to 5V range 0mA to 20mA range Ux –...
  • Page 44: Viewing And Logging Windmaster Data Using Gill Windview Software

    WindMaster HS 1951-PS-001. Issue 4 August 2021 ________________________________________________________________________________________________________________________ 10.3. Viewing and logging WindMaster Data using Gill WindView Software. WindView is supplied can be downloaded from:- http://gillinstruments.com/main/software.html Open WindView and Select File/Connect. Select appropriate connection COM Port number and instrument Baud rate.
  • Page 45 WindMaster HS 1951-PS-001. Issue 4 August 2021 ________________________________________________________________________________________________________________________ WindMaster 3 axis data will scroll on screen at the instruments output rate (2Hz shown). Click on the WindSock tab to see a graphical display of wind.
  • Page 46 WindMaster HS 1951-PS-001. Issue 4 August 2021 ________________________________________________________________________________________________________________________ To Start Logging Data Note: If logging fast data of 20Hz or more ensure that the WindMaster is set for at least 38400 bauds. From the top menu click on Settings/Logging. If segmented logging files are required tick Enable and set the time for creating each log file.
  • Page 47: Maintenance & Fault-Finding

    Opening the unit or breaking the security seal will void the warranty and the calibration. In the event of failure, prior to returning the unit to your authorised Gill distributor, it is recommended that: All cables and connectors are checked for continuity, bad contacts, corrosion etc.
  • Page 48: Returning Unit

    Issue 4 August 2021 ________________________________________________________________________________________________________________________ 11.5. Returning unit If the unit has to be returned, it should be carefully packed in the original packaging and returned to your authorised Gill distributor, with a full description of the fault condition. TESTS 12.1.
