1. INTRODUCTION
The TCT -1000 Battery Capacity Analyzer has been designed to perform automatic
capacity testing of 12 and 24 Volt lead-acid batteries. This unit is capable of accurately
measuring the capacity of a fully charged battery with a rating between 10 and 59 amp-
hours. It is self-contained and easy to operate.
The load tester will display, in percentage, the conformance to the battery's one hour
rating.
2. SCOPE
This document provides instructions on how to calibrate and operate the TCT-1000
Battery Load Tester. The calibration instruction has been broken down into the following
categories:
• Calibrate Cutoff at 20.0 Volts
• Calibrate Cutoff at 10.0 Volts
• Calibrate Frequency
• Calibrate 24 Volt 10 Amp Setting
• Calibrate 24 Volt 50 Amp Setting
• Calibrate 12 Volt 10 Amp Setting
• Calibrate 12 Volt 50 Amp Setting
3. OPERATION PROCEDURE
3.1. Set Up
3.1.1. Before starting the capacity test, the battery should be fully charged per
manufacturer's instructions.
3.1.2. The load tester must be located in an atmosphere that is free of combustible
material and gasses.

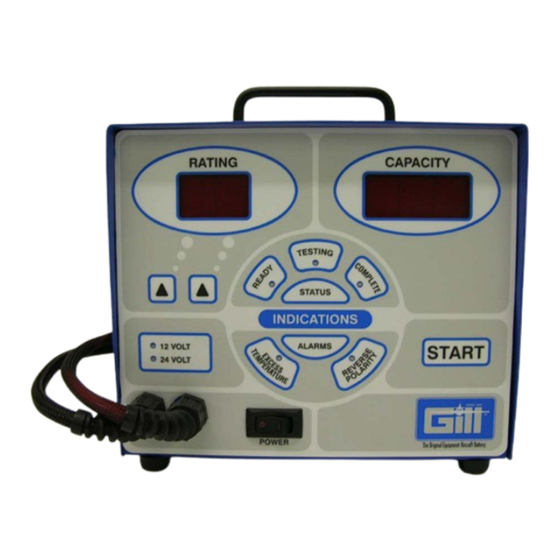

3.1.3. The POWER switch – see picture below, must be in the "OFF" position.
3.2. Operation
3.2.1. Connect the RED cable to the POSITIVE terminal and the BLACK cable to the
NEGATIVE terminal.
O01-1000
NUMBER
TITLE
Wear SAFETY GLASSES whenever handling batteries
Teledyne Battery Products
D
REVISION
TCT-1000 OPERATING INSTRUCTIONS
CAUTION
7-8-16
Page 1 of 10

Advertisement

loading
Need help?

Need help?

Do you have a question about the TCT-1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gill TCT-1000

  • Page 1 The load tester will display, in percentage, the conformance to the battery’s one hour rating. 2. SCOPE This document provides instructions on how to calibrate and operate the TCT-1000 Battery Load Tester. The calibration instruction has been broken down into the following categories: •...
  • Page 2 RATING display window. 3.2.4. Press the button located on the right of the tester above the GILL logo. 3.2.5. After the battery has been discharged to the appropriate end voltage (10V for a 12V battery and 20V for a 24V battery), the unit will terminate the testing and the CAPACITY window will display the actual capacity in percentage of the one hour rating of the battery.
  • Page 3 O01-1000 7-8-16 Page 3 of 10 NUMBER REVISION TCT-1000 OPERATING INSTRUCTIONS TITLE Table 1 VRLA Battery Capacity Ratings Battery Voltage One Hour Rate 30 Minute Rate Battery Type G-242S 7025-20 7035-28 7243-14 7243-16 7243-16T 7641-20 7639-25 7639-27 7639-30LT 7639-34 7638-36...
  • Page 4 O01-1000 7-8-16 Page 4 of 10 NUMBER REVISION TCT-1000 OPERATING INSTRUCTIONS TITLE Table 2 Flooded Battery Capacity Ratings Battery Voltage One Hour Rate 30 Minute Rate Battery Type G-25 G-35 and 35M G-240* G-241* G-242 G-243 G-244 G-245 G-246 G-247...
  • Page 5: Test Equipment

    Plug the connector for the 20758 test fixture into the TCT-1000 connector. c. Connect the DVM leads to the power supply leads.
  • Page 6 O01-1000 7-8-16 Page 6 of 10 NUMBER REVISION TCT-1000 OPERATING INSTRUCTIONS TITLE e. Adjust the current limiting for the power supply to 20 amps or more. b. Turn Power Switch on. c. 24 VOLT LED illuminates. d. READY LED illuminates.
  • Page 7 Plug the DVM leads into the 20758 test fixture terminal jacks. The positive lead in the red jack and the negative lead in the black jack. b. Plug the connector for the 20758 test fixture into the TCT-1000 connector. 5.6 24 Volt 10 Amp Setting a.
  • Page 8 O01-1000 7-8-16 Page 8 of 10 NUMBER REVISION TCT-1000 OPERATING INSTRUCTIONS TITLE e. 24 VOLT LED illuminates. f. READY LED illuminates. g. RATING display should be flashing at 10. h. Press START button (hold briefly for test to start, then release START button).
  • Page 9 “Fail” column. 5.10.3 If all value, are checked as “Pass”, check the space in the “Pass” column in the TCT-1000 Battery Capacity Analyzer. 5.10.4 Sign and date the bottom of the Records section. 5.10.5 Retain that sheet for your records.
  • Page 10 12 Volt 10 Amp Setting 9.8 – 10.2 mV 12 Volt 50 Amp Setting 49.6 – 50.4 mV Multi-meter Calibration Expiration Date: ________ TCT-1000 Calibration performed as specified by _____________; Date ________ NOTE: THE UNIT MUST BE CALIBRATED ANNUALLY. Teledyne Battery Products...
