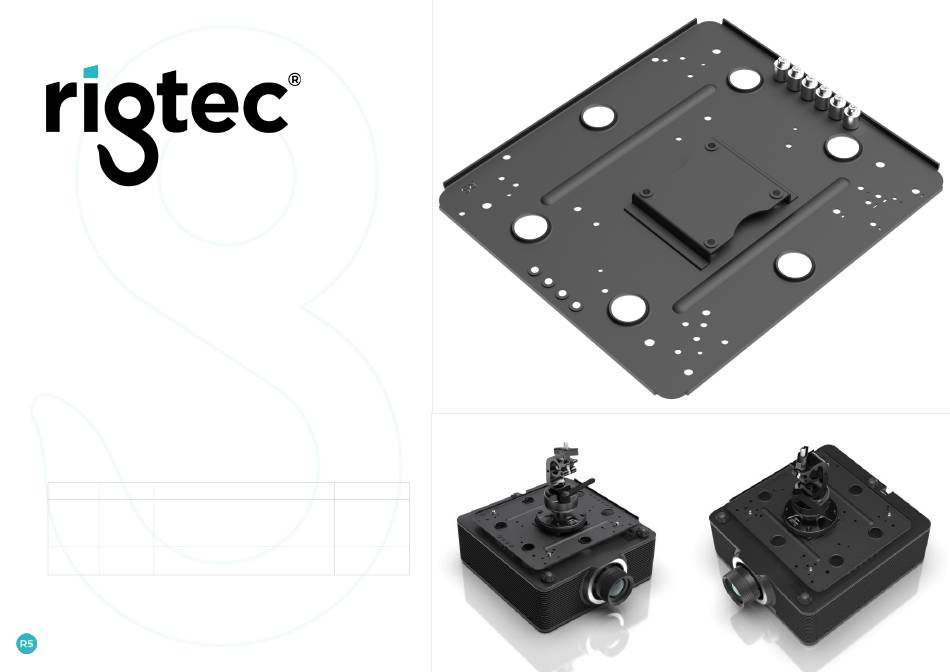

AIR PLATE P-10
(AP01-P10)
USER GUIDE
V1.2
Revision
Date
Revision Details
R# added to front cover
Revisions changed to V#
V1.1
15/03/24
Additional projector models added
Unistrut attachment holes added
Information on Projector Mounting
V1.2
10/05/24
Kit added to Page 8
T
I
+44 (0)1926 290 418
E
I
hello@rigtec.com
Revised By
ST
ST
W
I
www.rigtec.com
Advertisement
Table of Contents
Related Manuals for RIGTEC P-10
Summary of Contents for RIGTEC P-10
- Page 1 AIR PLATE P-10 (AP01-P10) USER GUIDE V1.2 Revision Date Revision Details Revised By R# added to front cover Revisions changed to V# V1.1 15/03/24 Additional projector models added Unistrut attachment holes added Information on Projector Mounting V1.2 10/05/24 Kit added to Page 8 +44 (0)1926 290 418 hello@rigtec.com...
- Page 2 R number on your plate corresponds to the R number on the front cover of this user guide (Found in the bottom left corner) If your plate is an older R number or doesn’t display one, please contact Rigtec for the correct version User Guide for your plate.
-
Page 3: Table Of Contents
CONTENTS SAFETY INFORMATION SAFETY INSPECTION AIR PLATE PARTS COMPATIBLE PROJECTORS MOUNTING ACCESSORIES INSTALLING ON A PROJECTOR HANGING ACCESSORIES ATTACHING AN ATOM GRIP SAFETY STEEL CABLES SPECIFICATIONS DIMENSIONS DECLARATION OF CONFORMITY UKCA DECLARATION OF CONFORMITY +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 4: Safety Information
Do not expose the Air Plate to moisture or excessive heat. • Do not install the Air Plate on unstable surfaces. • Do not hang the Air Plate from unstable, unsafe or inappropriate objects/ structures. Ensure the structure can support the overall weight. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... - Page 5 • Any accident or dangerous occurrence. • Any significant change in conditions of use. • Any long periods of inaction. • Each time the equipment is used. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com...
-
Page 6: Safety Inspection
Along with an overall visual check covering the issues above, the following specific parts should be checked before the product is used: Ensure the four M8 Rivet Nuts are not loose or damaged. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 7: Air Plate Parts
M8 Washers: Anti Vibration & Flat (Only one type to be used - See page 8 for details) (quantity based on projector model) Spacer (Size & quantity based on projector model) M8 Rivet Nut (Accessory Storage) Unistrut Adapter Attachment Hole +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 8: Compatible Projectors
Barco G100 W19 PT-DW730 PT-RZ660 Barco G60-W10 Barco I600-4K15 Barco G100 W22 The Air Plate P-10 has five hole sets. One hole from each set is PT-DW740 PT-RZ670 Barco G62-W9 labelled with a shape to aid the installation process. When Optoma ZU1700... -
Page 9: Mounting Accessories
MOUNTING ACCESSORIES Rigtec Air Plates are provided with the necessary accessories to mount your projector onto the plate. Bolts, washers and spacers will be required for all projectors, using the incorrect size could lead to damage to the projector or serious failure of the Air Plate. - Page 10 Plate, such as a the Dynamic Projection Mirror Head, please Panasonic PT-DX800 [5] ◆ ◆ ◆ contact the team at Rigtec to discuss. Alternative bolts and spacers will be required to accommodate the accessory. Panasonic PT-DX810 [5] ◆ ◆ ◆...
- Page 11 ◆ ◆ ◆ Panasonic PT-RCQ10 [5] Plate, such as a the Dynamic Projection Mirror Head, please contact the team at Rigtec to discuss. Alternative bolts and ◆ ◆ ◆ Panasonic PT-RCQ80 [5] spacers will be required to accommodate the accessory.
- Page 12 ◆ ◆ ◆ Optoma ZU1700 [4] Plate, such as a the Dynamic Projection Mirror Head, please contact the team at Rigtec to discuss. Alternative bolts and ◆ ◆ ◆ Optoma ZU1900 [4] spacers will be required to accommodate the accessory.
-
Page 13: Installing Ona Projector
Only one type of washer should be installed at once. (See page 8) Please torque bolts to 4±0.5 Nm (or as recommended by the projector manufacturer in the projector user guide) Only use supplied bolts to connect Air Plate and Projector. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 14: Hanging Accessories
There are several accessories to suspend an Air Plate, please see below for a list of those accessories and see the next page for instructions on how to safely suspend the Rigtec Air Plate. Atom Grip (AG02-A): 245kg Single Point Trigger Clamp... -
Page 15: Attaching An Atom Grip
Ensure all four M8 bolts are torqued to 6±0.5 Nm (M8). Any suspended accessory must be independently secured with an approved safety wire/s. Local laws or regulations should be consulted regarding the additional safety of hanging equipment +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 16: Safety Steel Cables
To safely suspend the Air Plate, ensure that the safety steel cables are looped around the suspending truss and through a Safety Cable Cutout on the Air Plate. Please use this diagram as guidance. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 17: Specifications
SPECIFICATIONS Part Number: AP01-P10 Description: Air Plate P-10 Weight: 3.49KG / 7.69 lbs Dimensions: 439mm (17.28”) x 389mm (15.31”) x 21mm (0.83”) WLL: 70KG / 154.32 lbs +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 18: Dimensions
DIMENSIONS +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 19: Ce Declaration Of Conformity
Manufacturer: Rigtec Ltd Unit B1 Holly Farm Business Park Kenilworth CV8 1NP CE DECLARATION +44 (0) 1926 290 418 www.rigtec.com OF CONFORMITY Description of lifting accessory: Air Plate AP01-P10 Rigging Plate for Projector Part Number: AP01-P10 Is in accordance with the following Directive:... -
Page 20: Ukca Declaration Of Conformity
Manufacturer: Rigtec Ltd Unit B1 Holly Farm Business Park Kenilworth CV8 1NP UKCA DECLARATION +44 (0) 1926 290 418 www.rigtec.com OF CONFORMITY Description of lifting accessory: Air Plate AP01-P10 Rigging Plate for Projector Part Number: AP01-P10 Is in accordance with the following Directive:...
