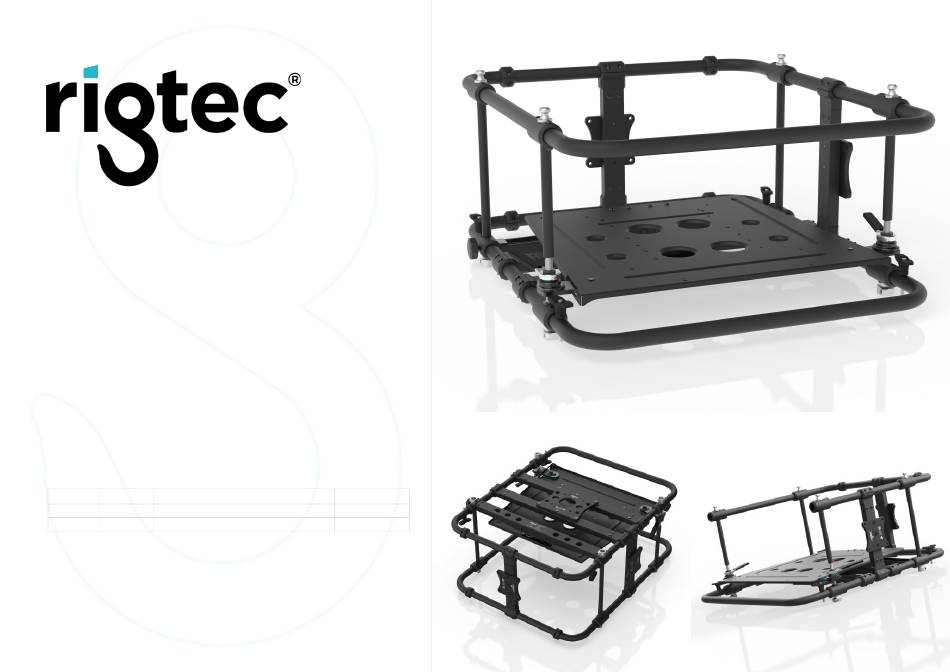

- Page 1 AIR FRAME X-20 (AF02-X20) USER GUIDE Version R1.1 Revision Date Revision Details Revised By R1.0 05/05/22 Version renamed from 1.0 to R1.0 R1.1 20/02/23 Installation accessories amended +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com...
- Page 2 Thank you for purchasing a Rigtec Air Frame. We hope you enjoy using the Air Frame as much as we’ve enjoyed designing and manufacturing it. If you have any questions, suggestions or just want to say hello; please contact the team at hello@rigtec.com +44 (0)1926 290 418 hello@rigtec.com...
-
Page 3: Table Of Contents
HANGING ACCESSORIES ATTACHING AN ATOM GRIP: LANDSCAPE PORTRAIT FLOOR PROJECTION SWIVEL COUPLER SAFETY INFORMATION ATTACHING SWIVEL COUPLERS: LANDSCAPE PORTRAIT FLOOR PROJECTION SAFETY STEEL CABLES SPECIFICATION DIMENSIONS CE DECLARATION OF CONFORMITY +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com UKCA DECLARATION OF CONFORMITY... -
Page 4: Safety Information
Do not hang the Air Frame from unstable, unsafe or inappropriate objects/ structures. Ensure the structure can support the overall weight. • When stacking Air Frames, ENSURE all four locking pins are securely positioned through the adjoining male and female Air Frame stacking connectors. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... - Page 5 • Any accident or dangerous occurrence. • Any significant change in conditions of use. • Any long periods of inaction. • Each time the equipment is used. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com...
-
Page 6: Safety Inspection
All Atom Grip Attachment Plates must be inspected, it is important to ensure that all threads are intact. If there is any damage to the threads that Atom Grip Attachment Plate must not be used. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 7: Air Frame Parts
Portrait Atom Grip Attachment Plate Floor Projection Atom Grip Attachment Plate M8 Atom Grip Threads Upper Side Bar Lower Side Bar Upper Back Bar Lower Back Bar Removable Front Bar Removable Front Bar Bolts Lower Front Bar +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 8: Compatible Projectors
D13WU2-HS • • Digital Projection M- • PT-RQ22K D16HD-HS • • Vision Laser 23000 PT-DZ21K D16WU-HS • • PT-DS20K D20HD-HS • • PT-DW17K D20WU-HS • • PT-DZ16K Optoma ZK750 • • Optoma ZK1050 • +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 9: Installation Accessories
INSTALLATION ACCESSORIES Rigtec Air Frames are provided with all the necessary accessories to install the projector into the Air Frame. Bolts, washers and spacers will be required for all projectors, using the incorrect size could lead to damage to the projector or serious failure of the Air Frame. Please consult the following table to find the correct bolts, washers and spacers to use with your projector. - Page 10 ◆ ◆ ◆ Frame and Projector. Digital Projection M-Vision Laser 23000 WU [6] ◆ ◆ ◆ Optoma ZK750 [4] ◆ ◆ ◆ Optoma ZK1050 [4] ◆ ◆ ◆ NEC PX2000UL [4] ◆ ◆ ◆ +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com...
-
Page 11: Installinga Projector
Use a spanner to tighten the bolts. Please Torque bolts to 4±0.5 Nm (Or as recommended by the Projector Manufacturer in the Projector User guide) Only use supplied bolts to connect Air Frame and Projector. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 12: Adjustments
Handles in the same directions (Anti-Clockwise to raise, Clockwise to lower). To control the projector on the Axis, operate the Yaw Adjustment Handle. Clockwise for movement to the left and Anti- Clockwise for movement to the right. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 13: Stacking
Air Frame stacking connectors. Care should be taken when lifting and moving Air Frames with Projectors installed – the combined weight of the device and any accessory should be within safe manual handling limits. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 14: Stacking Limits
Rigtec Air Frames. A Stack of Air Frames must only be suspended in a Landscape Orientation, either with an Atom Grip or Rigtec Swivel Couplers - DO NOT suspend a stack of Air Frames in Portrait or Floor Projection Orientation. -
Page 15: Removable Front Bar
Once the front bar is firmly in place, locate the four Removable Bar Bolts back into the holes in the top and bottom of both left and right front blocks and tighten with the 5mm Hex Key. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 16: Hanging Accessories
Frame, the next few pages will detail those accessories and the give instructions on how to safely suspend Rigtec Air Frames. Rigtec Atom Grips The best solution for hanging an Air Frame is by using a Rigtec Atom Grip, depending on the application there are 3 models to choose from:... -
Page 17: Attaching An Atom Grip
Ensure all four M8 bolts are torqued to 6±0.5 Nm (M8). Any suspended accessory must be independently secured with an approved safety wire/s. Local laws or regulations should be consulted regarding the additional safety of hanging equipment +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 18: Portrait
Air Frame is hanging in a portrait orientation. Any suspended accessory must be independently secured with an approved safety wire/s. Local laws or regulations should be consulted regarding the additional safety of hanging equipment +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 19: Floor Projection
Ensure all four M8 bolts are torqued to 6±0.5 Nm (M8). Any suspended accessory must be independently secured with an approved safety wire/s. Local laws or regulations should be consulted regarding the additional safety of hanging equipment +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 20: Landscape
Any suspended accessory must be independently secured with an approved SAFETY WIRE/S. Local laws or regulations should Right be consulted regarding the additional safety of hanging equipment. Only stack a MAXIMUM Air Frames (AF02-X20), when suspending with Swivel Couplers. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com Back Left... -
Page 21: Attaching Swivel Couplers
ATTACHING RIGTEC SWIVEL COUPLERS To hang an Air Frame in Landscape Orientation with the Rigtec Swivel Clamps, follow these instructions: Measure the distance between the two truss chords that will be used to hang the Air Frame. Using the 32mm clamps, attach two Swivel Couplers at the measured distance apart on the upper side bar. -
Page 22: Portrait
ATTACHING RIGTEC SWIVEL COUPLERS To hang an Air Frame in Portrait Orientation with the Swivel Couplers, follow these instructions: Measure the distance between the two truss chords that will be used to hang the Air Frame. Using the 32mm clamps, attach two Swivel Couplers at the measured distance apart on the upper side bar. -
Page 23: Floor Projection
ATTACHING RIGTEC SWIVEL COUPLERS To hang an Air Frame in Floor Projection Orientation with the Rigtec Swivel Couplers, follow these instructions: Measure the distance between the two truss chords that will be used to hang the Air Frame. Using the 32mm clamps, attach two Swivel Couplers at the measured distance apart to the upper back bar. -
Page 24: Safety Steel Cables
- No drop distance is allowed or must be limited as much as possible. Please follow these instructions and diagrams when choosing where to position Safety Steel Cables on Rigtec Air Frames: Landscape Orientation; Please loop safety steel cables around the suspending truss and through the Air Frame, around the Side Bars. -
Page 25: Specification
SPECIFICATION Part Number: AF02-X20 Description: Air Frame X-20 Weight: 25.1kg / 55.34 lbs Roll Adjustment: ±3.2° Pitch Adjustment: +2.4° / - 2.3° Yaw Adjustment: ±3.3° Maximum Projector & Lens Weight: 72.2 kg / 159.17 lbs Landscape WLL: 224kg / 493.84 lbs Portrait WLL: 105kg / 231.48 lbs... -
Page 26: Dimensions
DIMENSIONS +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 27: Ce Declaration Of Conformity
Manufacturer: Rigtec Ltd Unit B1 Holly Farm Business Park Kenilworth CV8 1NP CE DECLARATION +44 (0) 1926 290 418 www.rigtec.com OF CONFORMITY Description of lifting accessory: Air Frame AF02-X20 Rigging Frame for Projector Part Number: AF02-X20 Is in accordance with the following Directive:... -
Page 28: Ukca Declaration Of Conformity
Manufacturer: Rigtec Ltd Unit B1 Holly Farm Business Park Kenilworth CV8 1NP UKCA DECLARATION +44 (0) 1926 290 418 www.rigtec.com OF CONFORMITY Description of lifting accessory: Air Frame AF02-X20 Rigging Frame for Projector Part Number: AF02-X20 Is in accordance with the following Directive:...
