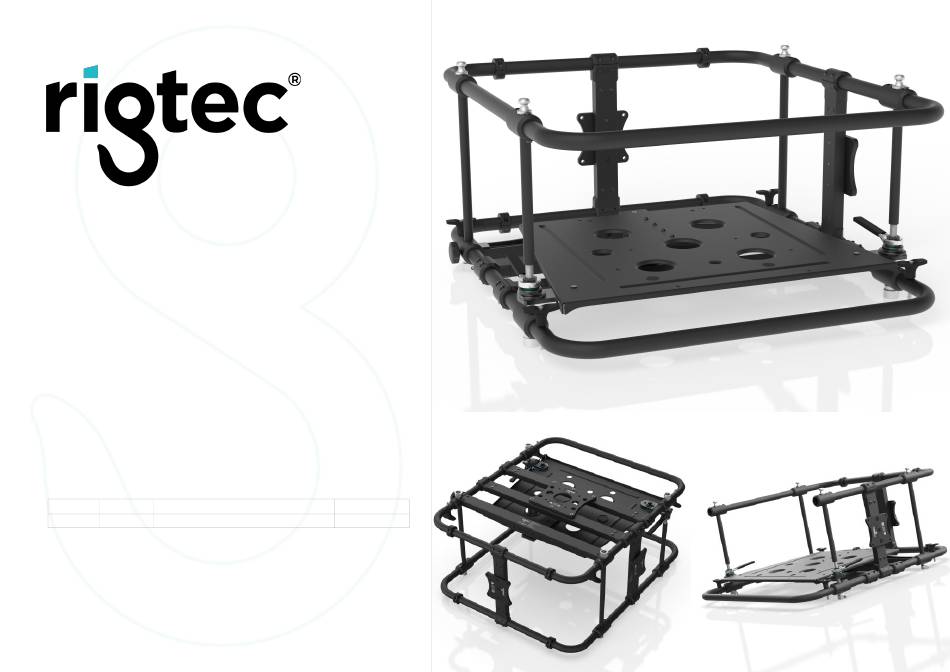

- Page 1 AIR FRAME X-40 (AF02-X40) USER GUIDE Version 1.0 Revision Date Revision Details Revised By +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com...
- Page 2 Thank you for purchasing a Rigtec Air Frame. We hope you enjoy using the Air Frame as much as we’ve enjoyed designing and manufacturing it. If you have any questions, suggestions or just want to say hello; please contact the team at hello@rigtec.com +44 (0)1926 290 418 hello@rigtec.com...
-
Page 3: Table Of Contents
HANGING ACCESSORIES ATTACHING AN ATOM GRIP: LANDSCAPE PORTRAIT FLOOR PROJECTION SWIVEL COUPLER SAFETY INFORMATION ATTACHING SWIVEL COUPLERS: LANDSCAPE PORTRAIT FLOOR PROJECTION SAFETY STEEL CABLES SPECIFICATION DIMENSIONS CE DECLARATION OF CONFORMITY +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com UKCA DECLARATION OF CONFORMITY... -
Page 4: Safety Information
Do not hang the Air Frame from unstable, unsafe or inappropriate objects/ structures. Ensure the structure can support the overall weight. • When stacking Air Frames, ENSURE all four locking pins are securely positioned through the adjoining male and female Air Frame stacking connectors. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... - Page 5 • Any accident or dangerous occurrence. • Any significant change in conditions of use. • Any long periods of inaction. • Each time the equipment is used. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com...
-
Page 6: Safety Inspection
All Atom Grip Attachment Plates must be inspected, it is important to ensure that all threads are intact. If there is any damage to the threads that Atom Grip Attachment Plate must not be used. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 7: Air Frame Parts
Portrait Atom Grip Attachment Plate Floor Projection Atom Grip Attachment Plate M8 Atom Grip Threads Upper Side Bar Lower Side Bar Upper Back Bar Lower Back Bar Removable Front Bar Removable Front Bar Bolts Lower Front Bar +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 8: Compatible Projectors
Hole Set 1 Hole Set 2 Square Triangle Epson EB-L12000Q Barco G100 W16 • • Epson EB-L20000U Barco G100 W19 • • Barco G100 W22 • Optoma ZU1700 • Optoma ZU1900 • Optoma ZU2200 • +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 9: Installation Accessories
Model ACCESSORIES ◆ ◆ ◆ Epson EB-L12000Q [6] Rigtec Air Frames are provided with all the necessary accessories to install the projector into the Air Frame. ◆ ◆ ◆ Epson EB-L20000U [6] Bolts, washers and spacers will be required for all projectors, using the incorrect size could lead to damage to the projector or serious failure of the Air Frame. -
Page 10: Installinga Projector
Use a spanner to tighten the bolts. Please Torque bolts to 4±0.5 Nm (Or as recommended by the Projector Manufacturer in the Projector User guide) Only use supplied bolts to connect Air Frame and Projector. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 11: Adjustments
Handles in the same directions (Anti-Clockwise to raise, Clockwise to lower). To control the projector on the Axis, operate the Yaw Adjustment Handle. Clockwise for movement to the left and Anti- Clockwise for movement to the right. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 12: Stacking
Air Frame stacking connectors. Care should be taken when lifting and moving Air Frames with Projectors installed – the combined weight of the device and any accessory should be within safe manual handling limits. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 13: Stacking Limits
Rigtec Air Frames. A Stack of Air Frames must only be suspended in a Landscape Orientation, either with an Atom Grip or Rigtec Swivel Couplers - DO NOT suspend a stack of Air Frames in Portrait or Floor Projection Orientation. -
Page 14: Removable Front Bar
Once the front bar is firmly in place, locate the four Removable Bar Bolts back into the holes in the top and bottom of both left and right front blocks and tighten with the 5mm Hex Key. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 15: Hanging Accessories
Frame, the next few pages will detail those accessories and the give instructions on how to safely suspend Rigtec Air Frames. Rigtec Atom Grips The best solution for hanging an Air Frame is by using a Rigtec Atom Grip, depending on the application there are 3 models to choose from:... -
Page 16: Attaching An Atom Grip
Ensure all four M8 bolts are torqued to 6±0.5 Nm (M8). Any suspended accessory must be independently secured with an approved safety wire/s. Local laws or regulations should be consulted regarding the additional safety of hanging equipment +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 17: Portrait
Air Frame is hanging in a portrait orientation. Any suspended accessory must be independently secured with an approved safety wire/s. Local laws or regulations should be consulted regarding the additional safety of hanging equipment +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 18: Floor Projection
Ensure all four M8 bolts are torqued to 6±0.5 Nm (M8). Any suspended accessory must be independently secured with an approved safety wire/s. Local laws or regulations should be consulted regarding the additional safety of hanging equipment +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 19: Landscape
Any suspended accessory must be independently secured with an approved SAFETY WIRE/S. Local laws or regulations should Right be consulted regarding the additional safety of hanging equipment. Only stack a MAXIMUM Air Frames (AF02-X40), when suspending with Swivel Couplers. +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com Back Left... -
Page 20: Attaching Swivel Couplers
ATTACHING RIGTEC SWIVEL COUPLERS To hang an Air Frame in Landscape Orientation with the Rigtec Swivel Couplers, follow these instructions: Measure the distance between the two truss chords that will be used to hang the Air Frame. Using the 32mm clamps, attach two Swivel Couplers at the measured distance apart on the upper side bar. -
Page 21: Portrait
ATTACHING RIGTEC SWIVEL COUPLERS To hang an Air Frame in Portrait Orientation with the Rigtec Swivel Couplers, follow these instructions: Measure the distance between the two truss chords that will be used to hang the Air Frame. Using the 32mm clamps, attach two Swivel Couplers at the measured distance apart on the upper side bar. -
Page 22: Floor Projection
ATTACHING RIGTEC SWIVEL COUPLERS To hang an Air Frame in Floor Projection Orientation with the Rigtec Swivel Couplers, follow these instructions: Measure the distance between the two truss chords that will be used to hang the Air Frame. Using the 32mm clamps, attach two Swivel Couplers at the measured distance apart to the upper back bar. -
Page 23: Safety Steel Cables
- No drop distance is allowed or must be limited as much as possible. Please follow these instructions and diagrams when choosing where to position Safety Steel Cables on Rigtec Air Frames: Landscape Orientation; Please loop safety steel cables around the suspending truss and through the Air Frame, around the Side Bars. -
Page 24: Specification
SPECIFICATION Part Number: AF02-X40 Description: Air Frame X-40 Weight: 25.4kg / 56 lbs ±3.1° Roll Adjustment: +2.7° / - 2.1° Pitch Adjustment: ±3.3° Yaw Adjustment: Maximum Projector & Lens Weight: 65kg / 143.3 lbs Landscape WLL: 180.8kg / 398.60 lbs Portrait WLL: 90.4kg / 199.30 lbs... -
Page 25: Dimensions
DIMENSIONS +44 (0)1926 290 418 hello@rigtec.com www.rigtec.com... -
Page 26: Ce Declaration Of Conformity
CV8 1NP CE DECLARATION +44 (0) 1926 290 418 www.rigtec.com OF CONFORMITY Description of lifting accessory: Air Frame AF02-X40 Rigging Frame for Projector Part Number: AF02-X40 Is in accordance with the following Directive: Machinery Directive 2006/42/EC Harmonised Standards: EN ISO 12100:2010 Safety of machinery. -
Page 27: Ukca Declaration Of Conformity
+44 (0) 1926 290 418 www.rigtec.com OF CONFORMITY Description of lifting accessory: Air Frame AF02-X40 Rigging Frame for Projector Part Number: AF02-X40 Is in accordance with the following Directive: Supply of Machinery [Safety] Regulations 2008 and Supply of Machinery [Safety]...
