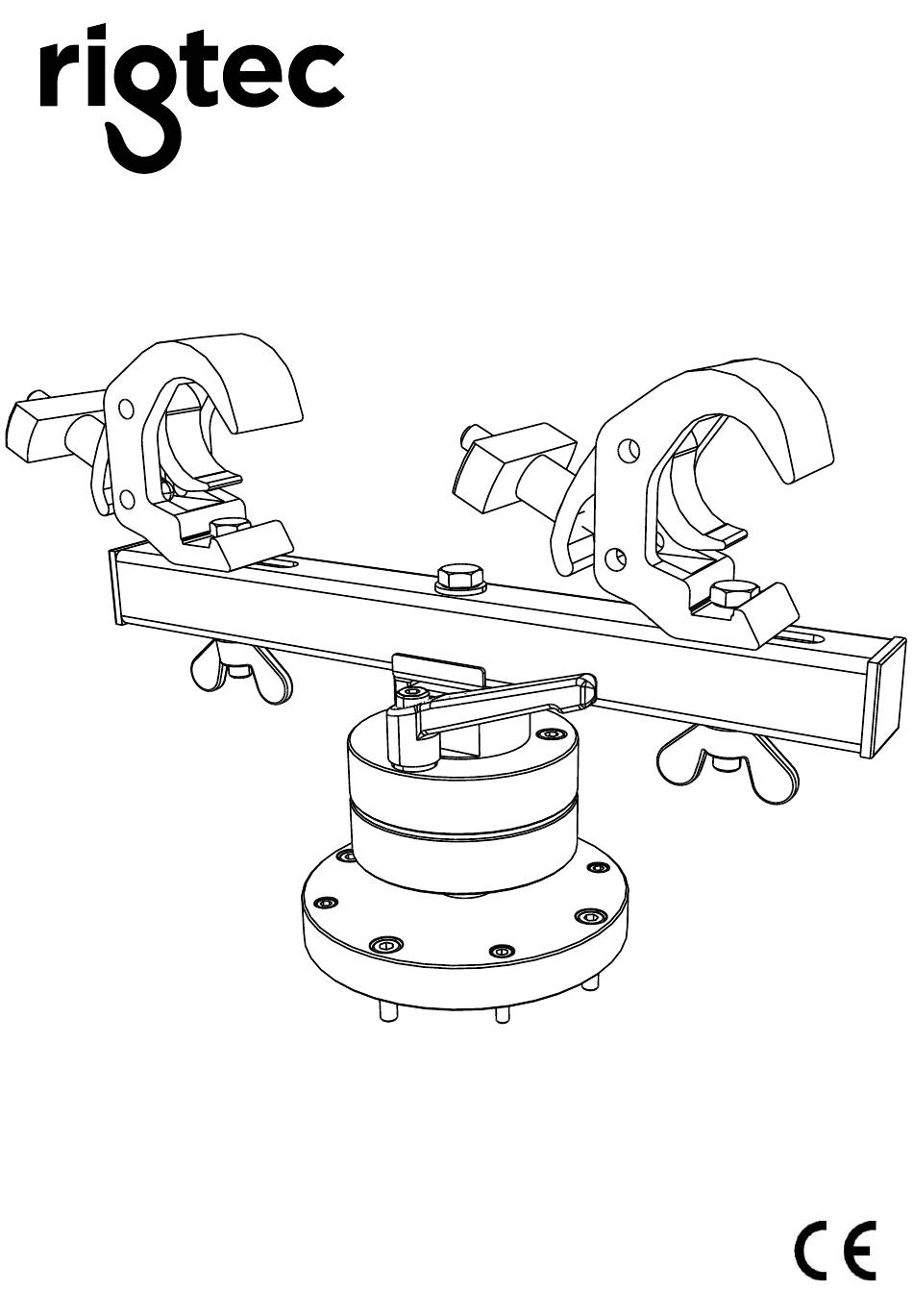

- Page 1 User Guide ATM100080 ATOM GRIP DUO...
-
Page 2: Saftey Information
SAFTEY INFORMATION These instructions should be handed over to the person carrying out the installation. Only a qualified technician should carry out installation work. The device should only be used with approved accessories and spares. Never exceed the Safe Working Load – when used with other accessories make sure that the Safe Working Load of any component is not exceeded. -
Page 3: Product Description
PRODUCT DESCRIPTION Atom Grip Duo Type Twin point truss mount for mounting Rental Frames, Plate Adaptors & Portrait Adaptors. Twin point with 25° of Tilt and 360° of rotation for fixing to Ø38-51mm trusses. Quick Trigger Clamps can be adjusted to fit on truss from 207mm to 339mm. -
Page 4: Installation And Use
INSTALLATION AND USE Locate the twin point, tilt & swivel onto the accessory so that the captive screws align with the respective threaded holes and secure using the applicable 4 off M6 or 4 off M8 captive fixing screws: Torque to 4±0.5 Nm (M6) or 6±0.5 Nm (M8). - Page 5 Loosen wing nuts to locate the Quick Trigger Clamps in the correct position to fit on truss. Loosen the clamp nut on both Quick Trigger Clamps so they can fit onto the truss. Lift onto the mounting truss (2 people may be required) ...
-
Page 6: Disengage Lever
The device is operated by the locking lever, clamping is achieved by moving the lever to the left and releasing by moving to the right. If more or less clamping is required, lifting the lever will disengage it allowing it to be swivelled to the ideal clamping position. -
Page 7: Specification
SPECIFICATION Part Number: ATM100080 Description: Atom Grip Duo Weight: 6.7 kg Material: Aluminium Fixings: 4 off M6 or M8 at 100mm spacing 207mm - 339mm. For Truss Dimensions: Tube Size: 48-51mm Safe Working Load (SWL): 295kg... -
Page 8: Ec Declaration Of Conformity
Unit B1/B2 Holly Farm Business Park, Honiley, Kenilworth, Warwickshire, CV8 1NP 16/02/15 Rigtec is a trading name of Central Presentations Ltd. Central Presentations is a limited company registered in England and Wales. Registration number: 3929644. Registered Office: Holly Farm Business Park,...
