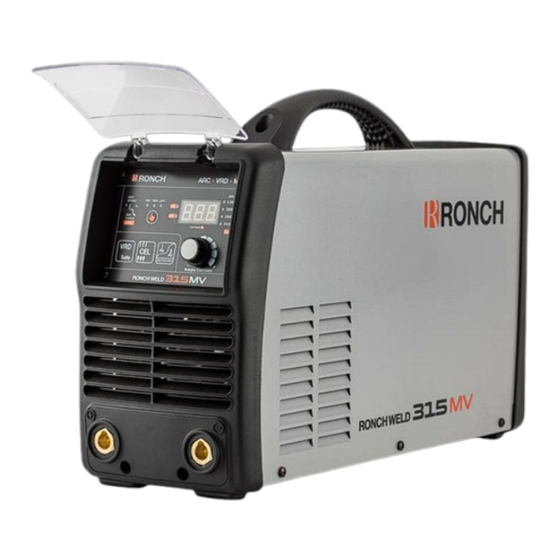

Summary of Contents for Ronch 315MV

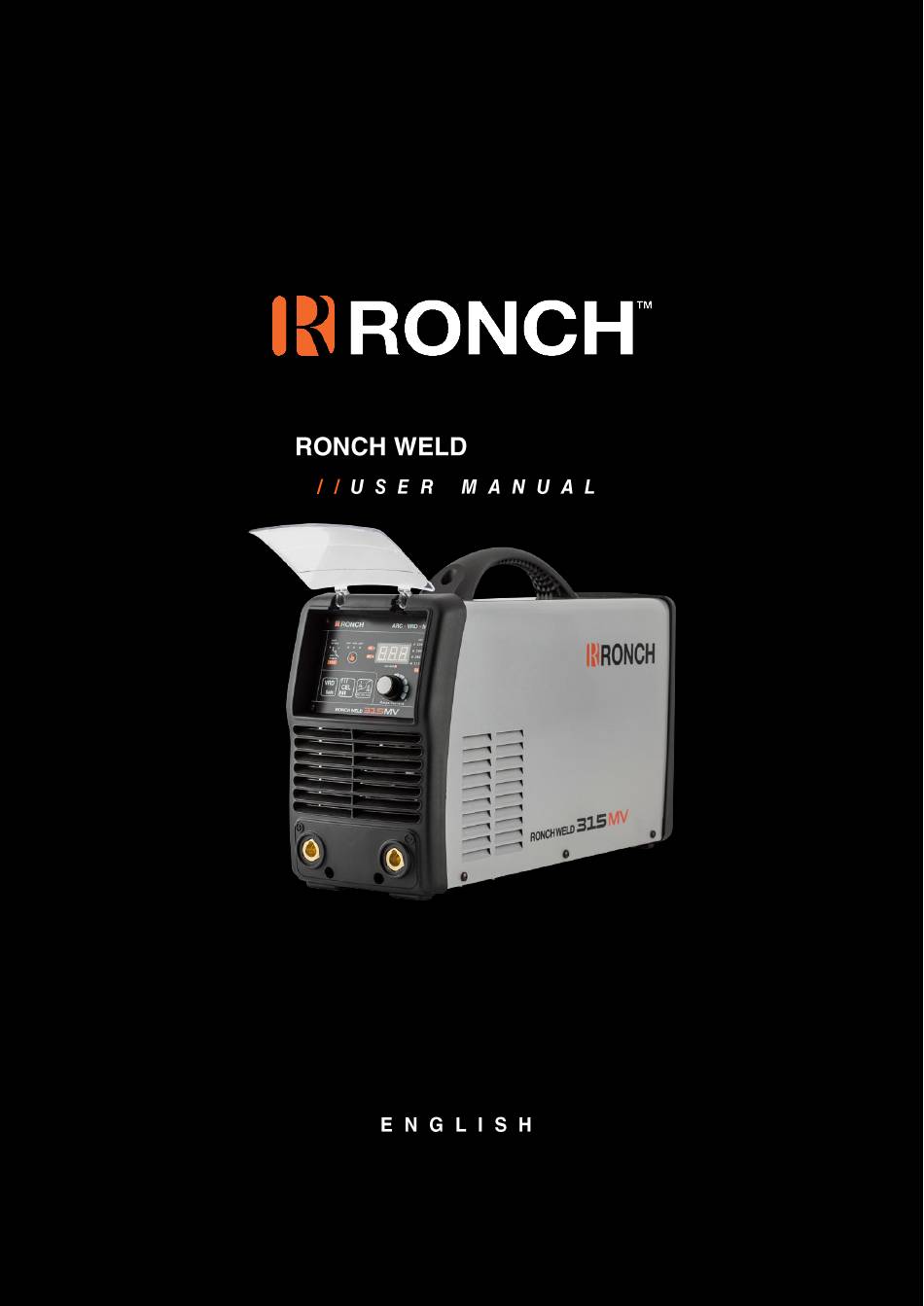

  • Page 1 SERIES 315MV STICK •...

  • Page 2: Table Of Contents

    CONTENT 1. Safety • 1.1. SIGNAL EXPLANATION • 1.2. ARC WELDING DAMAGE • 2. SUMMARY • 2.1. BRIEF INTRODUCTION • 2.2. WORKING PRINCIPLE • 2.3. VOLT-AMPERE CHARACTERISTIC • 3. Installation & ADJUSTMENT • 3.1. PARAMETERS • 3.2. DUTY CYCLE & OVER HEAT •...
  • Page 3 5. MAINTENANCE & TROUBLESHOOTING • 5.1. MAINTENANCE • 5.2. TROUBLESHOOTING • 5.3. ELECTRICAL PRINCIPLE DRAWING •...

  • Page 4: Safety

    1. Safety • 1.1. Signal Explanation The above signals mean warning! Notice! Running parts and getting an electric shock or thermal parts will take damage for your body or others. The corresponding notices are as follows. It is quite a safe operation after taking several necessary protection measures.
  • Page 5 FUMES AND GASES CAN BE DANGEROUS.  Welding may produce fumes and gases hazardous to health. Avoid breathing these fumes and gases. When welding, keep your head out of the fume. Use enough ventilation and/or exhaust at the arc to keep fumes and gases away from the breathing zone.
  • Page 6 WELDING SPARKS can cause fire or explosion.  Remove fire hazards from the welding area. If this is not possible, cover them to prevent the welding sparks from starting a fire. Remember that welding sparks and hot materials from welding can easily go through small cracks and openings to adjacent areas.

  • Page 7: Brief Introduction

    2. SUMMARY This operation manual is suitable for the models of ARC 315 MV (PFC) • 2.1. Brief Introduction ARC 315 MV (PFC) welders are general MMA arc welder which adopts the latest pulse width modulation (PWM) technology and the insulated gate bipolar transistor (IGBT) power module. It can change work frequency to medium frequency so as to replace the traditional hulking work frequency transformer with the cabinet medium frequency transformer.

  • Page 8: Working Principle

    • 2.2. Working Principle The working principle of ARC 315MV (PFC)welder is shown as the following figure. Single phase 110V－ 460V±10% work frequency (50/60 Hz) AC is rectified into DC, three phase 220V－460V±10% work frequency (50/60 Hz) AC is rectified into DC, then by PFC circuit, DC(about 750V) is converted to medium...

  • Page 9: Installation & Adjustment

    3. Installation & ADJUSTMENT • 3.1. Parameters Models ARC 315 MV / ARC 315 MV CEL Parameters Power Supply 1~110±10% 1~220±10% 1~380±10% 1~460±10% Voltage(V) Frequency(Hz) 50/60 50/60 50/60 50/60 Rated input 12.0 11.5 Power（KW） Rated input 31.7 32.5 26.7 Current(A) 30% 120A 50% 250A 45% 200A...
  • Page 10 Frequency(Hz) 50/60 50/60 50/60 Rated input 11.9 11.9 Power（KW） Rated input 23.5 25.6 10.5 15.7 Current(A) 35% 315A 35% 250A 40% 315A Duty Cycle( 60% 245A 60% 195A 60% 260A 40℃ 10min) 100% 190A 100% 150A 100% 200A No Load 67 (ARC 315 MV) 80 (ARC 315 MV CEL) Voltage(V)

  • Page 11: Duty Cycle & Over Heat

    • 3.2. Duty cycle & Over heat The letter “X” stands for duty cycle, which is defined as the proportion of the time that a machine can work continuously within a certain time (10 minutes). The rated duty cycle means the proportion of the time that a machine can work continuously within 10 minutes when it outputs the rated welding current.

  • Page 13: Welding Polarity Connection Way

    • 3.3. Welding polarity connection way • 3.3.1. MMA ARC 315MV ARC 315MV Welding holder Welding holder electrode electrode Work piece Work piece DCEN DCEP Choosing the connection of DCEN or DCEP is based on the arc stable burning condition. The different...

  • Page 14: Tig

    • 3.3.2. TIG ● When TIG operation, the ARC315MV shielded gas is input to welding gun directly, and the method of lifting arc is scraping arc. Welding gun Work piece DCEN 1、 Place the welding 2、 Scrape the electrode 3、 Lift arc. gun aslant.

  • Page 15: Operation Control & Connectors

    4. OPERATION CONTROL & CONNECTORS • 4.1. Layout for front & rear panel pilot lamp: This pilot lamp when lit indicates that the is 315A. Maximum current maximum current pilot lamp: This pilot lamp when lit indicates that the is 250A Maximum current maximum current (MMA) / 315A (LIFT TIG).

  • Page 16: Welding Current Adjustment

    Power Supply Voltage(V) Imax (A) 1~110 1~220 3~220 1~380/460 3~380/460 1~110 1~220 3~220 1~380/460 3~380/460 Welding current display: The welding current display shows the welding current now. Power pilot lamp: This pilot lamp when lit indicates that the machine is on. Alarm pilot lamp: When the machine less voltage, over current, or over heat, Lift TIG Function pilot lamp VRD Function pilot lamp...

  • Page 17: Manipulation Of Electrode

    electrode electrode electrode upright workpiece workpiece touch workpiece 2～4mm Take the electrode upright The Electrode touch the workpiece Lift up for about 2-4mm Lifting arc: take the electrode to scrape the workpiece for striking arc. But it may cause the arc scratch, so must to lift arc in the groove.

  • Page 18: Arc Welding Defect And Prevent Method

    The welding current reference for different electrode diameter Electrode diameter/mm Welding current/A 25～40 40～60 50～80 100～130 The relation between the welding current(I)’ factor(K) & electrode diameter(d) (I＝K×d: Carbon electrode) Electrode 2～2.5 diameter/mm Factor/K 20～25 25～30 30～40 Notice: the above parameters originate from《Welding Dictionary》P66～P67, Volume 1 of Edition 2.

  • Page 19: Operation Environment

    Under current or over speed in the welding Correctly to choose parameters and to operate The arc is too long or lean burning, the Using the short arc operation molten pool protection is not good Welding operation in the field should have anti- Over current, the coating of electrode falls off wind protection and lose protection...
  • Page 20 5. MAINTENANCE & TROUBLESHOOTING • 5.1. Maintenance In order to guarantee that arc welding machine works high-efficiently and in safety, it must be maintained regularly. Let customers understand the maintenance methods and means of arc welding machine more, enable customers to carry on simple examination and safeguarding by oneself, try one's best to reduce the fault rate and repair times of arc welding machine, so as to lengthen service life of arc welding machine .Maintenance items in detail are in the following table.
  • Page 21 If there is any problem and has no the authorized professional maintenance personal of our company, please contact local our company agent or the branch company! If there are some simple troubles of ARC 315MV (PFC) welding machines, you can consult the following overhauling chart:...
  • Page 22 MMA/TIG welding selection is wrong Selecting the MMA welding The arc is not stable in the welding The arc force is too small Increase the arc force process The welding current potentiometer in the The welding current can not be front panel connection not so good or Repair or change the potentiometer adjusted...
  • Page 23 • 5.3. Electrical principle drawING...
  • Page 24 315MV STICK •...
