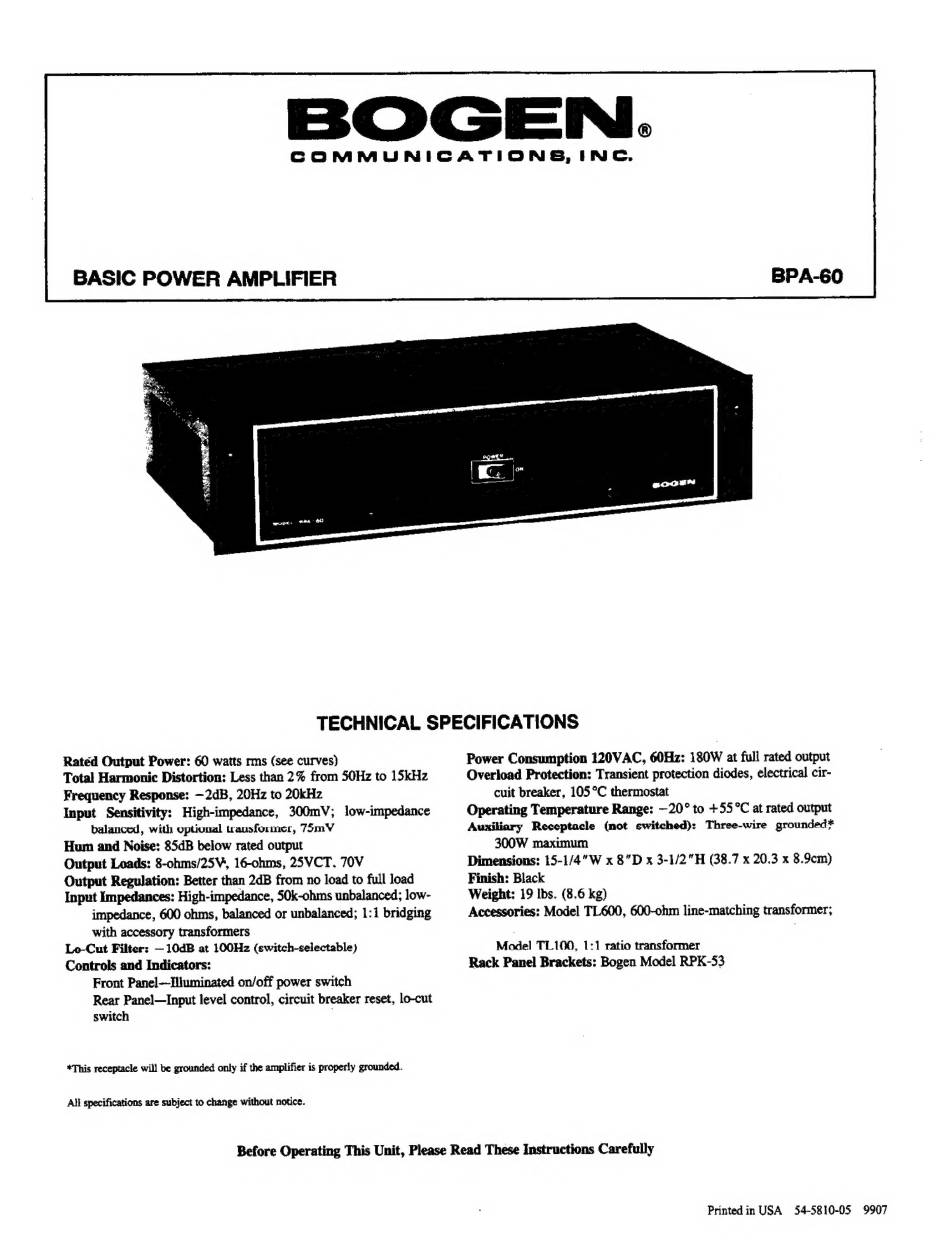

Bogen BPA-60 Quick Start Manual

BOGEN.
COMMUNICATIONS, INC.
BASIC POWER AMPLIFIER
TECHNICAL SPECIFICATIONS
Rated Output Power: 60 watts rms (see curves)
Total Harmonic Distortion: Less than 2% from 50Hz to 15kHz
Frequency Response: —2dB, 20Hz to 20kHz
Input Sensitivity: High-impedance, 300mV; low-impedance
balanced, with optional transformer, 75mV
Hum and Noise: 85dB below rated output
Output Leads: 8-ohms/25V, 16-ohms, 25VCT. 70V
Output Regulation: Better than 2dB from no load to full load
Input Impedances: High-impedance, 50k-ohms unbalanced; low-
impedance, 600 ohms, balanced or unbalanced; 1:1 bridging
with accessory transformers
Lo-Cut Filter: —10dB at 100Hz (switch-selectable)
Controls and Indicators:
Front Panel—Iluminated on/off power switch
Rear Panel—Input level control, circuit breaker reset, lo-cut
switch .
*This receptacle will be grounded only if the amplifier is properly grounded.
All specifications are subject to change without notice.
Power Consumption 120VAC, 60Hz: 180W at full rated output
Overload Protection: Transient protection diodes, electrical cir-
cuit breaker, 105°C thermostat
Operating Temperature Range: —20° to +55 °C at rated output
Auxiliary Receptacle (not switched): Three-wire grounded?
300W maximum
Finish: Black
Weight: 19 lbs. (8.6 kg)
Accessories: Model TL600, 600-ohm line-matching transformer;
Model TL100, 1:1 ratio transformer
Rack Panel Brackets: Bogen Model RPK-53
Before Operating This Unit, Please Read These Instructions Carefully
Printed in USA 54-5810-05 9907
