Designs for Vision LED DayLite HDi User Manual

Hide thumbs Also See for LED DayLite HDi:
Table of Contents

Advertisement

Quick Links

Download this manual
®

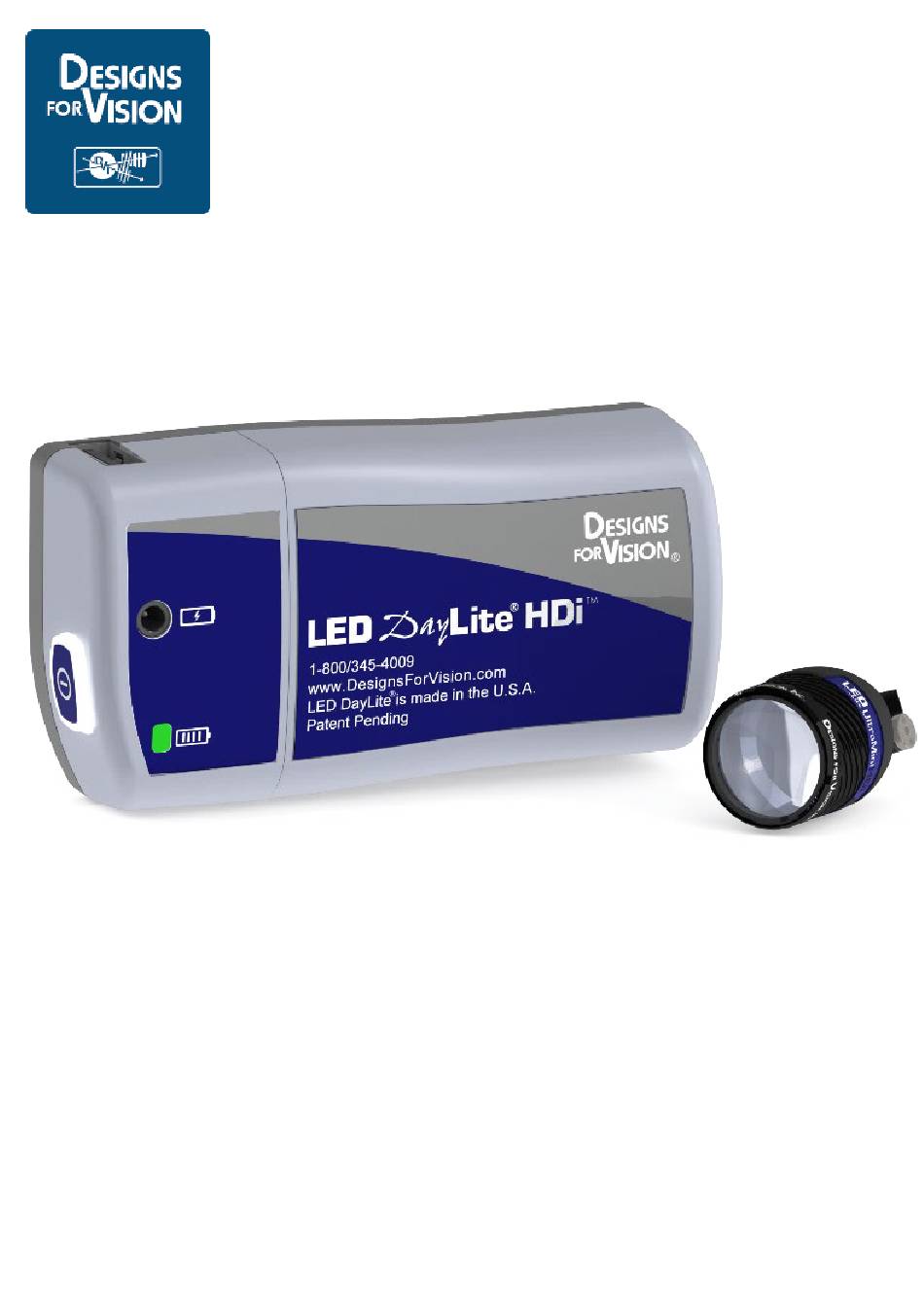

LED DayLite
HDi
™
®
D
ENTAL
U
G
SER
UIDE
Model: DVI-LEDDC
Ver. 11.23 (En)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED DayLite HDi and is the answer not in the manual?

Questions and answers

Related Manuals for Designs for Vision LED DayLite HDi

Summary of Contents for Designs for Vision LED DayLite HDi

  • Page 1 ® LED DayLite ™ ® ENTAL UIDE Model: DVI-LEDDC Ver. 11.23 (En)
  • Page 2 ATE OF SSUE 11-28-23 LED D ® ™ UIDE...
  • Page 3 . LED D ® HD ™ ESIGNS FOR ISION The Designs for Vision LED DayLite® HDi ™ provides bright, portable light to the laboratory environment. It is designed to be comfortable yet functional. The headlight is made to clip onto a wide variety of frames and/or headsets.
  • Page 4 Always examine the unit and accessories for damage before commencing use. Damaged accessories must not be used and must be replaced. Use original Designs for Vision, Inc. parts and accessories only. The use of unapproved parts may void the warranty.
  • Page 5 This equipment and accessories do not contain serviceable parts. All repairs need to be conducted by Designs for Vision, Inc. service personnel Do not let liquids enter openings or ports. Do not immerse parts in solutions. Allowing liquids to enter openings or ports may void...
  • Page 6 Remove battery from power pack if this device is not in use and will be stored for some time. Maintain storage at environmental conditions listed below Improper use of battery may cause them to get hot, ignite or explode. Always follow all safety precautions listed in this manual Never make changes or modifications to the battery pack...
  • Page 7 Any serious incident that has occurred in relation to the device should be reported to manufacturer competent authority of the Member State in which the user and/or patient is established. Do not plug or unplug the headlight to/from the power pack while the power pack is on. PECIFICATIONS LED DayLite Model Number: DVI-LEDDC...
  • Page 8 19 hours +/-10% DIMENSIONS POWER PACK 3.60” X 1.95” X .95” WEIGHT: 4.9 oz UltraMini® HEADLIGHT: .76” Dia. x 1.27” WEIGHT: .49 oz UltraMini® HDi HEADLIGHT: .76” Dia. x 1.27” ™ WEIGHT .50 oz. UltraMini® IR HEADLIGHT 1.5” x 1.1” x .81” WEIGHT .58 oz UltraMini®...
  • Page 9 APPROVALS UL 61010-1: 2012, CAN/CSA C22.2#61010-1: 2012, IEC 61010-1:2010, IEC 60601-1-2:4th Class B, IEC 62133 EQUIPMENT CLASS: Class II INGRESS OF WATER: IPX0 (ordinary equipment) Continuous MODE OF OPERATION NO APPLIED PARTS PROTECTION FROM SHOCK: Firmware Controlled Protection OVERCURRENT PROTECTION Not Intended to be Sterilized METHODS OF STERILIZATION Not Intended for Oxygen Rich...

  • Page 10: Table Of Contents

    ONTENTS Device Description ............... 11 Directions for Use ..............12 LED DayLite ® ™ Initial Setup and Charging ....12 Holster Operation ............14 Understanding the Status Indicator ........ 16 Replacing the Battery ............17 Using the UltraMini / HDi Headlights ......

  • Page 11: Device Description

    EVICE ESCRIPTION The UltraMini® / UltraMini® HDi ™ /UltraMini® IR/ UltraMini® IR HDi headlights generate a 3” spot of light at a 12-inch ™ working distance with an intensity of 55,000 lux and up to 19-hour battery runtime. All four lights have a correlated color temperature of 5800K.

  • Page 12: Directions For Use

    IRECTIONS FOR LED D ® ™ NITIAL ETUP AND HARGING Remove the components from the shipping container, checking that all parts on the packing NOTE: The list have been received. Carefully batteries need to receive a full remove the headlight, power pack(s), charge before desktop charger and charger cord...
  • Page 13 Plug the power cord into the charger and connect the desktop charger to the AC outlet. NOTE: International cords are available through Designs for Vision; refer to the list on page 24 of this manual. The power button light will start pulsing to indicate the unit is in “Smart Charge”...

  • Page 14: Holster Operation

    OLSTER PERATION In addition to the holsters, Ratcheting Belt Clips have been included to allow for a full 360° rotation of the unit, even while it is attached to you. To place the belt clip on to the holster, simply slide it up over the raised circular ratchet disk until an audible ‘click’...
  • Page 15 Squeeze the clip together to open. Arrow A (Fig. 4) shows where to press. The power pack can rotate to your desired position. Each increment is followed by an audible click. To remove the power pack from the clip, depress the button on the top of the belt clip while pulling up on the power pack, which is shown by arrow B (Fig.

  • Page 16: Understanding The Status Indicator

    NDERSTANDING THE TATUS NDICATOR The LED DayLite® HDi incorporates an advanced status ™ monitoring system. The following table describes what each indication signifies: OLID REEN ULLY HARGED ATTERY OLID ULSING ATTERY LINK ENERAL RROR LEASE CONTACT ESIGNS FOR ISION FOR FURTHER ASSISTANCE LINK ATTERY...

  • Page 17: Replacing The Battery

    The LED DayLite® HDi™ also incorporates a Low Battery Warning system. With approximately ten (10) minutes of battery power remaining, the headlight will flash three times. At five (5) minutes remaining, the headlight will flash another three times. At 30 (thirty) seconds remaining, the headlight will flash continually until the battery is completely depleted.

  • Page 18: Using The Ultramini / Hdi Headlights

    Unplug the black connector on the battery on the inside of the unit. Note: Replace with Designs for Vision, Inc. battery only. Using unapproved batteries may not work and will void the warranty. Insert the new battery being very careful to install in the proper orientation.
  • Page 19 opening turn clockwise to tighten the shaft. To unlock the position, loosen shaft by turning counter- clockwise. NOTE: The shaft will only turn a limited distance. Do not force in either direction. NOTE: Before inserting or removing any headlight cable from the power pack make sure the power pack is OFF The power pack MUST BE OFF before plugging or unplugging...
  • Page 20 must be facing in the direction shown. Connect the large end of the headlight cable to the headlight port on the top of the power pack. Clips and a cable wrap are also supplied to be used in conjunction with your frame to direct the cable away from your face.

  • Page 21: Using The Ultramini Ir/ Ir Hdi Headlight

    seated (Fig. 9). Using the supplied tool, tighten the set screw on the bottom of the filter to properly secure to the headlight. You can now rotate the UV/blue light filter into and out of the path of light, as required. NOTE: Be careful to not overtighten set screw when installing.

  • Page 22: Using The Intuitive Response Ultramini Hdi

    ™ SING THE LTRA NTUITIVE ESPONSE Your new Designs for Vision LED DayLite UltraMini IR™ ® headlight employs Infrared sensing technology along with on-board biometrics to provide a reliable user interface. When your LED headlight is first turned on, it will remain on for a period of approximately five (5) seconds.
  • Page 23 twice to indicate that it is entering biometric mode. Once in biometric mode, your LED headlight constantly monitors body position to determine if you are in your working position. When in your working position, the LED headlight will be on. If you look up from your working position the LED headlight should turn off automatically.

  • Page 24: Inspection And Preventative Maintenance

    (approximately two (2) seconds). Remove your finger from the sensor, and the current position of the LED headlight will be saved as your new working position. NOTE: The sensor does not turn off the power pack. In order to shut down power to the headlight, you need to press the button on the power pack.

  • Page 25: Description Of Various Symbols

    Do not immerse parts in solutions. Using solutions other than recommended may void warranty. Allowing liquids to enter openings or ports may void warranty. Wipe cables with plastic-safe cleaners, if necessary. Do • not allow cleaners to get onto the cable connectors as it may cause the electrical terminals to corrode Internal batteries must be replaced every 24 months to •...
  • Page 26 INDICATES CONFORMITY WITH MDD 93/42/EEC ANNEX VII/MDR2017 INDICATES WHERE THE UNIT CAN BE TURNED ON AND OFF INDICATES BATTERY STATE OF CHARGE INDICATES WHERE THE UNIT CAN BE CHARGED READ ACCOMPANYING DOCUMENTS WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) DIRECTIVE SYMBOL ELECTRICAL SHOCK HAZARD EQUIPMENT CLASS LED D...

  • Page 27: Replacement Parts

    EPLACEMENT ARTS ESCRIPTION UMBER UltraMini 4929-3000-0002 ® UltraMini 4902-3000-0001 ® ™ UltraMini 4933-3000-0001 ® UltraMini IR HDi 4932-3000-0001 ® ™ Li-Ion Battery Charger 4912-0000-2019 Li-Ion Battery 4912-0000-1018 United States Plug & Cord Set 4706-0000-0038 European Plug & Cord Set 4706-0000-0030 Australian Plug &...
  • Page 28 Reorient or relocate the receiving device  Increase the separation between the equipment  Consult Designs for Vision, Inc. for help  Table 201 – Guidance and Manufacturer’s Declaration – Emissions All Equipment and Systems Guidance and Manufacturer’s Declaration – Emissions ®...
  • Page 29 Table 202 – Guidance and Manufacturer’s Declaration – Immunity All Equipment and Systems Guidance and Manufacturer’s Declaration – Immunity The LED DayLite is intended for use in the electromagnetic ® ™ environment specified below. The customer or user of the LED DayLite ®...
  • Page 30 Voltage 0% U : for 0% U : for Mains power Dips/Dropout 0.5 Cycle 0.5 Cycle quality should be that of a typical At 0˚, 45˚, 90˚, At 0˚, 45˚, residential 61000-4-11 135˚, 180˚, 90˚, 135˚, environment. 225˚, 270˚, 180˚, 225˚, 315˚...
  • Page 31 Table 204 – Guidance and Manufacturer’s Declaration – Emissions Equipment and Systems that are NOT Life-Supporting Guidance and Manufacturer’s Declaration – Emissions The LED DayLite is intended for use in the electromagnetic ® ™ environment specified below. The customer or user of the LED DayLite ®...
  • Page 32 Table 206 – Recommended Separation Distances between portable and mobile RF Communications equipment and the LED DayLite® HDi™ Equipment and Systems that are NOT Life-Supporting Recommended Separations Distances for the LED DayLite ® ™ The LED DayLite is intended for use in the electromagnetic ®...
  • Page 33 GSM 1800; 1720 CDMA 1900; Pulse 1700 - GSM 1900; 1845 Modulation 1990 DECT; LTE 217 Hz Band 1, 3, 4, 1970 25; UMTS Bluetooth, WLAN, Pulse 2400 - 802.11 2450 Modulation 2570 b/g/n, RFID 217 Hz 2450, LTE Band 7 5240 Pulse 5100 -...
  • Page 34 equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation. Portable RF communications equipment (including ARNING peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the LED DayLite ®...

  • Page 35: Warranty

    ARRANTY The UltraMini ® , UltraMini ® ™ , UltraMini ® IR and UltraMini ® IR HDi ™ headlights are warranted against imperfections and defects in materials and workmanship for four years. The power pack is warranted for two years. The internal batteries, charger, and cables are warranted for one year.
  • Page 36 MADE IN AMERICA ECHNICAL SUPPORT USTOMER ERVICE 1.800.345.4009 Outside the US-Call Local Distributor Manufactured by Designs for Vision, Inc 4000 Veterans Memorial Hwy Bohemia, NY 11716 Emergo Europe United States B.V. Prinsessegracht 20 2514 AP Toll Free 800/345-4009 • Fax 631/585-3404...
