LED DayLite
®
U
G
SER
UIDE
Model: DVI-WRLS
WireLess
Ver. 4.21 (En)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LED DayLite WireLess DVI-WRLS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Designs for Vision LED DayLite WireLess DVI-WRLS

  • Page 1 ® LED DayLite ® UIDE Model: DVI-WRLS WireLess ™ Ver. 4.21 (En)
  • Page 2: Table Of Contents

    ONTENTS Indications for Use .............. 3 Device Description .............. 3 Contraindications ..............3 Warnings ................4 Specifications ............... 7 Device Diagrams ..............9 Directions for Use .............. 11 Charging the Battery Pods ............11 Using the Headlight ..............13 Wireless IR HDi Headlight Operation .......15 Inspection and Preventative Maintenance ......
  • Page 3: Indications For Use

    EVICE ESCRIPTION The Designs for Vision® LED DayLite® WireLess provides bright, portable light to the laboratory environment. The headlight is designed to clip onto a wide variety of frames. It is powered by a lithium ion battery and generates a 3”...
  • Page 4: Warnings

    Damaged accessories must not be used and must be replaced. Use original Designs for Vision, Inc. parts and accessories only. The use of unapproved parts may void the warranty. To reduce the risk of battery explosion, follow these...
  • Page 5 This equipment and accessories do not contain serviceable parts. All repairs need to be conducted by Designs for Vision, Inc. service personnel Do not let liquids enter openings or ports. Do not immerse parts in solutions. Allowing liquids to enter openings or ports may void warranty.
  • Page 6 Improper use of battery pod may cause them to get hot, ignite or explode. Always follow all safety precautions listed in this manual Never make changes or modifications to the battery Do not short circuit Do not expose to fire Protect battery from fluids...
  • Page 7: Specifications

    PECIFICATIONS POWER REQUIREMENTS Battery Power : Designs for Vision, Inc. ® 3.7VDC, 700mAh LED DayLite ® WireLess 1 Cell 16340 Li-Ion Battery ™ Model Number: DVI-WRLS For Charging : Charger Model Number: SMT-CH Input : 100-240VAC, 50/60 Hz, 0.5A rms Output : 4.2VDC, 1.0A max per port...
  • Page 8 IEC 61010-1:2010 UL 1310:2011 CAN/CSA C22.2#107.1:2001 EN 60335-1:2012 EN 60335-2-29:2004 PATENTS: US PAT. 8,851,709 US PAT. D600,728 US PAT. 8,215,791 US PAT. D589,545 US PAT. 7,690,806 B2 US PAT. 8,851,709 HDi™ Technology Patent Pending US PAT. 8,215,791 US PAT. 7,690,806 LED DayLite WireLess User Guide...
  • Page 9: Device Diagrams

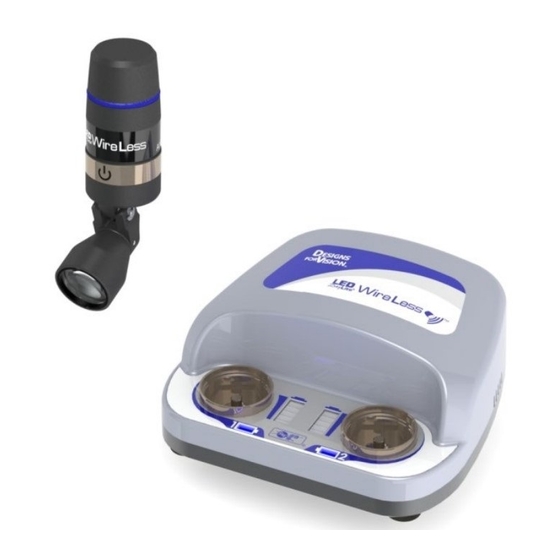

    The LED DayLite® WireLess includes these main components: Wireless Headlight Wireless IR HDi Headlight Three Battery Pods Smart Charging Cradle AC Power Cord Accessories include: Hex Drivers (if equipped) UV/Blue Light Filter T-Mount Bracket (sold separately) Color Coded Bands Operation Manual Warranty Card EVICE IAGRAMS...
  • Page 10 ATTERY LED H EADLIGHT MART HARGING RADLE OUNT ONNECTION APACITIVE OUCH WITCH DJUSTABLE EADLIGHT HARGING ATTERY AUGE ATTERY NDICATOR LED DayLite WireLess User Guide ®...
  • Page 11: Directions For Use

    IRECTIONS FOR HARGING THE ATTERY Remove the components from the shipping container, checking that all parts on the packing list have been received. NOTE: The battery pods Carefully remove the headlight, battery pods, need to receive charging cradle and AC power cord from the a full charge before initial...
  • Page 12 Vision; refer to the list of part numbers on page 19. You can now flip the power switch on the back of the charging cradle to turn on the power. You should notice two pulsing BLUE lights on the battery indicators, which show that the charging bays are ready to charge (Fig.3).
  • Page 13: Using The Headlight

    SING THE EADLIGHT Place the LED headlight onto the t-mount bracket for your frame. Take a charged battery pod and screw it firmly down onto the LED headlight. NOTE: Make sure to remove dust plug before installing battery pod. Do not apply excessive force when installing battery pod.
  • Page 14 The LED DayLite® Wireless also includes a Low Battery Warning. At approximately five (5) minutes remaining, the headlight will flash three times. This will continue once each minute until the headlight shuts off. The headlight can be adjusted up and down to align with your point of view.
  • Page 15: Wireless Ir Hdi Headlight Operation

    IR HD IRELESS EADLIGHT PERATION Your LED DayLite® WireLess IR HDi uses an infrared (IR) switch to ™ ™ control the light. The indicated area shows where the sensor is located (Fig. 7). Pass your hand within six inches of the top of the sensor.
  • Page 16 active. However, when the frame is hanging from a pair of chum straps the IR sensor is deactivated. This is done to minimize unintentional activation while the headlight is not in use. The headlight can also be adjusted up and down to align with your point of view.
  • Page 17: Understanding The Charging Cradle

    NDERSTANDING THE HARGING RADLE Your LED DayLite® WireLess comes with a rapid-charge smart battery monitoring system. This feature will check the health of your battery as well as indicate when it needs to be replaced. The Battery Status indicators can display messages according to the following chart: Battery Status Message OWER...
  • Page 18: Inspection And Preventative Maintenance

    Make sure the charger is in a cool location. If the error continues, discard the battery pod NOTE: Never use a battery pod that continuously gives Replace Battery and/or Battery Overheat indications. Discard in accordance with all regulations and contact Designs for Vision, Inc. for a replacement. NSPECTION AND REVENTATIVE AINTENANCE •...
  • Page 19: Plug And Cord Sets

    warranty. Battery Pods should be replaced every 12 months to ensure • proper operation NOTE: Do not Autoclave NOTE: For indoor use only NOTE: Disposal of the equipment and the accessories at the end of their useful lives should be in accordance with all national and local regulations NOTE: If the equipment is used in a manner not specified by Designs for Vision, Inc., the protection provided by the equipment may be...
  • Page 20: Description Of Various Symbols

    Indian Plug & Cord Set 4706-0000-0033 English Fused Plug & Cord Set 4706-0000-0034 Japanese Plug & Cord Set 4706-0000-0037 ESCRIPTION OF ARIOUS YMBOLS ATTENTION: CONSULT ACCOMPANYING DOCUMENTS INDICATES CONFORMITY OF THE PRODUCT WITH MDD 93/42/EEC ANNEX VII INDICATES WHERE THE UNIT CAN BE TURNED ON AND OFF WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) DIRECTIVE SYMBOL...
  • Page 21 ELECTRICAL SHOCK HAZARD READ ACCOMPANYING DOCUMENTS Use of this equipment adjacent to or stacked with other ARNING equipment should be avoided because it could result in improper operation. If such use is necessary, this equipment and the other equipment should be observed to verify that they are operating normally.
  • Page 22: Warranty

    WireLess . Otherwise, degradation of the performance of this equipment could result. The EMISSIONS characteristics of this equipment make it suitable for use in a residential environment (CISPR 11 class B). The LED DayLite WireLess may be adversely affected by EM ®...
  • Page 23 LED DayLite ® WireLess User Guide...
  • Page 24 ® ECHNICAL SUPPORT USTOMER ERVICE 1.800.345.4009 Outside the US-Call Local Distributor Manufactured by Designs For Vision, Inc. 4000 Veterans Memorial Hwy Emergo Europe Bohemia, NY 11716 • 631/585-3300 B.V. Prinsessegracht 20 2514 Toll Free 800/345-4009 • Fax 631/585-3404 • Web Site: www.DesignsForVision.com...
