Summary of Contents for Designs for Vision NanoCam 4K/Go

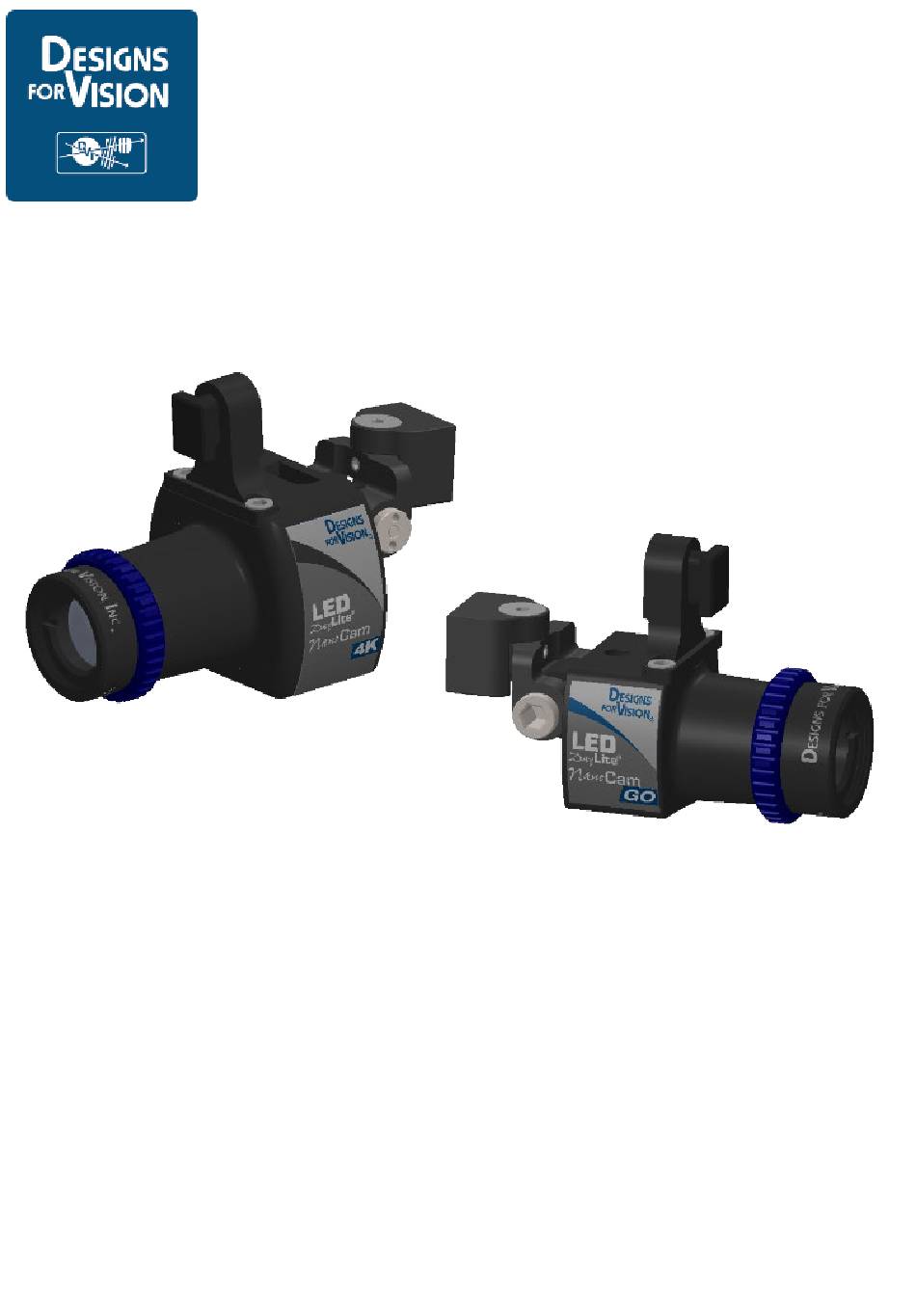

- Page 1 ® NanoCam 4K/Go UIDE Models: N4K/NCG Ver. 4.22 (En)
- Page 2 ATE OF SSUE 4-25-2022 4K/G ™ ANOCAM UIDE...
- Page 3 The Designs for Vision NanoCam 4K and NanoCam Go Cameras provide portable high definition and resolution for medical procedures. They are designed to be comfortable yet functional. They can be used with most of Designs for Vision headlight systems. NDICATIONS FOR...
- Page 4 Always examine the unit and accessories for damage before commencing use. Damaged accessories must not be used and must be replaced. Use original Designs for Vision, Inc. parts and accessories only. The use of unapproved parts may void the warranty.
- Page 5 liquids to enter openings or ports may void warranty. Equipment not suitable for use in the presence of a flammable anesthetic mixture with air or in an oxygen rich environment Care must be taken when operating this equipment around other equipment to avoid reciprocal interference.
- Page 6 When replacing battery, be careful to not crimp or crush wires inside of power pack Protect battery from fluids and damp environments Charge batteries with supplied charger only Waste of electrical and electronic equipment must not be disposed as unsorted municipal waste.
- Page 7 PECIFICATIONS NanoCam 4K Weight w/o headlight Weight w/headlight (UltraMini) 51 g Camera Dimensions 1.015”L x .986” W x .822”H Camera Dimensions w/brackets 1.625” L x .986” W x 1.33” H Resolution 4K, 1080P Megapixels Lens Magnification 16mm: 2.0X/25mm: 3.0X Software DBR Software Version: 1.3.1 Headlight Panoramic UltraMini...
- Page 8 (PC) R OMPUTER EQUIREMENTS Minimum Requirements NanoCam 4K NanoCam Go @720p CPU Rating over 3000 ● ● @720p Screen Res 1024 x 768 ● ● @1080p Intel i5 or i7 Processor ● ● @1080p Intel Graphics Card ● ● @1080p 8GB Ram ●...
- Page 9 EQUIREMENTS Minimum Requirements NanoCam 4K NanoCam Go @720p MacBook Air/Pro, iMac, ● ● Mac-Mini 2015 or later @1080p MacBook Air/Pro, iMac, ● ● Mac-Mini 2017 or later @1080p Intel i5/i7 Processor ● ● 8GB RAM ● ● OS X Version 10.13(High Sierra) ●...
- Page 10 TRANSPORT & STORAGE TEMPERATURE: C to 70 RELATIVE HUMIDITY: 10% to 100% including condensation ATMOSPHERIC PRESSURE: 500 to 1060 hPa ENVIRONMENTAL OPERATING CONDITIONS TEMPERATURE: C to 40 RELATIVE HUMIDITY: 30% to 75% ATMOSPHERIC PRESSURE: 700 to 1060 hPa APPROVALS IEC 60601-1, IEC 60601-1-2, Class A, CISPR 11, IEC 62133, IEC 62366-1 EQUIPMENT CLASS: Class II INGRESS OF WATER:...
-
Page 11: Table Of Contents
ONTENTS Device Description ..............12 Directions for Use ..............13 Using the NanoCam 4K/Go ........... 13 Inspection and Preventative Maintenance ......22 Description of Symbols ............24 Replacement Parts ............... 25 Electromagnetic Information ..........25 Warranty ................33 4K/G ANOCAM... -
Page 12: Device Description
EVICE ESCRIPTION The NanoCam 4K and NanoCam Go are video recording devices that are meant to be used in conjunction with Designs for Vision headlights. Both cameras offer high definition recording and image taking capability in two different magnifications 2.0X and 3.0X. They can be used for fluorescent guided applications as well (if equipped). -
Page 13: Directions For Use
SING THE NOTE: Before proceeding, plug the USB flash drive that came with your NanoCam 4K/Go into an available PC and run the setup file. Prior to your first use, you will need to perform the following steps to properly align and setup the camera, light... - Page 14 1. M 4K/G OUNTING O AND NSERTING ABLES Mount the camera/s to your frames or headset using the supplied T-Mount. Attach the Headlight (Fig. 1) to the camera as shown. Plug the small connector of the headlight cable into the top of the headlight. Plug the large connector of the cable into the headlight connector on the power pack.
- Page 15 (loupes) to the video monitor. Carefully remove your frame making sure to not shift the camera. Get the blue cap hex screwdriver included with your NanoCam 4K/Go. Place the driver into the opening for the locking shaft and turn clockwise to tighten.
- Page 16 Pull up and down on your camera to confirm that it is locked in place. 3. F 4K/G OCUSING Next, you will need to focus the micro-video lens system. Your NanoCam HDi ™ comes with two magnifications of micro-video lens systems 2.0X (16mm) and 3.0X (25mm). If you wish to change the magnification, carefully unscrew the micro-video lens system and replace it with one of the other magnification lens systems (Fig.
- Page 17 While holding the micro-video lens system with one hand, use your other hand to turn the lens system lock ring counter- clockwise until it locks the micro-video lens system into place. The micro-video lens systems have been optically matched with your surgical telescopes (loupes). When properly focused, the camera will have the same magnification and depth of field as what you see through your surgical telescopes (loupes).
- Page 18 This will lock the headlight with your camera. Your NanoCam 4K/Go should now be fully aligned and focused to your frame mounted telescopes. The image on your video monitor should look like the next picture (Fig. 3).
- Page 19 You must connect the USB Bluetooth Receiver to your device at all times to operate the footpedal. Once connected to a PC with the Designs for Vision, Inc. ® 4K/G ANOCAM...
- Page 20 software already installed, the foot pedal will help to control the camera functions. Note: The USB Bluetooth Receiver is paired to one footpedal, the footpedal will not work with another receiver. They both have the same serial number printed on them to identify the pair ECORD STOP...
- Page 21 A bookmark is created when the snapshot pedal is pressed during a recording. 6. U 4K/G FGS P SING YOUR O IN ROCEDURES Your NanoCam 4K/Go used with Designs Vision REVEAL product line. In IGHTEN W RED CAP...
-
Page 22: Inspection And Preventative Maintenance
Designs for Vision currently offers a 430nm filter. (Note the filter in Figure 5 is shown in pink for clarity purposes only). Note: Do not place both footpedals(REVEAL and NanoCam) close to your recording device, this may cause an intermittent... - Page 23 parts. Note: Do not let liquids enter openings or ports. Do not immerse parts in solutions. Using solutions other than recommended may void warranty. Allowing liquids to enter openings or ports may void warranty. Wipe cables with plastic-safe cleaners, if necessary. Do •...
-
Page 24: Description Of Symbols
ESCRIPTION OF YMBOLS ATTENTION / CAUTION INDICATES CONFORMITY WITH MDD 93/42/EEC ANNEX VII READ ACCOMPANYING DOCUMENTS WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) DIRECTIVE SYMBOL 4K/G ™ ANOCAM UIDE... -
Page 25: Replacement Parts
Reorient or relocate the receiving device Increase the separation between the equipment Consult Designs for Vision, Inc. for help Table 201 – Guidance and Manufacturer’s Declaration – Emissions All Equipment and Systems 4K/G... - Page 26 Guidance and Manufacturer’s Declaration – Emissions The NanoCam 4K/Go are intended for use in the electromagnetic environment specified below. The customer or user of the NanoCam 4K/Go should insure that it is used in such an environment. Electromagnetic Environment- Emissions Test...
- Page 27 Electromagnetic Immunity IEC 60601 Compliance Environment – Test Test Level Level Guidance ±8kV Contact ±8kV Contact Floor should be wood, concrete IEC 61000-4-2 ±2kV, ±4kV, ±15kV Air or ceramic tile. If ±8kV, ±15kV floors are synthetic, the r/h should be at least 30%.
- Page 28 Equipment and Systems that are NOT Life-Supporting Guidance and Manufacturer’s Declaration – Emissions The NanoCam 4K/Go are intended for use in the electromagnetic environment specified below. The customer or user of the NanoCam 4K/Go should ensure that it is used in such an environment.
- Page 29 Recommended Separations Distances for the LED DayLite ® ™ The NanoCam 4K/Go are intended for use in the electromagnetic environment in which radiated disturbances are controlled. The customer or user of the NanoCam 4K/Go can help prevent electromagnetic interference by maintaining a minimum distance between portable and...
- Page 30 217 Hz NOTE If necessary to achieve the IMMUNITY TEST LEVEL, the distance between the transmitting antenna and the NanoCam 4K/Go may be reduced to 1 m. The 1 m test distance is permitted by IEC 61000-4-3. For some services, only the uplink frequencies are included.
- Page 31 30 cm (8 inches) to any part of the NanoCam 4K/Go including cables specified by Designs for Vision, Inc. Otherwise, degradation of the performance of this equipment could result.
- Page 32 NanoCam 4K/Go may be adversely affected by EM DISTURBANCES possibly resulting in a loss of video issues. The NanoCam 4K/Go is intended to be used during medical procedures. Keep camara cable securely attached to the body using supplied clips. Headlight cable should not come in contact with HF EQUIPMENT/CABLES.
-
Page 33: Warranty
ARRANTY The NanoCam 4K/Go are warranted against imperfections and defects in materials and workmanship for three years. The internal batteries, charger, and cables are warranted for one year. Any damage caused by improper maintenance as described in the manual may not be covered by the warranty. - Page 34 MADE IN AMERICA ECHNICAL SUPPORT USTOMER ERVICE 1.800.345.4009 Outside the US-Call Local Distributor Manufactured by Designs for Vision, Inc Emergo Europe BV 4000 Veterans Memorial Hwy Bohemia, NY 11716 Prinsessegracht 20 2514 AP, United States The Hague NETHERLANDS Toll Free 800/345-4009 • Fax 631/585-3404 •...
