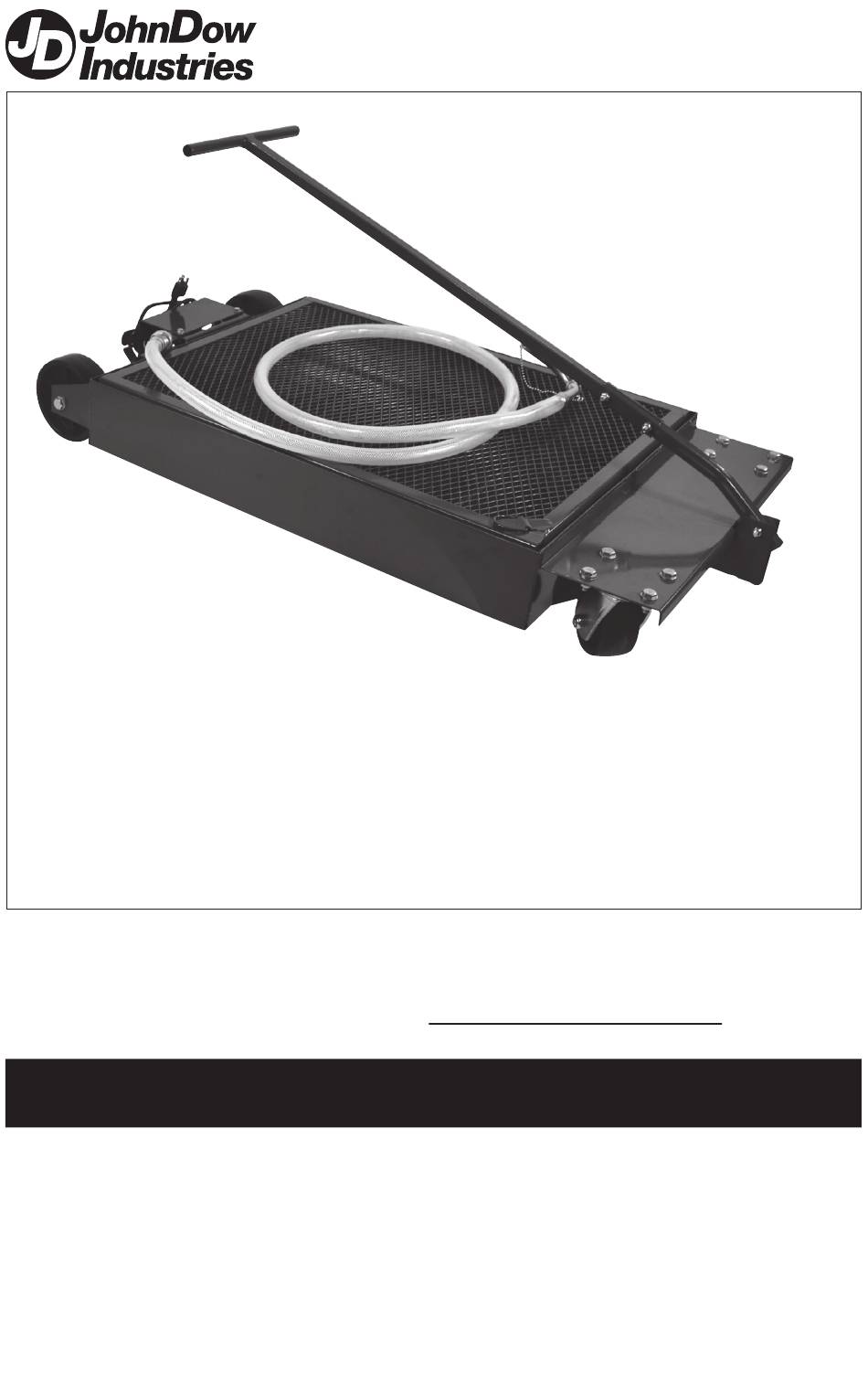

10-GALLON LOW-PROFILE ANTIFREEZE
DRAIN WITH ELECTRIC EVACUATION
PUMP USER'S MANUAL
Part No. JDI-AFT10E
FOR WARRANTY INFORMATION, PLEASE CALL 800-433-0708
DATE OF PURCHASE:
READ AND SAVE THIS MANUAL
FOR SERVICE ASSISTANCE, CALL 800-433-0708 OR VISIT JOHNDOW.COM
151 Snyder Ave.
Barberton, OH 44203
Rev 7/2021
Advertisement
Related Manuals for JohnDow Industries JDI-AFT10E
Summary of Contents for JohnDow Industries JDI-AFT10E
- Page 1 ™ 10-GALLON LOW-PROFILE ANTIFREEZE DRAIN WITH ELECTRIC EVACUATION PUMP USER’S MANUAL Part No. JDI-AFT10E FOR WARRANTY INFORMATION, PLEASE CALL 800-433-0708 DATE OF PURCHASE: READ AND SAVE THIS MANUAL FOR SERVICE ASSISTANCE, CALL 800-433-0708 OR VISIT JOHNDOW.COM 151 Snyder Ave. Barberton, OH 44203...
- Page 2 • Kerosene • Brake Fluid • Petroleum Distillates and Solvents • Hydraulic Oil • Vegetable or Animal Oils Cutting/Metal Oils CAPACITY AND DIMENSIONS Model No.: JDI-AFT10E Wheel Size (Front): 4” Swivel Casters Gallons: 10 Gallons Wheel Size (Rear): 4” Material:...
- Page 3 CONTENTS Item Item Description Description Tank 11 Handle - Upper M10 Nylon Insert Locknut 12 Screen Assembly M10 Flat Washer 13 1/4” NPT Plug 6” Swivel Caster Assembly 14 2” NPS Plug M10 Hex Head Cap Screw 15 6” Wheel M8 Nylon - Insert Locknut 16 M12 Hex Head Cap Screw M8 Flat Washer...
- Page 4 OPERATING 1. Roll the drain under the vehicle to be serviced and drain the fluid. To empty: 1. Position the drain next to the used oil receptacle. 2. Attach the 10’ evacuation hose to the outlet hose using the quick disconnect coupler. 3.
