JohnDow Industries JDI-27DC User Manual

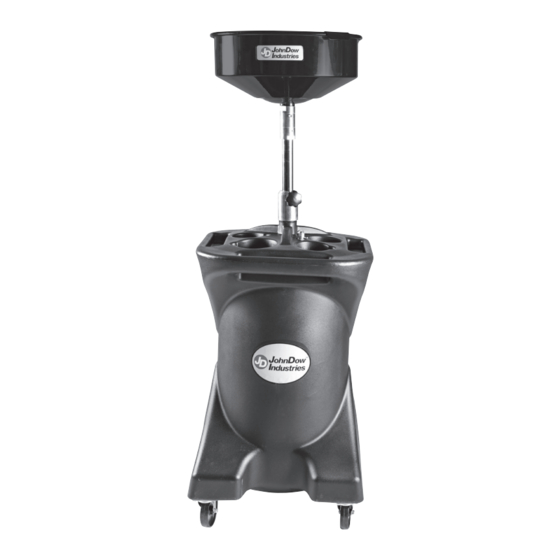

27-gallon self-evacuating portable oil drain

Download this manual

™

27-GALLON SELF-EVACUATING

PORTABLE OIL DRAIN USER'S MANUAL

Part No. JDI-27DC

FOR WARRANTY INFORMATION, PLEASE CALL 800-433-0708

DATE OF PURCHASE:

READ AND SAVE THIS MANUAL

FOR SERVICE ASSISTANCE, CALL 800-433-0708 OR VISIT JOHNDOW.COM

151 Snyder Ave.

Barberton, OH 44203

Rev 7/2021

Page 1 ™ 27-GALLON SELF-EVACUATING PORTABLE OIL DRAIN USER’S MANUAL Part No. JDI-27DC FOR WARRANTY INFORMATION, PLEASE CALL 800-433-0708 DATE OF PURCHASE: READ AND SAVE THIS MANUAL FOR SERVICE ASSISTANCE, CALL 800-433-0708 OR VISIT JOHNDOW.COM 151 Snyder Ave. Barberton, OH 44203 Rev 7/2021...
Page 2 • Transmission Oil • Kerosene • Brake Fluid • Petroleum Distillates and Solvents • Hydraulic Oil • Vegetable or Animal Oils Cutting/Metal Oils CAPACITY AND DIMENSIONS Product Specification JDI-27DC Material Roto-molded polyethylene Gallons 27 gallons Wheel Size 4” Casters Funnel Size 16”...
Page 3 CONTENTS Item Description Qty. Poly Drain Assembly 4” Caster Wheels 1/4” x 3/4” Bolts (not shown) 3/4” Washers (not shown) Fluid Level Gauge Assembly Drain Tube w/Collar & Height Adjustment Tool 3/4” Ball Valve ASSEMBLY INSTRUCTIONS 1. Caster Assembly: Attach the casters to the drain using the bolts and washers provided (Figure 1). 2.
Page 4 Height OPERATION Adjustment 1. To raise or lower the funnel, loosen the funnel height adjustment knob and move the drain tube up or down to desired height (Figure 6). 2. Make sure the lower ball valve is closed before use. Figure 6 3.
