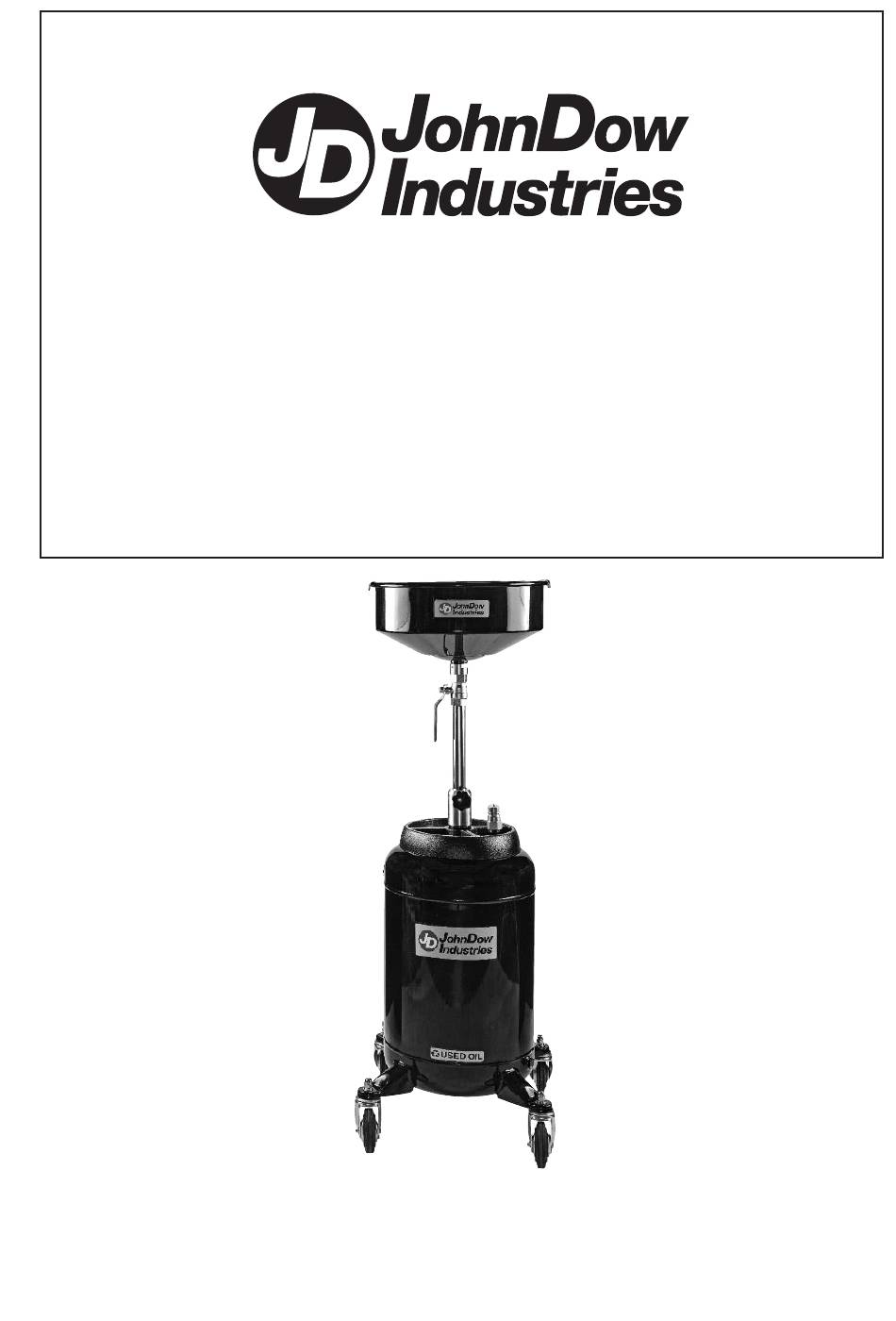

- Page 1 ™ 16-Gallon Portable Oil Drain Model Model: JDI-16DC-E Operator’s Manual 151 Snyder Ave. www.johndow.com Barberton, OH 44203 customerservice@johndow.com REV 8/28/17...
- Page 2 OPERATOR’S MANUAL JDI-16DC-E Safety & Warning Instructions READ THIS MANUAL CAREFULLY BEFORE INSTALLING, OPERATING OR SERVICING THIS EQUIPMENT It is responsibility of the employer to place this information in the hands of the operator. Keep for future reference. • Wear proper safety equipment and clothing, safety glasses/goggles.
- Page 3 OPERATOR’S MANUAL JDI-16DC-E Assembly Instructions Tools Required: 3mm hex key 3/4 in. (19 mm) thin open end wrench (included) 3/4 in (19 mm) wrench or socket 1. Install 4 casters, washers, lock washers. Hold the caster stem with the special thin wrench as shown (See Fig. 1). Tighten the Fig.
- Page 4 OPERATOR’S MANUAL JDI-16DC-E Replacement Parts: Item Description Part No. Funnel, center mount with screen 20DCE-1A Down tube assembly (tube, collar, knob, DTA-25-B and ball valve) Adjustment knob 20DCE-6 4-inch caster 20DCE-3 Replacement site tube and fittings S-KIT Tool Tray JDI16-DCE-04...
