Installation & Operation Manual

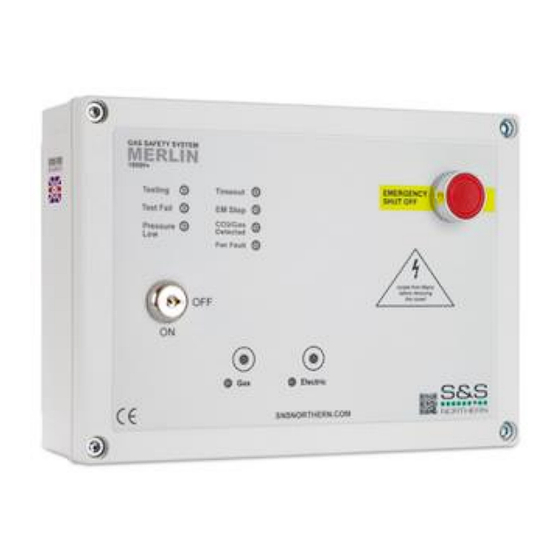

Merlin 1000V+
MERLIN 1000V+
Gas & Electric Isolation Controller with Ventilation Interlocking
INSTALLATION & OPERATION MANUAL
Please read these instructions carefully and retain for future use.
These instructions can be downloaded in electronic form on the product website (www.snsnorthern.com) or a printed version
can be ordered free of charge via S&S Northern Limited.
1
Rev: 07 050924
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for S&S Northern MERLIN 1000V+
Summary of Contents for S&S Northern MERLIN 1000V+
- Page 1 Installation & Operation Manual Merlin 1000V+ MERLIN 1000V+ Gas & Electric Isolation Controller with Ventilation Interlocking INSTALLATION & OPERATION MANUAL Please read these instructions carefully and retain for future use. These instructions can be downloaded in electronic form on the product website (www.snsnorthern.com) or a printed version can be ordered free of charge via S&S Northern Limited.
-
Page 2: Table Of Contents
Installation & Operation Manual Merlin 1000V+ Contents IMPORTANT INFORMATION ..............3 Copyrights ........................... 3 Manufacturer’s Warranty ......................3 Disposing of Electrical & Electronic Equipment (WEEE) .............. 3 Revisions ............................. 3 Maintenance ..........................3 Warning Symbol .......................... 4 INSTALLATION .................. 4 General Safety Cautions ....................... -
Page 3: Important Information
Installation & Operation Manual Merlin 1000V+ IMPORTANT INFORMATION Copyrights This manual is subject to copyright protection; all rights are reserved. Under international and domestic copyright laws, this manual may not be copied or translated, in whole or in part, in any manner or format, without the written permission of S&S Northern Limited Manufacturer’s Warranty The manufacturer warrants to the original consumer purchaser, that this product will be free of defects... -
Page 4: Warning Symbol
Installation & Operation Manual Merlin 1000V+ Warning Symbol Where this symbol is used, consult manual to understand any potential hazards and how to avoid them. The information contained within this manual should be referenced for typical installation and operation only. Isolate the equipment from all hazardous live power sources before opening the cover. -
Page 5: Access & Mounting
Installation & Operation Manual Merlin 1000V+ Access & Mounting Unpack all the parts! Designed for surface mounting and must be installed by a licensed, insured contractor or competent person. Carefully remove the front cover from the unit by unscrewing the four bolts located at each corner. - Page 6 Installation & Operation Manual Merlin 1000V+ ELECTRIC CONTACTOR 230V~ AC electrical power is supplied from the [ELECTRIC CONTACTOR] terminal connected to a contactor which can isolate electrics on alarm status. Refer to your contactor manual for more information. Connections are available on the board for Building Management Systems. [NO Normally Open] [COM Common] [NC Normally Closed].
- Page 7 Installation & Operation Manual Merlin 1000V+ Connecting a Merlin Gas Detector i or Detector i-S Connecting a Merlin Gas Detector X Rev: 07 050924...
- Page 8 Installation & Operation Manual Merlin 1000V+ Connecting a Merlin CO2X FAN SWITCHES (FS 1 / 2 / 3) These terminals can be connected to a fan switch (supplied separately) which provide power to fans when the emergency shut-off button is pressed. Example of a Merlin FS1 given. Rev: 07 050924...
- Page 9 Installation & Operation Manual Merlin 1000V+ PD SWITCHES & 12VDC The PD terminals are used to receive an input signal from external air pressure switches or current monitors. This terminal is linked out as a factory setting. Wiring to external air pressure switches or current monitors should made using a two-core cable. This is a volt free connection The 12VDC terminal is a permanent power output for external auxiliary devices when there is power at the panel and can be used to create a relay switch with the BMS relay output.
-
Page 10: Auto Reset Dipswitch
Installation & Operation Manual Merlin 1000V+ Auto Reset Dipswitch When power is restored after the power cut/ loss, the panel must be restarted manually. (Default) This will instruct the system to restart automatically when power is restored after power cut/loss. BMS SEL Dipswitch OFF Signals the BMS when gas supply is on, or gas is off. -
Page 11: Auto Shut Down - Utility Selection
Installation & Operation Manual Merlin 1000V+ Auto Shut Down – Utility Selection There is a switch located on the circuit board labelled [ELECTR]. This is factory set to ‘Off’. When switched On - This will instruct the system to also turn off Electrical supply when performing auto-shut down. -
Page 12: Maintenance
Installation & Operation Manual Merlin 1000V+ • EM STOP If an emergency shut off button (either remote or on the panel) is pressed, the LED will illuminate AMBER, and the gas will be turned off and the fans switch (if a fan switch is connected). OFF = OK / ON = Emergency Shut-Off button activated. - Page 13 Installation & Operation Manual Merlin 1000V+ Page intentionally left blank Rev: 07 050924...
- Page 14 Installation & Operation Manual Merlin 1000V+ Page intentionally left blank Rev: 07 050924...
-
Page 15: Specification
Installation & Operation Manual Merlin 1000V+ SPECIFICATION General Model: 1000V+ Size: (H x W x D) 7.08 x 10.03 x 3” (180 x 255 x 77 mm) Housing Material: ABS Polylac - PA765. UL 94 V-1 Mounting: Indoor use - Wall Mounting User Interface Visual Indicators: Audible Alarm:... - Page 16 Installation & Operation Manual Merlin 1000V+ Every effort is made to ensure the accuracy of this document; however, S&S Northern can assume no responsibility for any errors or omissions in this document or their consequences. S&S Northern would greatly appreciate being informed of any errors or omissions that may be found in the content of this document.
