Installation & Operation Manual
S&S Northern provide a range of detection panels which can be used in many applications such as factories, server
rooms, shopping centres and boiler houses. The WLMZ2 is used with up to six (6) Water Leak Monitors in a single
cable run for detection of water leaks in zones.
The information contained within this manual should be referenced for typical installation and operation only.
For specific requirements that may deviate from the information in this guide – contact your supplier.
Rev: 2 02-24

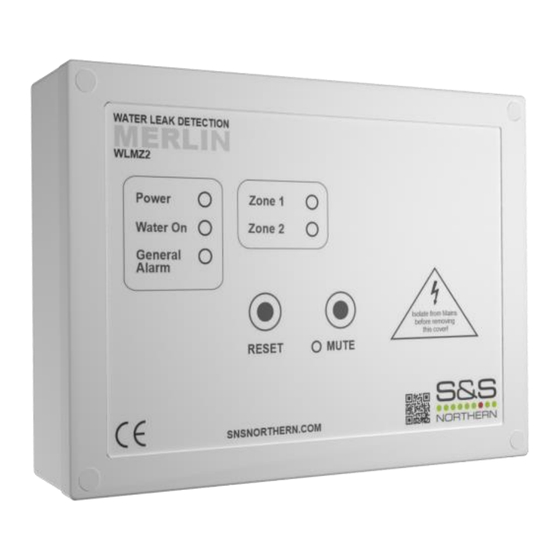

MERLIN WLMZ2
2-Zone Water Leak Detection Controller
Installation, Operation & Maintenance
Please read this manual carefully and retain for future use.
Merlin WLDZ2
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for S&S Northern MERLIN WLMZ2
Summary of Contents for S&S Northern MERLIN WLMZ2
- Page 1 Installation & Operation Manual Merlin WLDZ2 MERLIN WLMZ2 2-Zone Water Leak Detection Controller Installation, Operation & Maintenance Please read this manual carefully and retain for future use. S&S Northern provide a range of detection panels which can be used in many applications such as factories, server rooms, shopping centres and boiler houses.
-
Page 2: Table Of Contents
Installation & Operation Manual Merlin WLDZ2 Contents Important Warning Statements ................. 3 Installation ........................4 Typical Application, Location & Positioning ................4 Access & Mounting ........................4 Internal Board Overview ......................4 Board Connections Overview ..................... 5 Wiring your Detector ........................5 BMS Switch .......................... -
Page 3: Important Warning Statements
Installation & Operation Manual Merlin WLDZ2 Important Warning Statements Where this symbol is used, the manual must be consulted to understand the nature of any potential hazards and how to avoid them. Before any installation, use or maintenance read this manual carefully. The information contained within this manual should be referenced for typical installation and operation only. -
Page 4: Installation
Typical Application, Location & Positioning The Merlin WLMZ2 is a 2-zone water detection panel which can be used in many applications such as factories, shopping centres, boiler houses and most commonly – server rooms. It can be used with up to 8 Merlin Water Leak Detection Monitors (3 monitors per zone terminal) for detecting water leaks. -
Page 5: Board Connections Overview
Installation & Operation Manual Merlin WLDZ2 Board Connections Overview POWER/LINE IN 100-240vac mains power is supplied to the [POWER/LINE IN] connector using a 3-core cable fused at 3A. On connecting the mains supply to the panel the power LED indicator will light up – this is located on the front. -
Page 6: Auto Reset Switch
Installation & Operation Manual Merlin WLDZ2 Auto Reset Switch The panel has a built-in auto reset feature. There is a dipswitch located on the circuit board labelled [AUTO RESET]. This is factory set in the ‘Off’ position i.e. when power is restored after a power cut or loss, the panel has to be restarted manually. -
Page 7: Mute & Reset Buttons
Installation & Operation Manual Merlin WLDZ2 General Alarm If an external alarm is triggered, the LED will illuminate AMBER and the water supply will be turned off. The error condition must be re-set before restarting the system. Zones 1-2 Under normal working conditions this LED is GREEN. If the Water Leak Monitor connected detects a fault with the water leak rope, this will show AMBER. - Page 8 Installation & Operation Manual Merlin WLDZ2 Every effort is made to ensure the accuracy of this document; however, S&S Northern can assume no responsibility for any errors or omissions in this document or their consequences. S&S Northern would greatly appreciate being informed of any errors or omissions that may be found in the content of this document.
